VOICE ALARM EN54
IN 9000
INTEGRITY NETWORK EMERGENCY MICROPHONE CONSOLE
- Up to 64 units connectable
- 4 independent outputs lines
- Live emergency announcements
- Complete self-diagnostic
![](https://www.rcf.it/documents/20128/824041/000_IN-9000-front_gallery+%281%29.png/4b7003c7-e162-1b37-cd5f-b7a29940621a?version=1.1&t=1636010252511&imagePreview=1)
![](https://www.rcf.it/documents/20128/824041/001_IN-9000-front_gallery.jpg/e83bb5e6-8fc1-eaf7-d380-c9d38e42b51b?version=1.1&t=1636010255685&imagePreview=1)
![](https://www.rcf.it/documents/20128/824041/009_IN-9000-open_gallery.jpg/fa8decdd-d75f-87f0-f06a-e18c5c24e121?version=1.1&t=1636010258684&imagePreview=1)
![](https://www.rcf.it/documents/20128/824041/011_IN-9000-closeup1_gallery.jpg/ba364b8a-e9e5-a5e4-67a3-eac9fd4394d1?version=1.1&t=1636010261569&imagePreview=1)
![](https://www.rcf.it/documents/20128/824041/000_IN-9000-front_gallery+%281%29.png/4b7003c7-e162-1b37-cd5f-b7a29940621a?version=1.1&t=1636010252511&imagePreview=1)
![](https://www.rcf.it/documents/20128/824041/001_IN-9000-front_gallery.jpg/e83bb5e6-8fc1-eaf7-d380-c9d38e42b51b?version=1.1&t=1636010255685&imagePreview=1)
![](https://www.rcf.it/documents/20128/824041/009_IN-9000-open_gallery.jpg/fa8decdd-d75f-87f0-f06a-e18c5c24e121?version=1.1&t=1636010258684&imagePreview=1)
![](https://www.rcf.it/documents/20128/824041/011_IN-9000-closeup1_gallery.jpg/ba364b8a-e9e5-a5e4-67a3-eac9fd4394d1?version=1.1&t=1636010261569&imagePreview=1)
Features
- Up to 64 units connectable
- 4 independent outputs lines
- Live emergency announcements
- Complete self-diagnostic

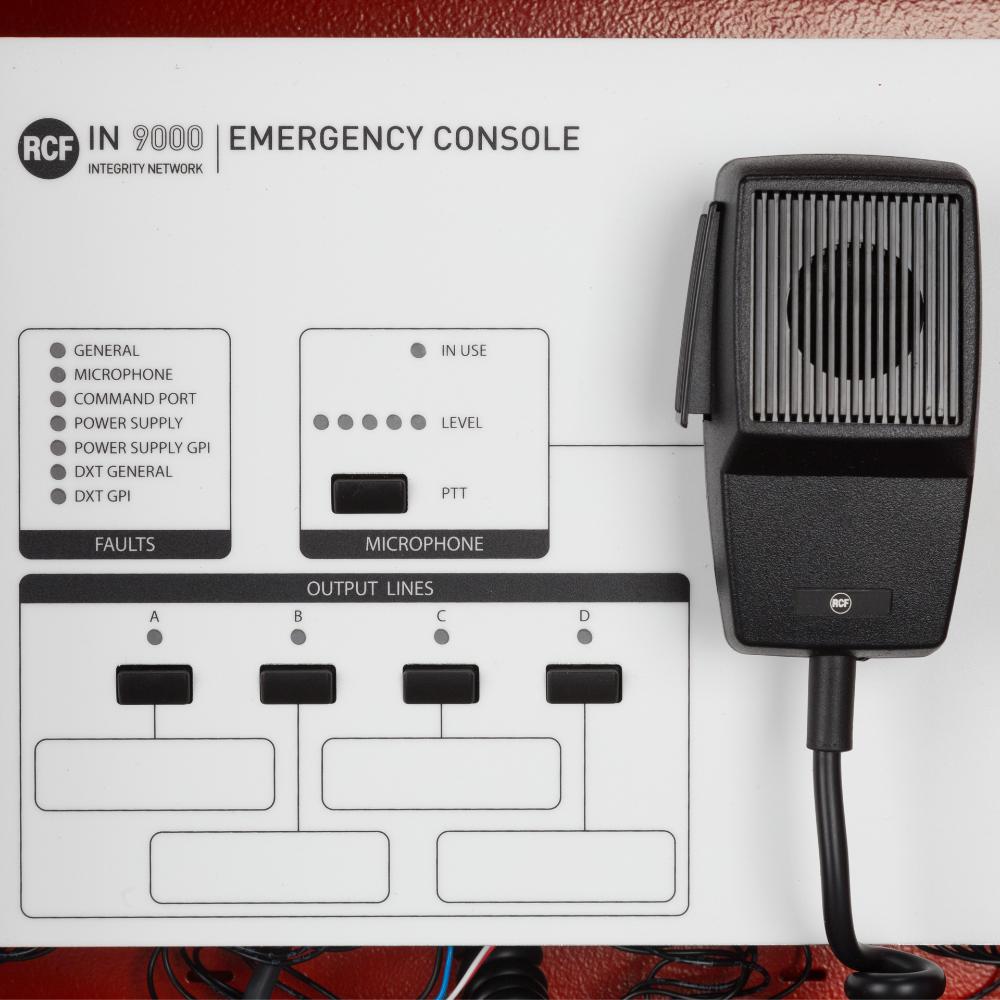

- 3 configurable buttons and display
- Handheld microphone with PTT button

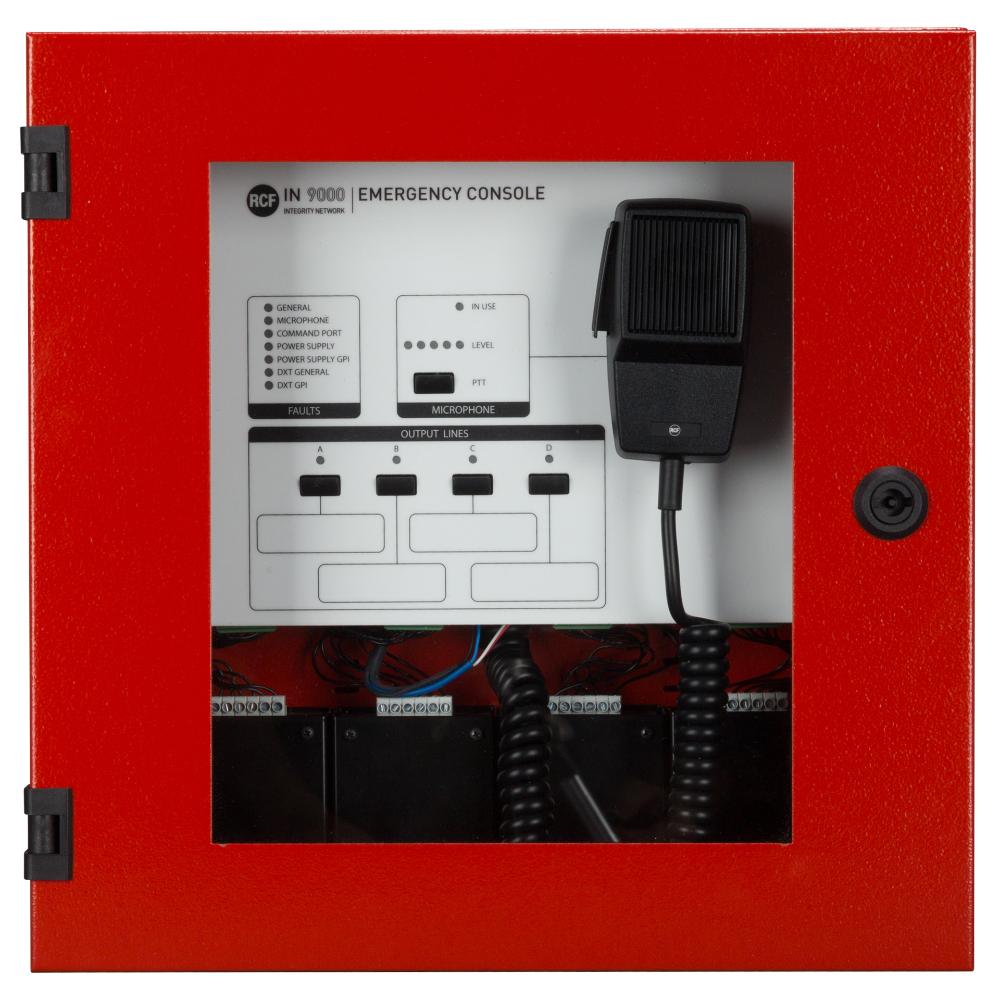

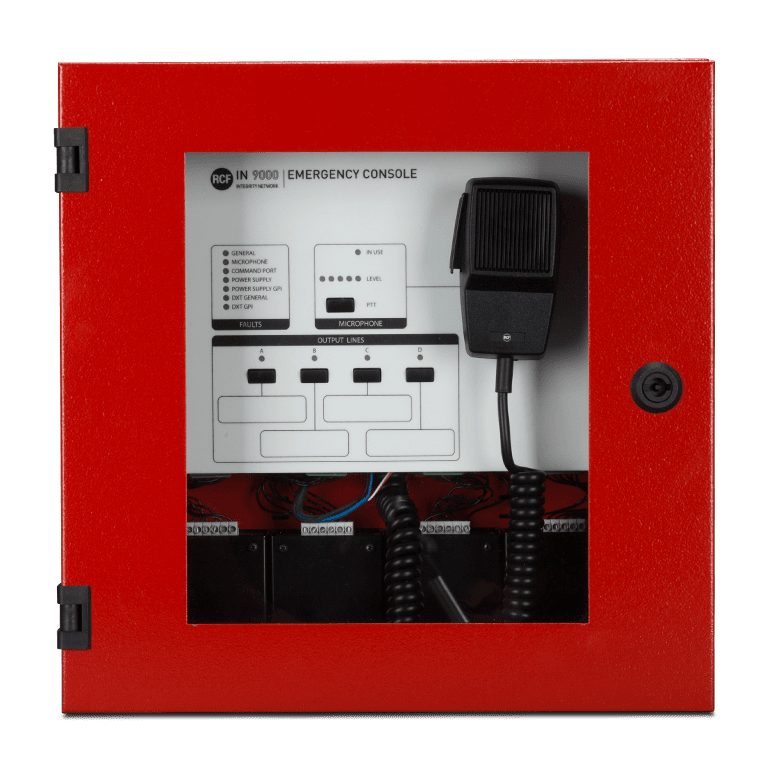

- Protected into a robust metal box
IN 9000 is a firemen, wall-mount emergency microphone console exclusively dedicated to DXT 9000 Voice Alarm system, conceived to provide an analog backup solution for emergency communications in case of interruption of the main communication bus among system’s units. It features complete self-diagnostic functionalities and system status reporting in compliance with EN 54-16:2008 standard. It shall be powered by an external power supply certified EN54-4 providing at least 20 W output power. The audio output can be distributed up to 64 DXT 9000 units, and routed on 4 independent lines, selectable on console front panel.
ARCHIVED
Part number:
14322024
IN 9000
EAN 8024530013615
Specifications
Microphone specifications
Type
Dynamic
Directivity
Omnidirectional
Sensitivity
-70 dB
Frequency Response (-3dB)
300 Hz ÷ 6000 kHz
Output impedance (ohm)
500.00 ohm
Console specifications
Console Type
Emergency
Working with
DXT 9000
General call
Yes
Selective call
Yes
Preamplified
Yes
LED indicators
Yes
Power requirement
Operating voltage
24.00V ~ Hz
Connections
Connectors
Euroblock
Cable
J-Type fire-rated
Daisy-chain
Yes
Max number in daisy-chain
4
Interlock
Yes
Functionalities
Priority
Yes
Standard compliance
Safety agency
CE compliant
EN54-16 certified
Yes
CPR number
0068-CPR-002/2014
Physical specifications
Cabinet/Case Material
Metal
Size
Height
360 mm / 14.17 inches
Width
360 mm / 14.17 inches
Depth
129 mm / 5.08 inches
Weight
7.6 kg / 16.76 lbs
Shipping information
Package Height
130 mm / 5.12 inches
Package Width
360 mm / 14.17 inches
Package Depth
360 mm / 14.17 inches
Package Weight
8.4 kg / 18.52 lbs
