IE 3008
INTERLINK BOARD
- Connects up to 8 units
- Master/slave architecture
- Fully redundant communication bus
- Powered by master unit
EN 54
Features
- Connects up to 8 units
- Master/slave architecture
- Fully redundant communication bus
- Powered by master unit
- General and zone alarm activation
- Global and local BGM inputs

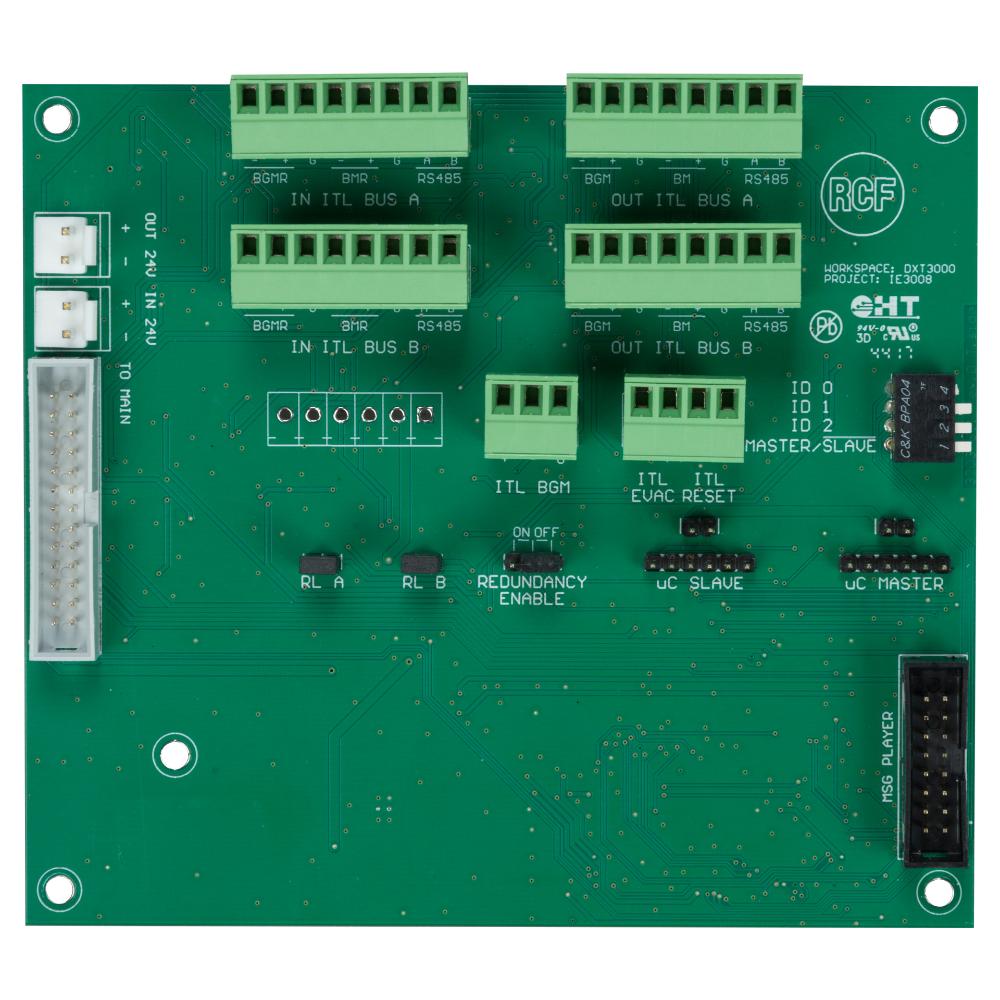

IE 3008 is an additional board for DXT 3000 system that extends its capability and functionalities allowing the connection of a maximum of 8 units, in a master/slave configuration. It shall be installed inside the cabinet of each device. System's units communicate through a redundant bus, transporting commands and 2 audio channels.
Part number:
12399015
IE 3008
EAN 8024530015152
Specifications
General specifications
Max number of units connectable:
8
Max number of consoles:
4
Number of console buses:
1
Number of audio channels:
2
Communication bus:
Serial RS485
General Purpose Inputs (GPI):
2 (EVAC / RESET)
Photo-coupled GPI:
2
Max distance between first-last unit:
800 m
Inputs / Outputs Connectors:
Euroblock
Operating voltage:
24 V DC (from MX 3250 / MX 3500)
Standard compliance
Safety agency
CE compliant
EN54-16 certified
Yes
CPR number
0068-CPR-007/2015
Physical specifications
Color
Black
Size / Weight
Width
130 mm / 5.12 inches
Depth
115 mm / 4.53 inches
Weight
0.15 kg / 0.33 lbs
Shipping information
Package Height
74 mm / 2.91 inches
Package Width
204 mm / 8.03 inches
Package Depth
142 mm / 5.59 inches
Package Weight
0.35 kg / 0.77 lbs
