Features
  • Array subwoofer
  • 18" RCF Precision woofers with 4" voice coil
  • 136 dB Max SPL
  • System Power rating 900 Watt RMS
  • Safe and solid variable array mechanics
  • Baltic Birch Plywood enclosure with internal structural metal bracings

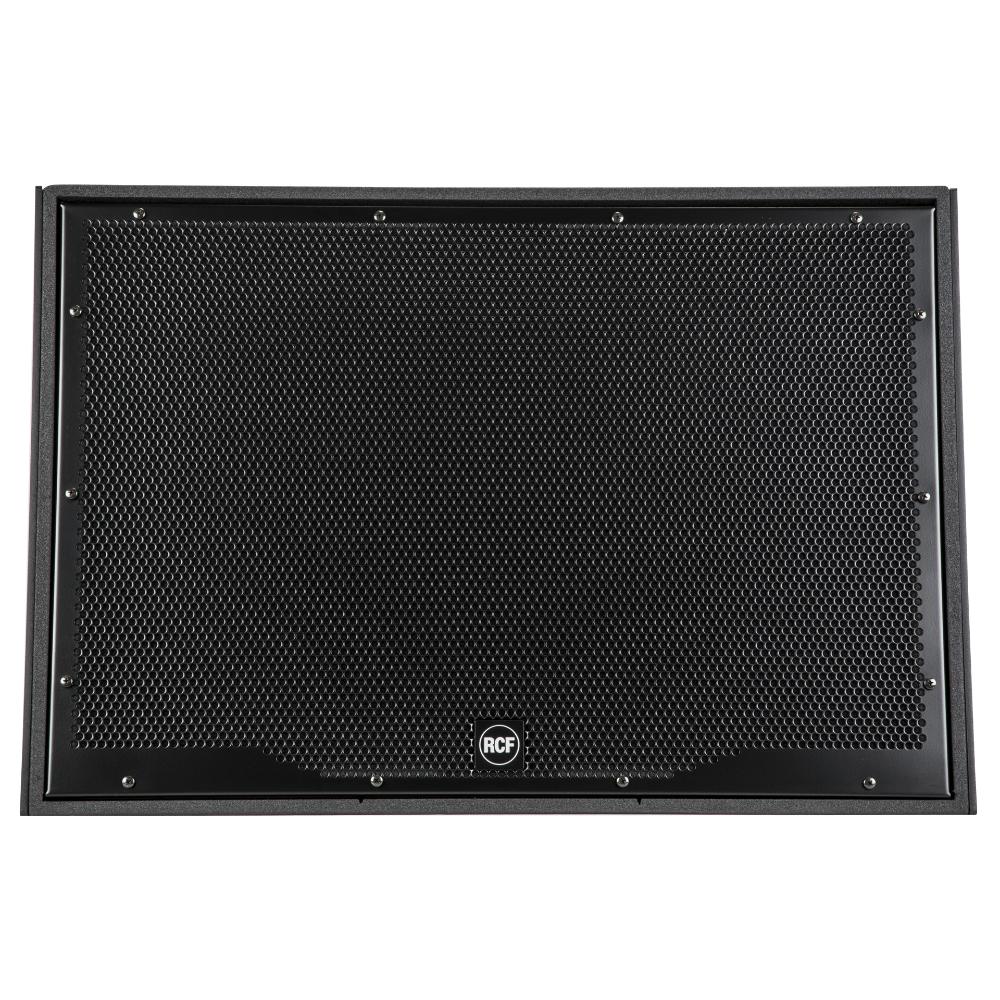

The HS 2200 is an array subwoofer system that incorporates a 18” woofer, 4.0” voice coil . The system is very compact and provides very high output and accurate voice and sound reproduction. The system is equipped with the latest generation of RCF precision transducers. Connections to the amplifier are made through a watertight Amphenol multi-pole connector. The grille is in custom perforated steel, epoxy coated, with open-cell fibres and water repellent woven fabric backing. The cabinet is constructed of multi-ply Baltic birch marine plywood and finished in a very resistant, textured, polyurea black paint.


ARCHIVED

Part number:

13000406
HS 2200
EAN 8024530011628

13000745
HS 2200
EAN 8024530019433

Recommended Power Amp

XPS SERIES

4 x 4000 W
Class D continuous power
at 2.7 Ohms
40-bit Floating-point
Processing at 96 kHz
Ready-to-Use
Configurations and presets
for RCF speakers
2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O
Advanced Fault Protections
for each amplifier channel and power supply
Responsive Image
Specifications
Acoustical specifications
Frequency Response (-10dB)
30 Hz ÷ 200 Hz
Frequency Response (-3dB)
35 Hz ÷ 200 Hz
Max SPL @ 1m
136 dB
System Sensitivity
100 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
900 W
Peak Power Handling
3600 W PEAK
Recommended Amplifiers
XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K
Transducers
Woofer
18'', 4.0'' v.c
Input/Output section
Input connectors
Amphenol eco/mat IP 67
Output connectors
Amphenol eco/mat IP 67
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware

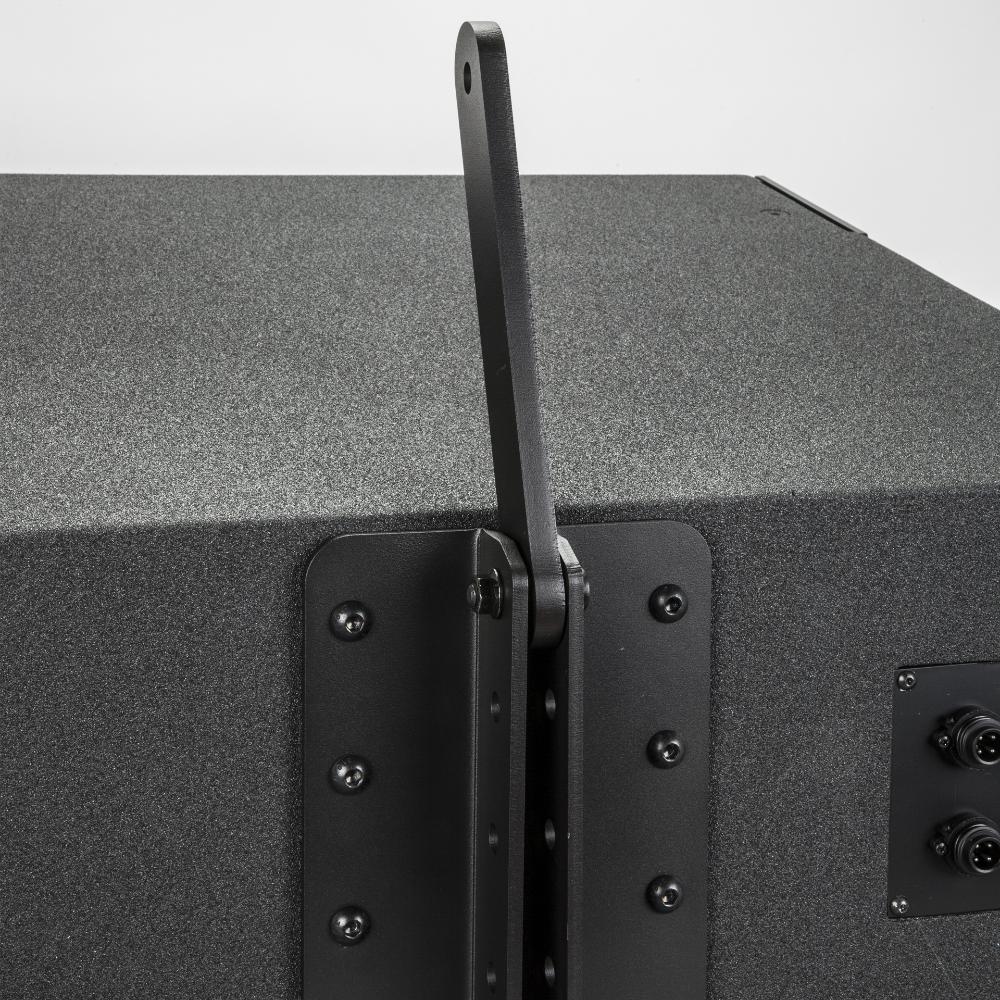

Side and rear array rigging point
Grille
Steel
Color
Custom color, Black
Size / Weight
Height
530 mm / 20.87 inches
Width
771 mm / 30.35 inches
Depth
635 mm / 25 inches
Weight
50.8 kg / 111.99 lbs
Shipping information
Package Height
720 mm / 28.35 inches
Package Width
860 mm / 33.86 inches
Package Depth
820 mm / 32.28 inches
Package Weight
52.3 kg / 115.3 lbs
