ARCHIVED

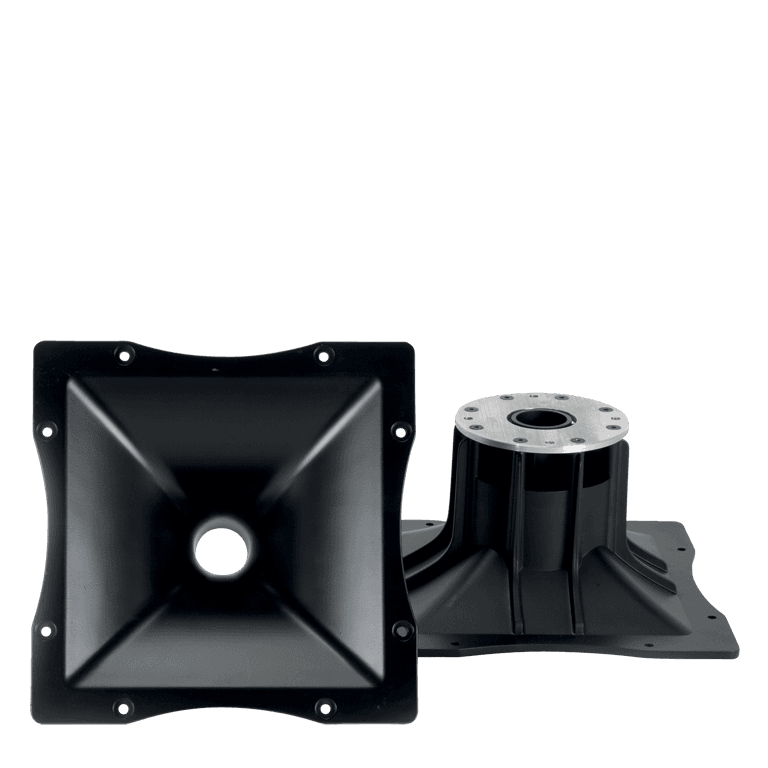

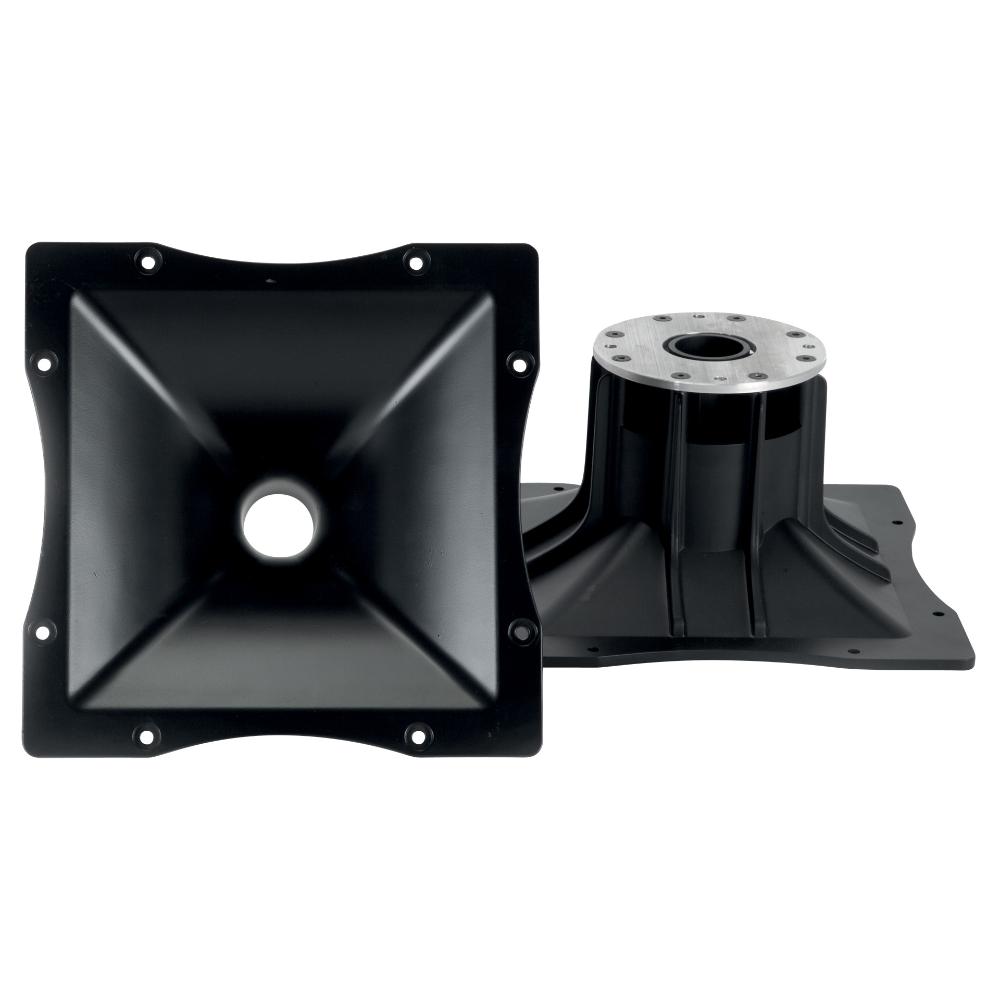

HF99

PRO HF HORN

1.4 inch Throat Adaptor
90° x 90° Constant Directivity Coverage
Loading down to 500 Hz
Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers

Support

Features

1.4 inch Throat Adaptor
90° x 90° Constant Directivity Coverage
Loading down to 500 Hz
Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers
Perfectly Controlled Dispertion

1-inch/1.4 inch Throat Adaptor.90° x 90° Constant Directivity Coverage. Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers. Perfectly Controlled Dispertion

ARCHIVED

Part number:

13133069
HF99

Specifications

General specifications

Throat Diameter

36 mm / 1.4 inch

Horizontal coverage angle

90°

Vertical coverage angle

90°

Cut-off Frequency

500 Hz

Material

Aluminum

Mounting information

Overall height

250 mm / 9.84 inches

Overall width

250 mm / 9.84 inches

Overall depth

123 mm / 4.84 inches

Baffle Cut-out height

200 mm / 7.87 inches

Baffle Cut-out width

200 mm / 7.87 inches

Mounting

4 x 7 mm holes, interaxes 101 mm

Standard compliance

Safety agency

CE compliant

Physical specifications

Color

Black

Size / Weight

Height

130 mm / 5.12 inches

Diameter

250 mm / 9.84 inches

Weight

1.5 kg / 3.31 lbs

Shipping information

Package Height

160 mm / 6.3 inches

Package Width

290 mm / 11.42 inches

Package Depth

290 mm / 11.42 inches

Package Weight

2.28 kg / 5.03 lbs

Downloads

SPECIFICATIONS

SPECSHEET - ENG

PDF

452 KB

18-10-2024

ACOUSTIC MEASUREMENTS

PDF

135 KB

25-07-2024

DRAWINGS

LINE ART 2D

PDF

137 KB

21-03-2018
