PRECISION TRANSDUCERS

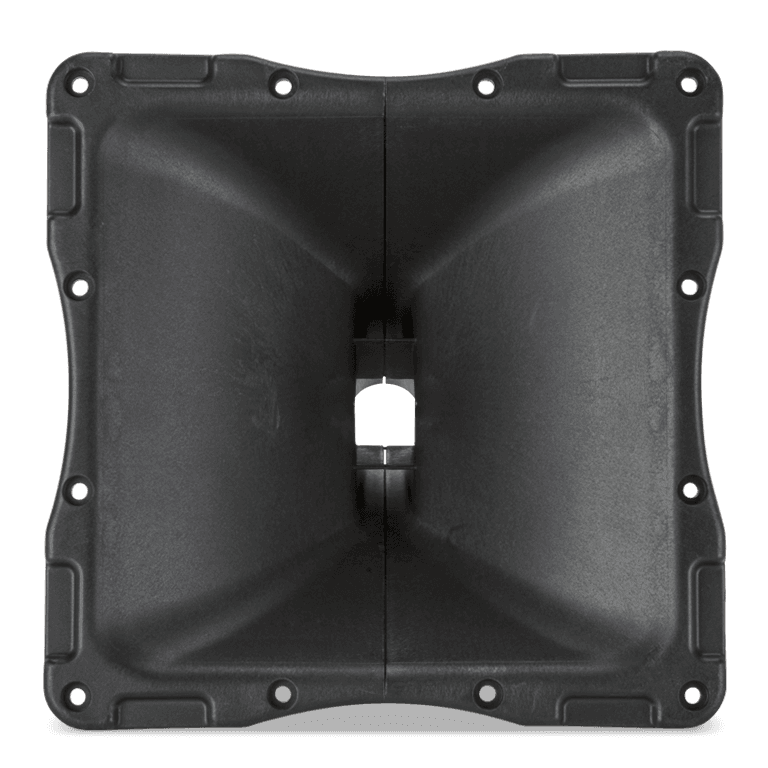

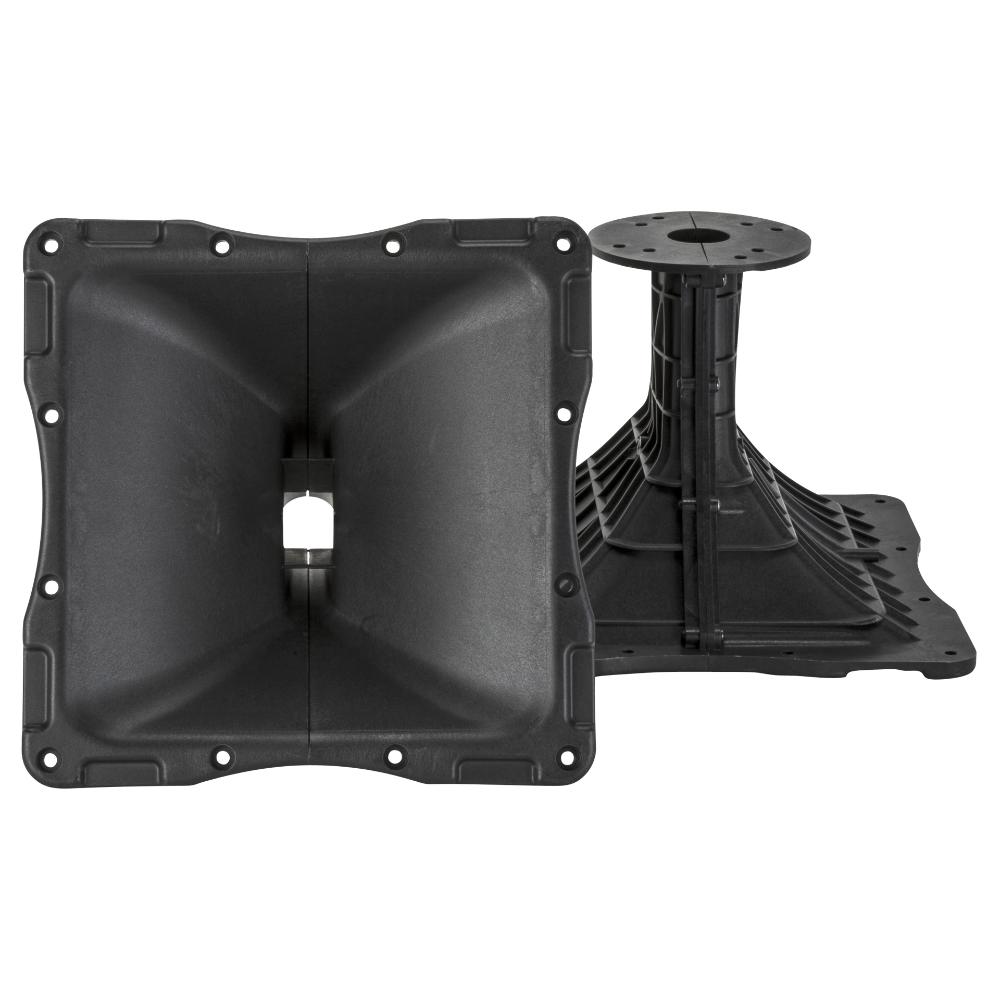

HF950

PRO HF HORN

1.4 inch Throat Adaptor
90° x 50° Constant Directivity Coverage
Loading down to 400 Hz
Structural Polyurethane

Where to buy

Features

1.4 inch Throat Adaptor
90° x 50° Constant Directivity Coverage
Loading down to 400 Hz
Structural Polyurethane
Perfectly Controlled Dispertion

1-inch/1.4 inch Throat Adaptor.90° x 50° Constant Directivity Coverage. Structural Polyurethane Perfectly Controlled Dispertion

Part number:

13133080
HF950

Specifications

General specifications

Throat Diameter

36 mm / 1.4 inch

Horizontal coverage angle

90°

Vertical coverage angle

50°

Cut-off Frequency

400 Hz

Material

Structural Polyurethane

Mounting information

Overall height

300 mm / 11.81 inches

Overall width

300 mm / 11.81 inches

Overall depth

208 mm / 8.19 inches

Baffle Cut-out height

260 mm / 10.24 inches

Baffle Cut-out width

260 mm / 10.24 inches

Mounting

4 x 7 mm holes, interaxes 101 mm

Standard compliance

Safety agency

CE compliant

Size / Weight

Height

221 mm / 8.7 inches

Diameter

270 mm / 10.63 inches

Weight

1.17 kg / 2.58 lbs

Shipping information

Package Height

239 mm / 9.41 inches

Package Width

332 mm / 13.07 inches

Package Depth

332 mm / 13.07 inches

Package Weight

2.1 kg / 4.63 lbs

Downloads

SPECIFICATIONS

SPECSHEET - ENG

PDF

702 KB

19-08-2024

ACOUSTIC MEASUREMENTS

PDF

135 KB

12-07-2024

DRAWINGS

LINE ART 2D

PDF

606 KB

21-03-2018
