PRECISION TRANSDUCERS

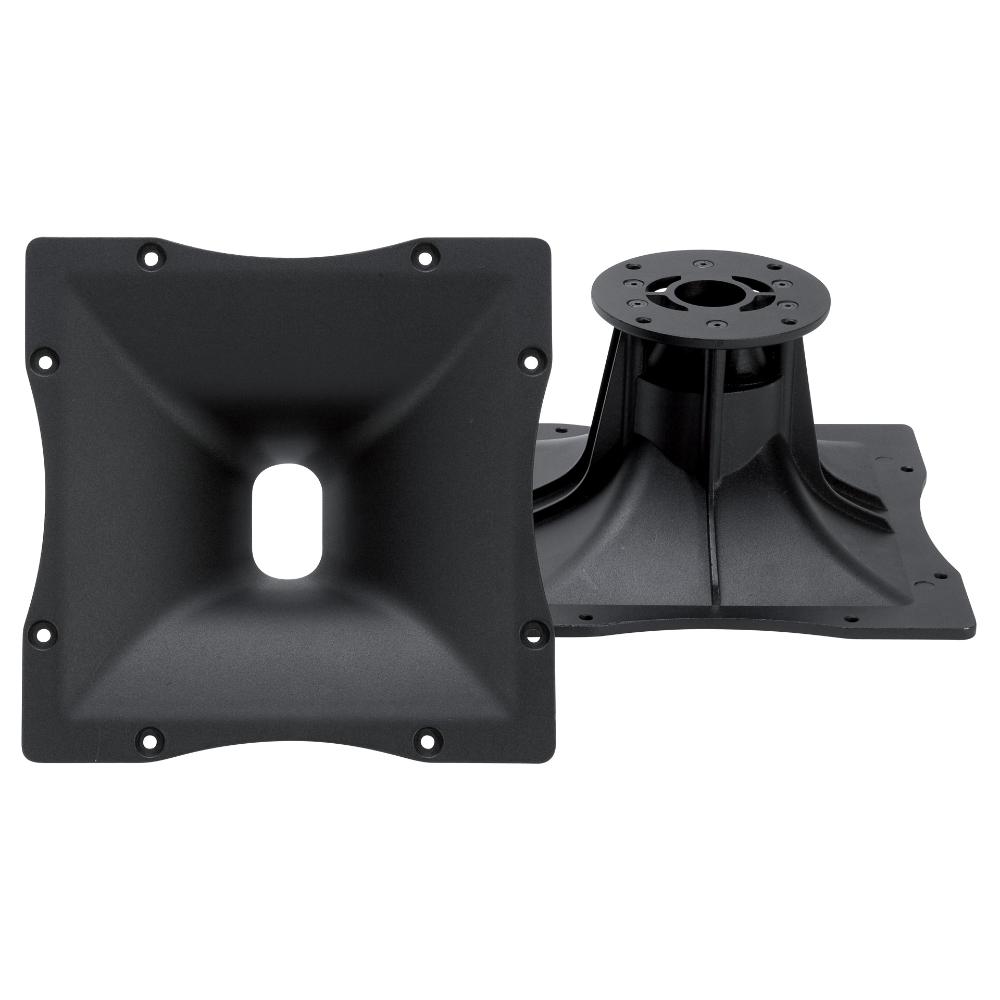

HF94

PRO HF HORN

1-inch/1.4 inch Throat Adaptor
90° x 40° Constant Directivity Coverage
Loading down to 500 Hz
Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers

Where to buy

Features

1-inch/1.4 inch Throat Adaptor
90° x 40° Constant Directivity Coverage
Loading down to 500 Hz
Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers
Perfectly Controlled Dispertion

Part number:

13133047
HF94

Specifications

General specifications

Throat Diameter

25-36 mm / 1.0-1.4 inch

Horizontal coverage angle

90°

Vertical coverage angle

40°

Cut-off Frequency

500 Hz

Mounting information

Overall height

250 mm / 9.84 inches

Overall width

250 mm / 9.84 inches

Overall depth

135 mm / 5.31 inches

Baffle Cut-out height

205 mm / 8.07 inches

Baffle Cut-out width

205 mm / 8.07 inches

Mounting

4 x 7 mm holes, interaxes 101 mm/76 mm

Size

Height

142 mm / 5.59 inches

Diameter

250 mm / 9.84 inches

Weight

1.12 kg / 2.47 lbs

Shipping information

Package Height

155 mm / 6.1 inches

Package Width

265 mm / 10.43 inches

Package Depth

265 mm / 10.43 inches

Package Weight

2 kg / 4.41 lbs

Downloads

SPECIFICATIONS

SPECSHEET - ENG

PDF

532 KB

15-07-2024

ACOUSTIC MEASUREMENTS

PDF

106 KB

12-07-2024

DRAWINGS

LINE ART 2D

PDF

216 KB

21-03-2018
