PRECISION TRANSDUCERS

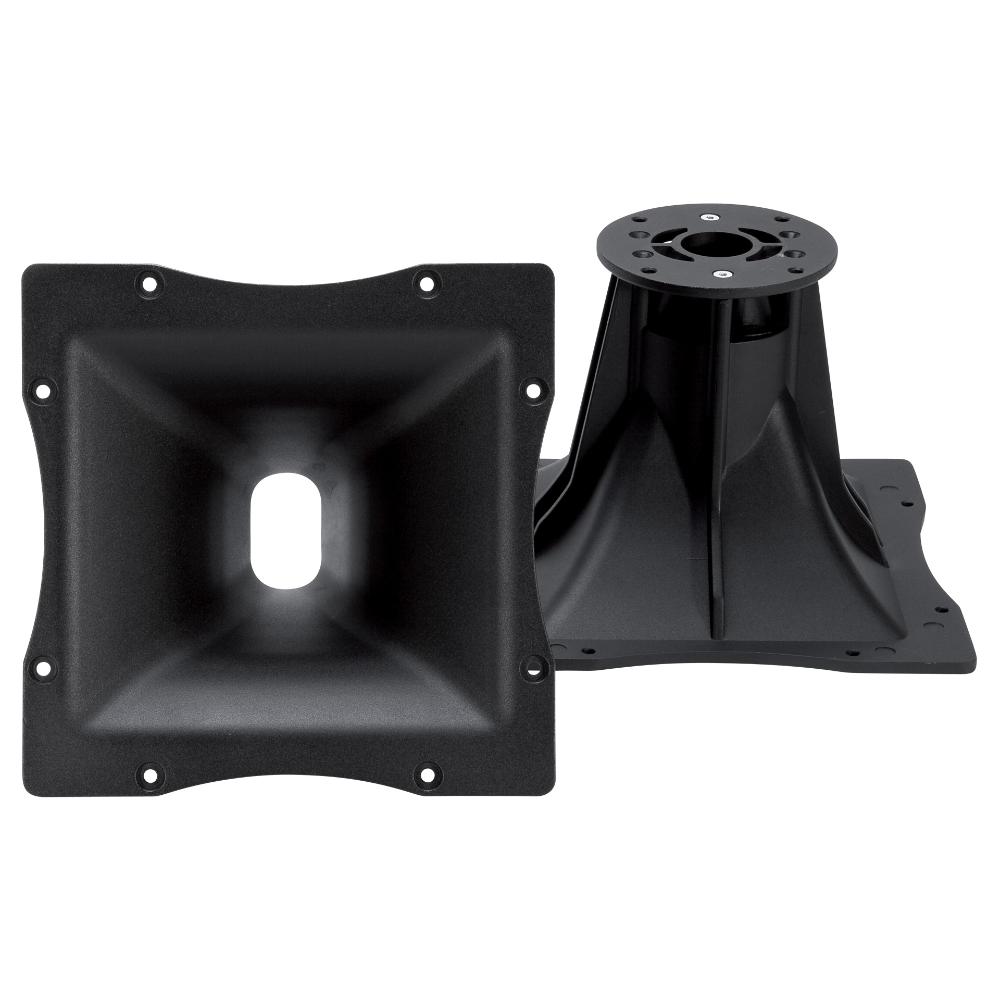

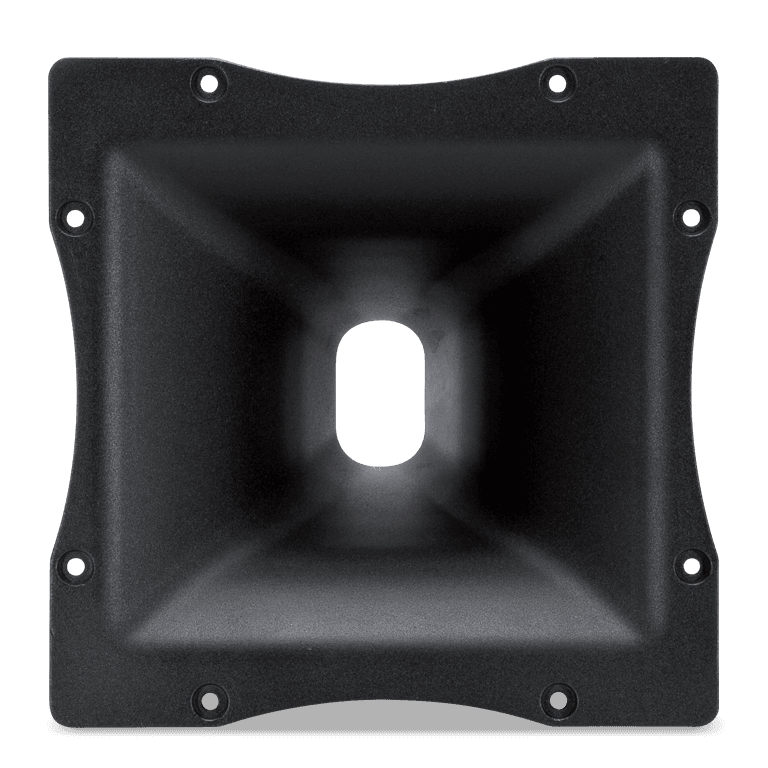

HF64

PRO HF HORN

1-inch/1.4 inch Throat Adaptor
60° x 40° Constant Directivity Coverage
Loading down to 500 Hz
Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers

Where to buy

Features

1-inch/1.4 inch Throat Adaptor
60° x 40° Constant Directivity Coverage
Loading down to 500 Hz
Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers
Perfectly Controlled Dispertion

1-inch/1.4 inch Throat Adaptor.60° x 40° Constant Directivity Coverage. Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers.

Part number:

13133046
HF64

Specifications

General specifications

Throat Diameter

25-36 mm / 1.0-1.4 inch

Horizontal coverage angle

60°

Vertical coverage angle

40°

Cut-off Frequency

500 Hz

Material

Aluminum

Mounting information

Overall height

250 mm / 9.84 inches

Overall width

25 mm / 0.98 inches

Overall depth

179 mm / 7.05 inches

Baffle Cut-out height

205 mm / 8.07 inches

Baffle Cut-out width

205 mm / 8.07 inches

Mounting

4 x 7 mm holes, interaxes 101 mm/76 mm

Standard compliance

Safety agency

CE compliant

Size / Weight

Height

186 mm / 7.32 inches

Diameter

250 mm / 9.84 inches

Weight

1.48 kg / 3.26 lbs

Shipping information

Package Height

195 mm / 7.68 inches

Package Width

265 mm / 10.43 inches

Package Depth

260 mm / 10.24 inches

Package Weight

2.4 kg / 5.29 lbs

Downloads

SPECIFICATIONS

SPECSHEET - ENG

PDF

591 KB

19-08-2024

ACOUSTIC MEASUREMENTS

PDF

104 KB

12-07-2024

DRAWINGS

LINE ART 2D

PDF

214 KB

21-03-2018
