HDL 53-AS

ACTIVE HIGH-POWER BASS MODULE
  • 3300 Watt Peak power - 1650 Watt RMS
  • 3 x 12" Woofer
  • 139 dB max SPL
  • RDNet remote and control
RDNet
Support
Features Specifications Accessories Downloads
Support
Features
  • 3300 Watt Peak power - 1650 Watt RMS
  • 139 dB max SPL
  • 35 Hz - 100 Hz frequency response
  • 3 x 12" Woofer
  • DSP controlled Input section with selectable presets
  • RDNet remote and control
  • Maximum output, perfect audio fidelity
  • Tour grade cabinet and mechanics

The HDL 53-AS is the perfect extension of the HDL 50-A system. This 3x12” subwoofer comes in the same housing as the HDL 50-A and allows perfect integration in the array shape. It can be flown above HDL 50-A in one array or as a separate sub-array behind the HDL 50-A array, with the same shape, to allow cardioid dispersion in a wide low and low-to-mid range and keep the stage clean from feedbacks.

ARCHIVED

Part number:

13000508
HDL 53-AS
90-240V, EAN 8024530014179

Specifications
Acoustical specifications
Frequency Response
35 Hz ÷ 120 Hz
Max SPL @ 1m
139 dB

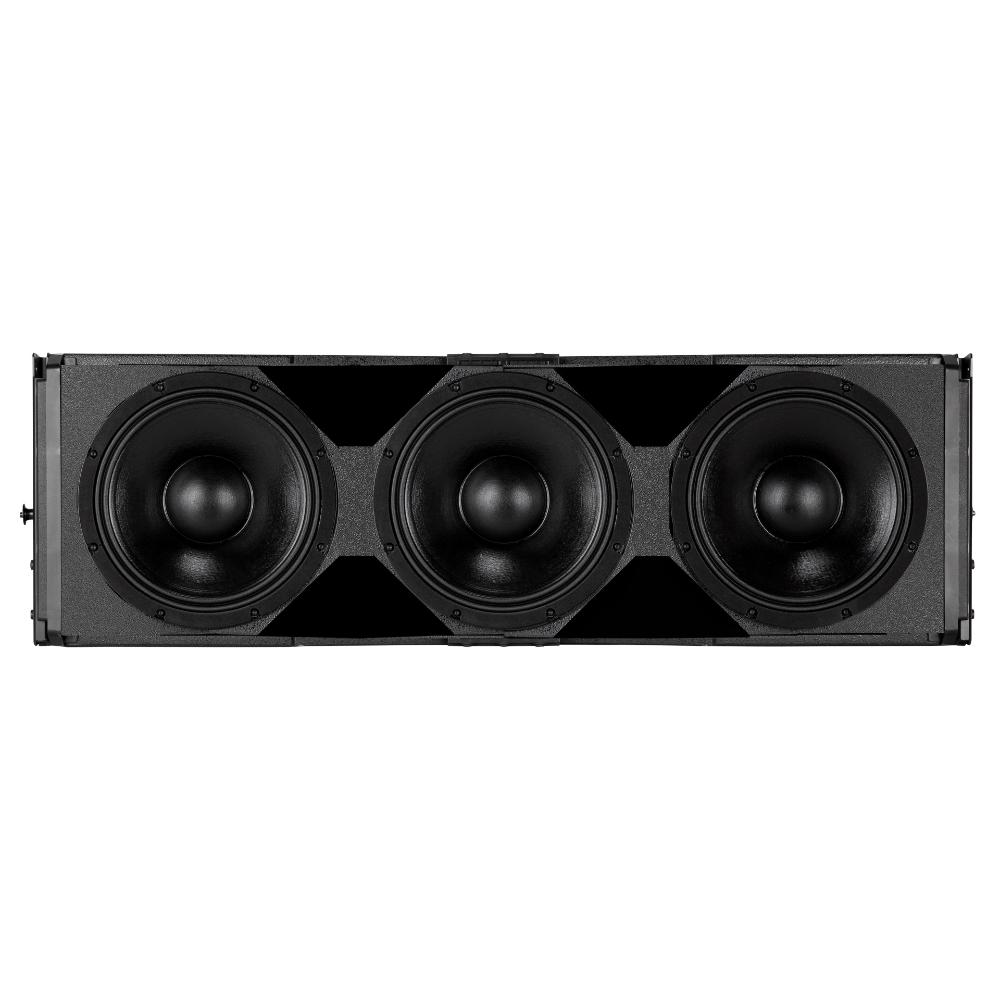

Transducers
Woofer
3 x 12'' neo, 4.0'' v.c

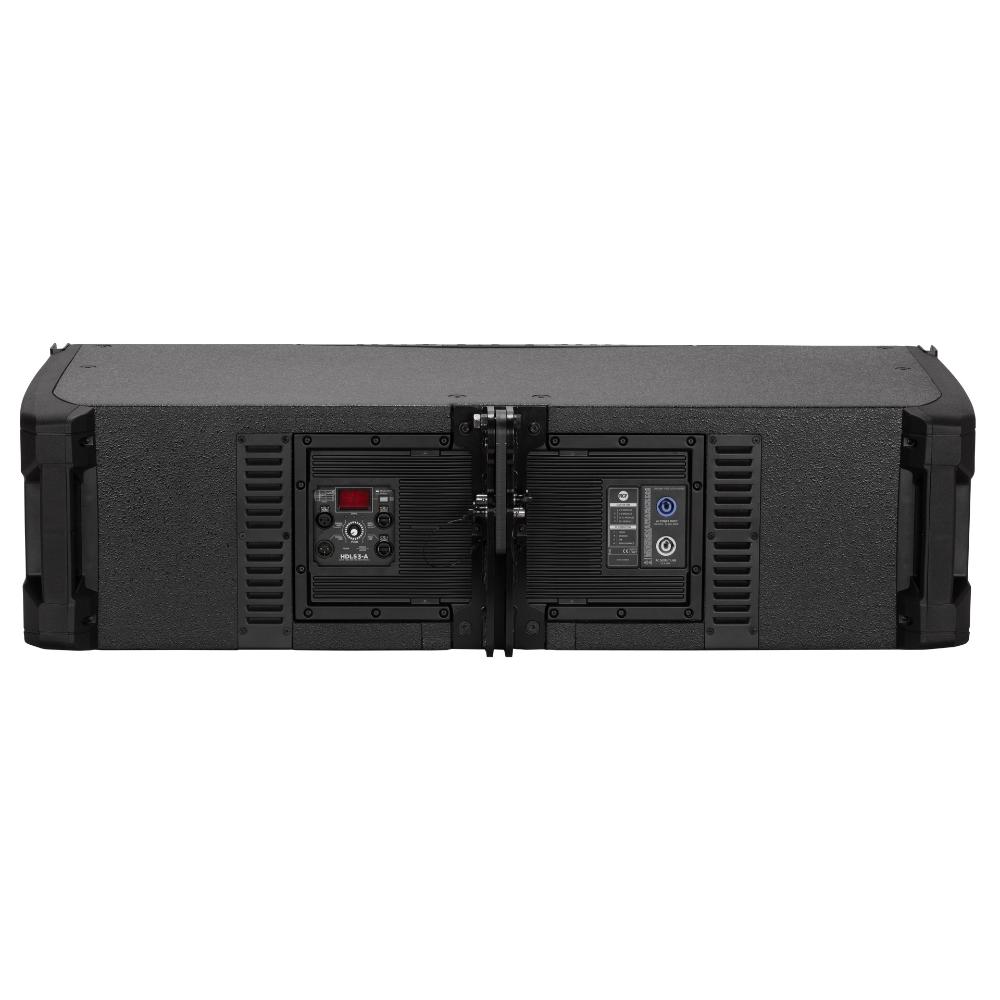

Input/Output section
Input signal
bal/unbal
Input connectors
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
+4 dBu
Processor section
Crossover Frequencies
Selectable
Protections
Thermal, RMS
Limiter
Fast Limiter
Controls
Gain, EQ, phase, xover, delay
RDNet
Yes
Power section
Total Power
3300 W Peak, 1650 W RMS
Low frequencies
3300 W Peak, 1650 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
Integrated Mechanics
Handles
2 side, 2 rear
Grille
Steel
Color
Black
Size / Weight
Height
366 mm / 14.41 inches
Width
1171 mm / 46.1 inches
Depth
502 mm / 19.76 inches
Weight
50 kg / 110.23 lbs
Shipping information
Package Height
600 mm / 23.62 inches
Package Width
1200 mm / 47.24 inches
Package Depth
400 mm / 15.75 inches
Package Weight
53.2 kg / 117.29 lbs
