Features
  • 2000 Watt Peak power - 1000 Watt RMS
  • 133 dB max SPL
  • 40 Hz - 140 Hz frequency response

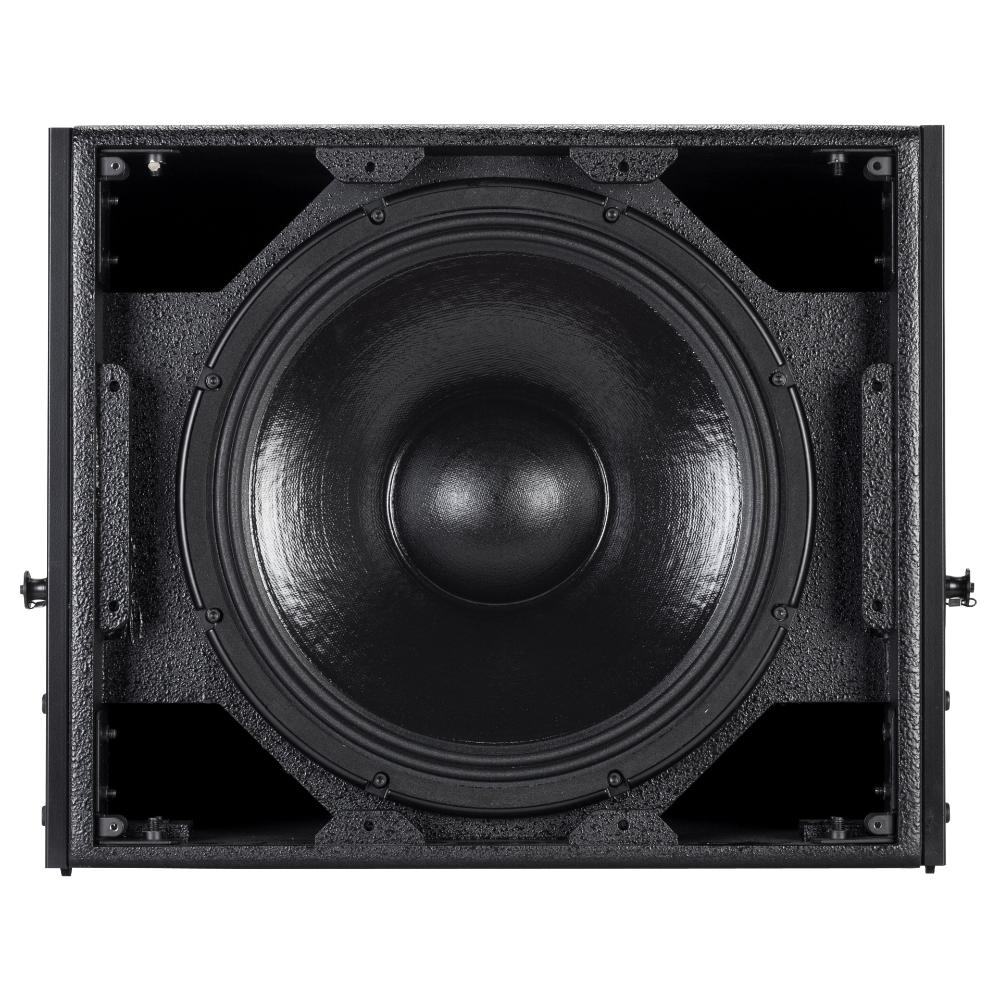

  • 1 x 15" Woofer, 3.5" v.c.
  • DSP controlled Input section with selectable presets

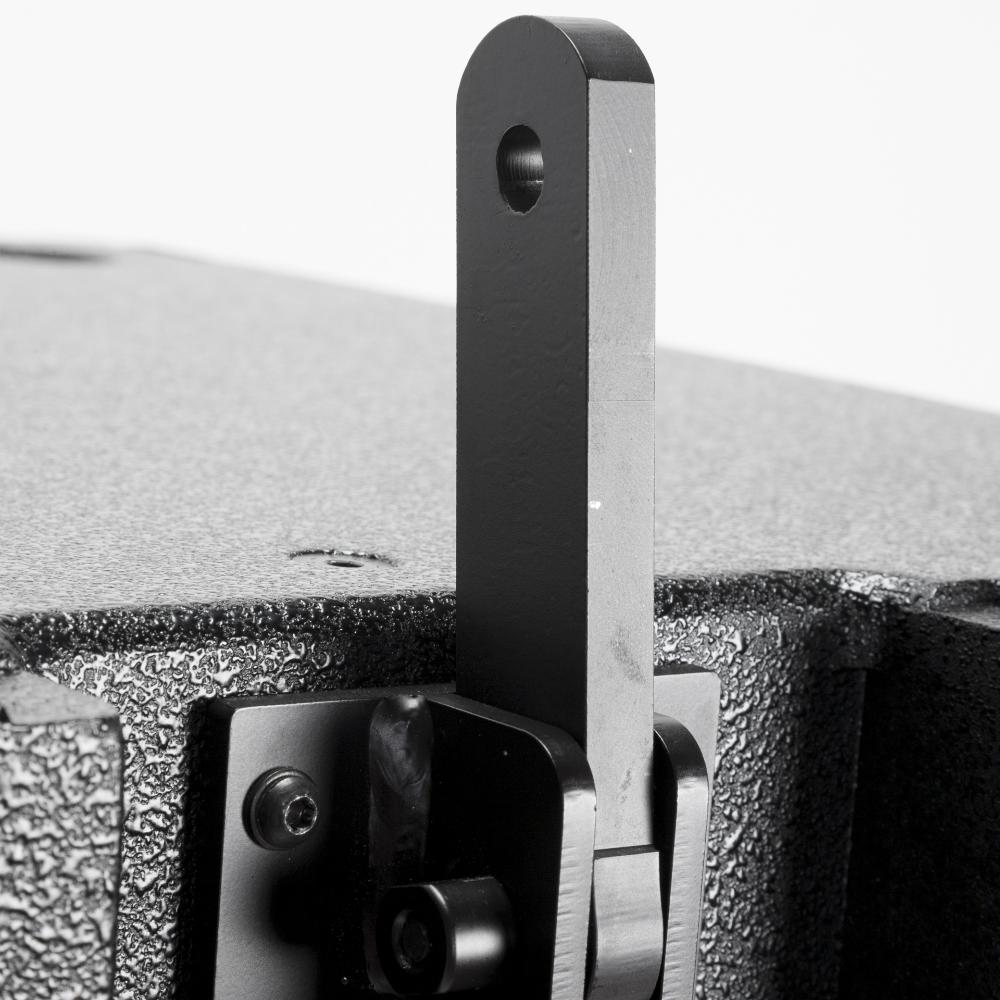

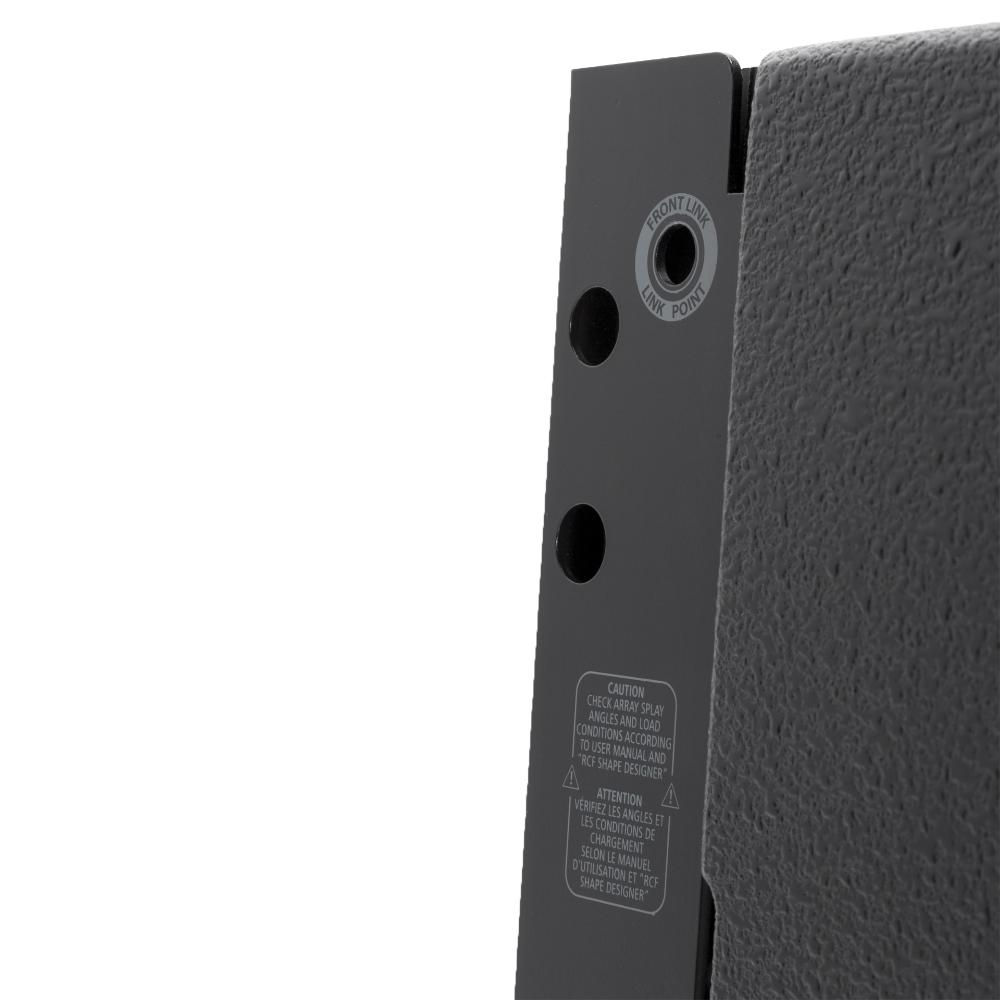

  • Tour grade safe and solid variable mechanics, compatible with HDL 10-A
  • Designed to compliment the HDL 10-A speaker system
  • Baltic birch tour grade cabinet

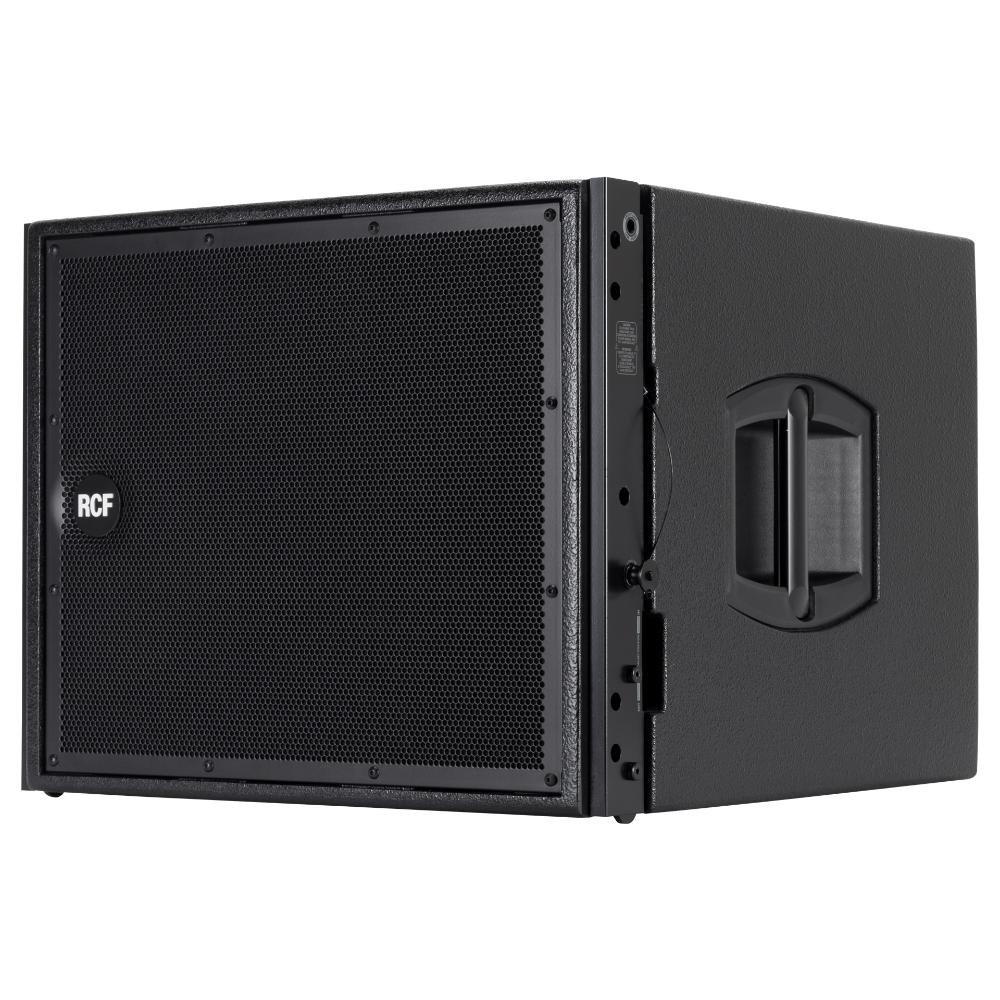

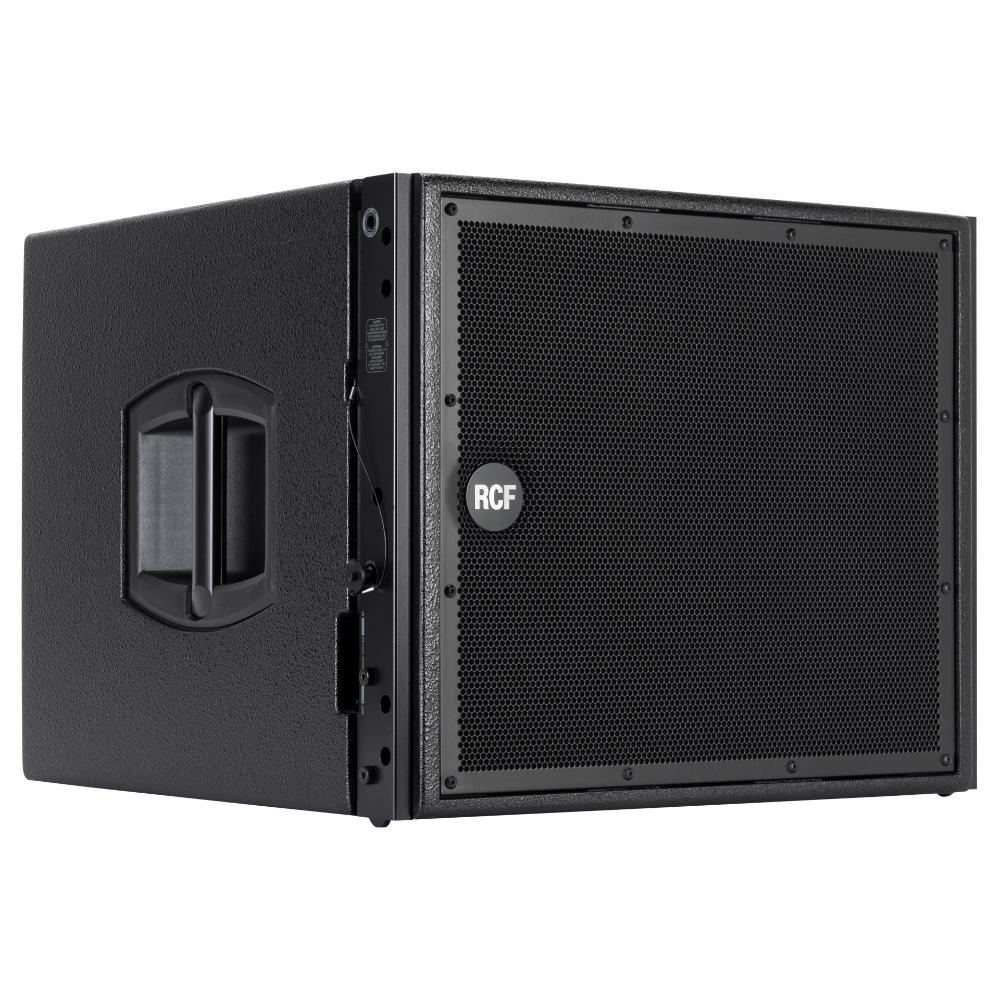

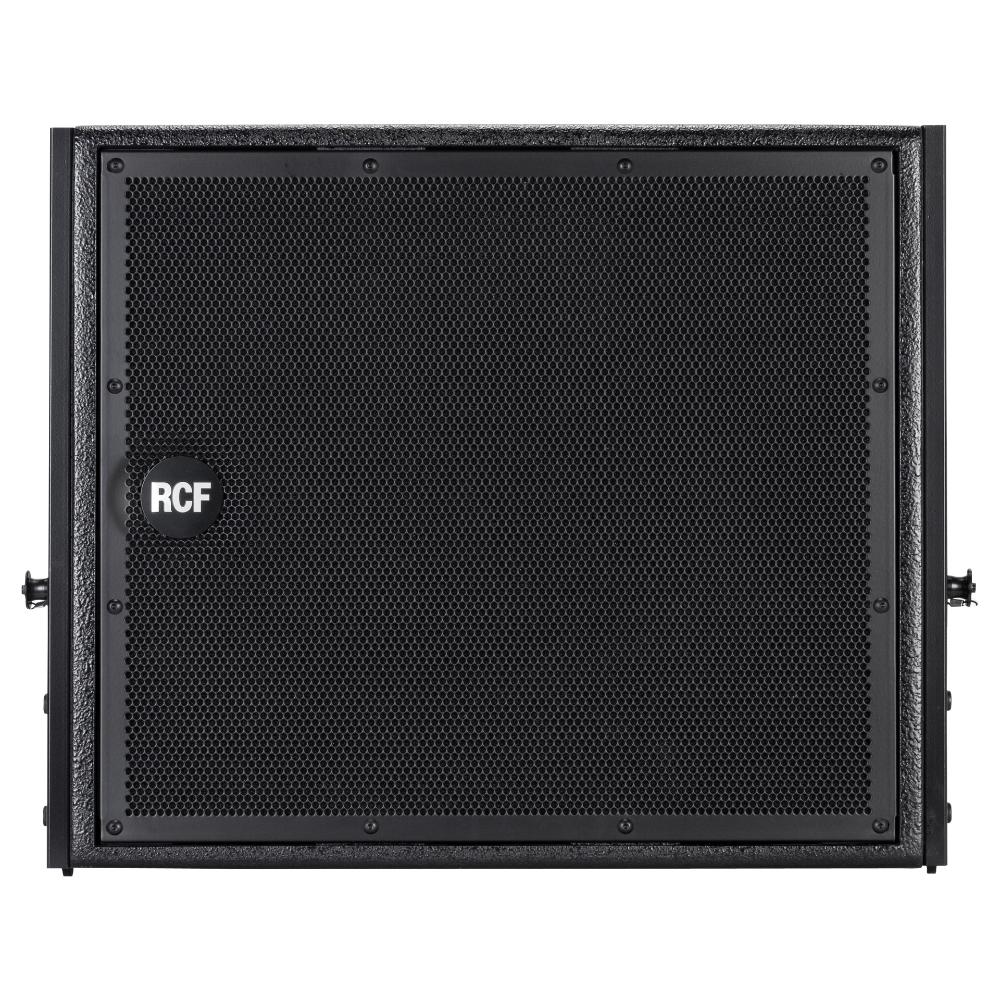

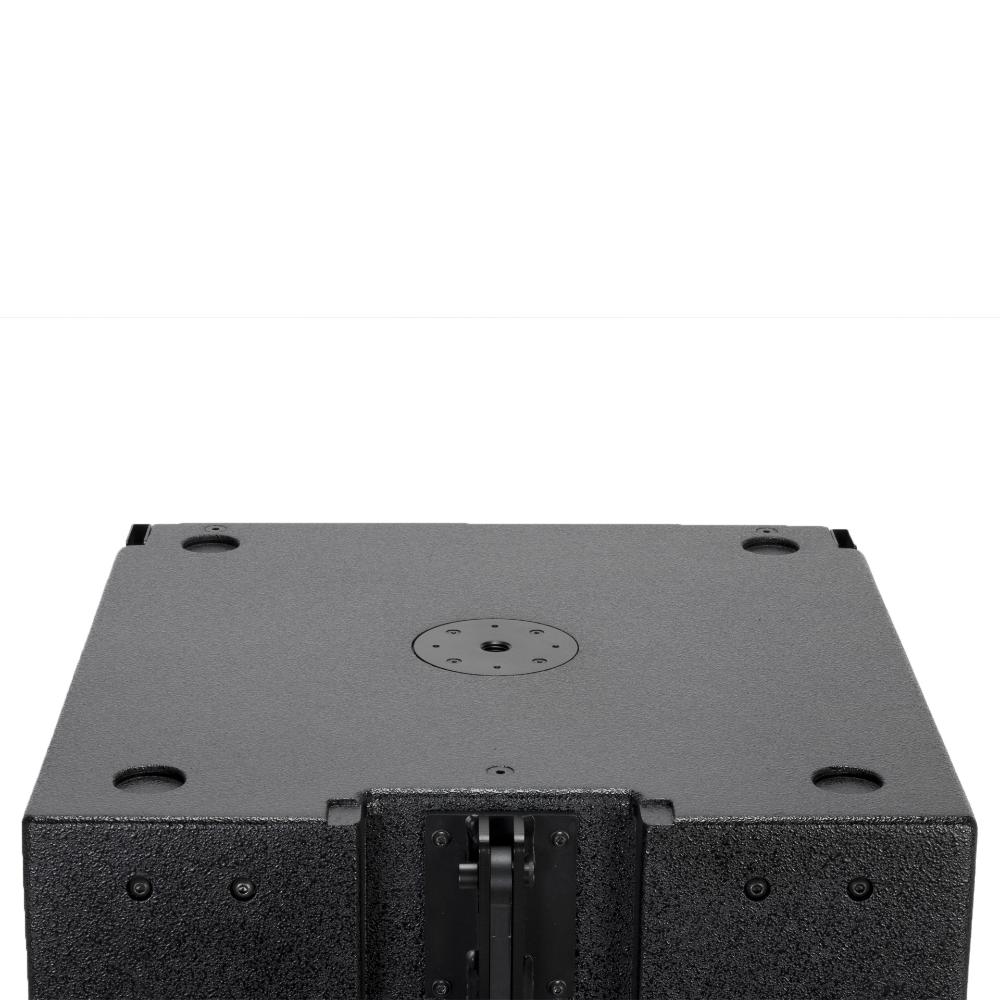

The HDL15-AS is a compact, flyable high power subwoofer, designed to integrate seemlessly into a HDL 10-A flown array. The bass reflex design guarantees a deep, linear power response while the 3.5” voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 10-A array module.


ARCHIVED

Part number:

13040020
HDL 15-AS
220-240V, EAN 8024530011994

13040021
HDL 15-AS
115V, EAN 8024530012069

Specifications
Acoustical specifications
Frequency Response
40 Hz ÷ 140 Hz
Max SPL @ 1m
133 dB
Transducers
Woofer
1 x 15'', 3.5'' v.c

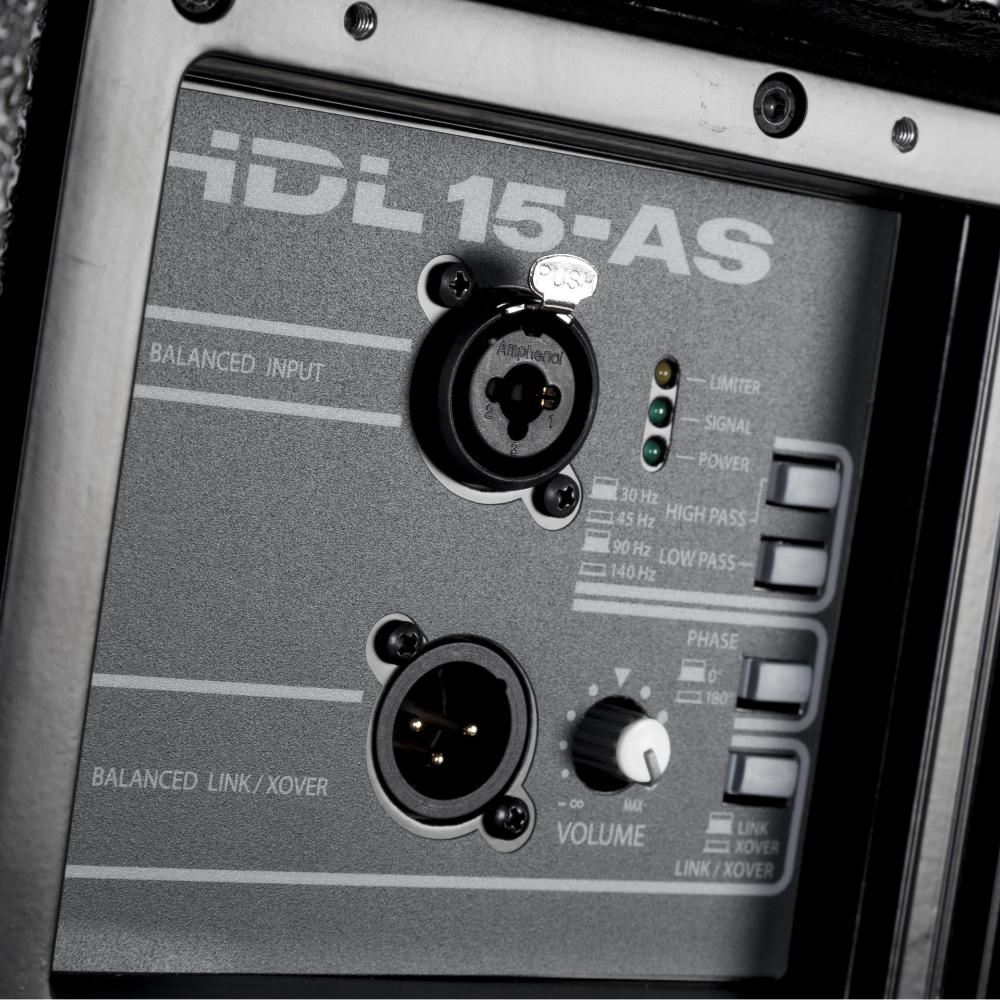

Input/Output section
Input signal
bal/unbal
Input connectors
XLR
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Hi-Pass Frequencies
30Hz, 45Hz
Low-Pass Frequencies
90Hz,140Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, EQ Shape, Xover
Power section
Total Power
2000 W Peak, 1000 W RMS
Low frequencies
2000 W Peak, 1000 W RMS
Cooling
Convection/Forced
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
Rigging flyware, M20 insert
Handles
2 side
Grille
Steel
Color
Black
Size / Weight
Height
458 mm / 18.03 inches
Width
555 mm / 21.85 inches
Depth
569 mm / 22.4 inches
Weight
39 kg / 85.98 lbs
Shipping information
Package Height
610 mm / 24.02 inches
Package Width
660 mm / 25.98 inches
Package Depth
675 mm / 26.57 inches
Package Weight
44 kg / 97 lbs

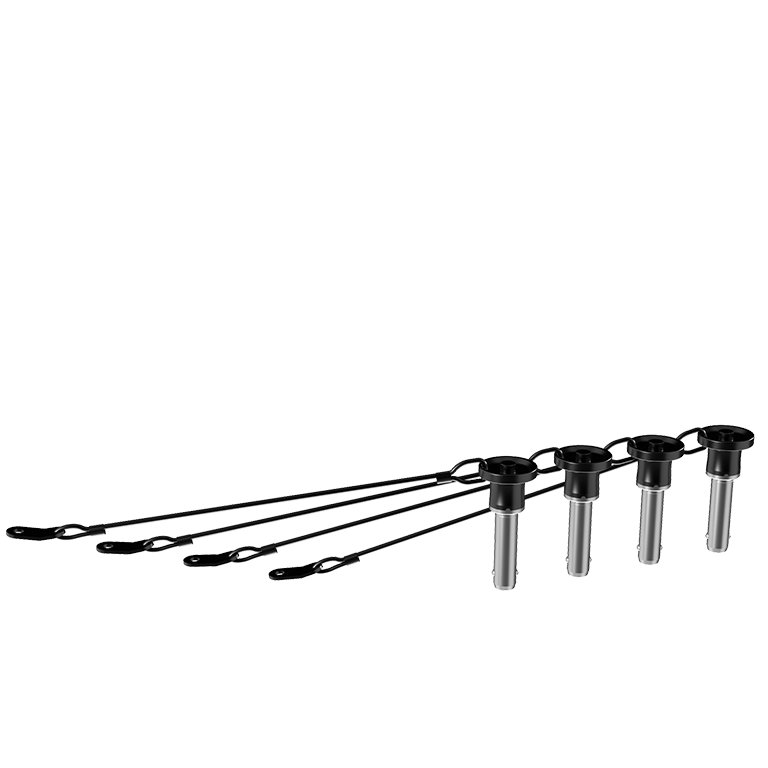

Accessories
