COMMERCIAL AUDIO

HD 1110

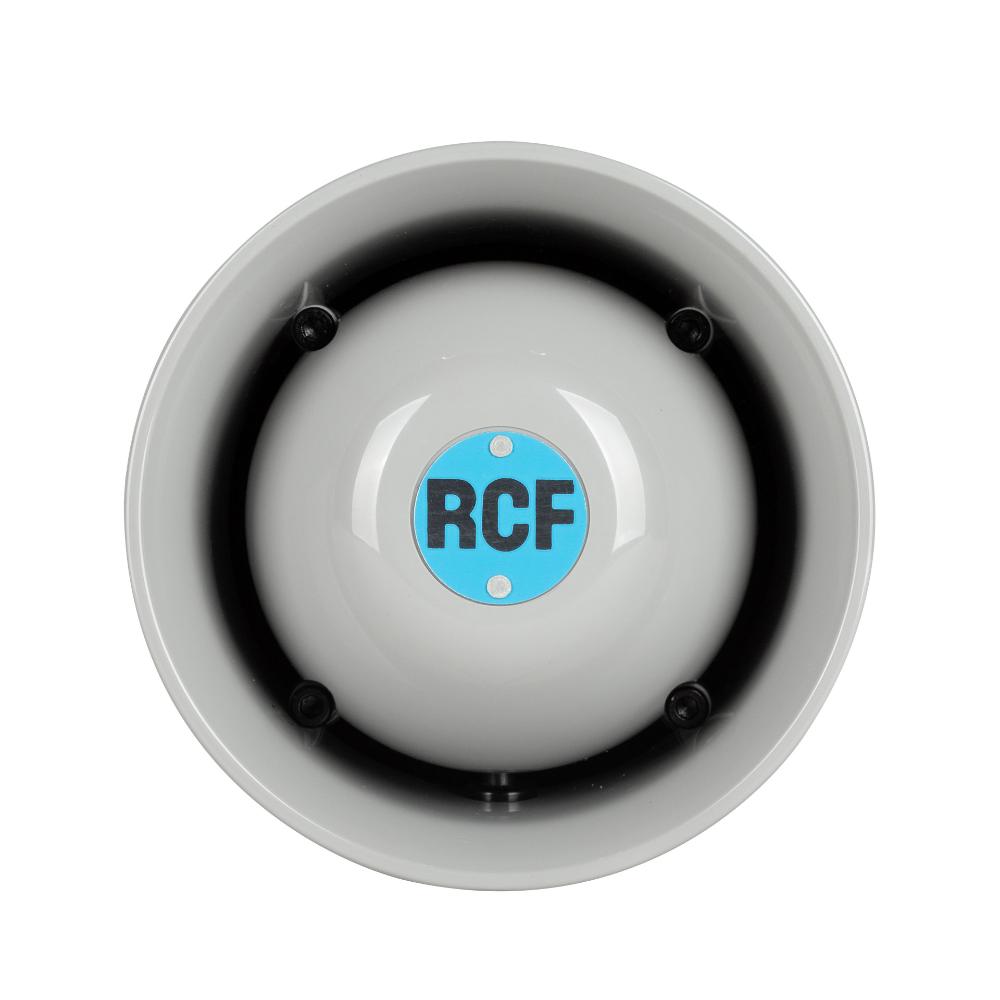

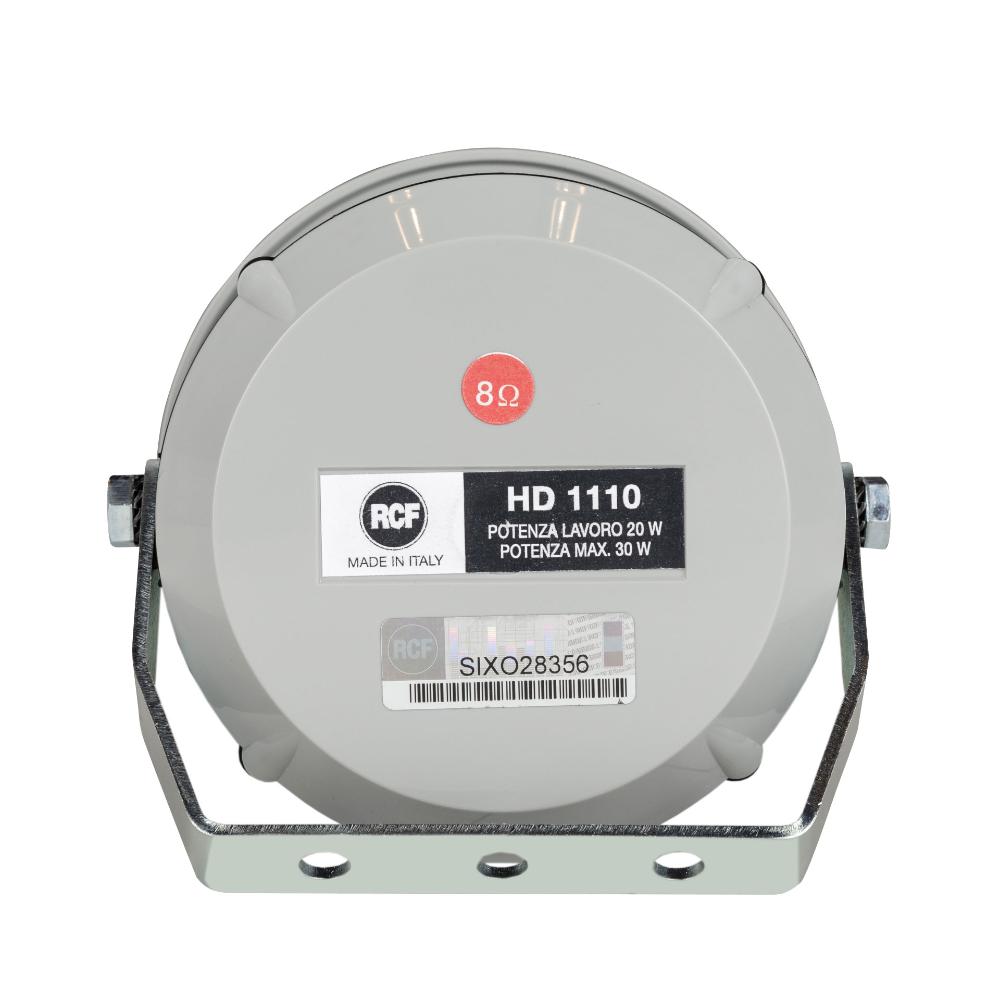

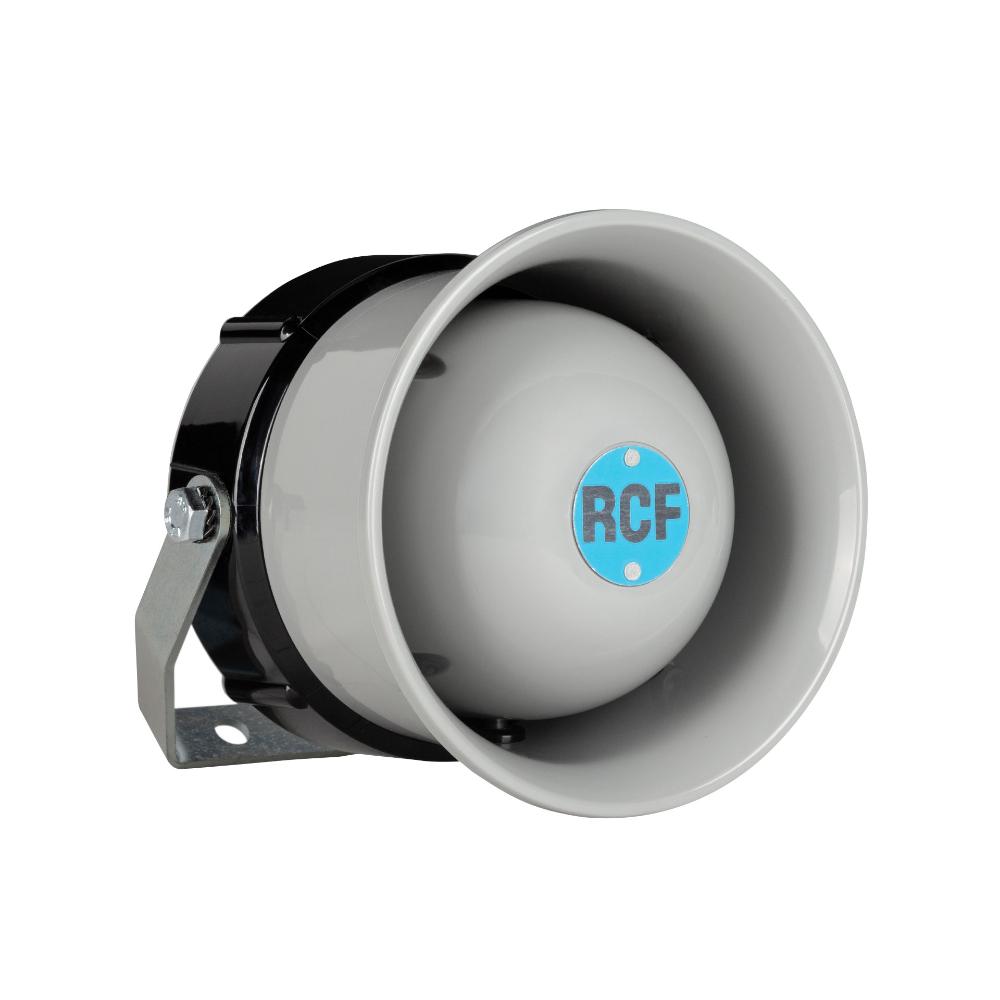

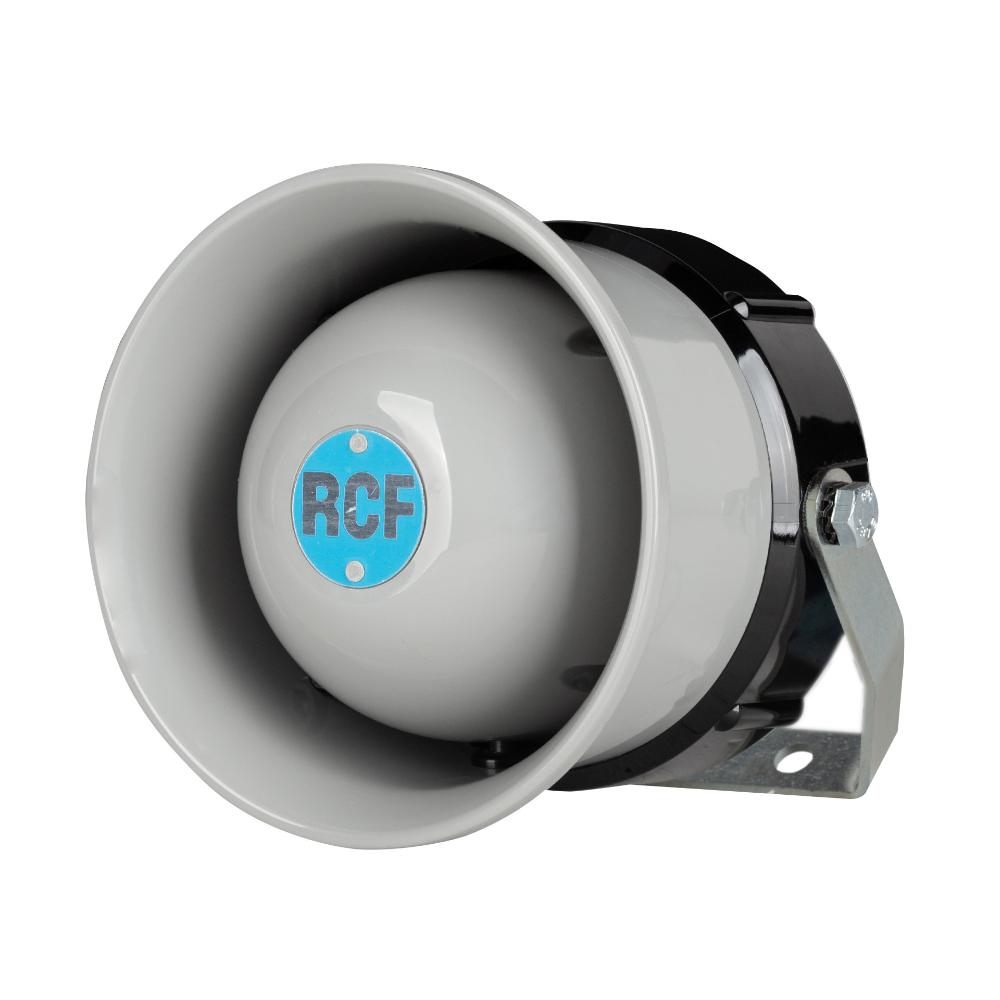

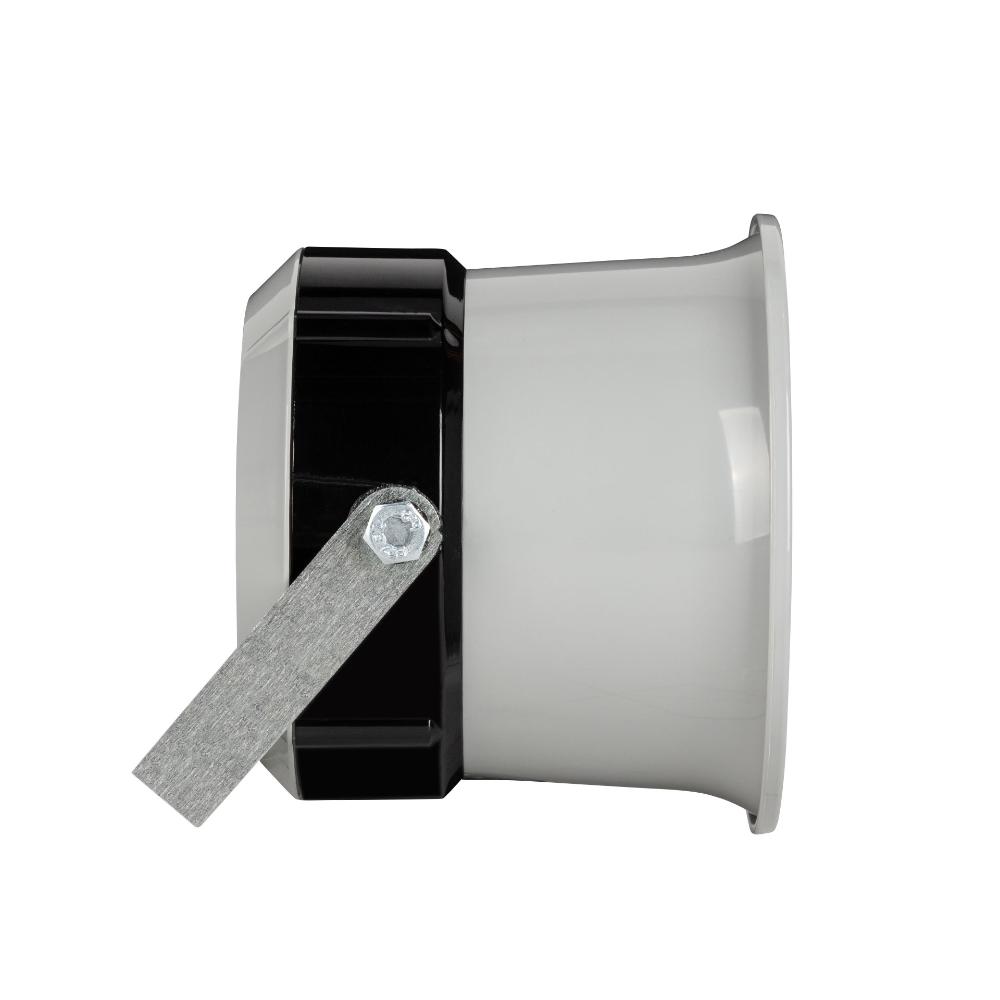

PLASTIC HORN SPEAKER WITH DRIVER
  • Plastic body, GREY RAL 7035
  • Solid and compact construction
  • Mounting bracket included
  • Driver impedance 8 Ohm
Where to buy
Features Specifications Downloads
Where to buy
Features
  • Plastic body, GREY RAL 7035
  • Solid and compact construction
  • Mounting bracket included
  • Driver impedance 8 Ohm

Extremely compact horn speaker with high acoustic output. The HD 1110 is particularly suitable for use in call or alarm systems in places with a high level of background noise. Fully protected against atmospheric agents, it can also be used outdoors.

Part number:

13133030
HD 1110
EAN 8024530010140

Specifications
Acoustical specifications
Frequency Response (-10dB)
900 Hz ÷ 13000 Hz
Max SPL @ 1m
114 dB
Coverage angle
175°
System Sensitivity
101 dB
Power section
Nominal Impedance
8 ohm
Power Handling
20 W
Peak Power Handling
80 W PEAK
Transducers
Compression Driver
1 x 1.5''
Input/Output section
Input connectors
Cable
Output connectors
Cable
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
U bracket
Size / Weight
Depth
93 mm / 3.66 inches
Diameter
100 mm / 3.94 inches
Weight
0.42 kg / 0.93 lbs
Shipping information
Package Height
100 mm / 3.94 inches
Package Width
120 mm / 4.72 inches
Package Depth
120 mm / 4.72 inches
Package Weight
1.2 kg / 2.65 lbs
Downloads
MANUALS
USER MANUAL
PDF
359 KB
04-11-2020
SPECIFICATIONS
SPECSHEET - ENG
PDF
320 KB
18-10-2024
SPECSHEET - FRA
PDF
323 KB
18-10-2024
SPECSHEET - ITA
PDF
321 KB
18-10-2024
STANDARD COMPLIANCES
CE DECLARATION OF CONFORMITY - ENG
PDF
21 KB
22-03-2024
UKCA DECLARATION OF CONFORMITY - ENG
PDF
22 KB
22-03-2024
DRAWINGS
LINE ART 2D
PDF
255 KB
10-07-2024
