Features
  • Compact Arrayable 3-way System
  • Fully Horn-loaded, 60° x 40° directivity
  • 15" neodymium woofer with 4" voice coil
  • 10" neodymium midrange
  • 1.4" compression driver
  • 136 dB Max SPL
  • Bi-amp system (passive crossover MF/HF included)
  • Active Mosfet Compression Driver Protection
  • Rotable HF Horn
  • System input power rating RMS 900 LF, 400 MF/HF

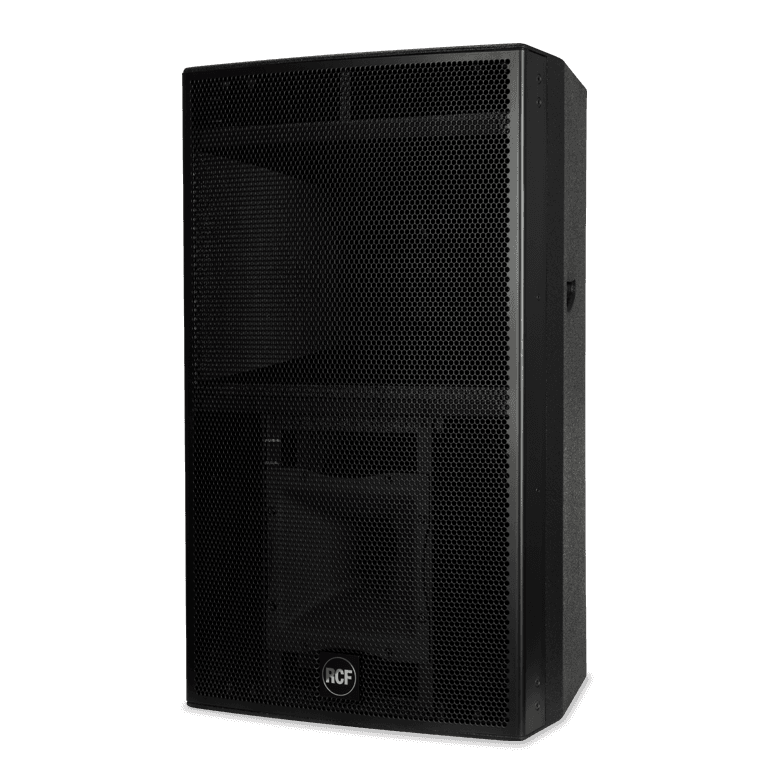

The RCFACUSTICA H1315 is a three-way full range loudspeaker system that incorporates a 15” woofer, a 10” midrange and a 1.4” exit titanium compression driver for long throw applications. The system is very compact and provides very high output and accurate voice and sound reproduction. The system is equipped with the latest generation of RCF precision transducers, all of them with powerful neodymium motors. The internal passive filter provides crossover and equalization between the midrange and the compression driver. The system is driven in bi-amped mode, is capable of producing a Max SPL of 136 dB and handles 900 Watts AES (LF) + 400 Watt AES (MF/HF). The loudspeaker enclosure shape is multi-trapezoidal and offers a double coupling angle each side.


ARCHIVED

Part number:

13000084
H 1315
EAN 8024530007980

Specifications
Acoustical specifications
Frequency Response (-10dB)
50 Hz ÷ 20000 Hz
Frequency Response (-3dB)
65 Hz ÷ 20000 Hz
Max SPL @ 1m
136 dB
Horizontal coverage angle
60°
Vertical coverage angle
40°
Directivity index Q
12
Power section
Nominal Impedance
8 ohm
Protections
Active Mosfet Compression Driver
Crossover Frequencies
Reccomended 300 KHz, Internal MF/HF 1300 Hz
Transducers
Compression Driver
1 x 1.4'' neo, 3.0'' v.c
Midrange
1 x 10'' neo, 3.0'' v.c
Woofer
1 x 15'' neo, 4.0'' v.c
Input/Output section
Input connectors
Speakon® NL4
Output connectors
Speakon® NL4
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
12 x M10 rigging point
Handles
2 side
Grille
Steel
Color
Black
Size / Weight
Height
890 mm / 35.04 inches
Width
520 mm / 20.47 inches
Depth
632 mm / 24.88 inches
Weight
51 kg / 112.44 lbs
Shipping information
Package Height
970 mm / 38.19 inches
Package Width
780 mm / 30.71 inches
Package Depth
650 mm / 25.59 inches
Package Weight
61.5 kg / 135.58 lbs
