ELISA 50 FLUSH-MOUNT WALL SPEAKER
Search RCF products
Choose search system
ARCHIVED
COMMERCIAL AUDIO
ELISA 50
FLUSH-MOUNT WALL SPEAKER
- For high quality paging and background music
- Music power/RMS: 12/6W (20/10W in use without transformer, 4O)
- 3" extended range speaker with central equaliser, carbon fi bre cone

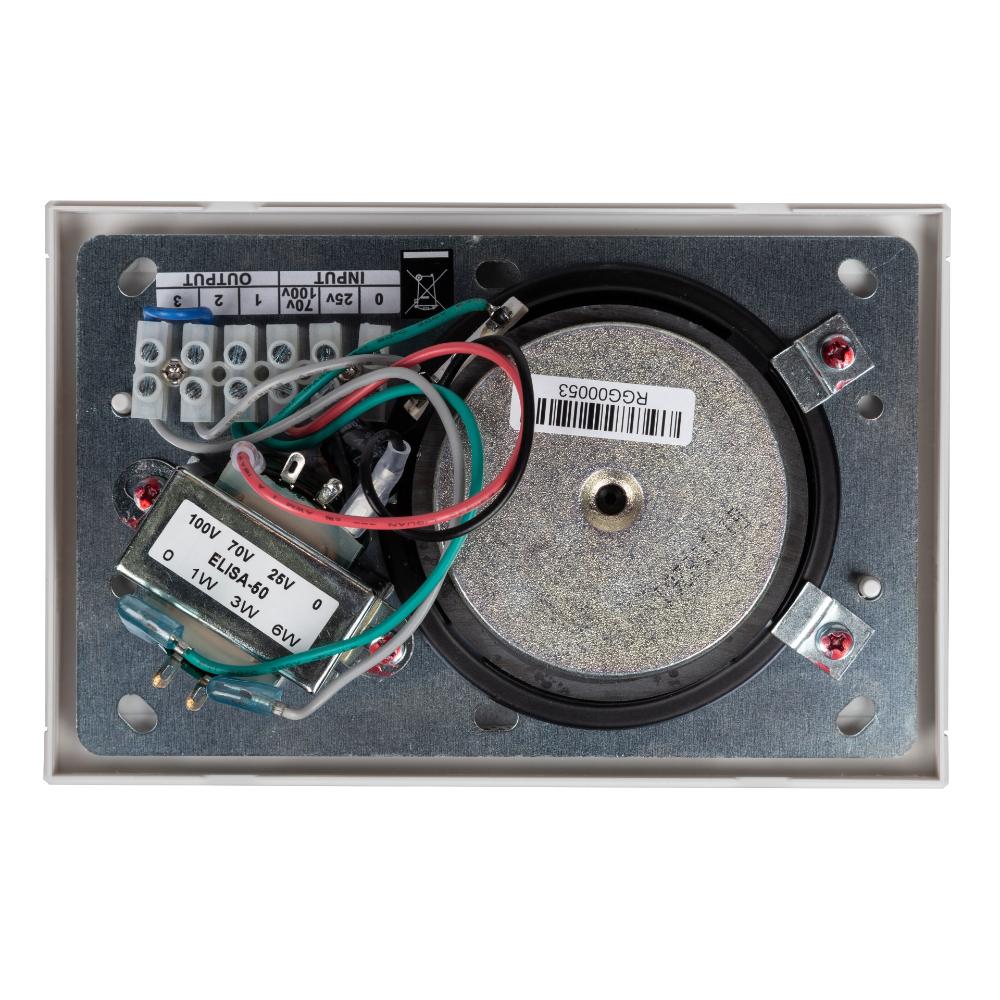

- Equipped with multi-tapped transformer for 100/70/25V constant voltage connection
Features
- For high quality paging and background music
- Music power/RMS: 12/6W (20/10W in use without transformer, 4O)
- 3" extended range speaker with central equaliser, carbon fi bre cone
- Equipped with multi-tapped transformer for 100/70/25V constant voltage connection
- Flush mount box with soundproof material included
- Front frame in ABS and metal grille RAL 9010 White
Superior quality speakers with attractive, contemporary designs and quick, easy installation. The E.LI.S.A. 50 can be used in smaller spaces when used individually, or in larger environments when several speakers are used together. Quick and easy installation thanks to magnetic cover-plate hooking.
ARCHIVED
Part number:
13110071
ELISA 50
EAN 8024530005009
Specifications
Acoustical specifications
Frequency Response (-10dB)
120 Hz ÷ 16000 Hz
Max SPL @ 1m
99 dB
Horizontal coverage angle
160°
System Sensitivity
88 dB
Power section
Nominal Impedance
4 ohm
Power Handling
6 W
Peak Power Handling
24 W PEAK
Transducers
Fullrange
1 x 3.5''
Input/Output section
Input connectors
Screw Terminals
Output connectors
Screw Terminals
Constant Voltage Transformer
70/100 V
Power selection 1
6 W - 1667 ohm
Power selection 2
3 W - 3333 ohm
Power selection 3
1 W - 10000 ohm
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
ABS
Grille
Steel
Color
White - RAL 9010
Size / Weight
Height
110 mm / 4.33 inches
Width
170 mm / 6.69 inches
Depth
43 mm / 1.69 inches
Weight
0.45 kg / 0.99 lbs
Shipping information
Package Height
95 mm / 3.74 inches
Package Width
200 mm / 7.87 inches
Package Depth
130 mm / 5.12 inches
Package Weight
1.1 kg / 2.43 lbs
Downloads
SPECIFICATIONS
DRAWINGS
