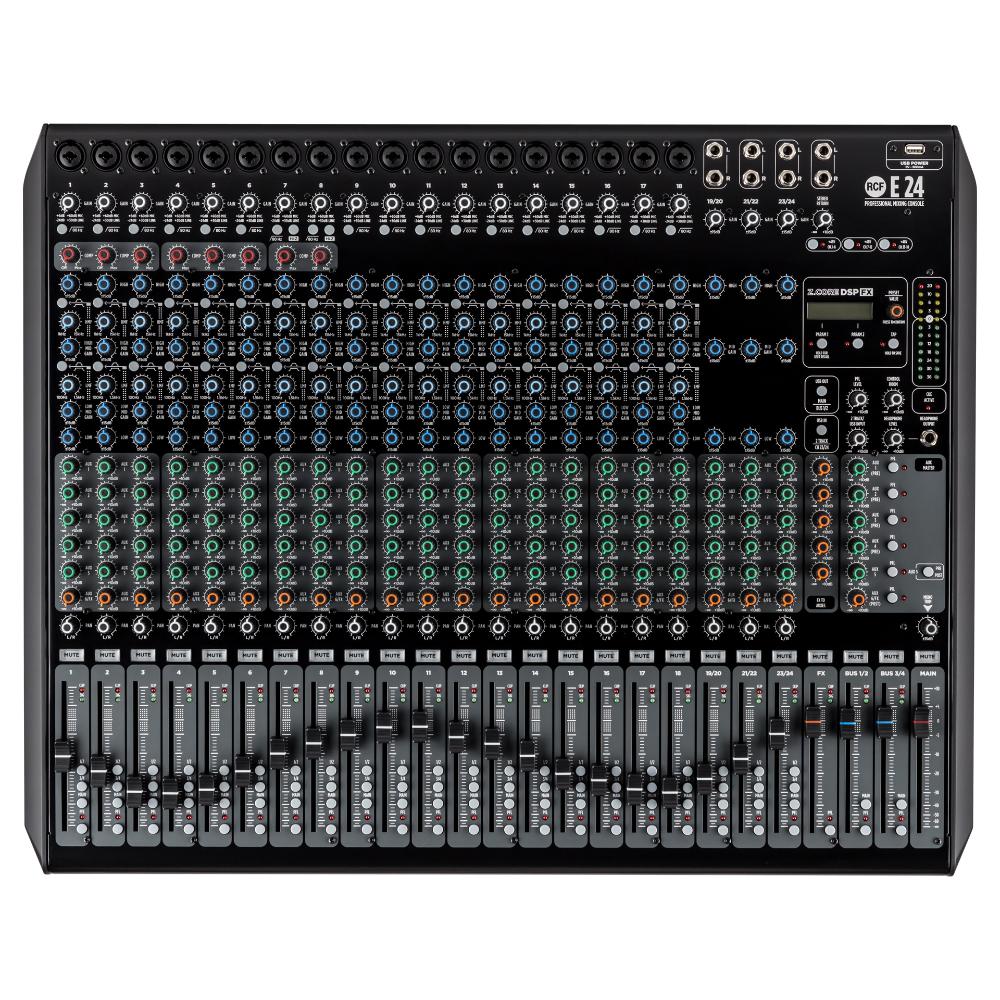

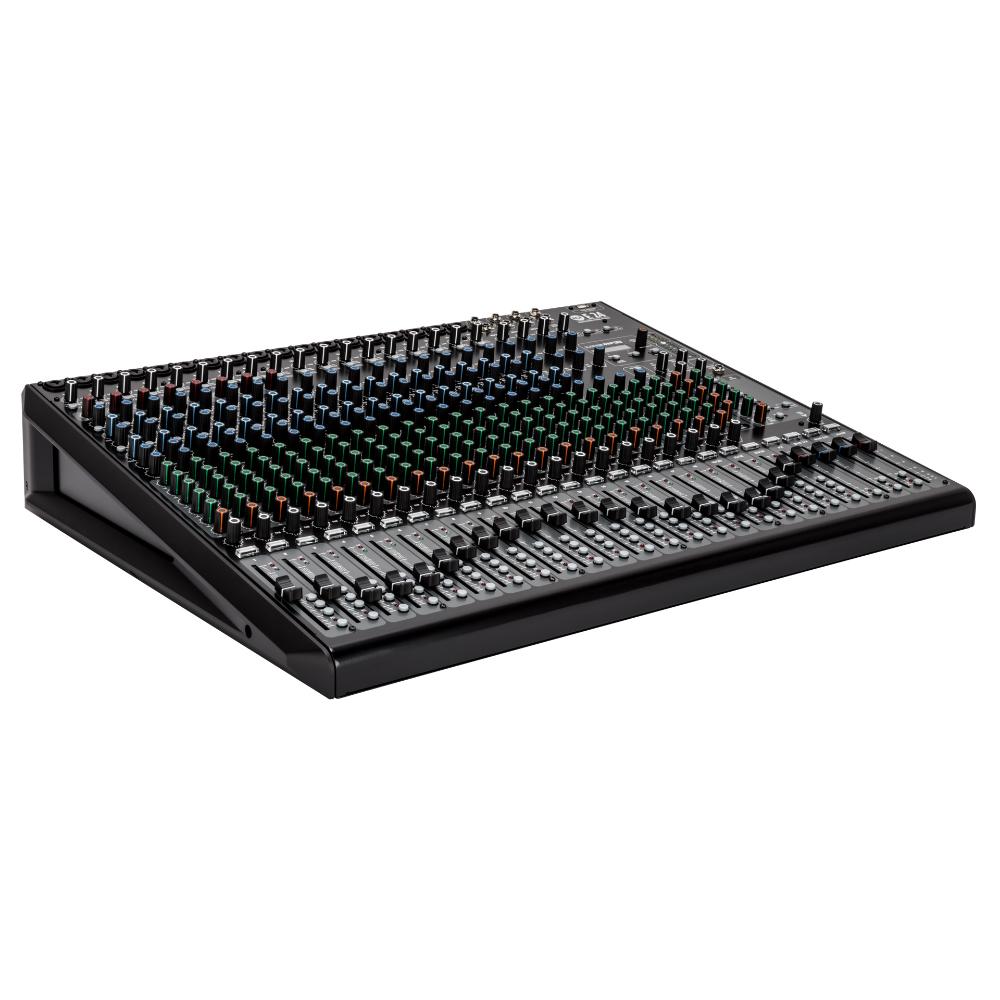

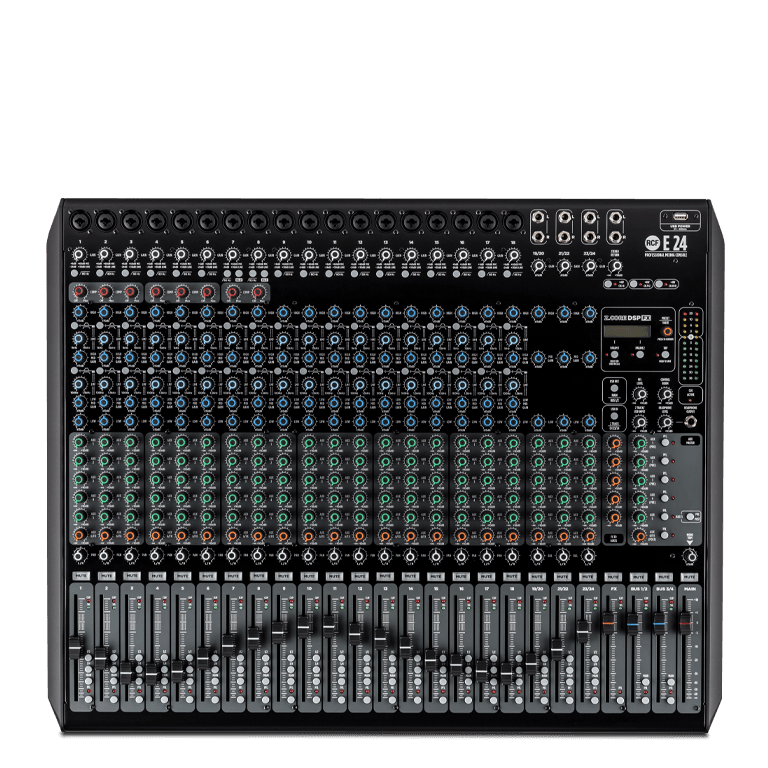

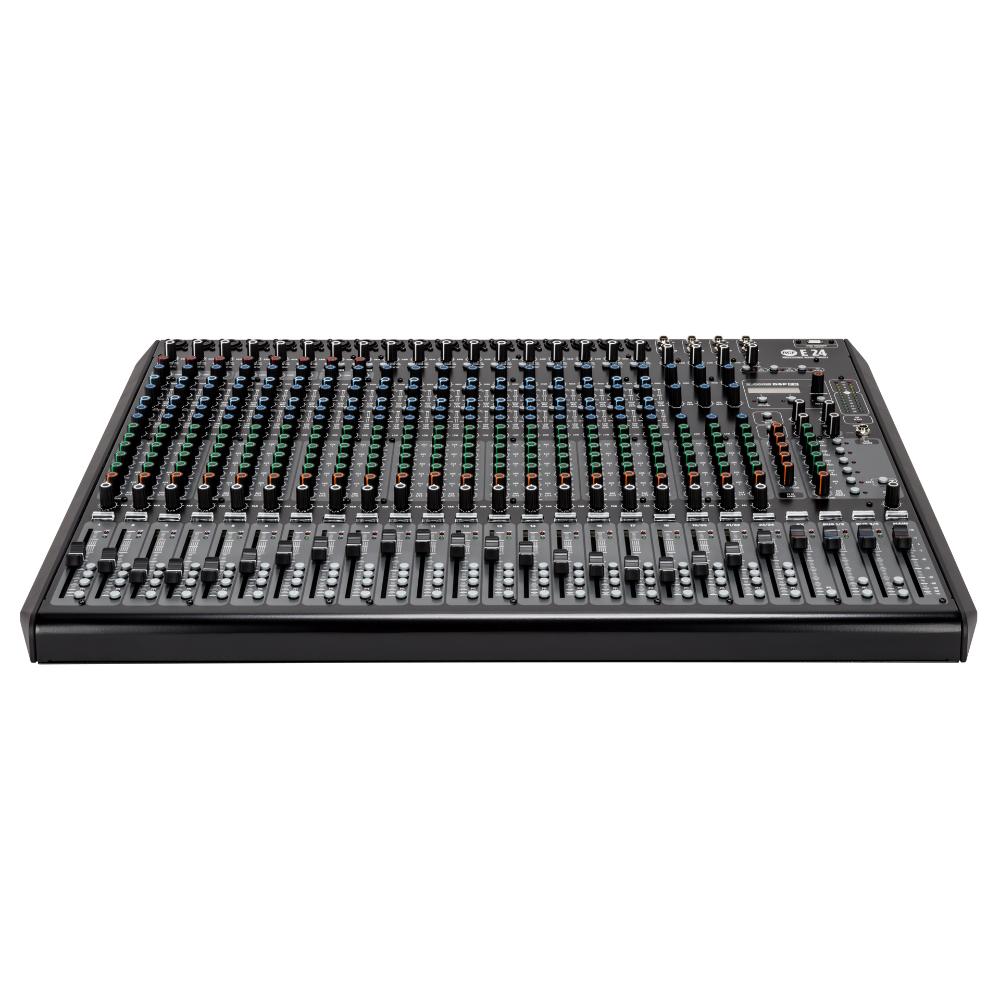

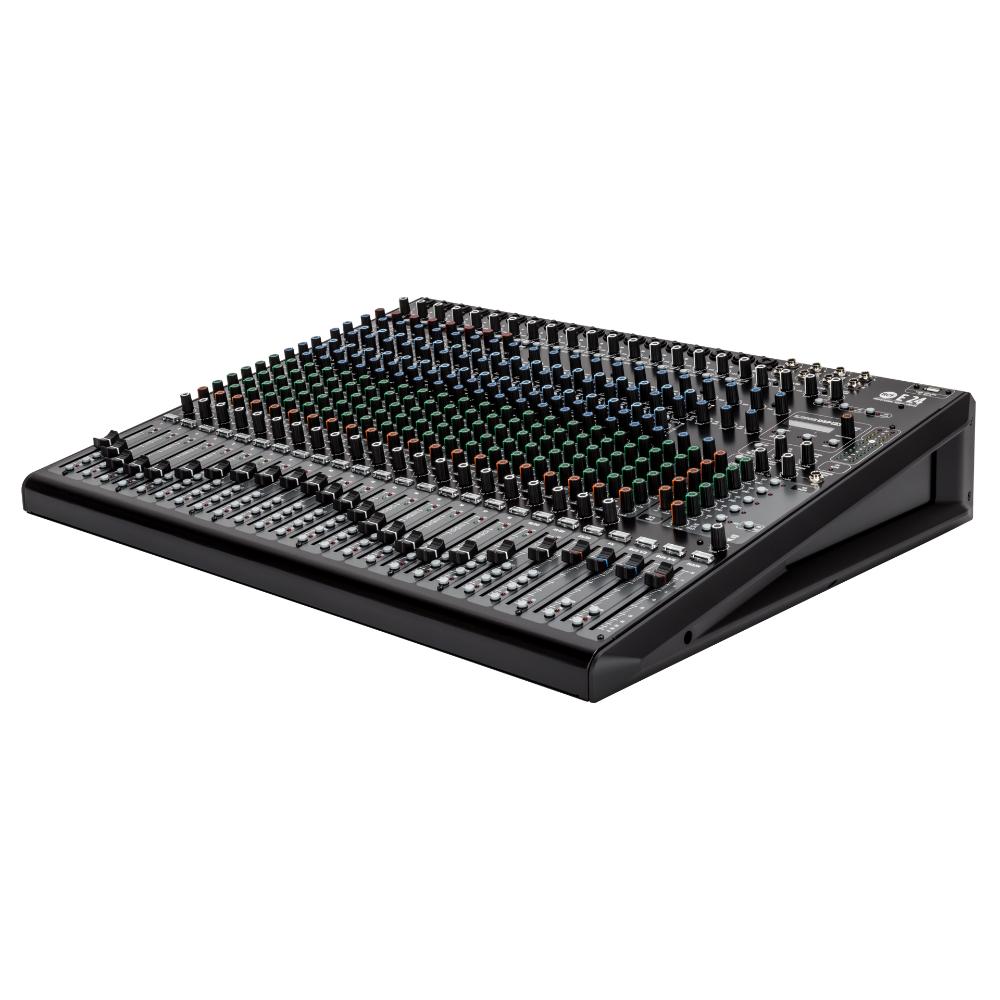

E 24
24-CHANNEL MIXING CONSOLE WITH SUPERIOR EFFECTS AND EQs
- 18 Mic/line IN, 3 stereo line IN
- 4 Band semiparametric EQ

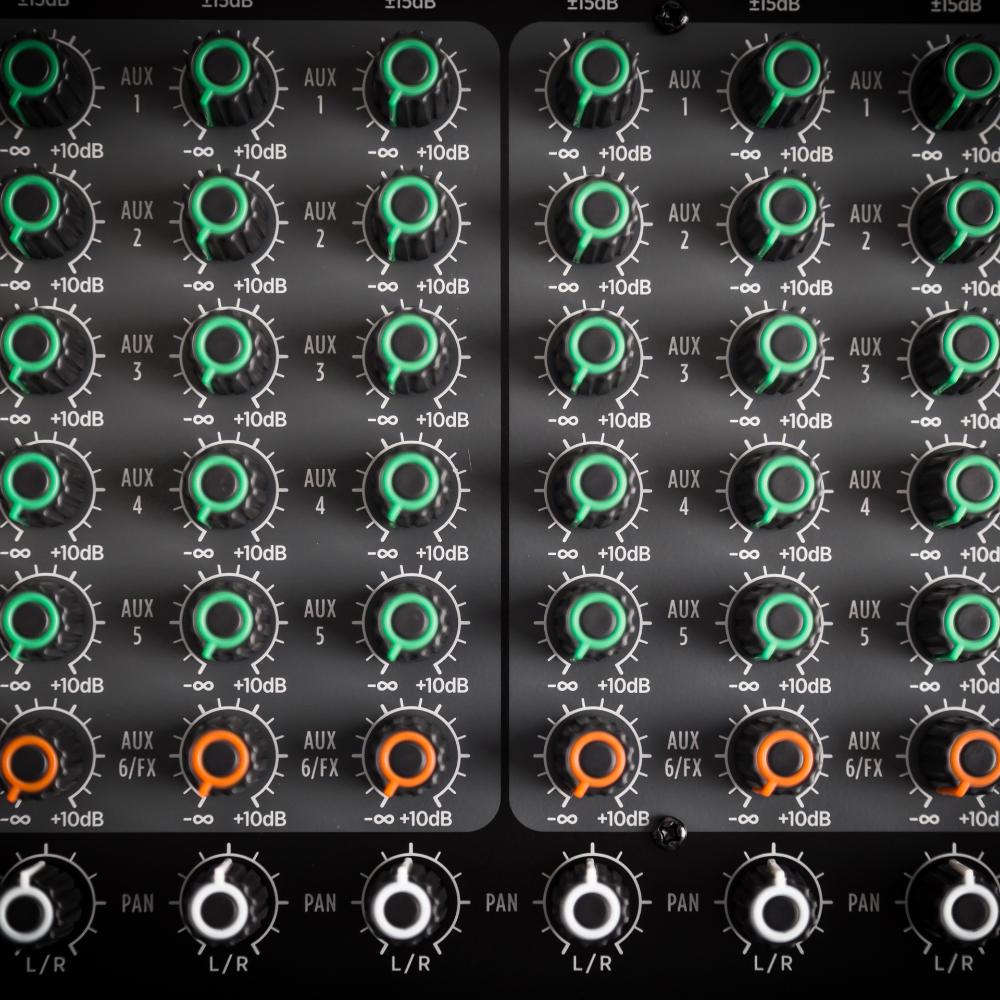

- 6 Aux sends per channel
- 32-Bit floating-point Z.CORE DSP effects section
Features
- 18 Mic/line IN, 3 stereo line IN
- 1 Stereo return input
- 8 Single-control dynamic compressors (ch.1 - ch.8)
- 4 Band semiparametric EQ
- 3 Band EQ on stereo inputs
- 6 Aux sends per channel

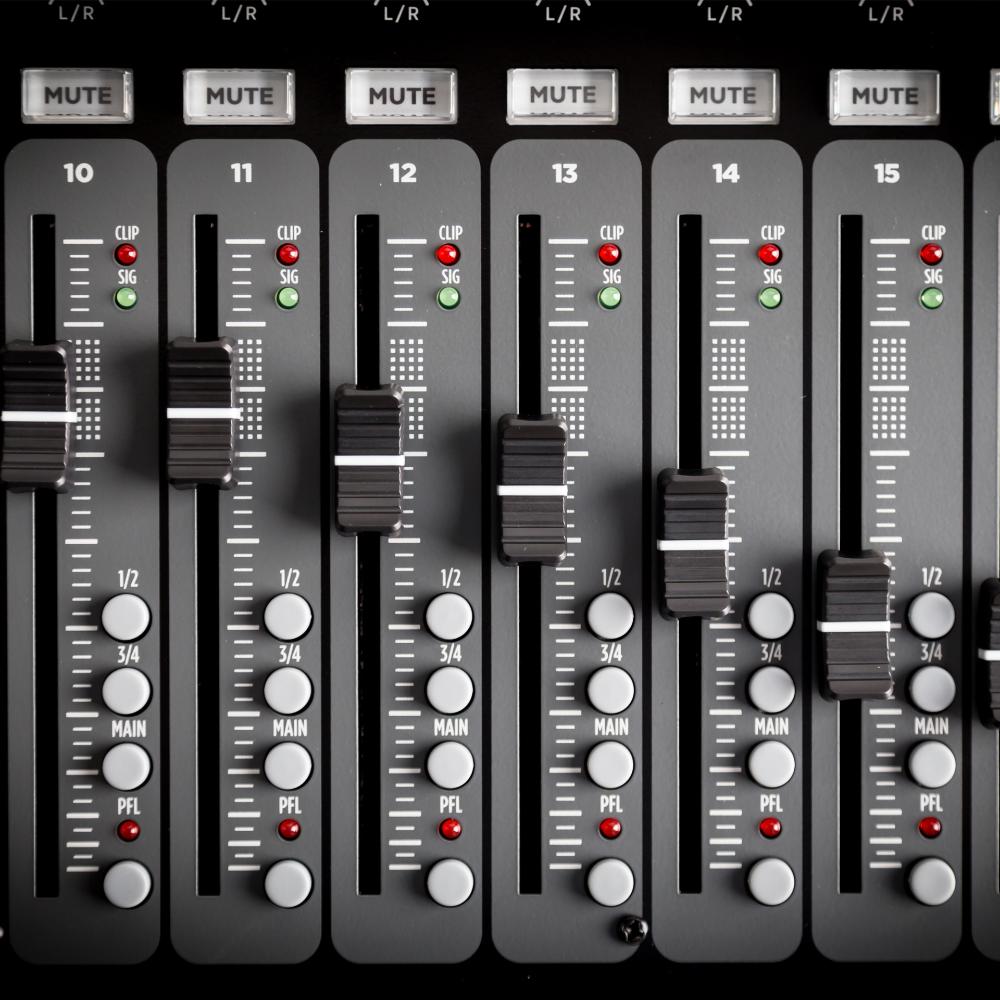

- 100 mm progressive faders with dust cover
- 2 Stereo groups

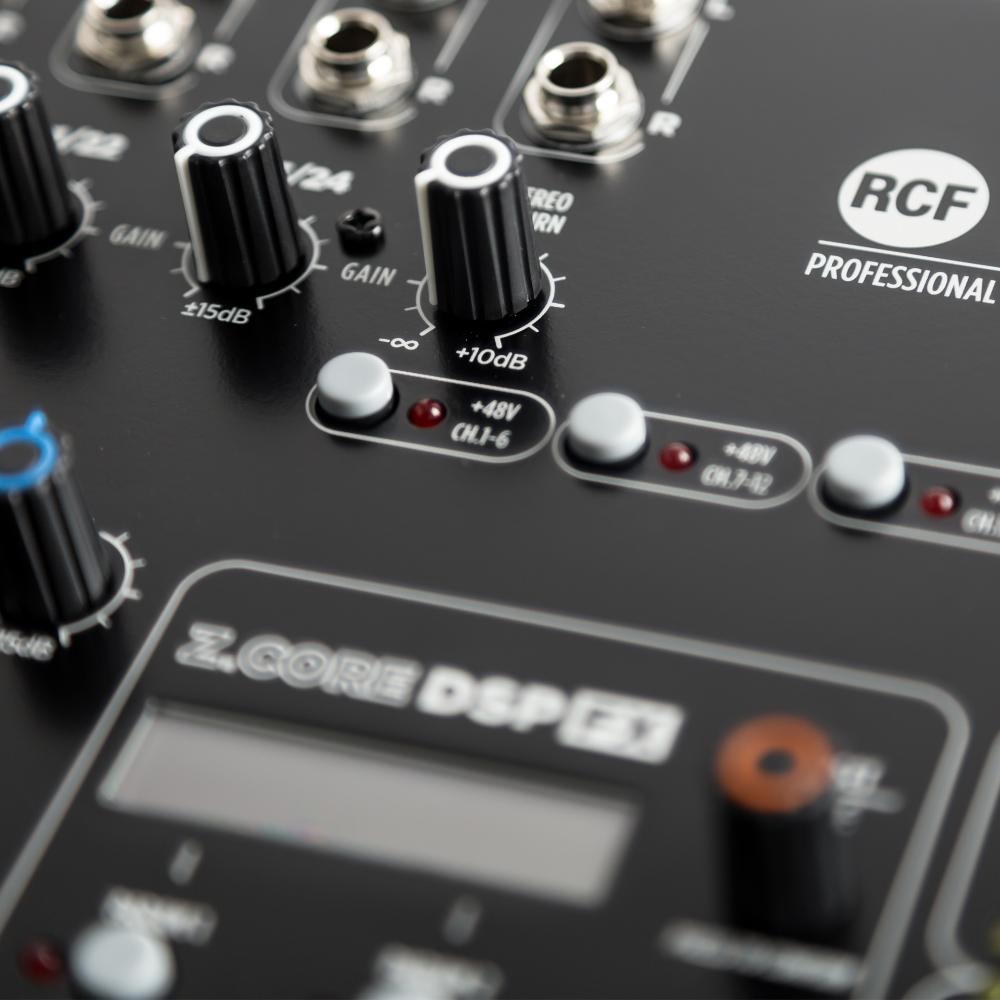

- 32-Bit floating-point Z.CORE DSP effects section

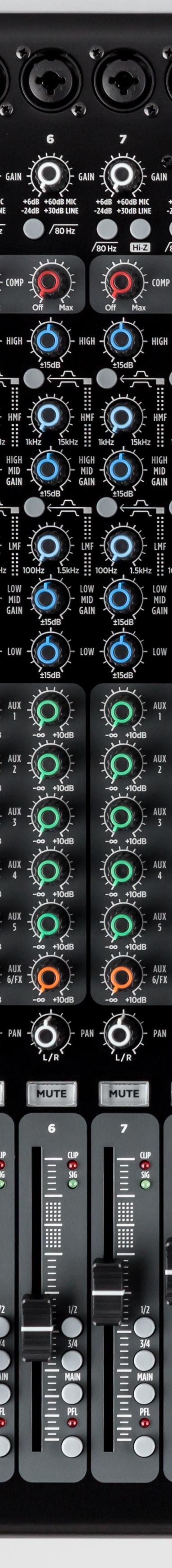

E 24 provides eighteen studio-quality 54 dB gain range Mic preamps with combo connectors. Two line inputs are switchable to Hi-Z input. The input section also features three stereo line inputs and a stereo return. Input channels from 1 to 8 are equipped with a single-control compressor. The eighteen mono channels are provided with 4-band EQs, including shelving high and low bands and 2 semi-parametric mid-bands (mid-high and mid-low) with frequency selection and switchable Q choice, wide or narrow. The stereo input channels are provided with a three band EQ.
ARCHIVED
Part number:
17140087
E 24
EAN 8024530015527
17140112
E 24
US, EAN 8024530017071
17140113
E 24
UK, EAN 8024530017088
17140114
E 24
JP
High-Grade Preamplifiers
Purpose-designed high-grade preamplifiers, based on modern solutions and accurately selected components, offer high dynamics and exceptional sound clarity. Re-designed single-control dynamic compressors on mic input channels adjust the dynamic behavior of any instrument and voice. Two onboard Hi-Z inputs solve the need for the D.I. Boxes.

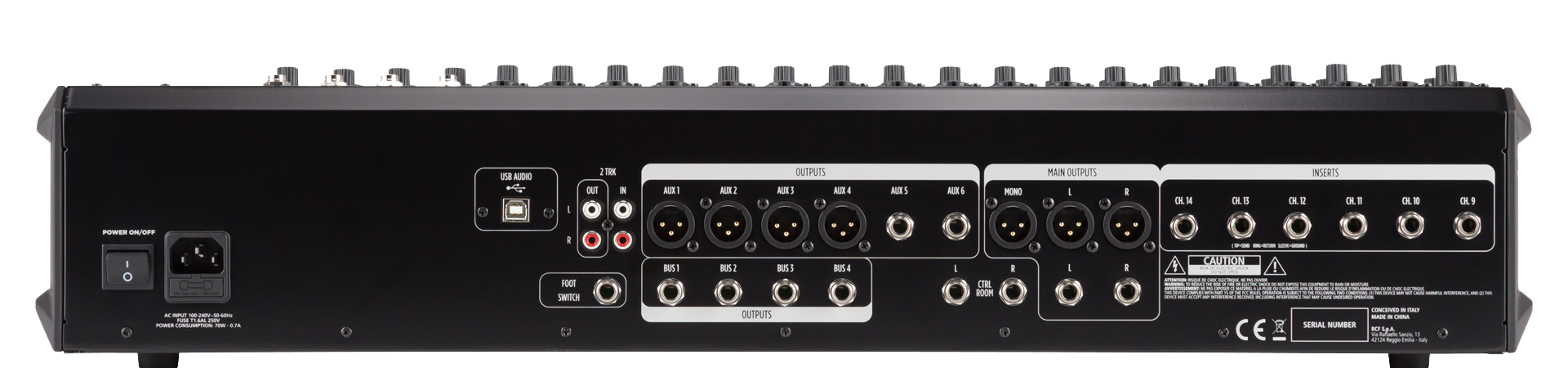

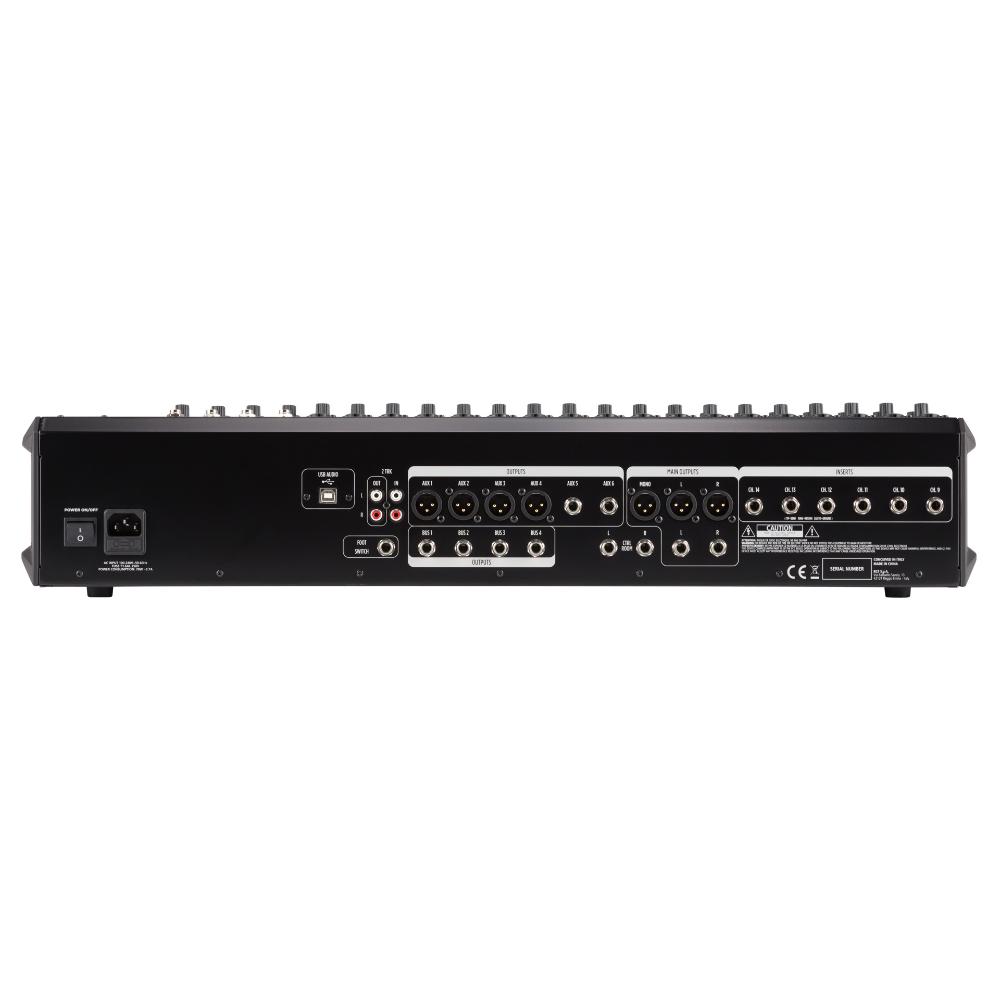

Complete Set of Connectors on Back Panels
