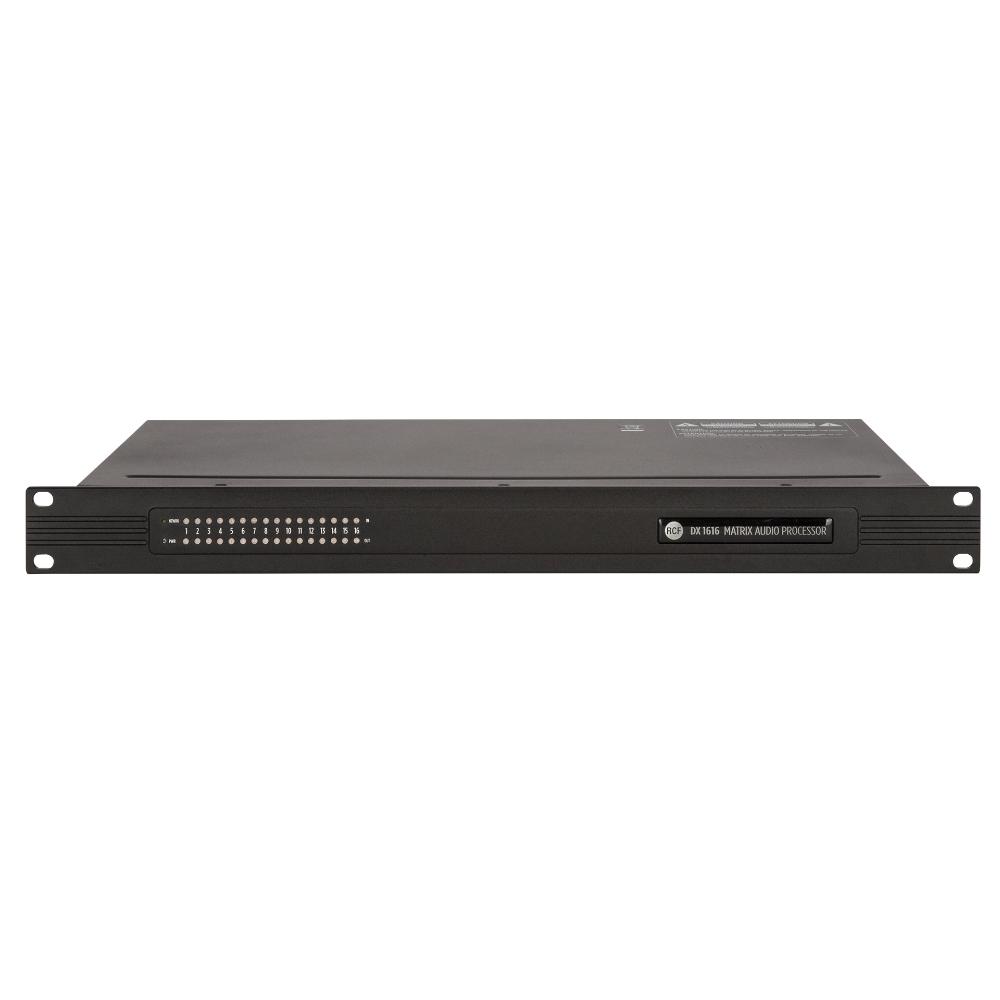

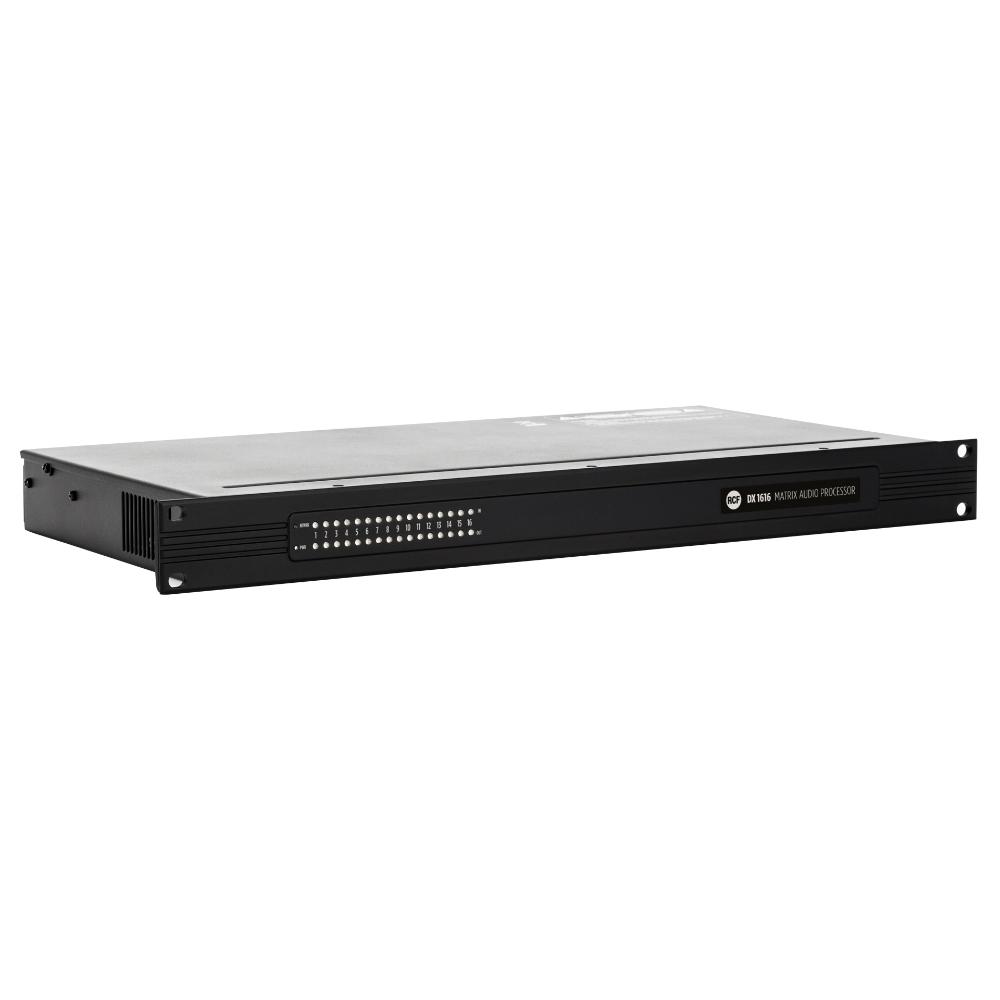

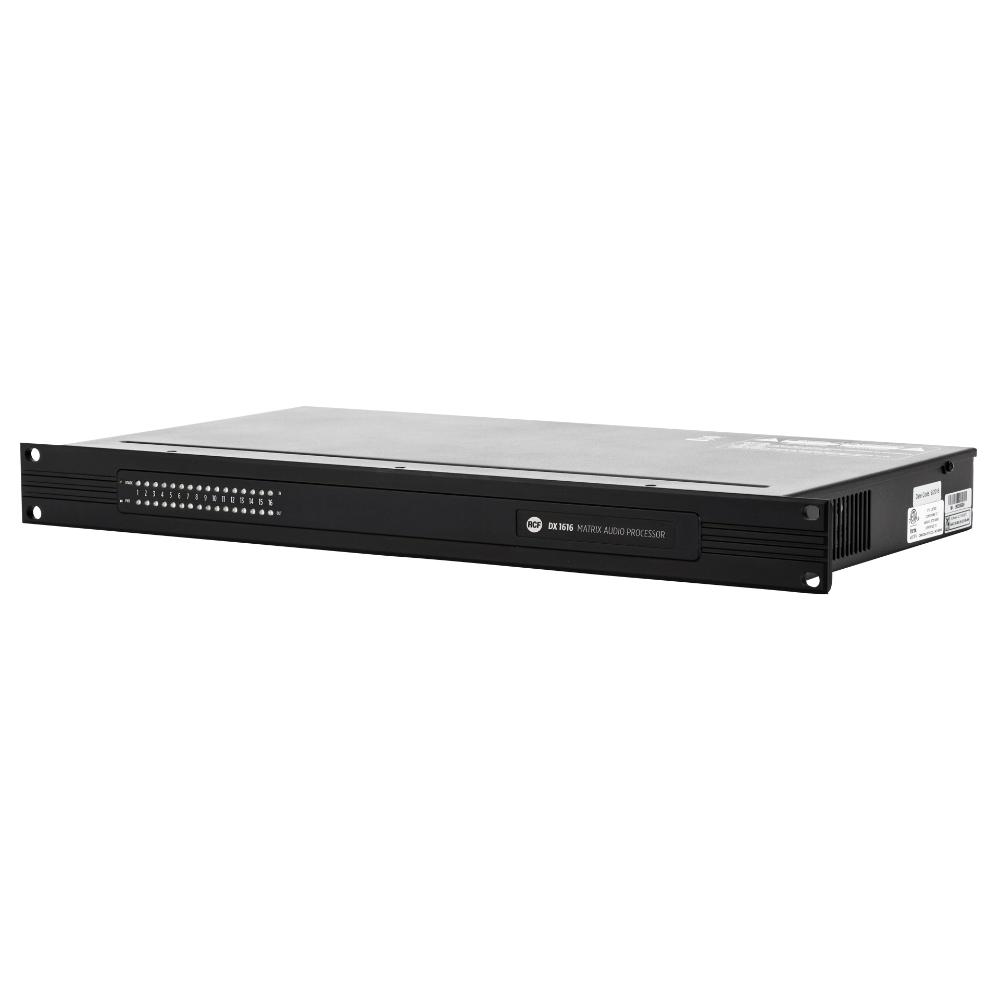

INSTALLED SOUND TT+ PRO SOUND

DX 1616

MATRIX AUDIO PROCESSOR
  • Hybrid architecture DSP
  • 48 KHz sampling, 40 bit floating point engine
  • 16 x 16 I/O matrix
  • Dante enabled network audio transport
Dante
Where to buy
Features Specifications Related products Downloads
Where to buy
Features
  • Hybrid architecture DSP
  • 48 KHz sampling, 40 bit floating point engine
  • 16 x 16 I/O matrix
  • Dante enabled network audio transport
  • 8 AES/EBU inputs - 8 AES/EBU outputs
  • Ethernet connectivity and control
  • Maximum latency 3 ms
  • Easy to use software GUI

DX 1616 AES-Dante remote software. This network-based software designed for Microsoft Windows and Mac OSX allows the management of the DX 1616 Matrix Sound Processor. -Pre-Amp configuration, selecting source types like analog, AES/EBU, Dante -Designing Input groups for festival applications -Input source processing with EQ, delay and compressor -Powerful 16x16 router to assign processing tasks to flexible output patches.

Part number:

12399033
DX 1616
EAN 8024530013752

Specifications
Audio performance
Frequency Response (-3dB)
20 Hz ÷ 22 kHz
Crosstalk
<-100 dB
Distortion (THD+N) @ 1 kHz nominal power
<0.001 %
Dynamic range
>110 dB
Common Mode Rejection Ratio (50 Hz to 10 kHz)
>100 dB
Digital audio performance
Resolution
40
Sampling rate
48
A/D - D/A converters
24
Propagation delay
3

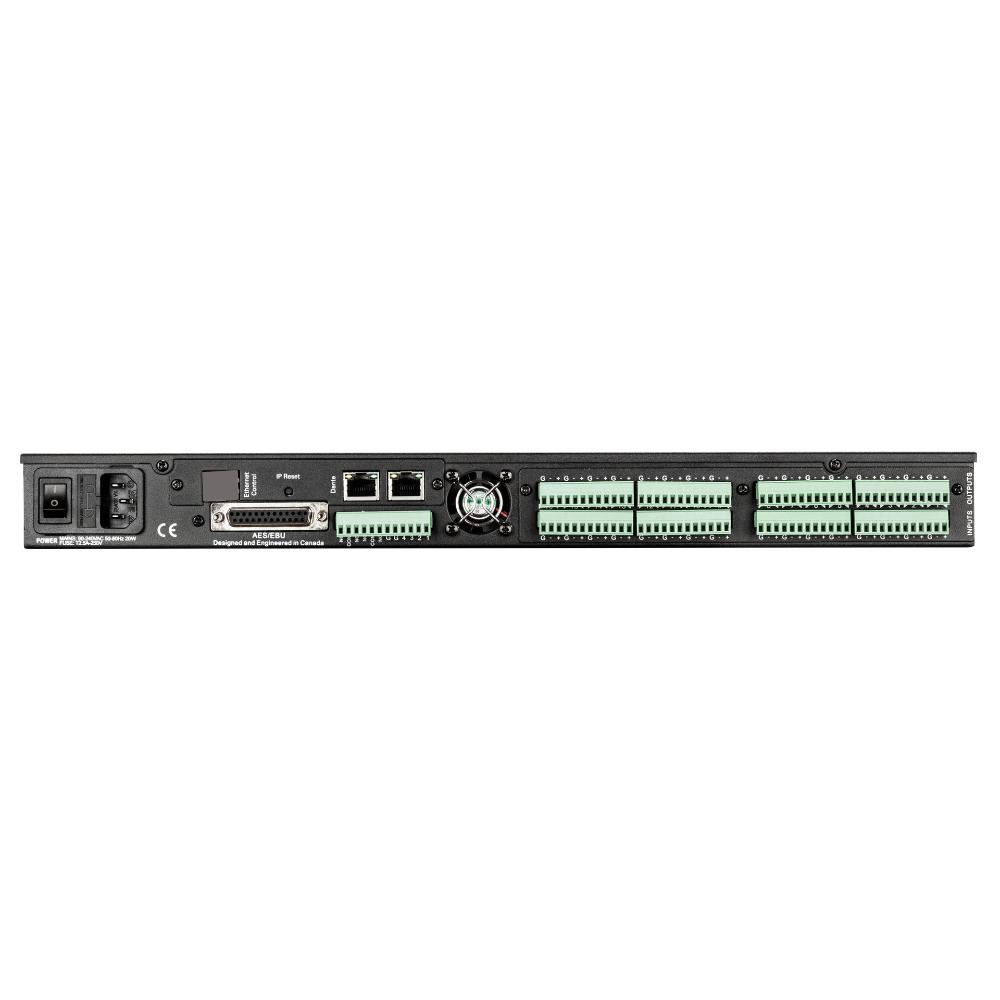

Input section
Total number of inputs
17
Balanced
17
Mono
16
Mic+Line inputs
16
Mic+Line connectors
Euroblock
Mic+Line Phantom
21 V DC - 44 V DC
Digital inputs
1
Digital connectors
RJ45
Digital type
DANTE
Output section
Signal output number
16
Signal output connectors
Euroblock
Processing
DSP
Yes
EQ Filters
Yes
Delay
Yes
Tone controls
Yes
High-pass filter
20 Hz ÷ 20000 Hz
Crossover
20 ÷ 20000 Hz
Controls
Configuration
PC Software
Number of programs/presets
70
Protections
Cooling
Convection/Forced
Fuses
Yes
Power requirement
Operating voltage
90-240 V~ 50/60Hz
Power consumption (MAX)
20 W
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Metal
Color
Black
Rack mounting
19", 1U
Size / Weight
Height
44 mm / 1.73 inches
Width
483 mm / 19.02 inches
Depth
229 mm / 9.02 inches
Weight
3.31 kg / 7.3 lbs
Shipping information
Package Height
378 mm / 14.88 inches
Package Width
88 mm / 3.46 inches
Package Depth
597 mm / 23.5 inches
Package Weight
4.73 kg / 10.43 lbs
