VOICE ALARM EN54

DUP 5EN

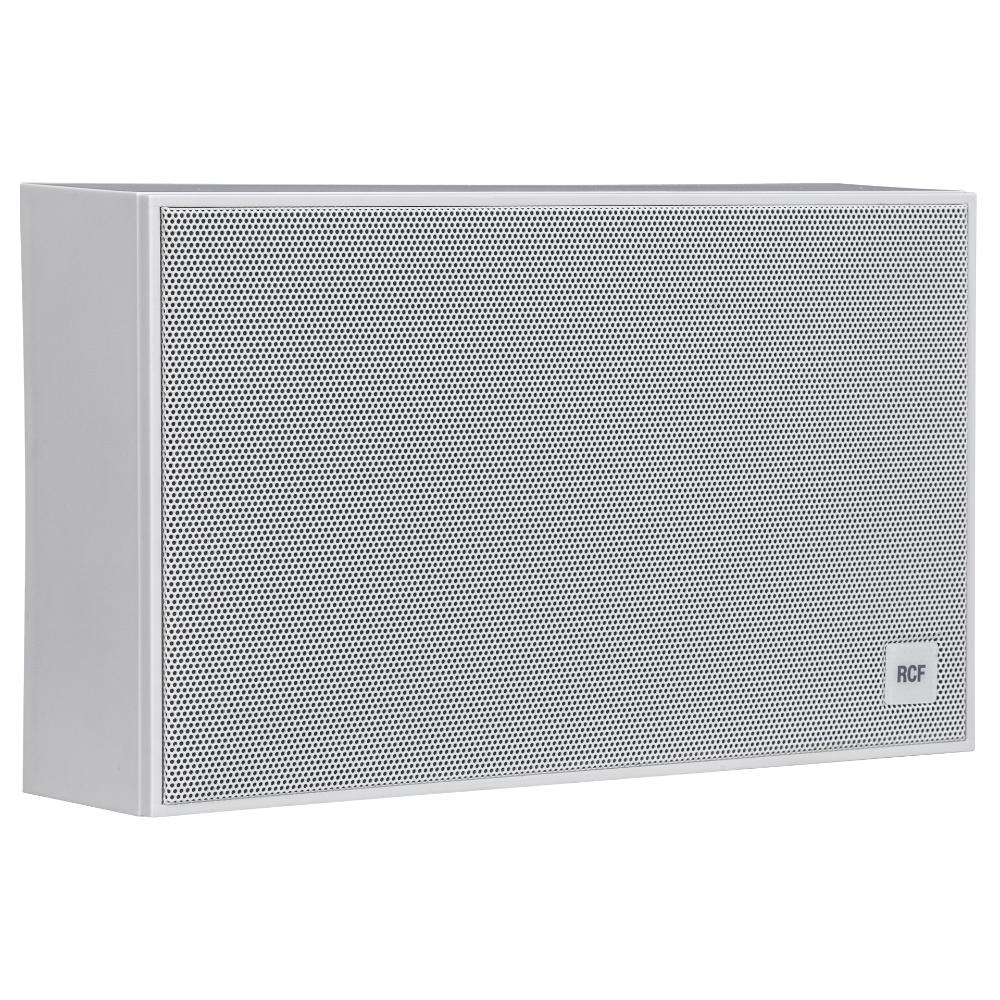

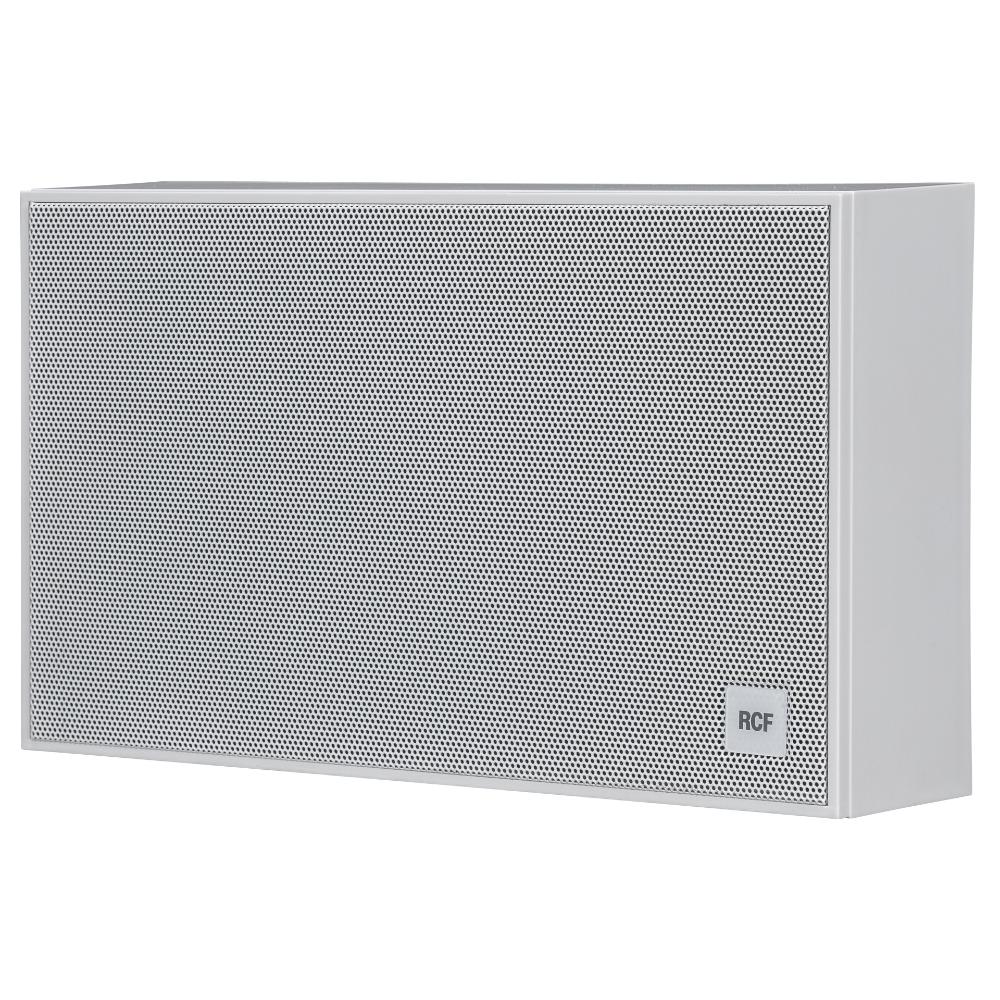

WALL MOUNT UNIVERSAL PLASTIC SPEAKER

5.5" fullrange transducer.
Power selectable (100 V): 6 W – 3 W – 1.5 W.
92 dB sensitivity.
Colour white RAL 9016.

EN 54

Where to buy

Features

5.5" fullrange transducer.
Power selectable (100 V): 6 W – 3 W – 1.5 W.
92 dB sensitivity.
Colour white RAL 9016.
Plastic body and steel grille.

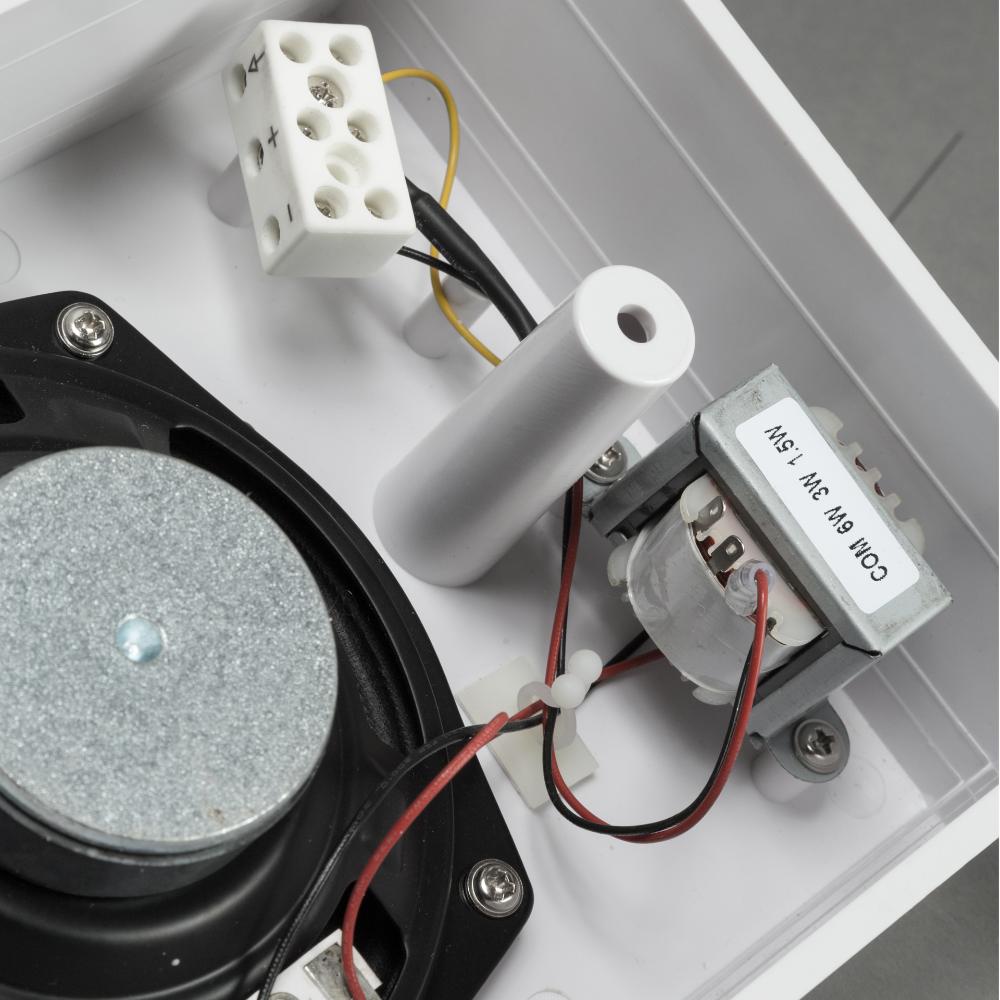

In/out ceramic terminal block.
Thermal fuse protection.

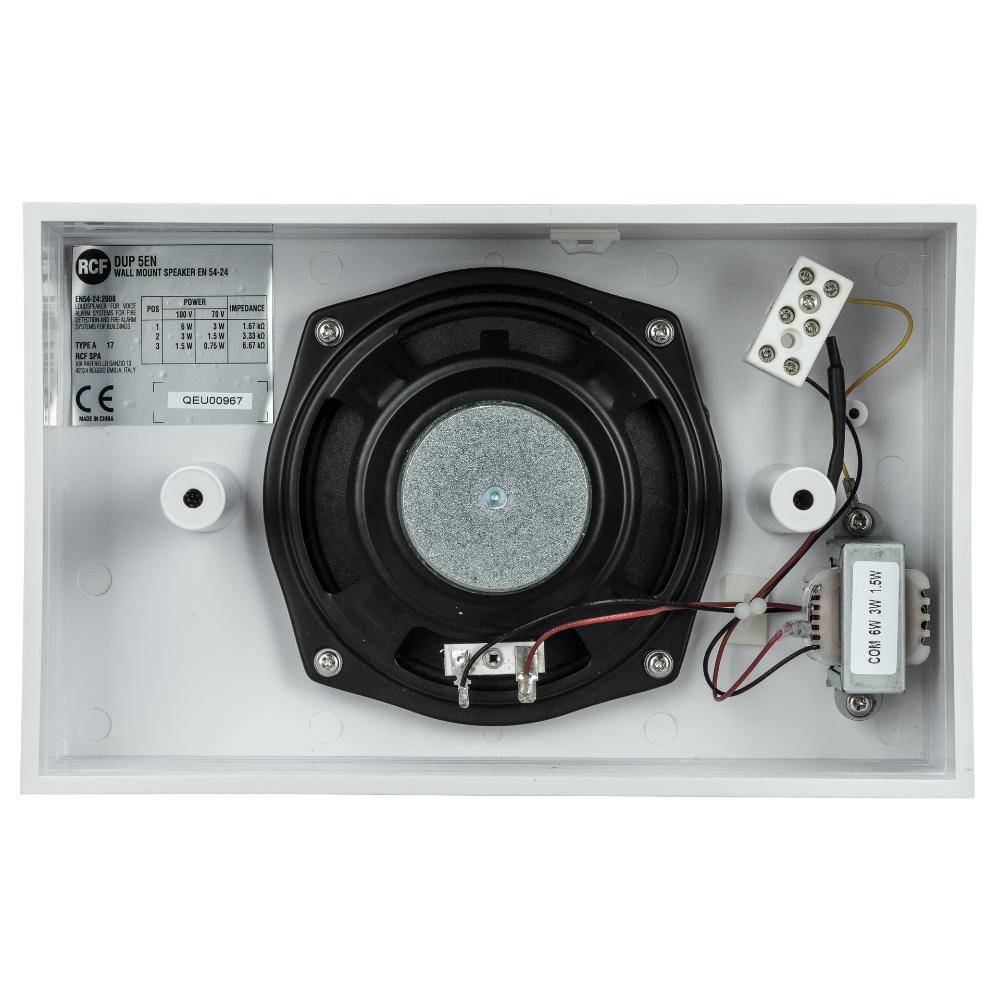

DUP 5EN is a universal speaker designed for wall installation. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Cables inside speaker made using flameproof leads.

Part number:

13100019
DUP 5EN
EAN 8024530014759

Specifications

Acoustical specifications

Frequency Response (-10dB)

130 Hz ÷ 17000 Hz

Max SPL @ 1m

100 dB

Max SPL @ 4m

88 dB

Coverage angle

180°

System Sensitivity

92 dB

System Sensitivity 1W @ 4m

80 dB

Power section

Power Handling

6 W

Peak Power Handling

24 W PEAK

Protections

Thermal fuse

Recommended Amplifiers

DXT 3000, DXT 4000, DXT 7000

Transducers

Fullrange

1 x 5.5''

Input/Output section

Input connectors

Ceramic screw terminals

Output connectors

Ceramic screw terminals

Constant Voltage Transformer

100 V

Power selection 1

6 W - 1667 ohm

Power selection 2

3 W - 3333 ohm

Power selection 3

1.5 W - 6667 ohm

Standard compliance

Safety agency

CE compliant

EN54-24 certified

Yes

CPR number

0068-CPPR-085/2017

Physical specifications

Cabinet/Case Material

ABS

Grille

Steel

Color

White - RAL 9016

Size / Weight

Height

166 mm / 6.54 inches

Width

267 mm / 10.51 inches

Depth

80 mm / 3.15 inches

Weight

1.15 kg / 2.54 lbs

Shipping information

Package Height

90 mm / 3.54 inches

Package Width

280 mm / 11.02 inches

Package Depth

170 mm / 6.69 inches

Package Weight

1.15 kg / 2.54 lbs
