Features
  • 5" fullrange transducer.
  • Power selectable (100 V): 6 W – 3 W – 1.5 W – 0.75 W.
  • 91 dB sensitivity.
  • Colour white RAL 9010.
  • Steel body and grille.
  • In/out ceramic terminal block.
  • Thermal fuse protection.

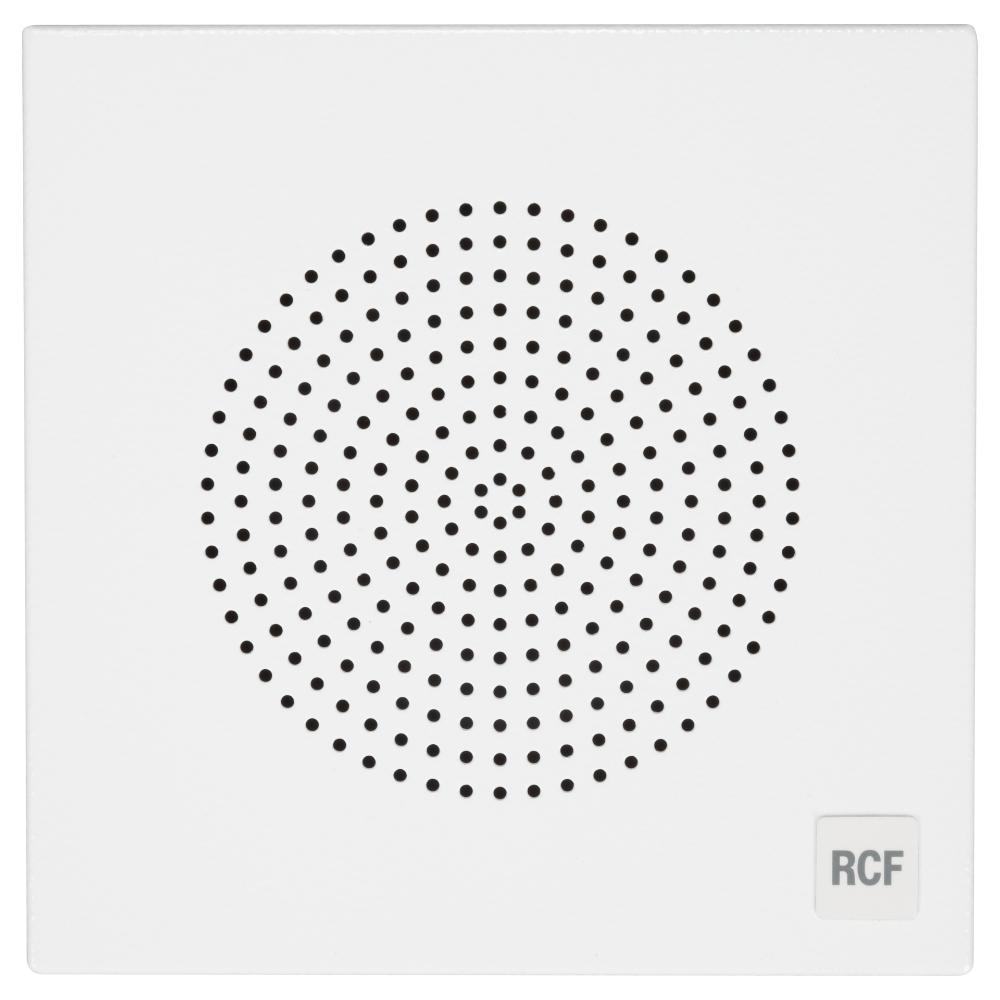

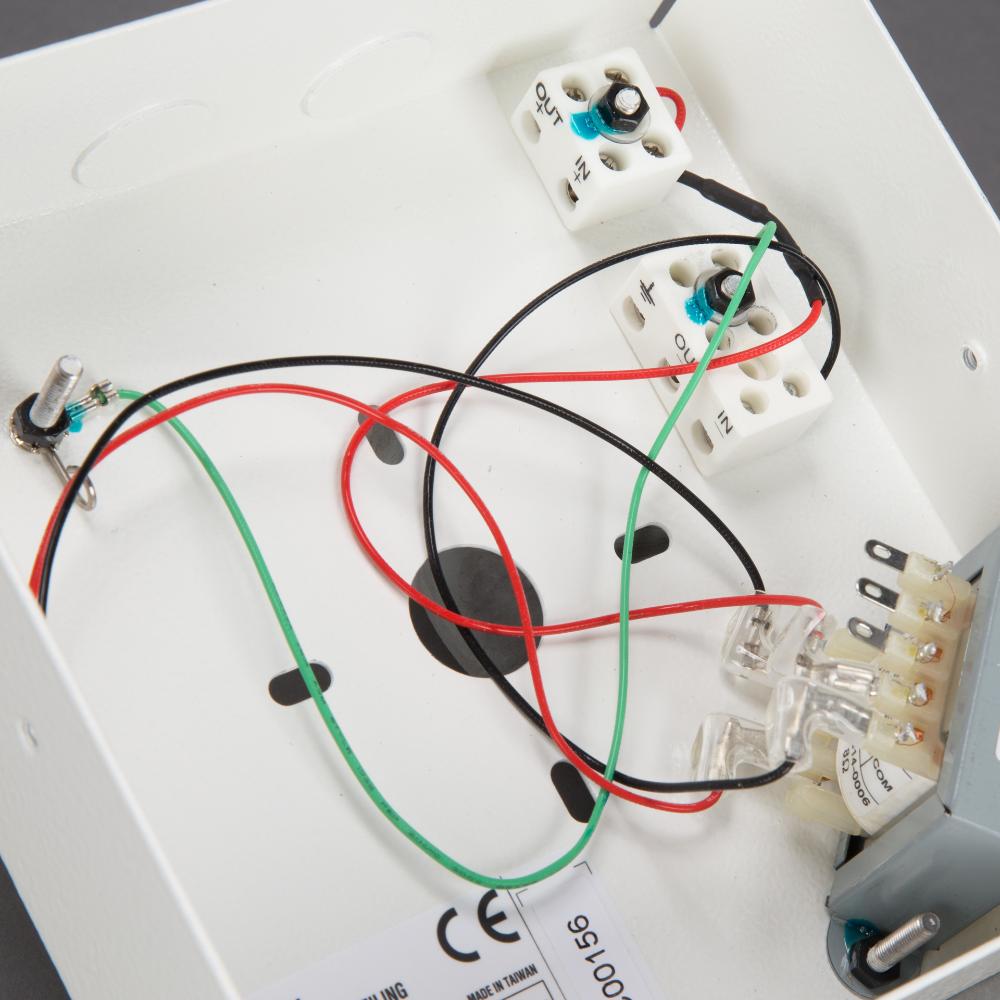

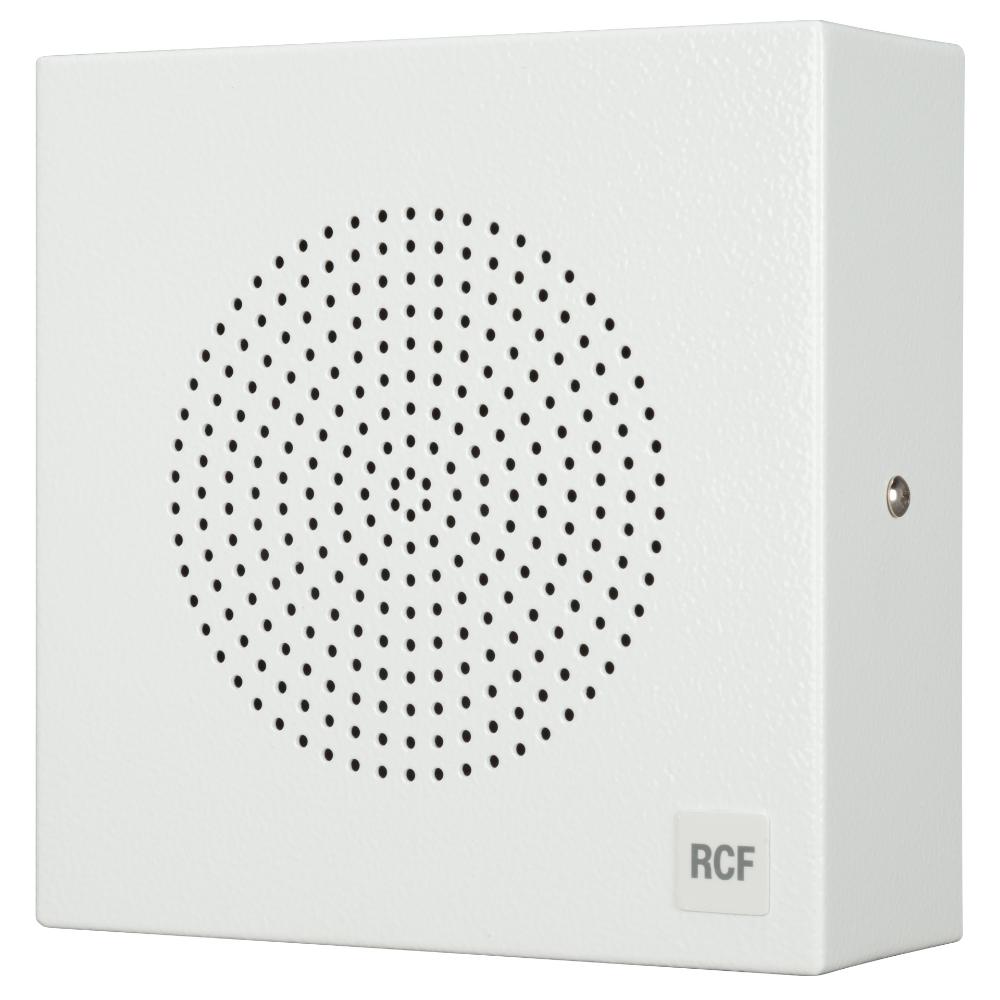

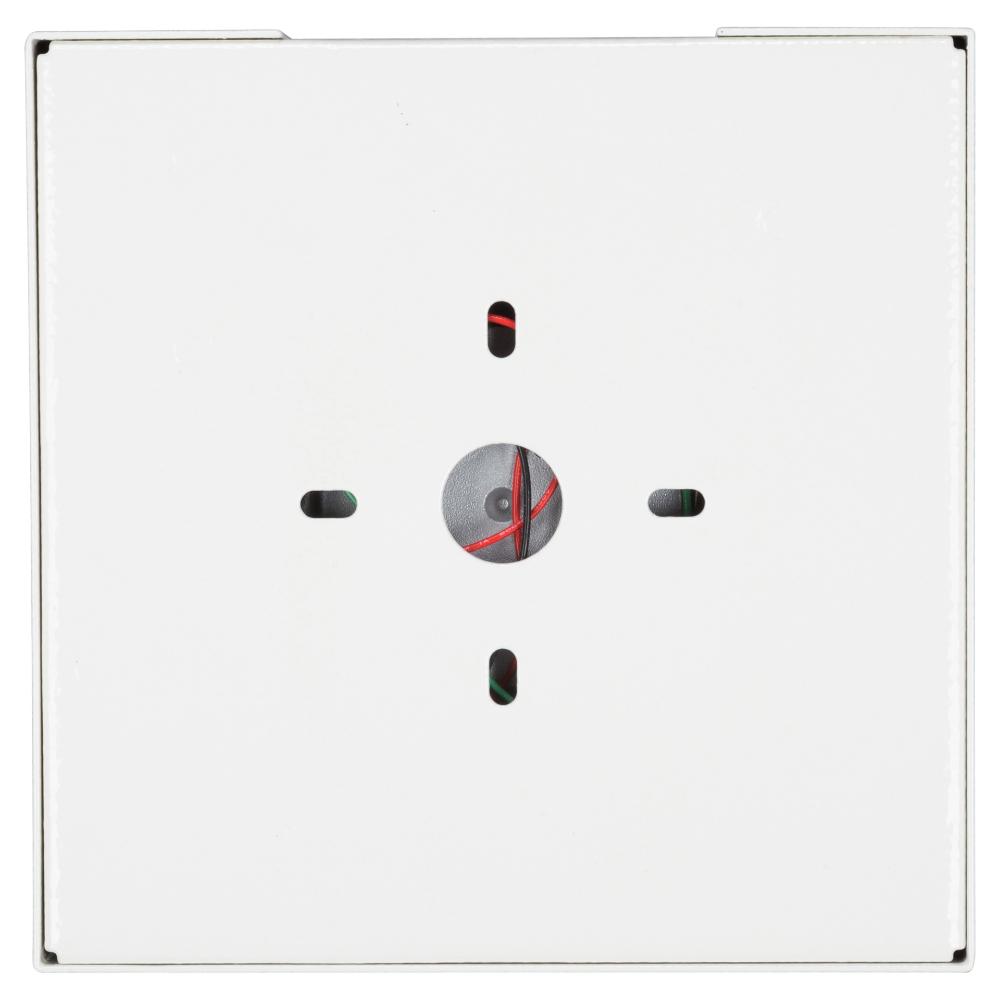

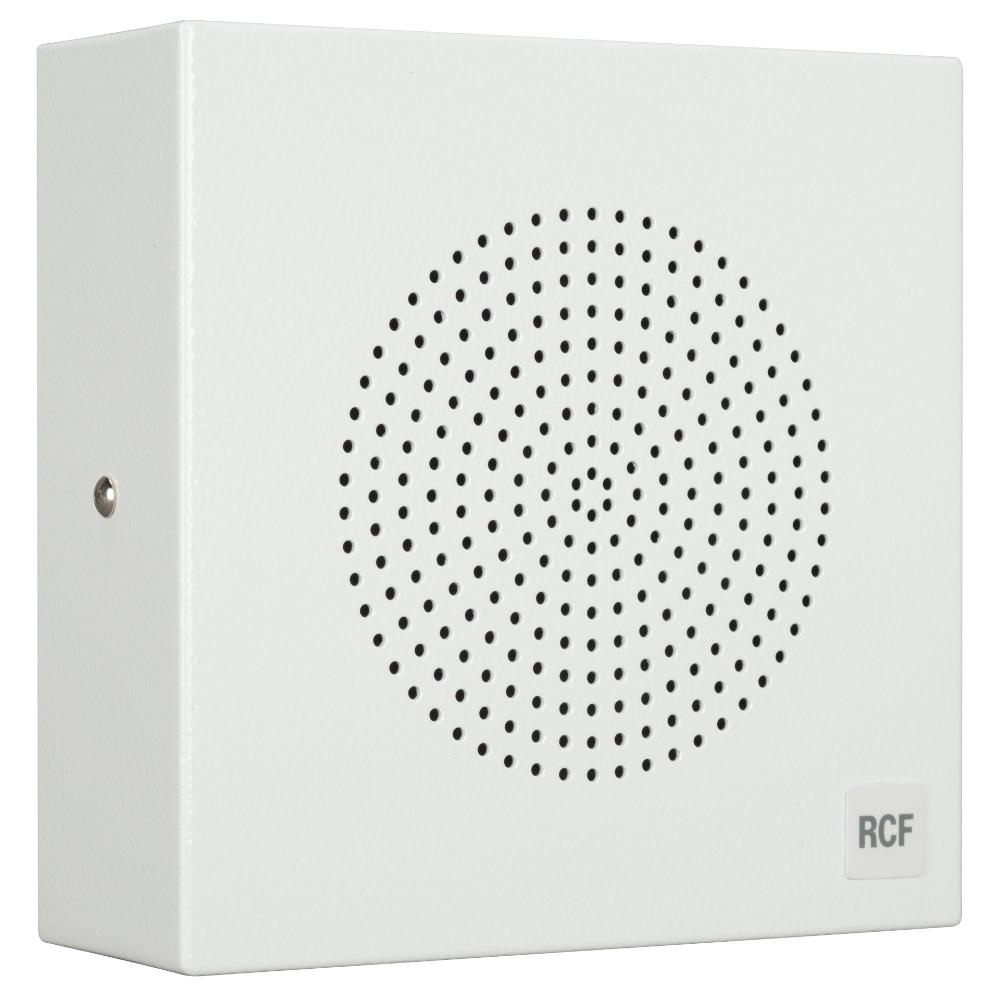

DU 50EN is a universal speaker designed for wall and ceiling installation. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.

Part number:

13133064
DU 50EN
EAN 8024530007584

Specifications
Acoustical specifications
Frequency Response (-10dB)
190 Hz ÷ 18000 Hz
Max SPL @ 1m
100 dB
Max SPL @ 4m
88 dB
Coverage angle
175°
System Sensitivity
91 dB
System Sensitivity 1W @ 4m
79 dB
Power section
Power Handling
6 W
Peak Power Handling
24 W PEAK
Protections
Thermal fuse
Recommended Amplifiers
DXT 3000, DXT 4000, DXT 7000
Transducers
Fullrange
1 x 5.0''
Input/Output section
Input connectors
Ceramic screw terminals
Output connectors
Ceramic screw terminals
Constant Voltage Transformer
100 V
Power selection 1
6 W - 1667 ohm
Power selection 2
3 W - 3333 ohm
Power selection 3
1.5 W - 6667 ohm
Power selection 4
0.75 W - 13333 ohm
Standard compliance
Safety agency
CE compliant
EN54-24 certified
Yes
CPR number
1488-CPR-0489/W
Physical specifications
Cabinet/Case Material
Metal
Grille
Steel
Color
White - RAL 9010
Size / Weight
Height
164 mm / 6.46 inches
Width
164 mm / 6.46 inches
Depth
60 mm / 2.36 inches
Weight
1.9 kg / 4.19 lbs
Shipping information
Package Height
70 mm / 2.76 inches
Package Width
185 mm / 7.28 inches
Package Depth
180 mm / 7.09 inches
Package Weight
3.2 kg / 7.05 lbs
Downloads
MANUALS
PDF
691 KB
31-01-2018
SPECIFICATIONS
PDF
469 KB
18-10-2024
PDF
466 KB
18-10-2024
PDF
470 KB
18-10-2024
PDF
467 KB
18-10-2024
PDF
469 KB
18-10-2024
PDF
257 KB
11-07-2024
STANDARD COMPLIANCES
PDF
153 KB
07-10-2022
PDF
171 KB
24-09-2024
PDF
182 KB
24-09-2024
PDF
367 KB
08-11-2024
DRAWINGS
PDF
284 KB
02-07-2024
DWG
15.4 MB
30-11-2016
DXF
37.6 MB
30-11-2016
ZIP
659 KB
25-06-2018
SOFTWARE
GLL
ZIP
18 KB
28-06-2017
