DM 41
TWO-WAY COMPACT SPEAKER
- 3.5" woofer with 1'' dome tweeter
- Power selectable (100 V): 15 W – 7.5 W – 5 W – 2.5 W – 1.25 W
- 87 dB sensitivity
- Colour white RAL 9002 and black RAL 9005
IP55
Features
- 3.5" woofer with 1'' dome tweeter
- Power selectable (100 V): 15 W – 7.5 W – 5 W – 2.5 W – 1.25 W
- 87 dB sensitivity
- Colour white RAL 9002 and black RAL 9005
- Plastic body UL 94 V0, steel grille
- Protection grade IP 55
DM 41 is a compact two way speaker designed for constant voltage systems. The speaker provide natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music applications. Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side. The enclosure includes a protective perforated grille and an accessory for the wall mounting.
Part number:
13000049

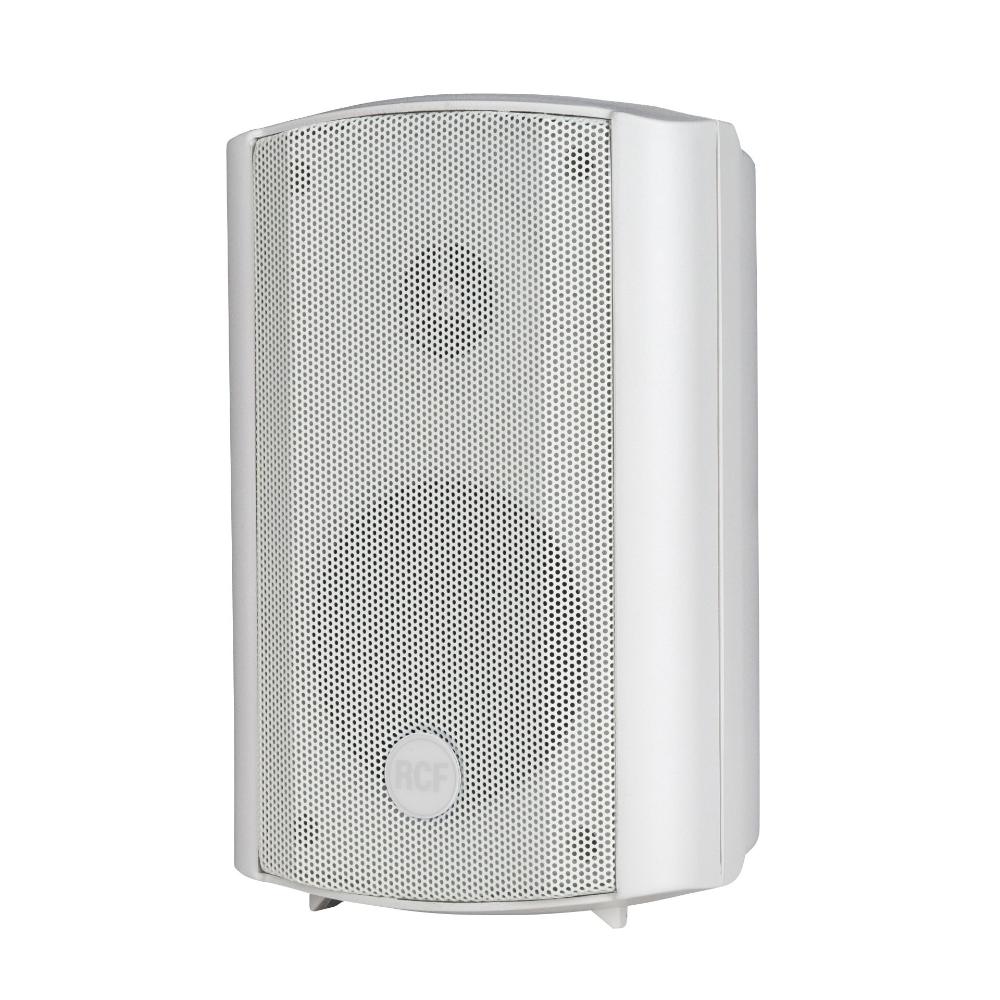

DM 41
White - RAL 9002, EAN 8024530004941
13000387

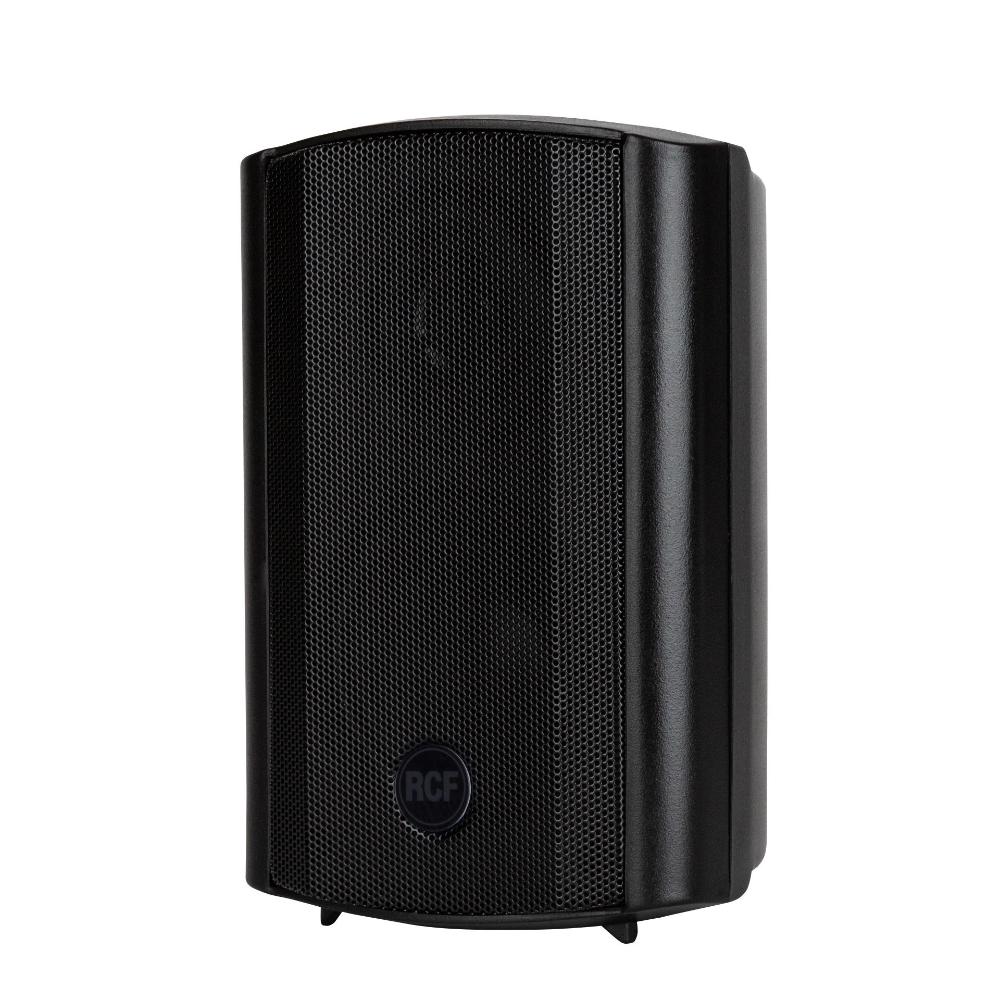

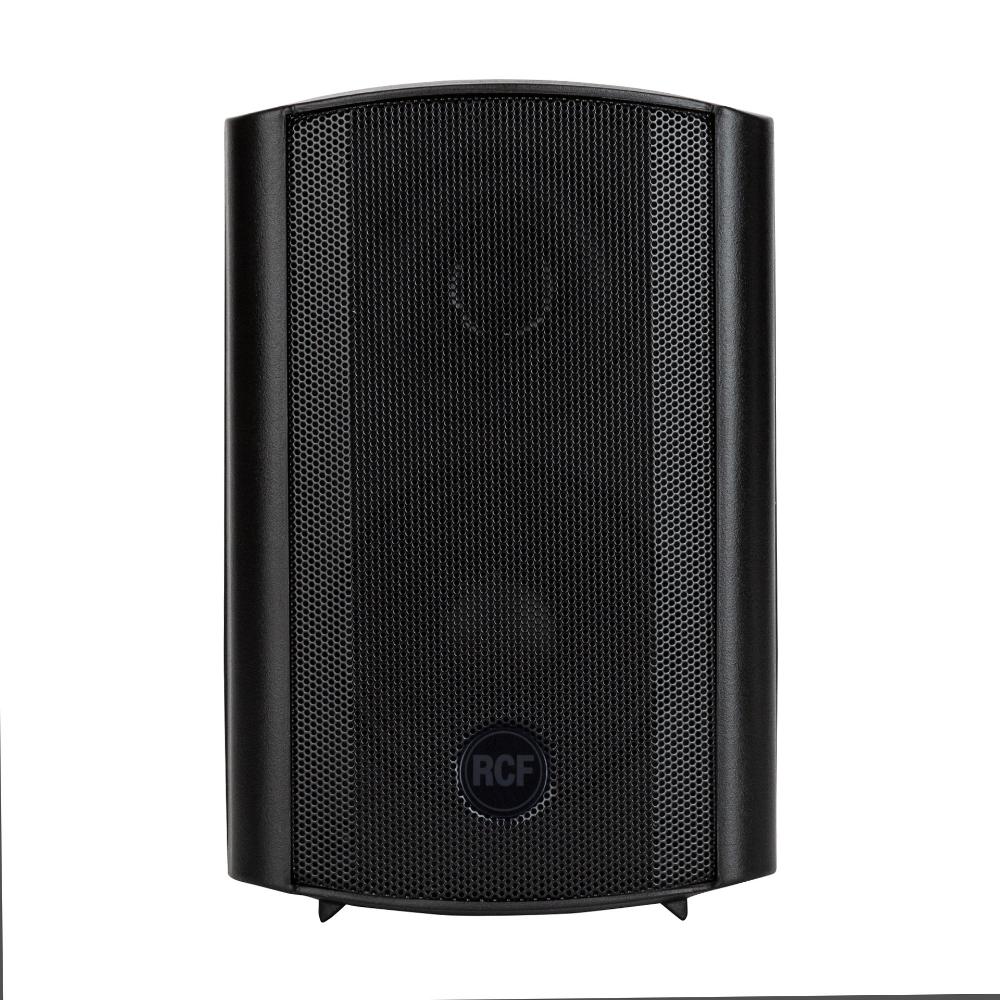

DM 41 B
Black - RAL 9005, EAN 8024530010348
Specifications
Acoustical specifications
Frequency Response (-10dB)
100 Hz ÷ 20000 Hz
Max SPL @ 1m
102 dB
Horizontal coverage angle
180°
Vertical coverage angle
170°
System Sensitivity
87 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
15 W
Peak Power Handling
60 W PEAK
Crossover Frequencies
2.5 Hz
Recommended Amplifiers
DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8502, UP 8501, UP 2321, UP 2162
Transducers
Dome Tweeter
1 x 1.0''
Woofer
1 x 3.5''
Input/Output section
Input connectors
Cable
Output connectors
Cable
Constant Voltage Transformer
100 V
Power selection 1
15 W - 667 ohm
Power selection 2
7.5 W - 1333 ohm
Power selection 3
5 W - 2000 ohm
Power selection 4
2.5 W - 4000 ohm
Power selection 5
1.25 W - 8000 ohm
Standard compliance
IP protection grade
IP 55
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
Aluminium U bracket
Grille
Aluminium
Color
White - RAL 9002, Black - RAL 9005
Size / Weight
Height
197 mm / 7.76 inches
Width
130 mm / 5.12 inches
Depth
115 mm / 4.53 inches
Weight
1.7 kg / 3.75 lbs
Shipping information
Package Height
260 mm / 10.24 inches
Package Width
180 mm / 7.09 inches
Package Depth
175 mm / 6.89 inches
Package Weight
1.96 kg / 4.32 lbs
