CX12G251

Features

• 600 Watt continuous program power handling Mid-Bass
• 2.5-inch , fibreglass outside, aluminum voice coil
• 99.5 dB Sensitivity
• 55 Hz - 3.5 kHz Frequency range
• Dual-forced air ventilation for minimum power compression
• M -roll surround and exponential cone geometry
• Demodulation ring
• 100 Watt Continuous program power handling HF
• 1.75-inch Diaphragm, 1.0-inch Exit Throat
• Frequency range: 1200Hz – 20kHz

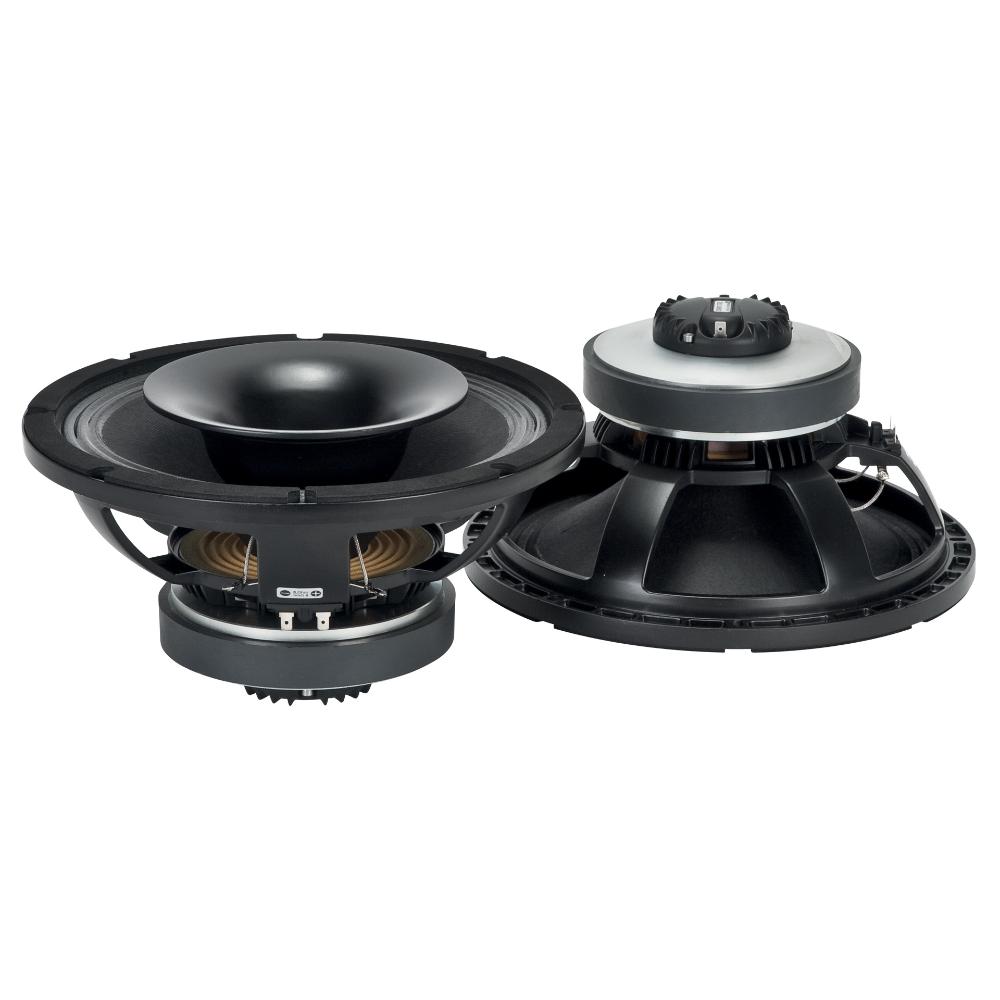

The CX12G251 is a lightweight coaxial driver with excellent linearity and high efficiency. The CX12G251 radiates a coherent single spherical wave front with perfect dispersion control. The design is powered from a large sized single ceramic ring magnet that provides an extremely high flux density and BL factor. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special air-forced ventilations are provided for voice coil, magnet assembly and basket. A 2,5” voice coil combined a strength fibreglass former and aluminium wire drives the mid-bass cone with high efficiency and a good extension. The 1,7” dome compression driver, loaded to a 60° conical waveguide, provides a clear vocal output and a perfect high frequency extension.
