CS 6520EN
TWO-WAY COLUMN SPEAKER
- 4 x 3" fullrange transducers with 0.75" dome tweeter.
- Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W – 1.25 W.
- 93 dB sensitivity.
- Colour white RAL 9003.
EN 54
IP66
![](https://www.rcf.it/documents/20128/824726/000_CS-6520EN-LEFT_gallery.png/47cc9e84-308d-e3a9-c168-19294001f952?version=1.1&t=1635952387323&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/001_CS-6520EN-FRONT_gallery.jpg/30d2db8d-d841-3e69-a506-b87094e9fbea?version=1.1&t=1635952390095&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/002_CS-6520EN-LEFT_gallery.jpg/3111f447-044c-71e4-f49e-5d4db3349fba?version=1.1&t=1635952392790&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/003_CS-6520EN-RIGHT_gallery.jpg/238605f0-8bae-a317-9c30-044423e14860?version=1.1&t=1635952395782&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/004_CS-6520EN-BACK_gallery.jpg/3f651310-cc69-6945-5642-0b09b36deaf6?version=1.1&t=1635952398219&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/005_CS-6520EN-SIDE_gallery.jpg/a1b48e8e-a9f3-cf92-5b71-6e1e3b697b0f?version=1.1&t=1635952400798&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/007_CS-6520EN-TOP_gallery.jpg/24c91668-dcb2-4018-6d21-6191c1f5607c?version=1.1&t=1635952403428&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/008_CS-6520EN-BOTTOM_gallery.jpg/b944c91f-72a2-109b-b3ce-d0da3d246993?version=1.1&t=1635952406121&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/000_CS-6520EN-LEFT_gallery.png/47cc9e84-308d-e3a9-c168-19294001f952?version=1.1&t=1635952387323&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/001_CS-6520EN-FRONT_gallery.jpg/30d2db8d-d841-3e69-a506-b87094e9fbea?version=1.1&t=1635952390095&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/002_CS-6520EN-LEFT_gallery.jpg/3111f447-044c-71e4-f49e-5d4db3349fba?version=1.1&t=1635952392790&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/003_CS-6520EN-RIGHT_gallery.jpg/238605f0-8bae-a317-9c30-044423e14860?version=1.1&t=1635952395782&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/004_CS-6520EN-BACK_gallery.jpg/3f651310-cc69-6945-5642-0b09b36deaf6?version=1.1&t=1635952398219&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/005_CS-6520EN-SIDE_gallery.jpg/a1b48e8e-a9f3-cf92-5b71-6e1e3b697b0f?version=1.1&t=1635952400798&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/007_CS-6520EN-TOP_gallery.jpg/24c91668-dcb2-4018-6d21-6191c1f5607c?version=1.1&t=1635952403428&imagePreview=1)
![](https://www.rcf.it/documents/20128/824726/008_CS-6520EN-BOTTOM_gallery.jpg/b944c91f-72a2-109b-b3ce-d0da3d246993?version=1.1&t=1635952406121&imagePreview=1)
Features
- 4 x 3" fullrange transducers with 0.75" dome tweeter.
- Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W – 1.25 W.
- 93 dB sensitivity.
- Colour white RAL 9003.
- Aluminium body, grille and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP66.

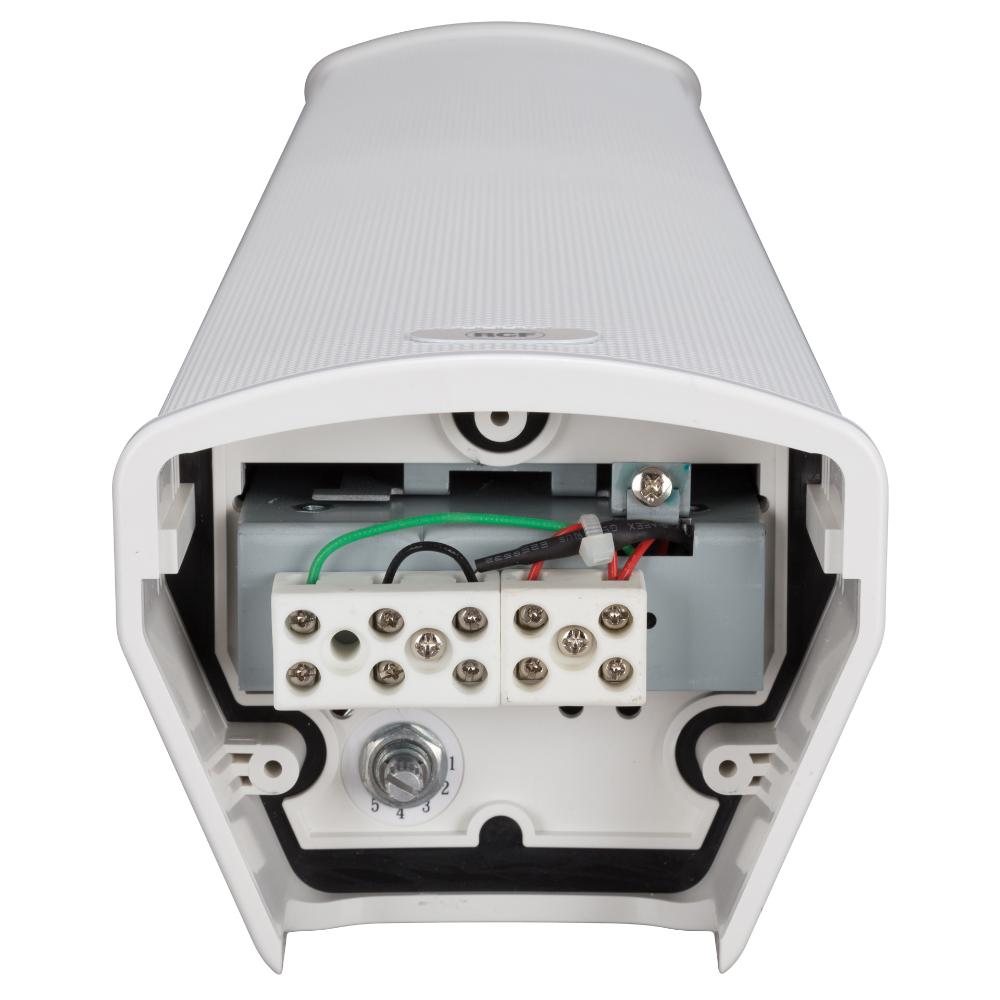

CS 6520EN is a compact and elegant two-way column speaker providing highly intelligible voice reproduction, and suitable for installation into places of worship, stations, subways and many other environments. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Thanks to its IP66 protection grade, it can be installed both indoor and outdoor.
Part number:
13133079
CS 6520EN
EAN 8024530010478
Specifications
Acoustical specifications
Frequency Response (-10dB)
140 Hz ÷ 20000 Hz
Max SPL @ 1m
105 dB
Max SPL @ 4m
93 dB
Horizontal coverage angle
185°
Vertical coverage angle
47°
System Sensitivity
93 dB
System Sensitivity 1W @ 4m
81 dB
Power section
Amplification
Full Range
Power Handling
20 W
Peak Power Handling
80 W PEAK
Protections
Thermal fuse
Recommended Amplifiers
DXT 3000, DXT 4000, DXT 7000
Transducers
Dome Tweeter
1 x 0.75''
Fullrange
4 x 3.0''
Input/Output section
Input connectors
Ceramic screw terminals
Output connectors
Ceramic screw terminals
Constant Voltage Transformer
70/100 V
Power selection 1
20 W - 500 ohm
Power selection 2
10 W - 1000 ohm
Power selection 3
5 W - 2000 ohm
Power selection 4
2.5 W - 4000 ohm
Power selection 5
1.25 W - 8000 ohm
Standard compliance
IP protection grade
IP 66
Safety agency
CE compliant
EN54-24 certified
Yes
CPR number
1488-CPR-0490/W
Physical specifications
Cabinet/Case Material
Aluminum
Grille
Aluminium
Color
White - RAL 9003
Size
Height
620 mm / 24.41 inches
Width
114 mm / 4.49 inches
Depth
96 mm / 3.78 inches
Weight
4.2 kg / 9.26 lbs
Shipping information
Package Height
170 mm / 6.69 inches
Package Width
690 mm / 27.17 inches
Package Depth
210 mm / 8.27 inches
Package Weight
5.1 kg / 11.24 lbs
