VOICE ALARM EN54

CJ 428CAT

CAT5 FTP FIRE RESISTANT DATA CABLE
  • Fire resistant CAT5 FTP shielded data cable
  • Suitable for the transmission of signals and commands
  • For Voice Alarm systems applications
  • PH 120
Where to buy
Features Specifications Compatible products Downloads
Where to buy
Features
  • Fire resistant CAT5 FTP shielded data cable
  • Suitable for the transmission of signals and commands
  • For Voice Alarm systems applications
  • PH 120

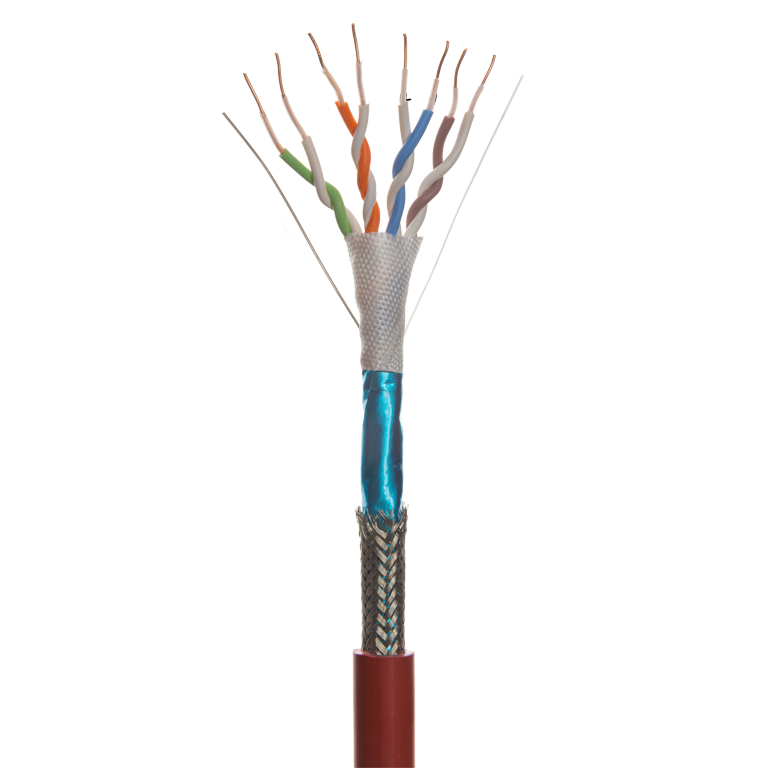

Shielded CAT5 FTP fire resistant cable suitable for the transmission of signals and commands for voice alarm systems, when maximum safety against fire is required. Made of 4 pairs of twisted annealed copper conductors with 0.63 sqmm (AWG22) section. For fixed indoor installations in normal or humid environments. Red external sheath. Sold in coils of 200 m.

Part number:

12399047
CJ 428CAT
EAN 8024530016449

Specifications
General specifications
Number of conductors:
8
Conductors section (mm2):
0.63
Overall diameter (mm):
10.20
Sheath material:
Mix LSZH, quality M1
Sheath colour:
Red RAL 3000
Insulation (V):
300 / 500
Standards:
CEI EN 60332-3-24
CEI EN 50267-2-1/2 IEC 60754-1/2
CEI EN 61034-2
CEI EN 60332-1-2
CEI EN 50200
DIN VDE 4102-12
IEC 60331-21
VDE 472-814
BS 6387 Cat. CWZ
CEI EN 50288-2-1
Coil length (m):
200
PH:
120
Standard compliance
Safety agency
CE compliant
Shipping information
Package Height
90 mm / 3.54 inches
Package Width
340 mm / 13.39 inches
Package Depth
340 mm / 13.39 inches
Package Weight
0.11 kg / 0.24 lbs
Compatible products
Downloads
SPECIFICATIONS
SPECSHEET ACCESSORIES - DEU
PDF
189 KB
19-08-2024
SPECSHEET ACCESSORIES - ENG
PDF
185 KB
19-08-2024
SPECSHEET ACCESSORIES - FRA
PDF
188 KB
19-08-2024
SPECSHEET ACCESSORIES - ITA
PDF
187 KB
19-08-2024
SPECSHEET ACCESSORIES - SPA
PDF
188 KB
19-08-2024
STANDARD COMPLIANCES
CE DECLARATION OF CONFORMITY - ENG
PDF
177 KB
29-03-2022
DECLARATION OF PERFORMANCE -
PDF
217 KB
29-03-2022
