COMMERCIAL AUDIO

BS 8

PENDANT SPEAKER
  • 8" dual cone wide band woofer
  • Power selectable (100 V): 20 W – 10 W – 5 W
  • 93 dB sensitivity
  • Colour white RAL 9010
Where to buy
Features Specifications Downloads
Where to buy
Features
  • 8" dual cone wide band woofer
  • Power selectable (100 V): 20 W – 10 W – 5 W
  • 93 dB sensitivity
  • Colour white RAL 9010
  • 5 m suspension and connection cable included

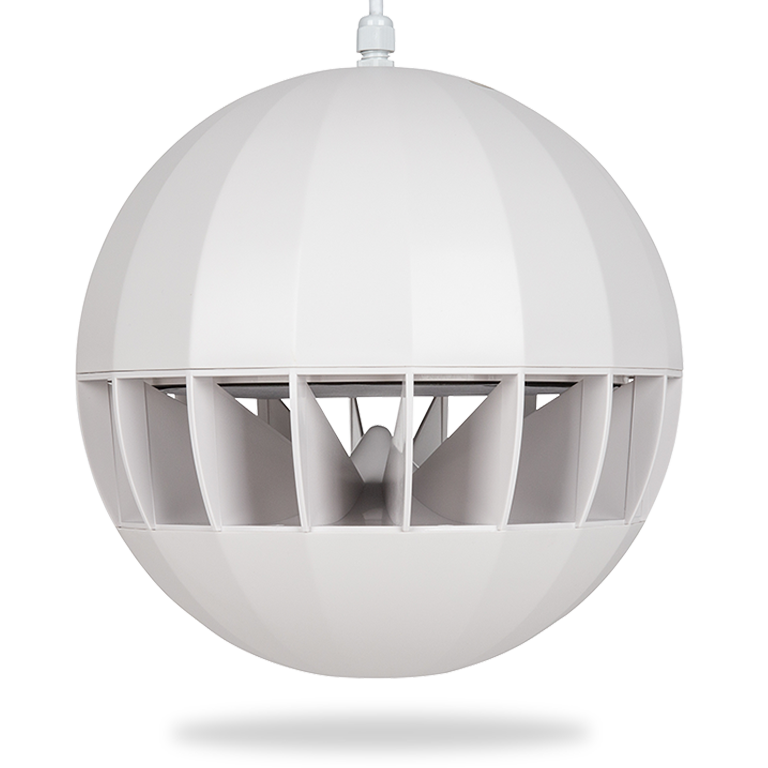

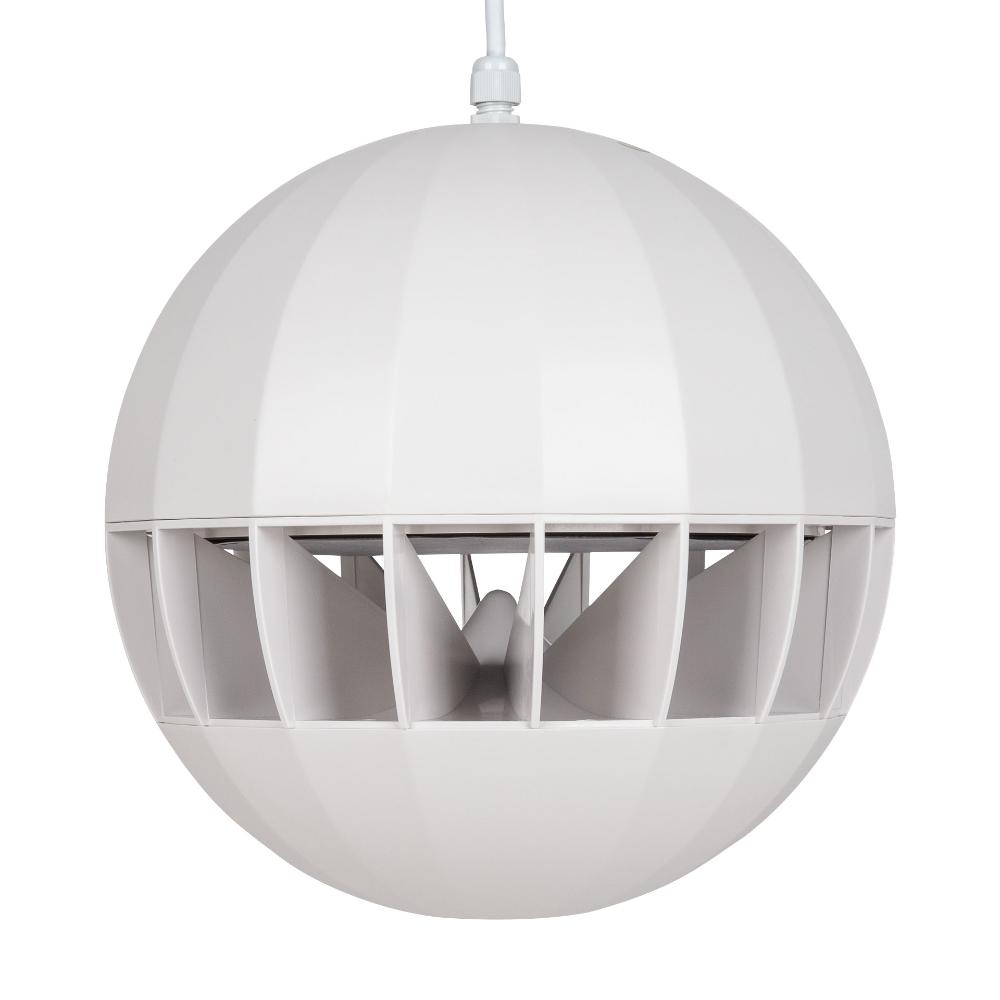

The BS 8 is a spherical speaker designed for suspended installation. Ideal for covering large areas, it incorporates a 200 mm (8”) loudspeaker which provides high quality sound reproduction with excellent voice intelligibility.

Part number:

13133054
BS 8
EAN 8024530005733

Specifications
Acoustical specifications
Frequency Response (-10dB)
160 Hz ÷ 12500 Hz
Max SPL @ 1m
106 dB
Horizontal coverage angle
360°
System Sensitivity
93 dB
Power section
Power Handling
20 W
Peak Power Handling
80 W PEAK
Transducers
Woofer
1 x 8''
Input/Output section
Input connectors
Cable
Output connectors
Cable
Constant Voltage Transformer
100 V
Power selection 1
20 W - 500 ohm
Power selection 2
10 W - 1000 ohm
Power selection 3
5 W - 2000 ohm
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
Carabiner and safety steel wire
Grille
Plastic
Color
White - RAL 9010
Size / Weight
Height
240 mm / 9.45 inches
Diameter
250 mm / 9.84 inches
Weight
2.3 kg / 5.07 lbs
Shipping information
Package Height
300 mm / 11.81 inches
Package Width
315 mm / 12.4 inches
Package Depth
315 mm / 12.4 inches
Package Weight
3.55 kg / 7.83 lbs
Downloads
MANUALS
USER MANUAL
PDF
2.4 MB
18-02-2016
SPECIFICATIONS
SPECSHEET - DEU
PDF
288 KB
18-10-2024
SPECSHEET - ENG
PDF
285 KB
18-10-2024
SPECSHEET - FRA
PDF
290 KB
18-10-2024
SPECSHEET - ITA
PDF
286 KB
18-10-2024
ACOUSTIC MEASUREMENTS
PDF
401 KB
12-07-2024
STANDARD COMPLIANCES
CE DECLARATION OF CONFORMITY - ENG
PDF
144 KB
27-10-2022
UKCA DECLARATION OF CONFORMITY - ENG
PDF
167 KB
27-10-2022
DRAWINGS
LINE ART 2D
PDF
256 KB
10-07-2024
SOFTWARE
GLL
ZIP
45 KB
28-06-2017
