BS 2620 SUSPENDED SPEAKER
Search RCF products
Choose search system
ARCHIVED
COMMERCIAL AUDIO
BS 2620
SUSPENDED SPEAKER
- Pendant speaker
- For paging and background music
- Music power/RMS: 40/20W
- 6" diameter dual cone wide band speaker
Features
- Pendant speaker
- For paging and background music
- Music power/RMS: 40/20W
- 6" diameter dual cone wide band speaker
- 5-metre suspension and connection cable included
- Water-resistant construction (IP55) for use both indoors and outdoors
- Body in self-extinguishing plastic UL94VO, UV ray protected
- Colour RAL 9010 white

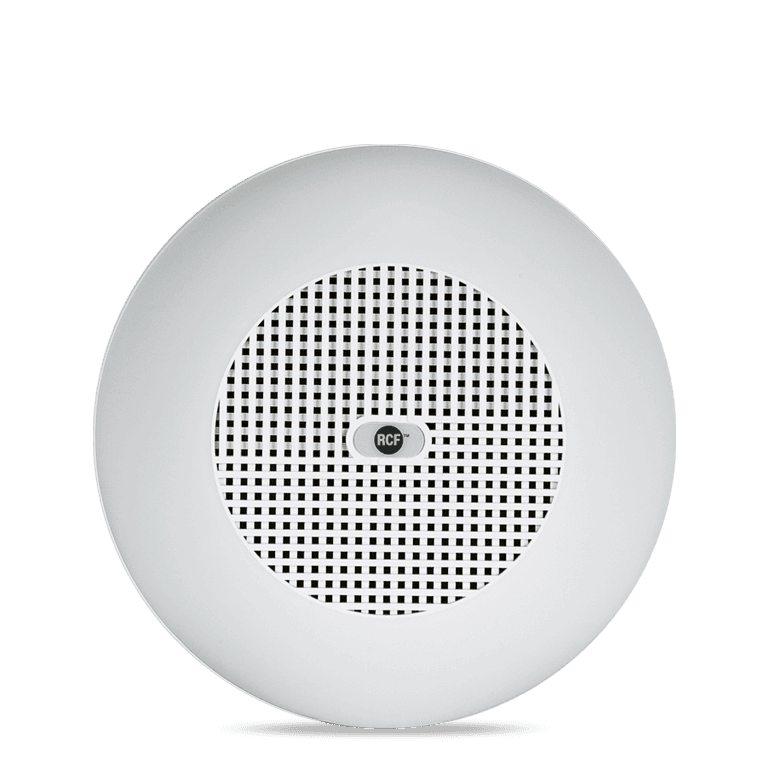

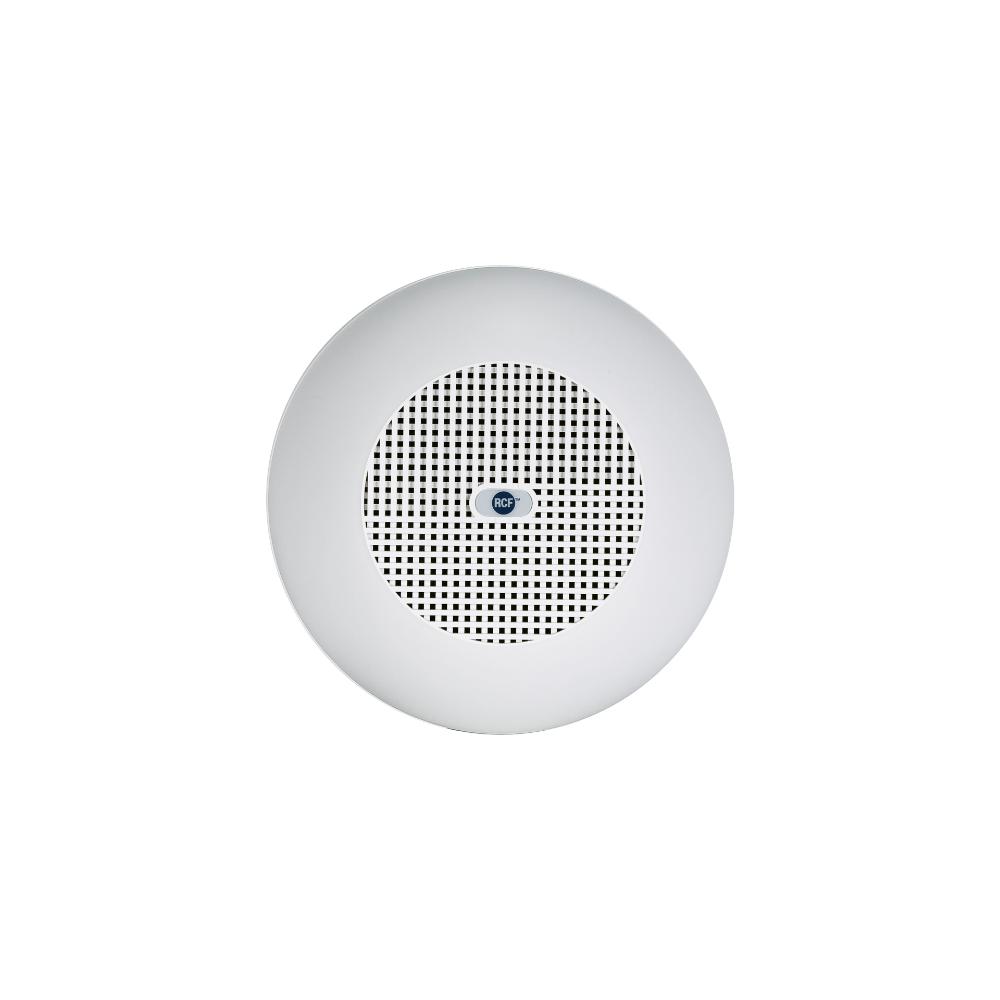

The BS 2620 is a spherical speaker designed for suspended installation. Ideal for covering large areas, it incorporates a 160 mm (6”) dual cone loudspeaker which provides high quality sound reproduction.
ARCHIVED
Part number:
13110006
BS 2620
EAN 8024530010089
Specifications
Acoustical specifications
Frequency Response (-10dB)
100 Hz ÷ 20000 Hz
Max SPL @ 1m
106 dB
Coverage angle
180°
System Sensitivity
93 dB
Power section
Nominal Impedance
8 ohm
Power Handling
20 W
Peak Power Handling
80 W PEAK
Transducers
Fullrange
1 x 6.0''
Input/Output section
Input connectors
Cable
Output connectors
Cable
Constant Voltage Transformer
100 V
Power selection 1
20 W - 500 ohm
Power selection 2
10 W - 1000 ohm
Power selection 3
5 W - 2000 ohm
Power selection 4
2.5 W - 4000 ohm
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
Carabiner and safety steel wire
Grille
Plastic
Color
White - RAL 9010
Size / Weight
Height
240 mm / 9.45 inches
Diameter
260 mm / 10.24 inches
Weight
1.79 kg / 3.95 lbs
Shipping information
Package Height
290 mm / 11.42 inches
Package Width
270 mm / 10.63 inches
Package Depth
270 mm / 10.63 inches
Package Weight
2.85 kg / 6.28 lbs
