VOICE ALARM EN54

BM 9802

DESK-TOP EMERGENCY MICROPHONE CONSOLE
  • Live emergency announcements
  • Pre-recorded messages activation
  • Complete self-diagnostic

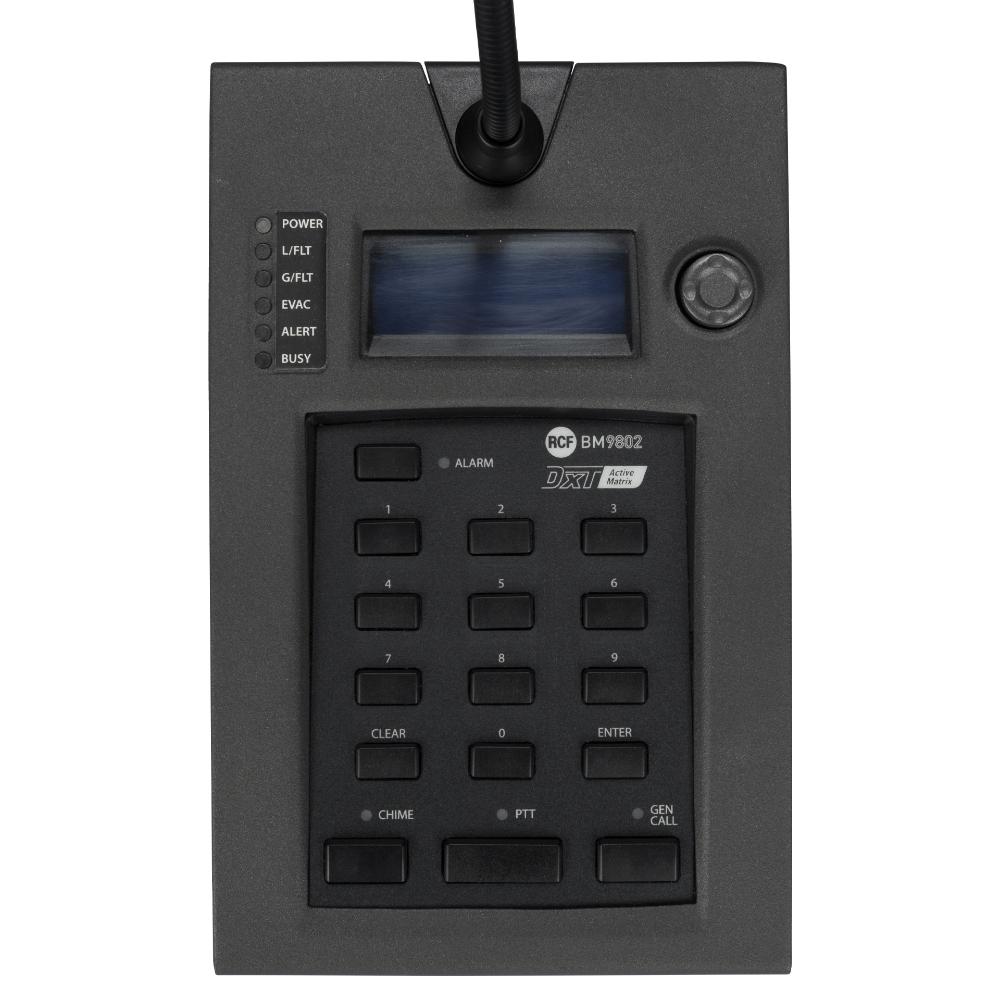

  • Numeric keyboard and display
Support
Features Specifications Accessories Downloads
Support
Features
  • Live emergency announcements
  • Pre-recorded messages activation
  • Complete self-diagnostic
  • Numeric keyboard and display
  • Hi-quality cardioid microphone
  • Robust metal case

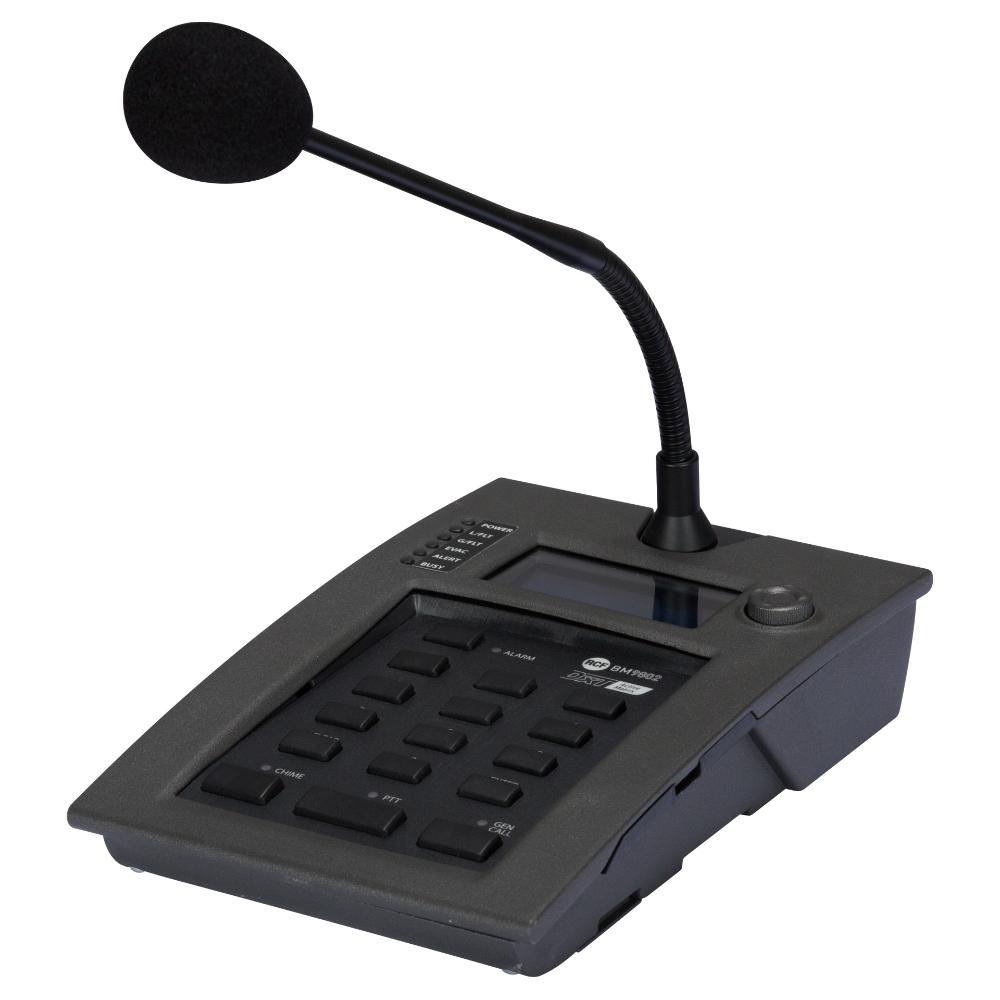

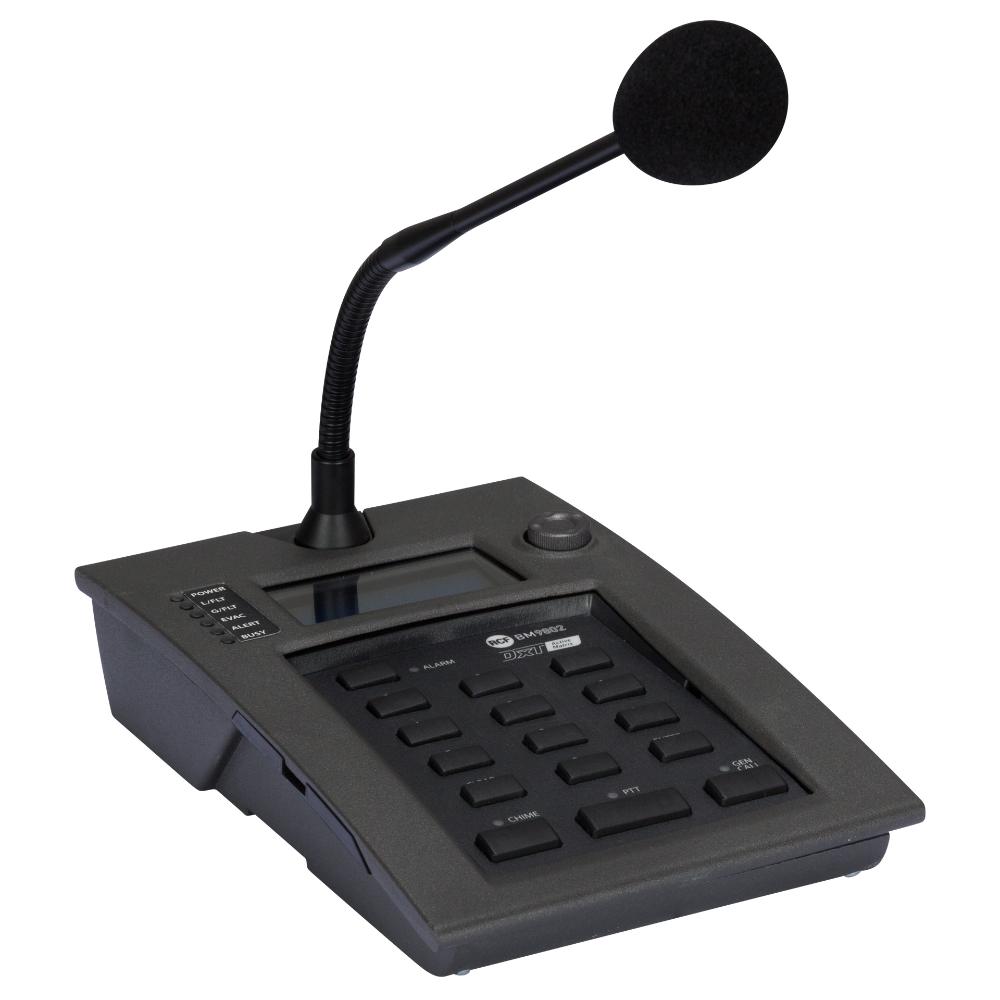

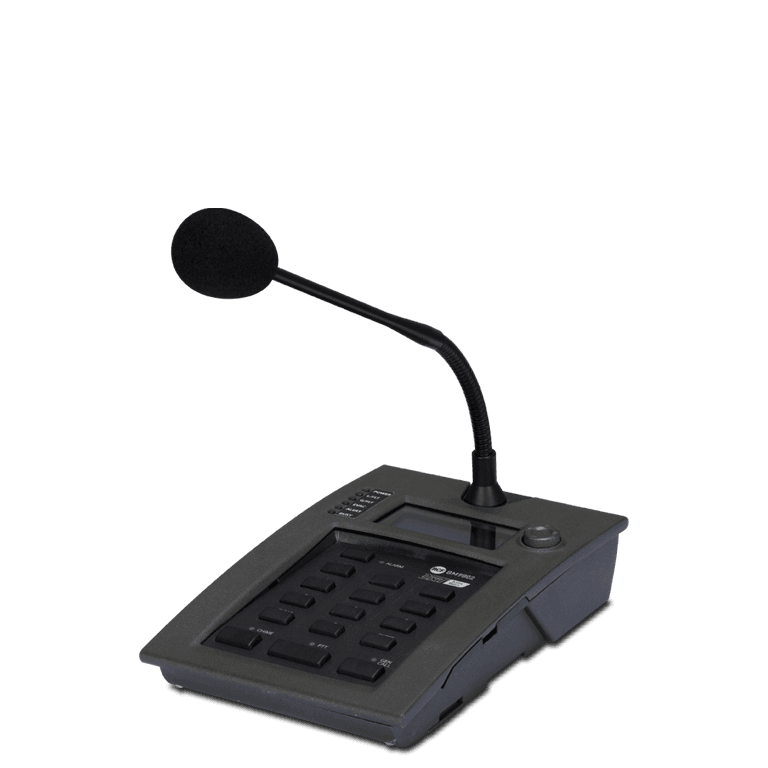

BM 9802 is a desk-top emergency microphone console exclusively dedicated to DXT 9000 Voice Alarm system, and can be used both for live announcements and pre-recorded messages activation. It features complete self-diagnostic functionalities and system status reporting in compliance with EN 54-16:2008 standard. Up to 16 consoles can be daisy-chained on each paging bus, and the first one is powered directly by the master unit, while the others need local 24 V DC adapters.

ARCHIVED

Part number:

14380023
BM 9802
EAN 8024530007683

Specifications
Microphone specifications
Type
Electret
Directivity
Cardioid
Sensitivity
-65 dB
Frequency Response (-3dB)
50 Hz ÷ 18 kHz
Output impedance (ohm)
470.00 ohm
Console specifications
Console Type
Emergency
Working with
DXT 9000
General call
Yes
Selective call
Yes
Preamplified
Yes
Configurable buttons
Yes
LED indicators
Yes
Power requirement
Operating voltage
24.00V ~ Hz
Connections

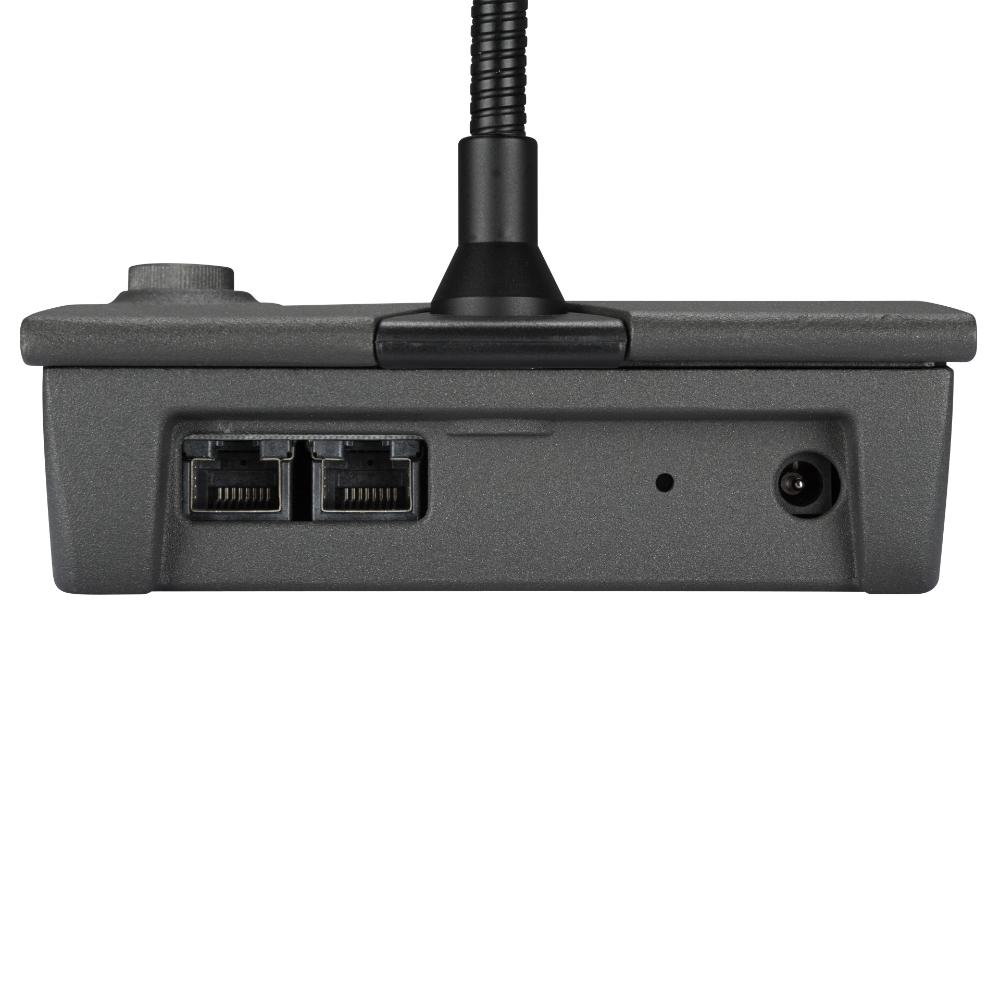

Connectors
RJ45
Cable
J-Type fire-rated
Daisy-chain
Yes
Max number in daisy-chain
16
Interlock
Yes
Functionalities
Priority
Yes
Chime tone generator
Yes
Accessories
Cable included
Yes
Cable length (m)
5
Standard compliance
Safety agency
CE compliant
EN54-16 certified
Yes
CPR number
0068-CPR-007/2015
Physical specifications
Cabinet/Case Material
Metal
Size / Weight
Height
44 mm / 1.73 inches
Width
203 mm / 7.99 inches
Depth
128 mm / 5.04 inches
Weight
1.13 kg / 2.49 lbs
Shipping information
Package Height
154 mm / 6.06 inches
Package Width
434 mm / 17.09 inches
Package Depth
174 mm / 6.85 inches
Package Weight
1.13 kg / 2.49 lbs
