VOICE ALARM EN54

BM 7624D

DESK-TOP EMERGENCY MICROPHONE CONSOLE
  • Live emergency announcements
  • Pre-recorded messages activation
  • Complete self-diagnostic
  • Numeric keyboard and display
EN 54
Support
Features Specifications Accessories Downloads
Support
Features
  • Live emergency announcements
  • Pre-recorded messages activation
  • Complete self-diagnostic
  • Numeric keyboard and display
  • Hi-quality cardioid microphone
  • Modern design

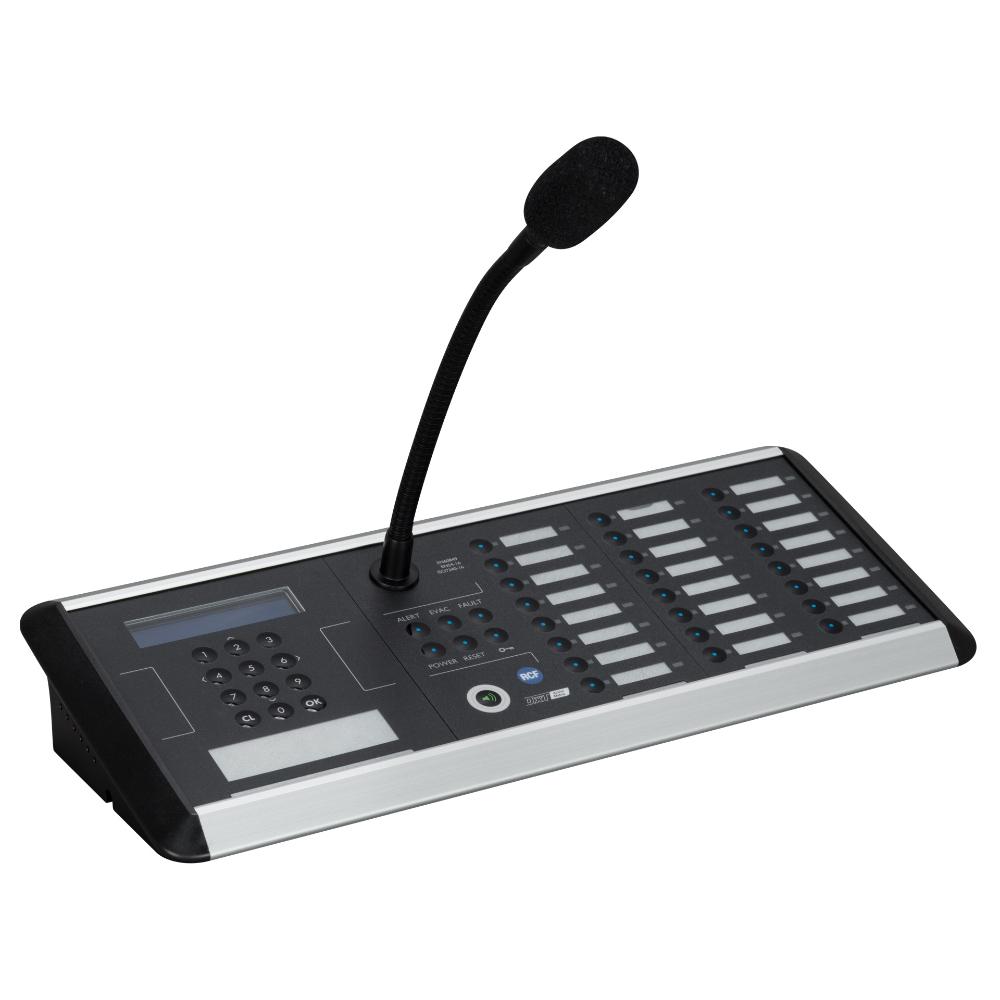

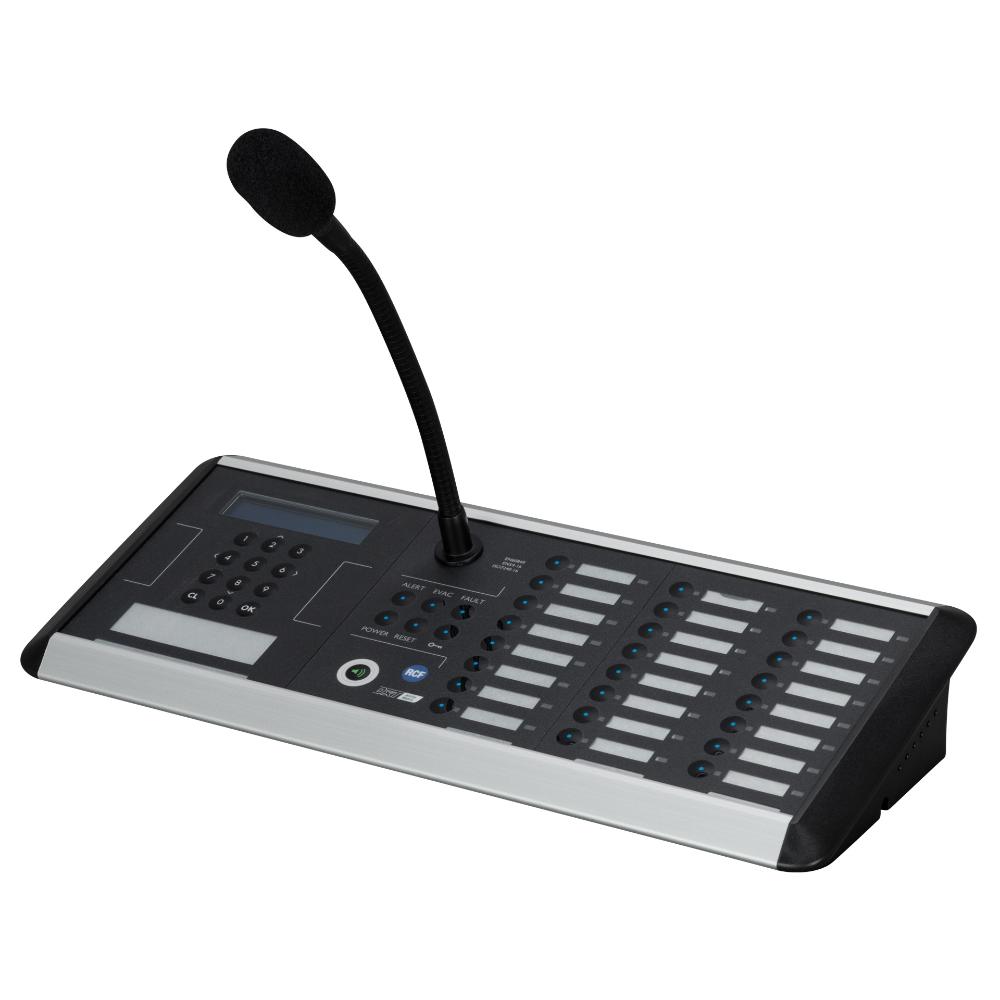

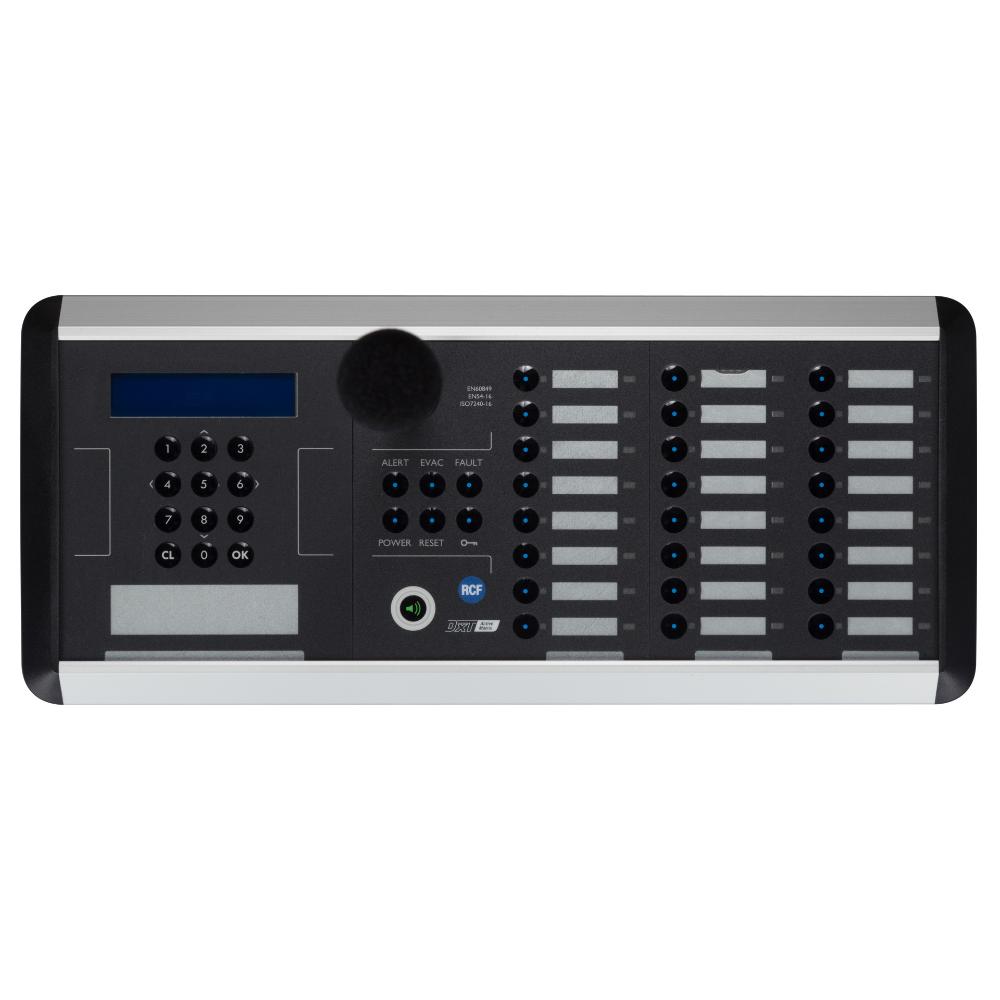

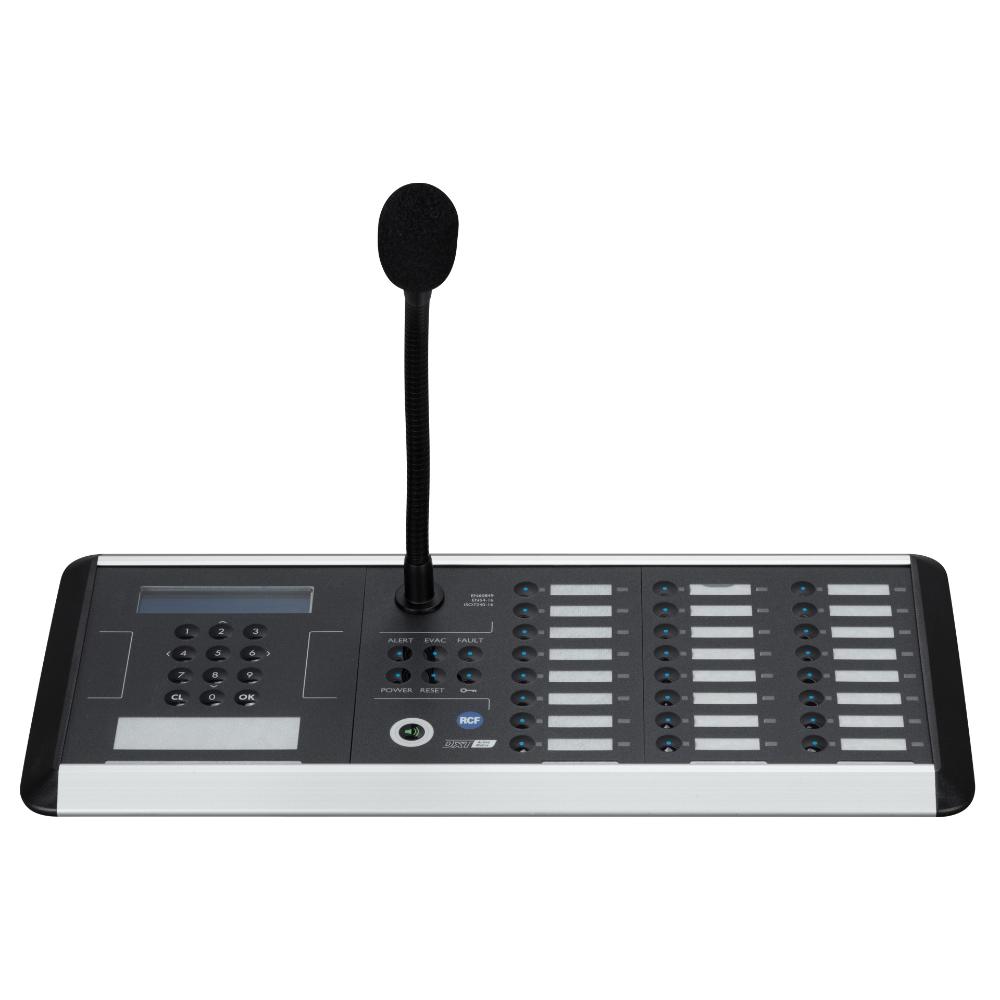

BM 7624D is a desk-top emergency microphone console exclusively dedicated to DXT 7000 Voice Alarm system, and can be used both for live announcements and pre-recorded messages activation. It features complete self-diagnostic functionalities and system status reporting in compliance with EN 54-16 standard. Up to 8 consoles can be daisy-chained on each paging bus, for a total of 32 consoles.

ARCHIVED

Part number:

14322018
BM 7624D
EAN 8024530007171

Specifications
Microphone specifications
Type
Electret
Directivity
Cardioid
Frequency Response (-3dB)
50 Hz ÷ 17 kHz
Total harmonic distortion @1 kHz
0.10 %
Console specifications
Console Type
Emergency
Working with
DXT 7000
General call
Yes
Selective call
Yes
Preamplified
Yes
Configurable buttons
Yes
LED indicators
Yes
LCD screen
Yes

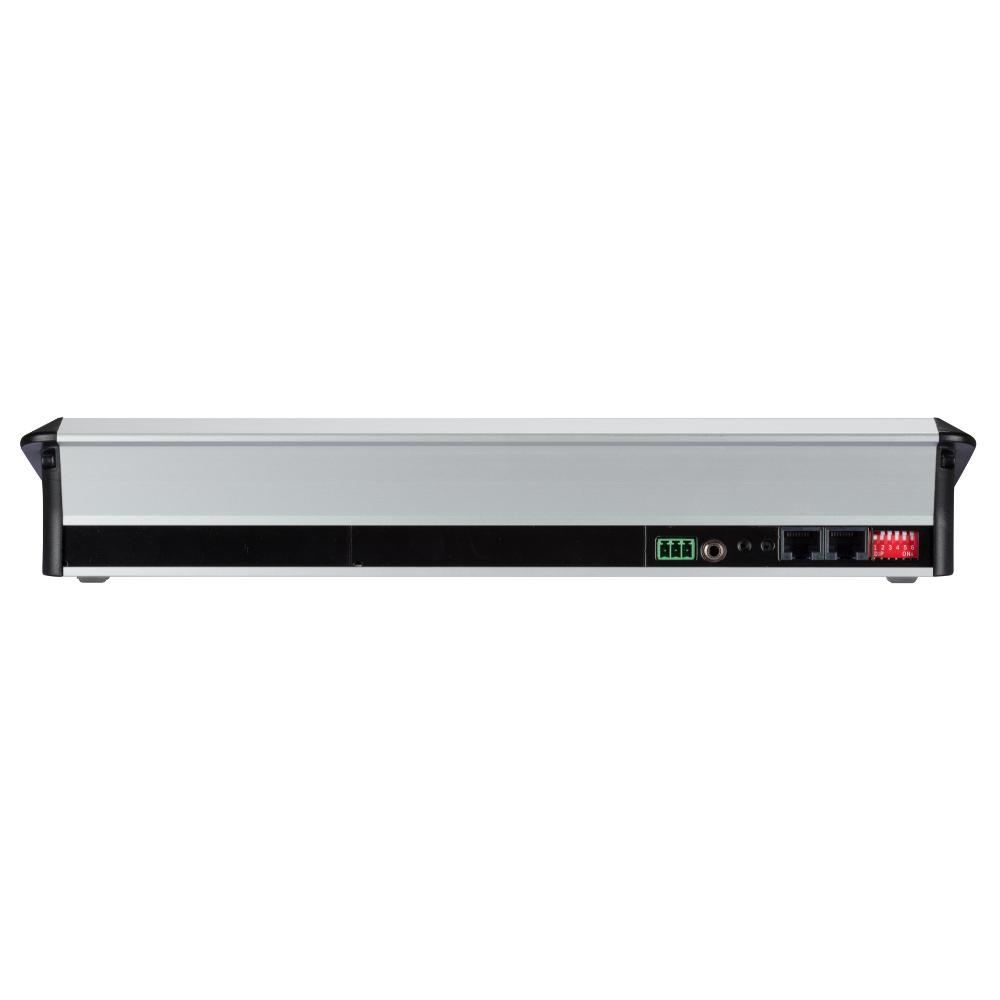

Connections
Connectors
RJ45
Cable
FTP CAT 5
Daisy-chain
Yes
Max number in daisy-chain
8
Interlock
Yes
Functionalities
Priority
Yes
Chime tone generator
Yes
Accessories
Cable included
Yes
Cable length (m)
5
Standard compliance
Safety agency
CE compliant
EN54-16 certified
Yes
CPR number
1438-CPR-0241
Physical specifications
Cabinet/Case Material
Metal
Size / Weight
Height
55 mm / 2.17 inches
Width
326 mm / 12.83 inches
Depth
135 mm / 5.31 inches
Weight
1 kg / 2.2 lbs
Shipping information
Package Weight
1.5 kg / 3.31 lbs
