Features
  • Live announcements
  • 3 functioning modalities
  • Flexible and distributed installation
  • Handheld microphone with PTT button
  • Chime facility
  • External power supply included

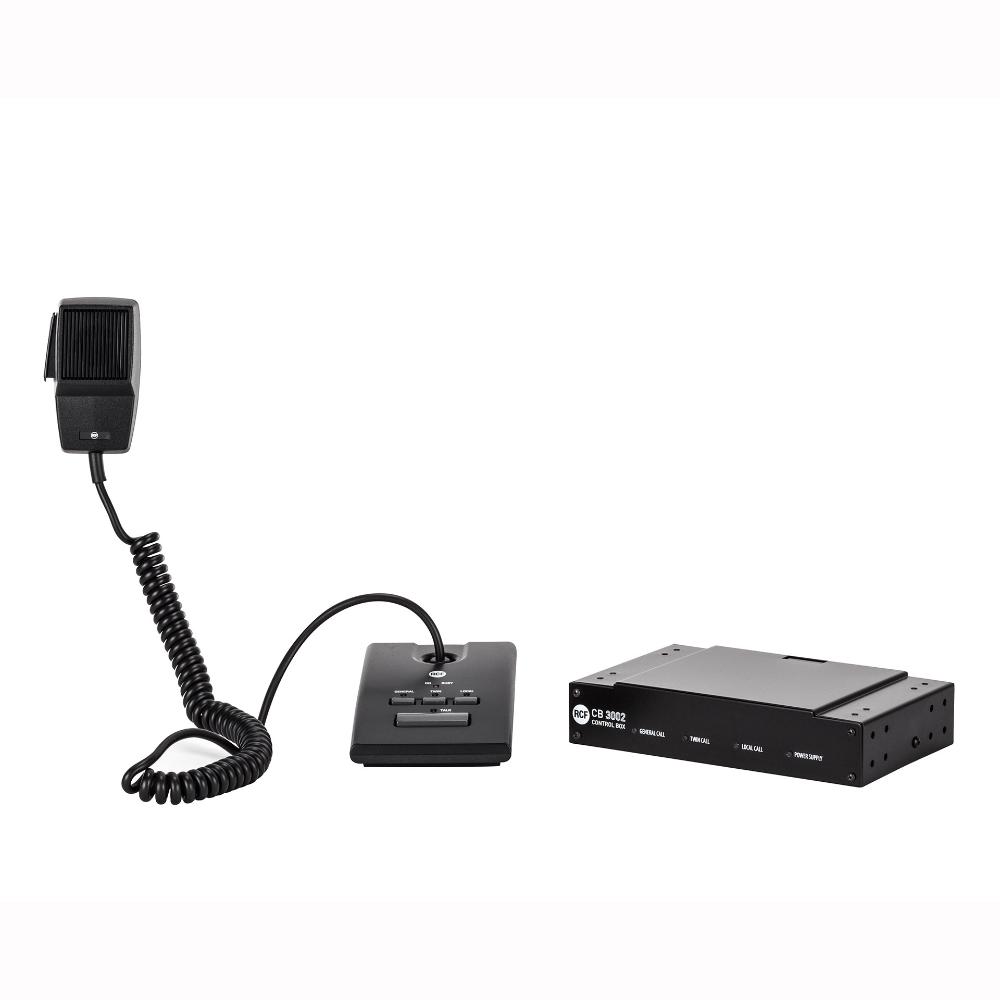

BM 3222 is a desk-top paging microphone console dedicated to those DXT 9000 applications where several sets are interlinked, and local and remote calls have to be managed, such as airports gates. Made of two components, BM 3023 microphone and CB 3002 communication box, it allows It allows to make three different call types: GENERAL (to all connected zones), TWIN (to two or more adjacent zones simultaneously) or LOCAL (only to the zone of the paging microphone).


ARCHIVED

Part number:

14322025
BM 3222
EAN 8024530014216

Specifications
Microphone specifications
Type
Dynamic
Directivity
Omnidirectional
Sensitivity
-70 dB
Frequency Response (-3dB)
300 Hz ÷ 6000 kHz
Output impedance (ohm)
500.00 ohm
Console specifications
Console Type
Paging
Working with
DXT 9000
General call
Yes
Selective call
Yes
Preamplified
Yes
LED indicators
Yes
Power requirement
Operating voltage
24.00V ~ Hz
Connections
Connectors
RJ45
Cable
FTP CAT 5
Daisy-chain
Yes
Max number in daisy-chain
16
Interlock
Yes
Accessories
Cable included
Yes
Cable length (m)
5
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Size / Weight
Height
47 mm / 1.85 inches
Width
100 mm / 3.94 inches
Depth
160 mm / 6.3 inches
Weight
2.02 kg / 4.45 lbs
Shipping information
Package Height
129 mm / 5.08 inches
Package Width
329 mm / 12.95 inches
Package Depth
144 mm / 5.67 inches
Package Weight
2.54 kg / 5.6 lbs
Accessories
Downloads
MANUALS
PDF
1.6 MB
05-10-2018
SPECIFICATIONS
PDF
335 KB
18-10-2024
PDF
336 KB
18-10-2024
DRAWINGS
PDF
989 KB
03-10-2018
