VOICE ALARM EN54

BE 9808

ADDITIONAL KEYBOARD
  • Selective zones activation
  • Zones status indication
  • Powered by microphone console
  • Robust metal case
Where to buy
Features Specifications Related products Downloads
Where to buy
Features
  • Selective zones activation
  • Zones status indication
  • Powered by microphone console
  • Robust metal case

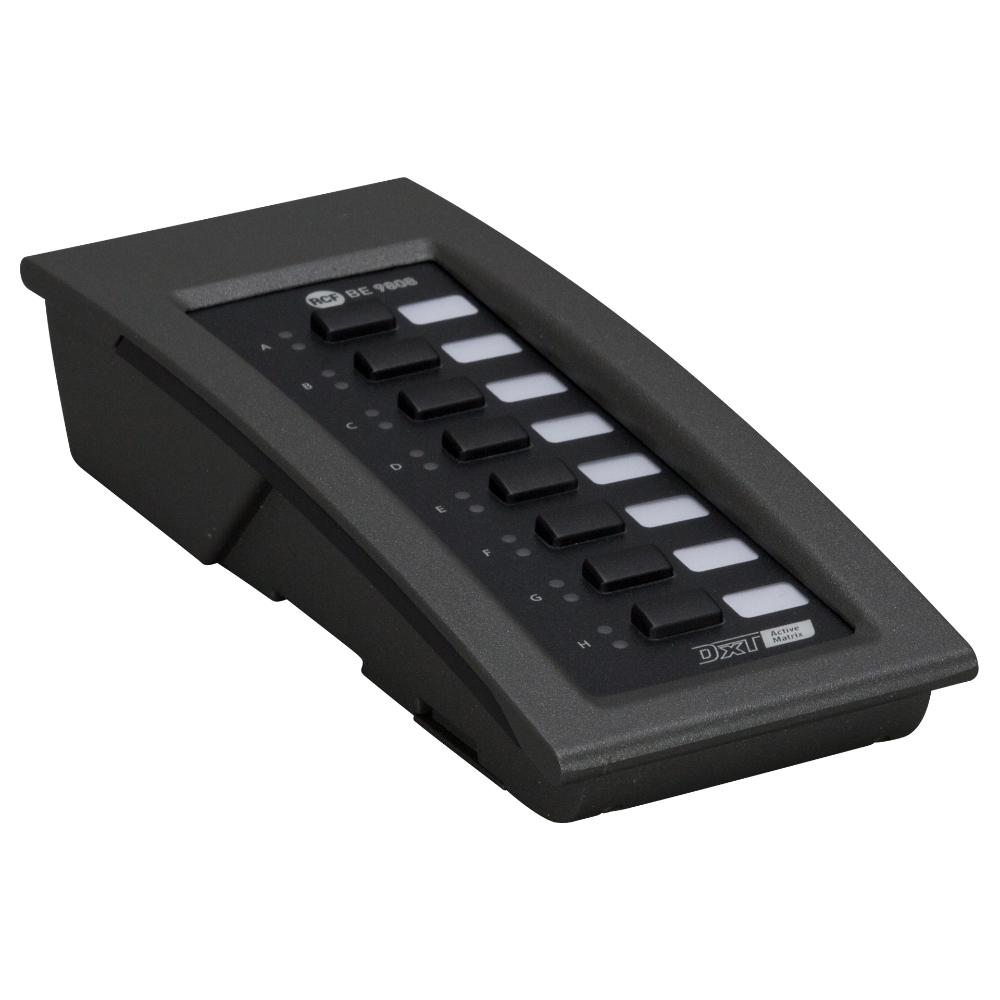

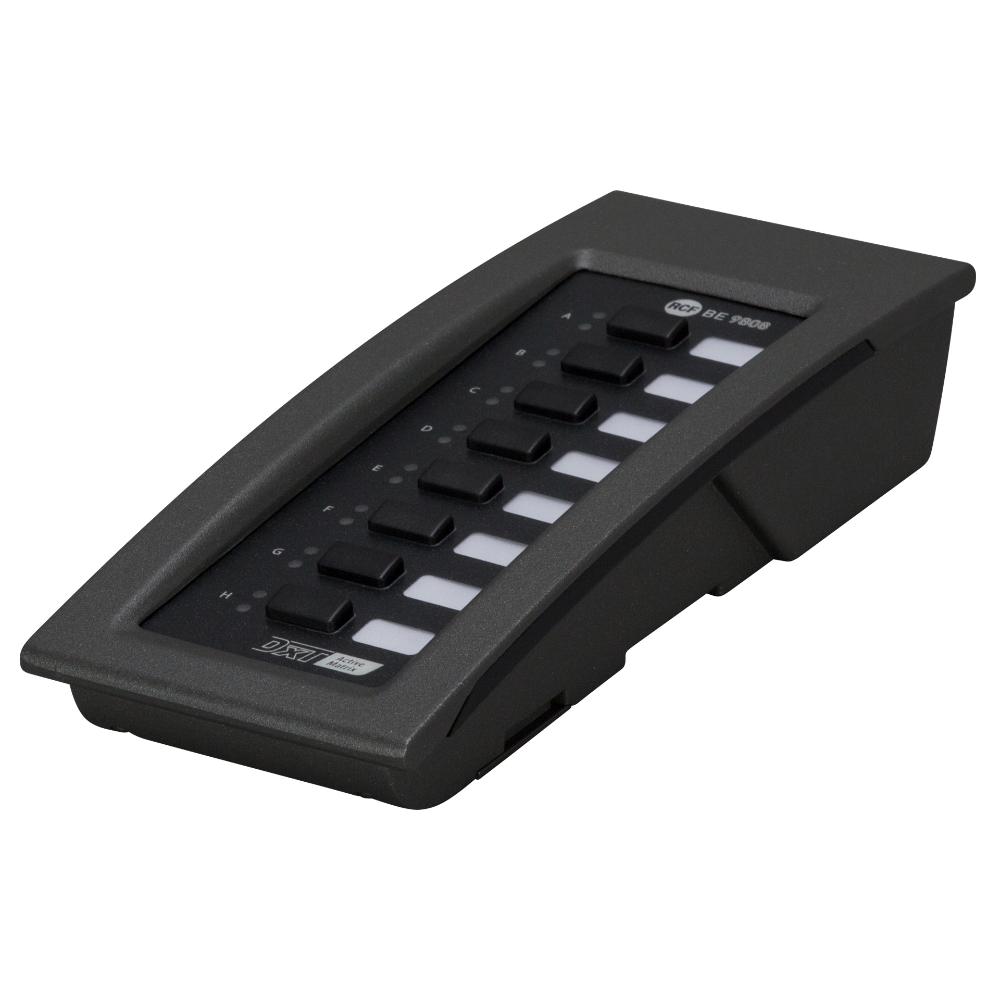

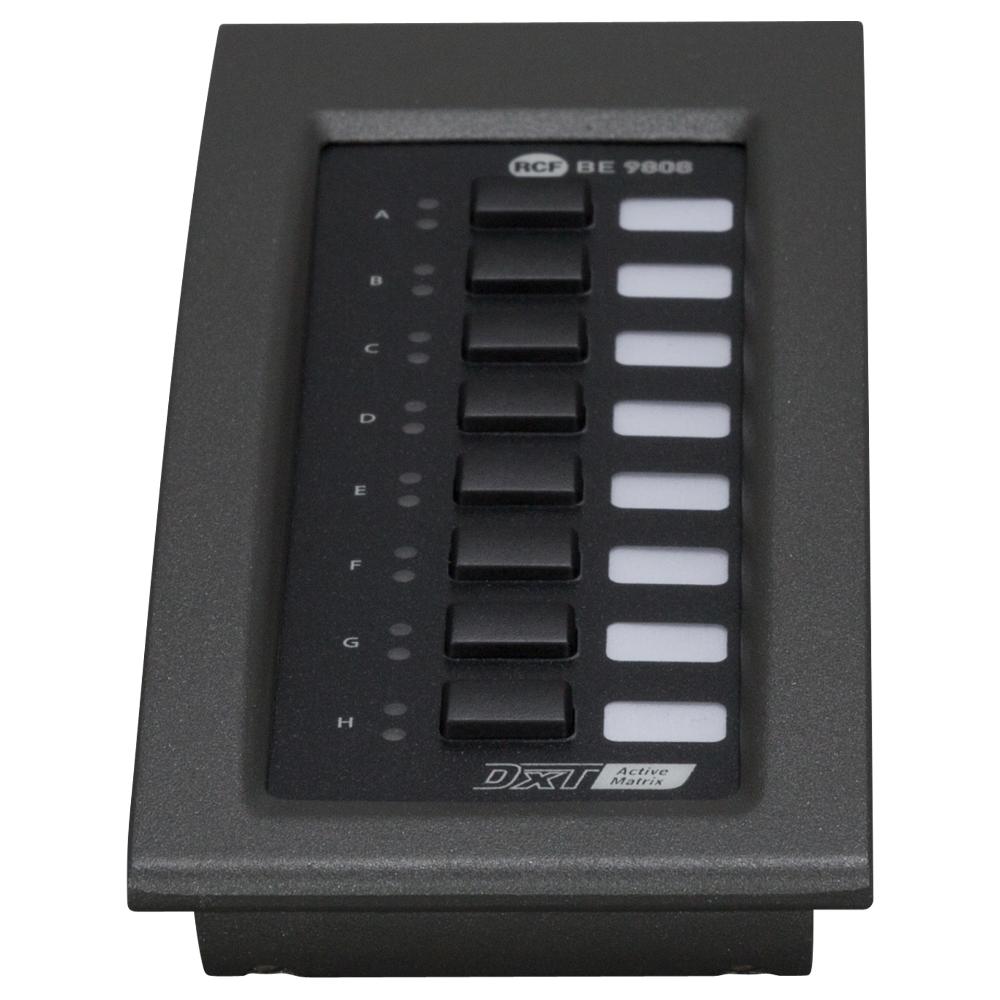

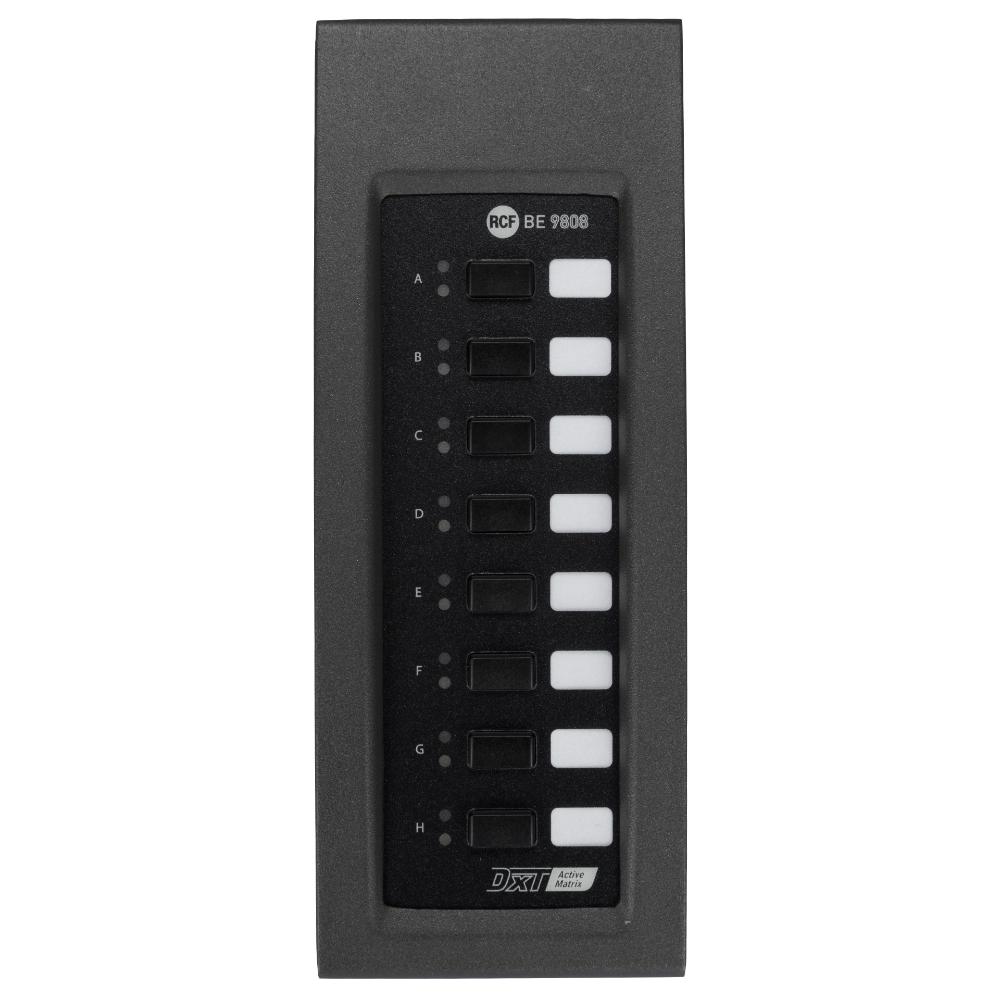

BE 9808 is an additional keyboard with eight configurable buttons that works with BM 9802, BM 9804 and BM 9804FM. It allows making selective calls to each system’s zone. Up to 8 units can be connected to the same microphone console.

Part number:

14380025
BE 9808
EAN 8024530007706

Specifications
Console specifications
Console Type
Emergency
Working with
DXT 9000
General call
Yes
Selective call
Yes
Configurable buttons
Yes
LED indicators
Yes
Connections
Daisy-chain
Yes
Max number in daisy-chain
8
Standard compliance
Safety agency
CE compliant
EN54-16 certified
Yes
CPR number
0068-CPR-007/2015
Physical specifications
Cabinet/Case Material
Metal
Size / Weight
Height
39 mm / 1.54 inches
Width
78 mm / 3.07 inches
Depth
203 mm / 7.99 inches
Weight
0.7 kg / 1.54 lbs
Shipping information
Package Height
65 mm / 2.56 inches
Package Width
270 mm / 10.63 inches
Package Depth
120 mm / 4.72 inches
Package Weight
0.9 kg / 1.98 lbs
