Features
  • 2 x 5" fullrange transducers.
  • Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W.
  • 86 dB sensitivity.
  • Colour white RAL 9016.
  • Flameproof ABS body, steel grille.
  • In/out ceramic terminal block.
  • Thermal fuse protection.
  • Protection grade IP65.

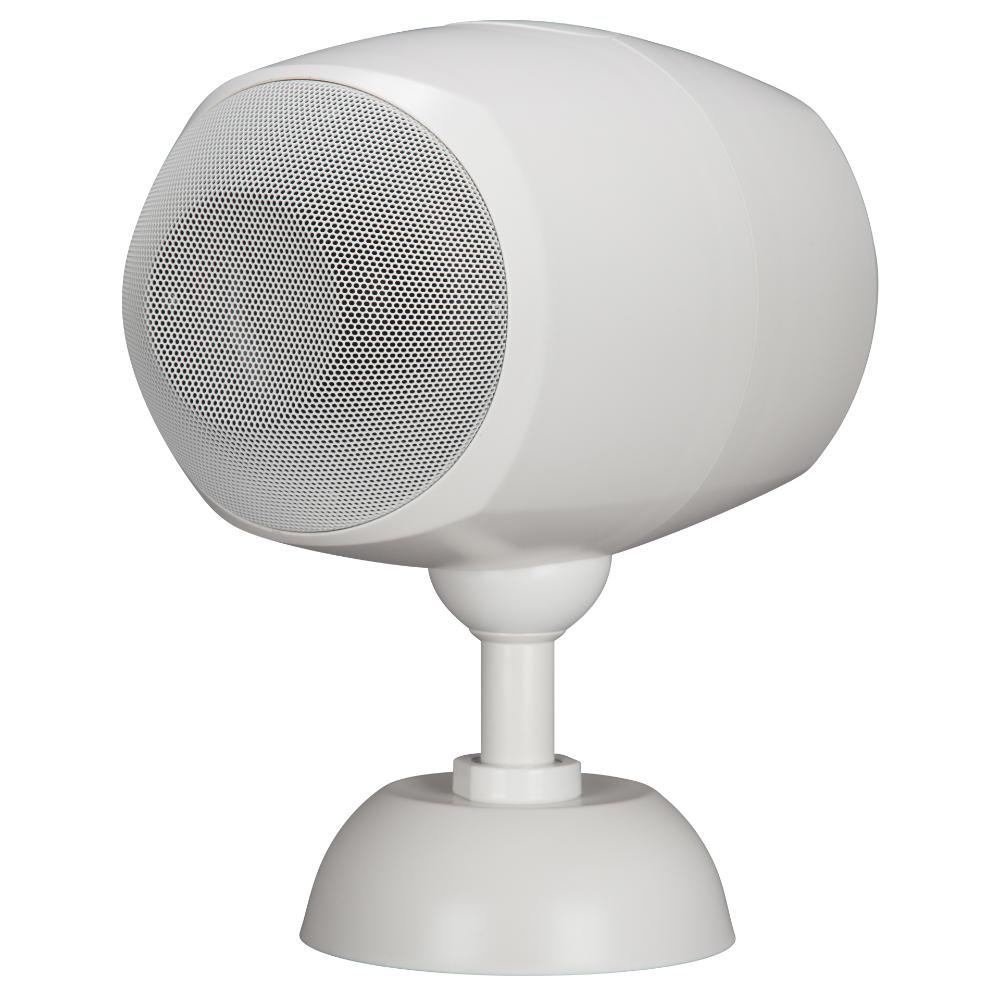

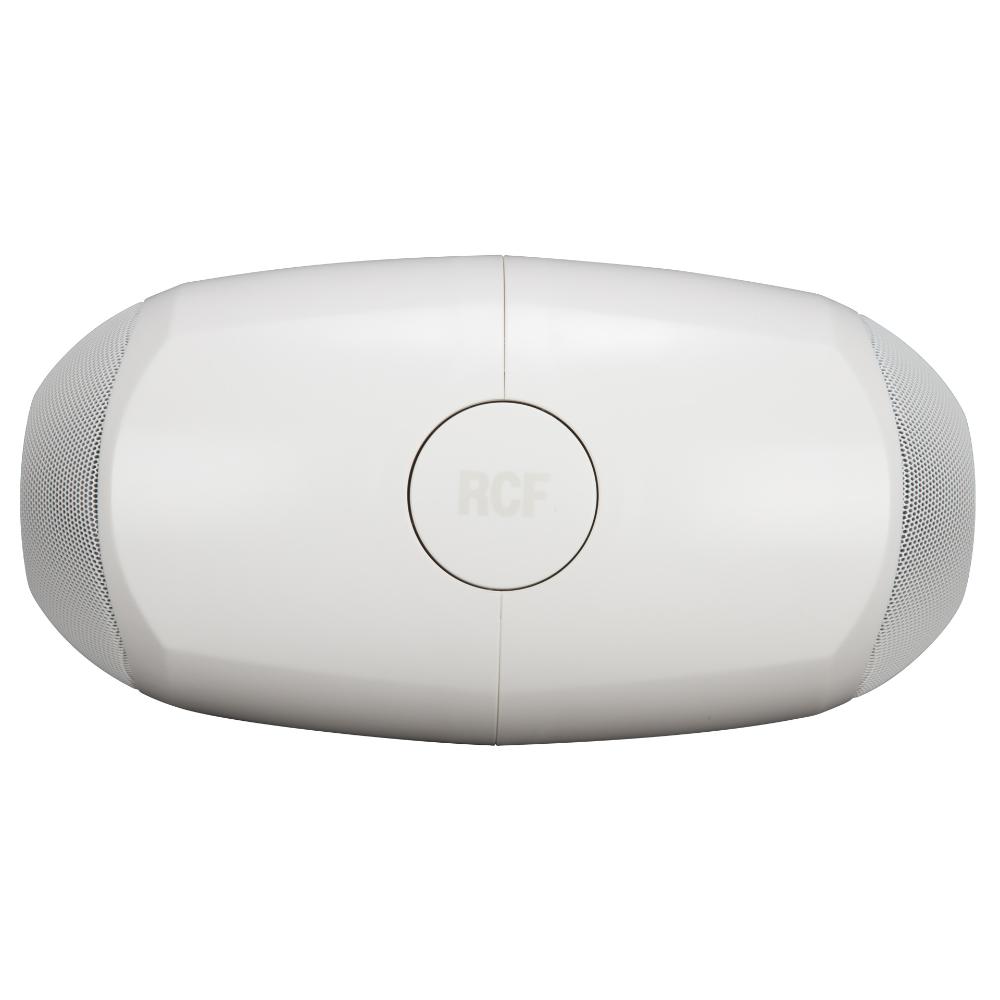

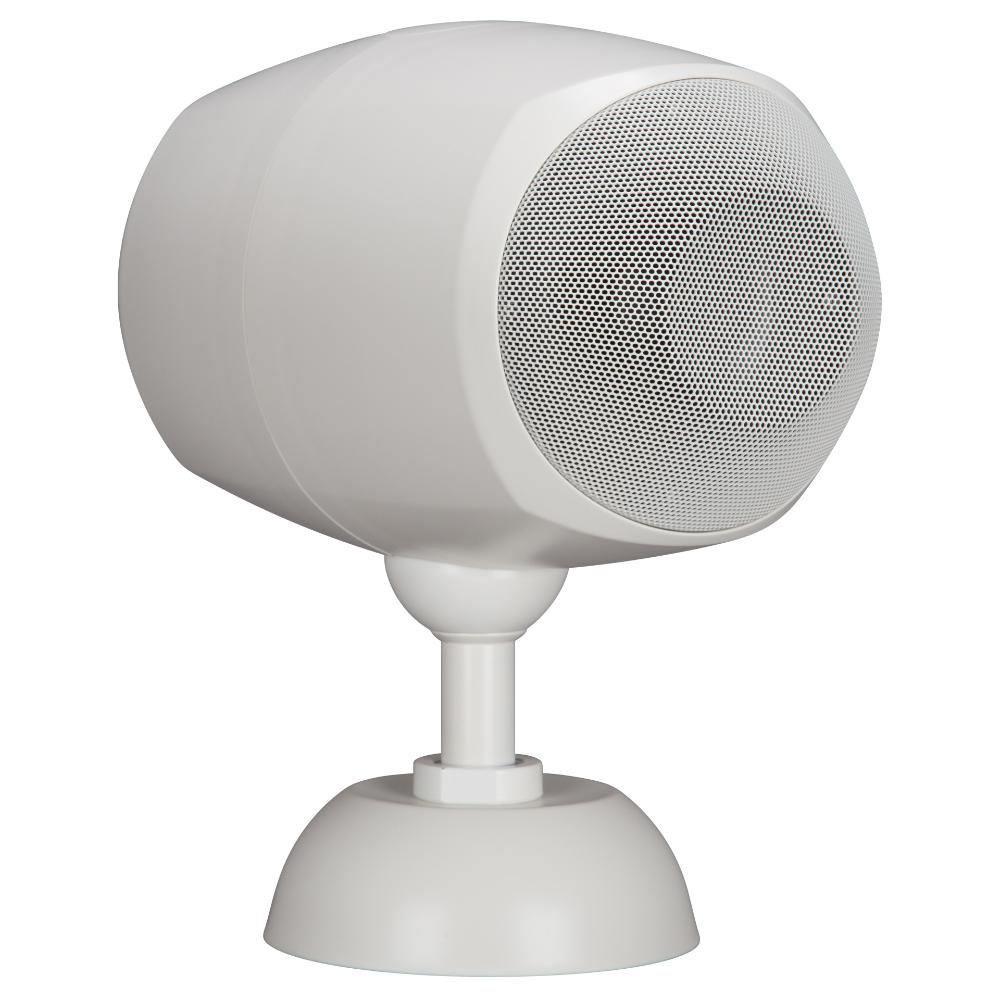

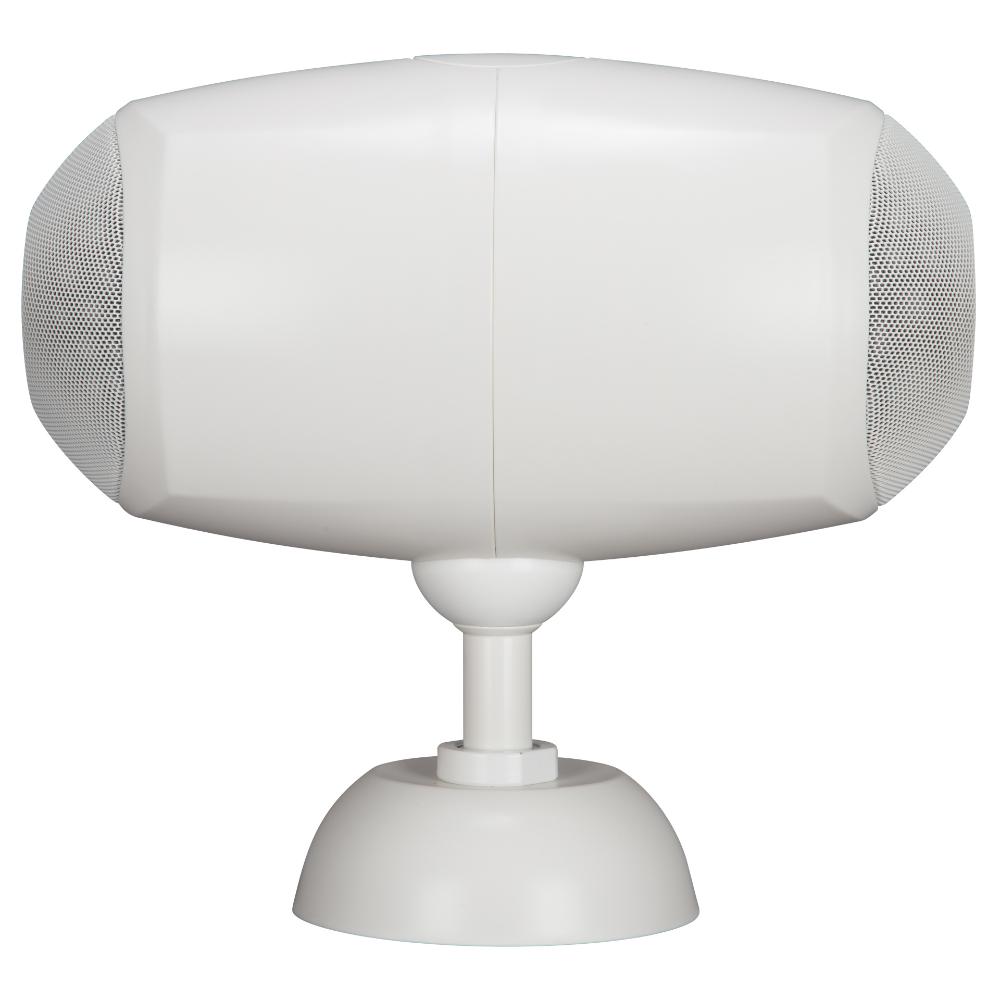

BD 5EN is a weatherproof bidirectional sound projector suitable for all those installations where high intelligibility for alarm messages broadcasting and great sound reproduction quality are required. Thanks to its IP65 protection grade, it can be installed both indoor and outdoor. Moreover, a modern and endearing design makes it the perfect product for environments where projectors are intended also as architectural elements and contribute to improve global aesthetics.

Part number:

13133077
BD 5EN
EAN 8024530011130

Specifications
Acoustical specifications
Frequency Response (-10dB)
150 Hz ÷ 18000 Hz
Max SPL @ 1m
99 dB
Max SPL @ 4m
87 dB
Coverage angle
210°
System Sensitivity
86 dB
System Sensitivity 1W @ 4m
74 dB
Power section
Amplification
Full Range
Power Handling
20 W
Peak Power Handling
80 W PEAK
Protections
Thermal fuse
Recommended Amplifiers
DMA 504, DMA 162, DMA 162P, DXT 3000, DXT 4000, DXT 7000
Transducers
Fullrange
2 x 5.0''
Input/Output section

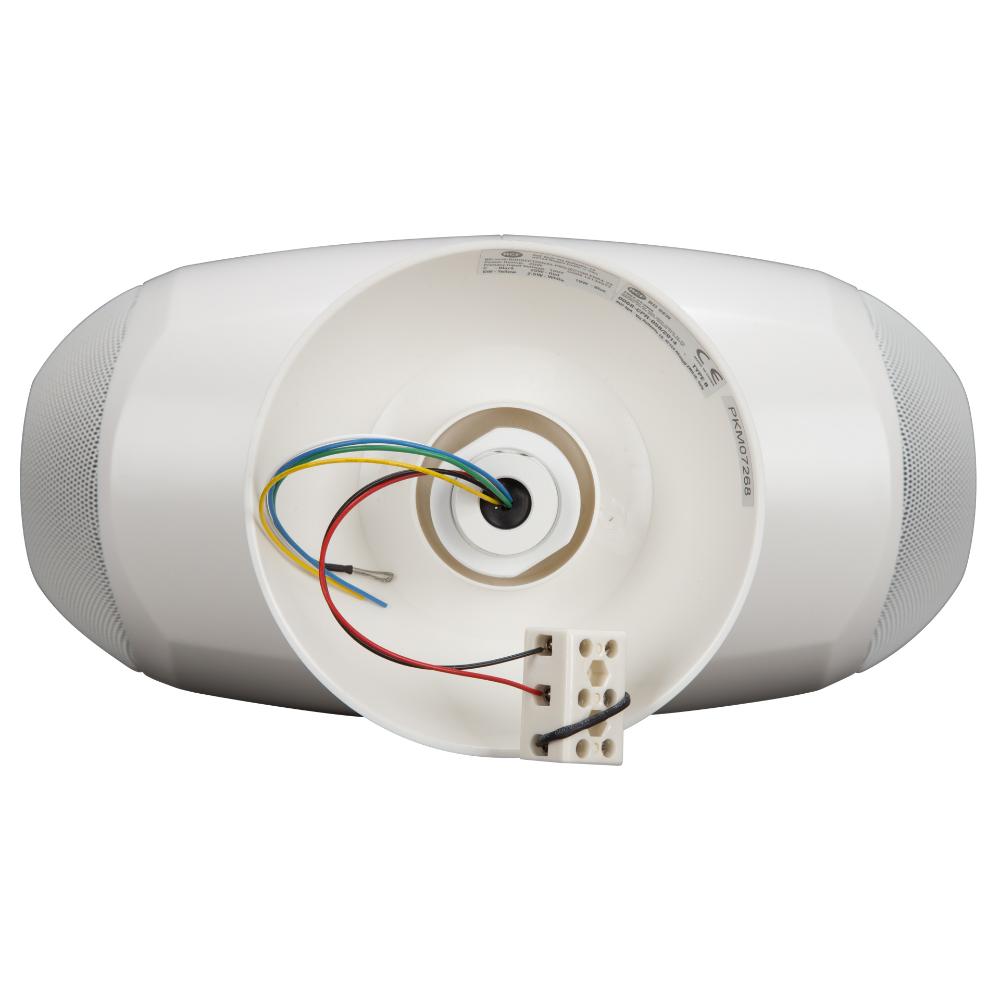

Input connectors
Ceramic screw terminals
Output connectors
Ceramic screw terminals
Constant Voltage Transformer
100 V
Power selection 1
20 W - 500 ohm
Power selection 2
10 W - 1000 ohm
Power selection 3
5 W - 2000 ohm
Power selection 4
2.5 W - 4000 ohm
Standard compliance
IP protection grade
IP 65
Safety agency
CE compliant
EN54-24 certified
Yes
CPR number
0068-CPR-058/2014
Physical specifications
Cabinet/Case Material
ABS
Hardware
Wall mount metal plate

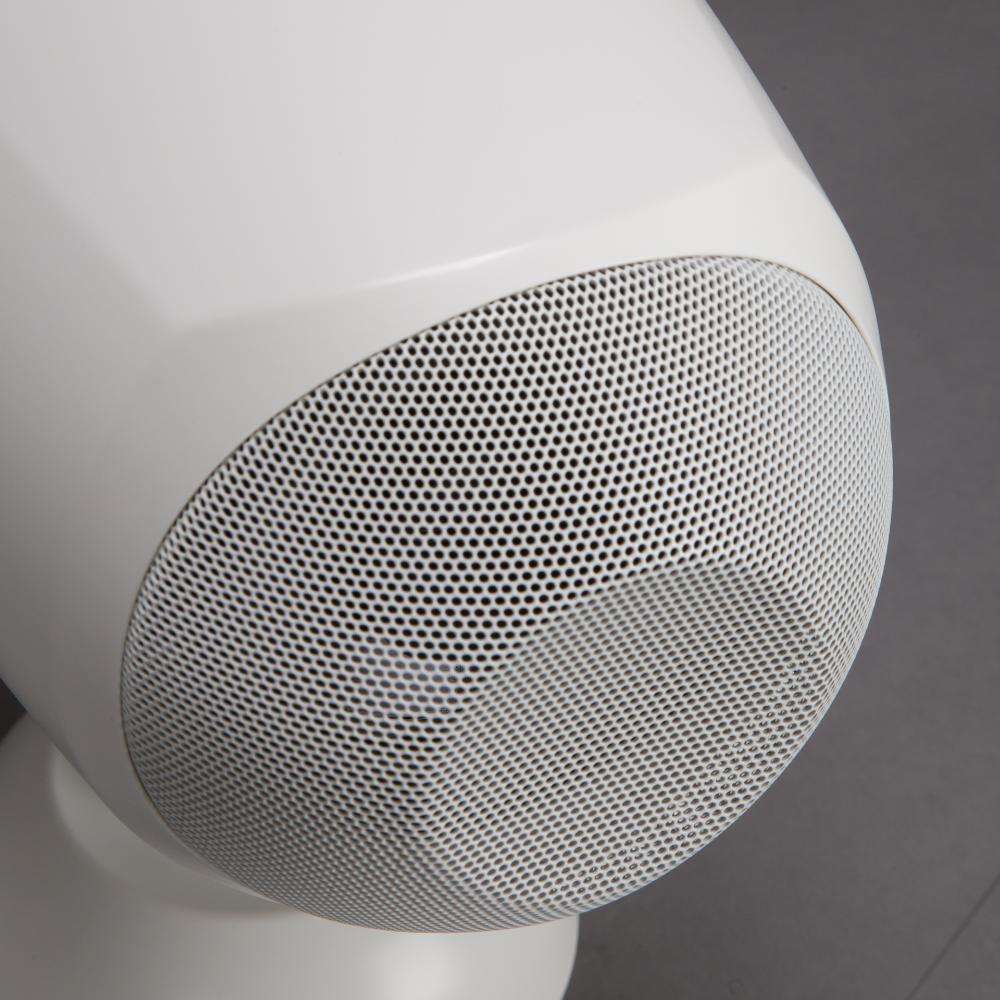

Grille
Steel
Color
White - RAL 9016
Size / Weight
Height
183 mm / 7.2 inches
Width
332 mm / 13.07 inches
Depth
176 mm / 6.93 inches
Weight
3.59 kg / 7.91 lbs
Shipping information
Package Height
230 mm / 9.06 inches
Package Width
400 mm / 15.75 inches
Package Depth
380 mm / 14.96 inches
Package Weight
4.63 kg / 10.21 lbs
