RECORDING

AYRA PRO6

PROFESSIONAL ACTIVE TWO-WAY STUDIO MONITORS
  • 45Hz – 20kHz Frequency Response
  • 0° Phase Response
  • 80W + 40W Class-D Amplifiers
  • 6.5” Composite Fiberglass Woofer
FiRPHASE
Where to buy
Features Specifications Related products videos Downloads
Where to buy
Features
  • 45Hz – 20kHz Frequency Response
  • 0° Phase Response
  • 80W + 40W Class-D Amplifiers
  • 6.5” Composite Fiberglass Woofer
  • 1” ferrofluid cooled Soft Dome tweeter
  • RCF Precision Waveguide
  • DSP Processing with FiRPHASE
  • Low distortion frontal Vented Ports

AYRA PRO6 studio monitor works perfectly in any listening environment, whether large or small production facilities, with absolute clarity. It delivers accurate monitoring and provides the engineer or producer with a neutral tool to analyze recordings and optimize the mix; for this reason, we call it PRO. Featuring a dedicated powerful internal DSP that optimizes frequency response and dynamics together with the exclusive RCF FiRPHASE processing and selected components, the AYRA PRO is the first Studio Monitor in its class to boast an outstanding 0° phase response.

READ MORE

Part number:

13000598
AYRA PRO6
EU, EAN 8024530016906

13000647
AYRA PRO6
US, EAN 8024530017354

13000648
AYRA PRO6
UK, EAN 8024530017361

13000649
AYRA PRO6
JP, EAN 8024530017378

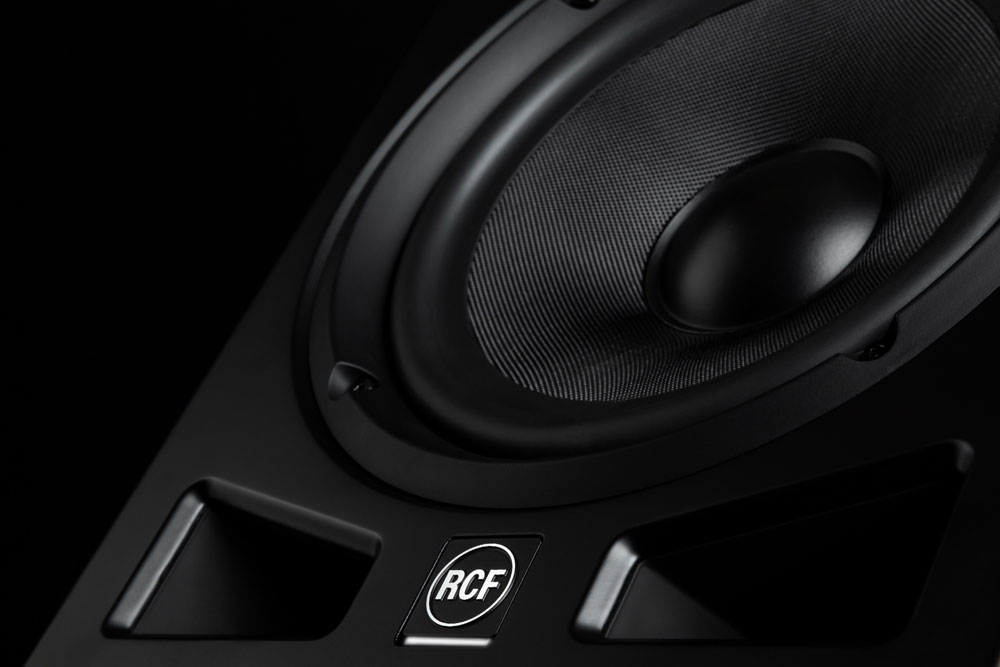

POWERFUL, COMPOSITE-CONE WOOFER

The AYRA PRO low-frequency drivers are accurately designed for a tight and true reproduction. The voice coil winding length is optimized for an extended low-frequency range. The composite fiberglass membrane cone design is the best choice for rigidity, damping and performance durability.
Responsive Image
Responsive Image

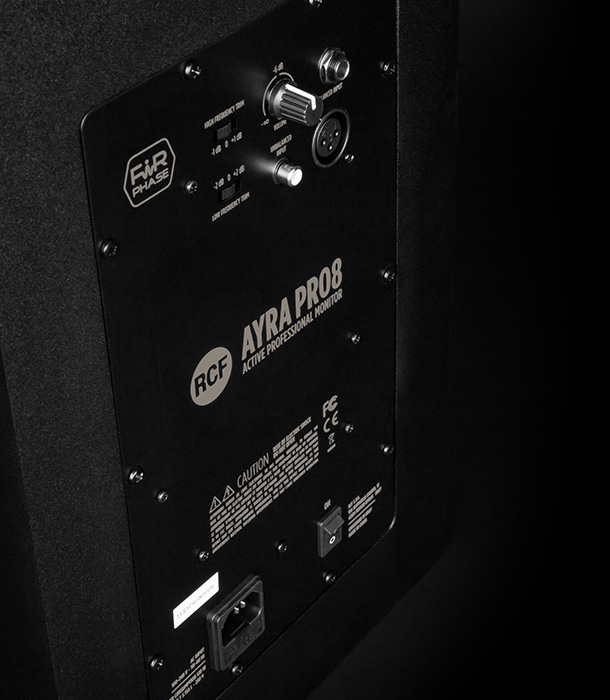

POTENT POWER AMPLIFIERS

Focus your creativity on your music at any volume. All AYRA PRO models are provided with high power and low distortion Two Class-D True Active low distortion amplifiers; the internal limiters will protect you from extreme clippings that can damage the transducers.

A NEW PERSPECTIVE ON LINEARITY

AYRA PRO is the first Studio Monitor in its class to boast an outstanding 0° phase response.
All models are designed with FiRPHASE, a proprietary and advanced FIR filtering technology, conceived for delivering transparent sound, absolute clarity and perfect stereo images to the listener. A dedicated powerful internal DSP optimizes frequency response and dynamics with exclusive RCF FiRPHASE processing.
Responsive Image

More about this product?

Specifications
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
112 dB
Horizontal coverage angle
110°
Vertical coverage angle
70°
Transducers
Dome Tweeter
1.0'' neo, 1.0'' v.c
Woofer
6.5'', 1.2'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, Jack, RCA
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
2000Hz
Limiter
Soft Limiter
Controls
HF Adjust -1dB,0,+1dB
LF Adjust -2dB,0,+2dB
Power section
Total Power
240 W Peak, 120 W RMS
High frequencies
80 W Peak, 40 W RMS
Low frequencies
160 W Peak, 80 W RMS
Connections
XLR, Jack, RCA
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
MDF
Color
Black - RAL 9005
Size / Weight
Height
340 mm / 13.39 inches
Width
210 mm / 8.27 inches
Depth
290 mm / 11.42 inches
Weight
5.5 kg / 12.13 lbs
Shipping information
Package Height
440 mm / 17.32 inches
Package Width
368 mm / 14.49 inches
Package Depth
286 mm / 11.26 inches
Package Weight
6.2 kg / 13.67 lbs
Related products
videos

3 related videos

Downloads
MANUALS
USER MANUAL
PDF
897 KB
25-09-2019
SPECIFICATIONS
SPECSHEET - DEU
PDF
829 KB
18-10-2024
SPECSHEET - ENG
PDF
825 KB
18-10-2024
SPECSHEET - FRA
PDF
835 KB
18-10-2024
SPECSHEET - ITA
PDF
827 KB
18-10-2024
SPECSHEET - SPA
PDF
829 KB
18-10-2024
ACOUSTIC MEASUREMENTS
PDF
254 KB
11-07-2024
STANDARD COMPLIANCES
CE DECLARATION OF CONFORMITY - ENG
PDF
191 KB
16-09-2022
CE DECLARATION OF CONFORMITY - ENG
PDF
28 KB
16-09-2022
CE DECLARATION OF CONFORMITY - ENG
PDF
170 KB
13-10-2022
UKCA DECLARATION OF CONFORMITY - ENG
PDF
197 KB
13-10-2022
DRAWINGS
LINE ART 2D
DXF
2.7 MB
22-01-2024
LINE ART 2D
PDF
495 KB
22-01-2024
