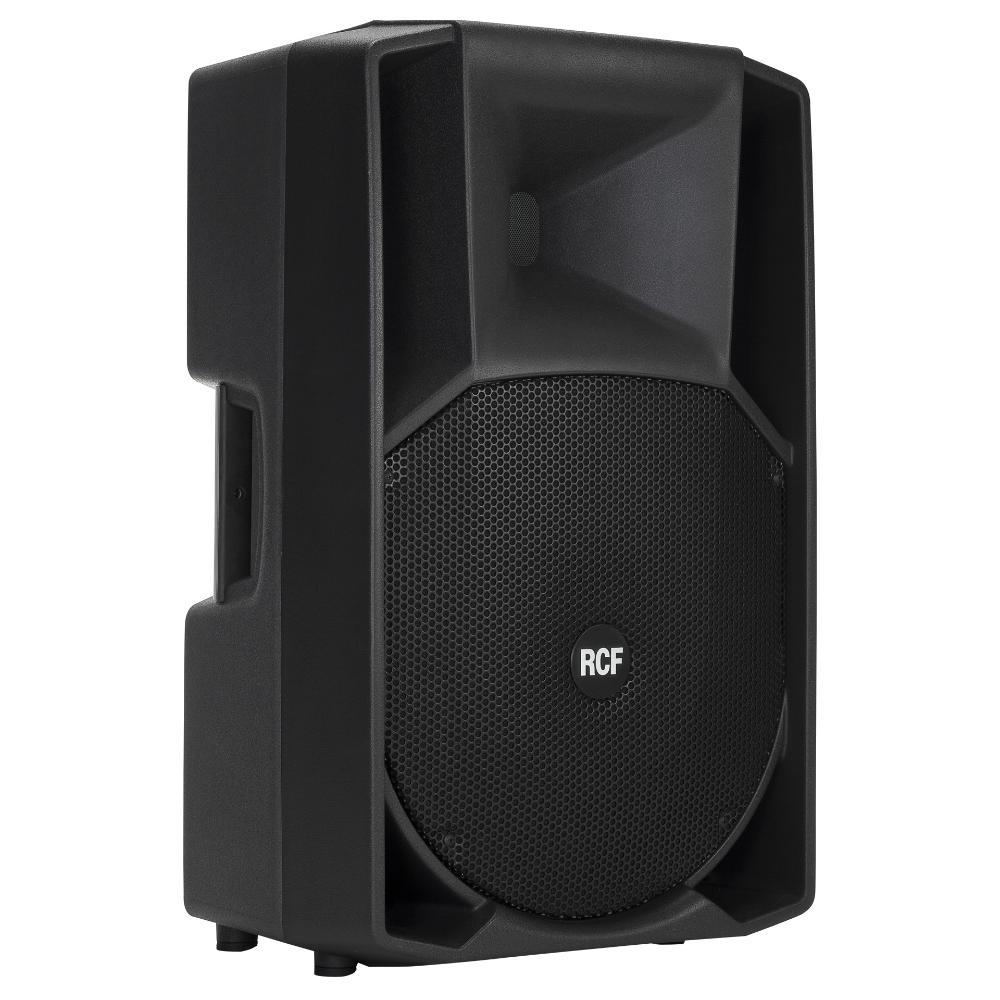

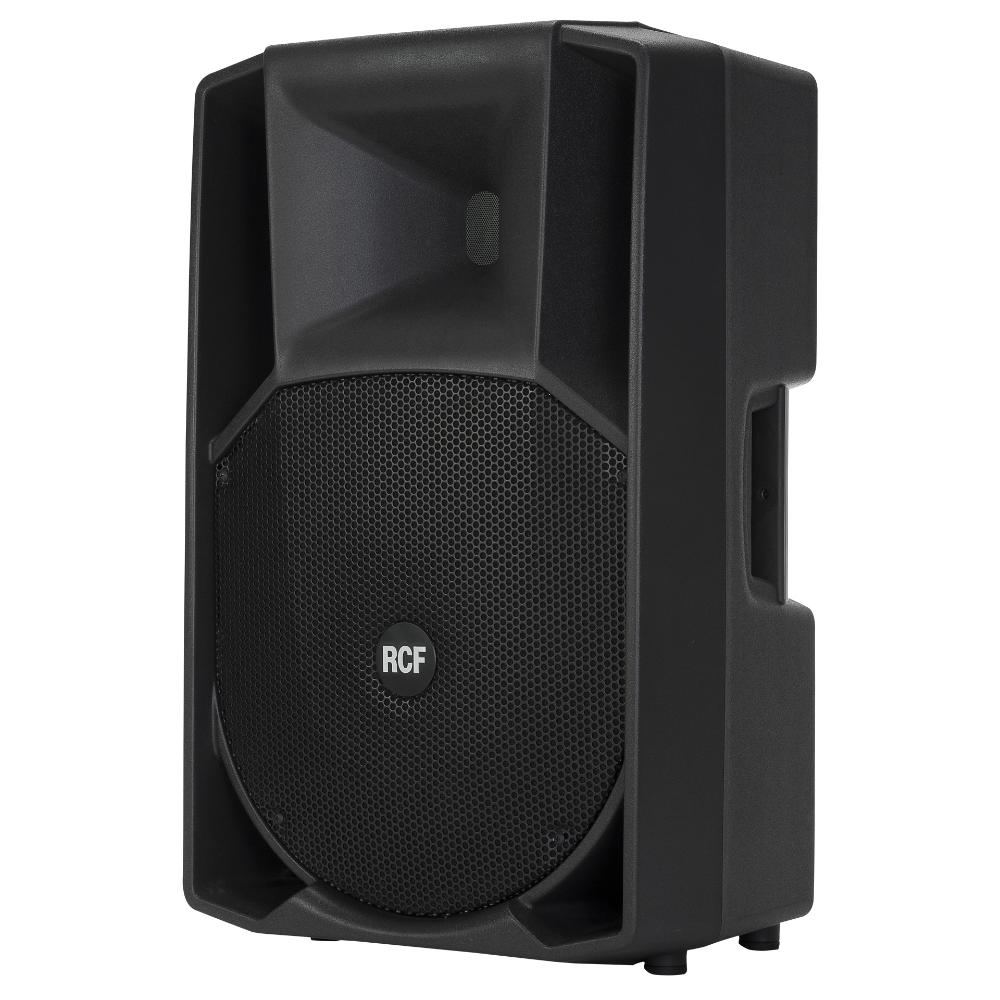

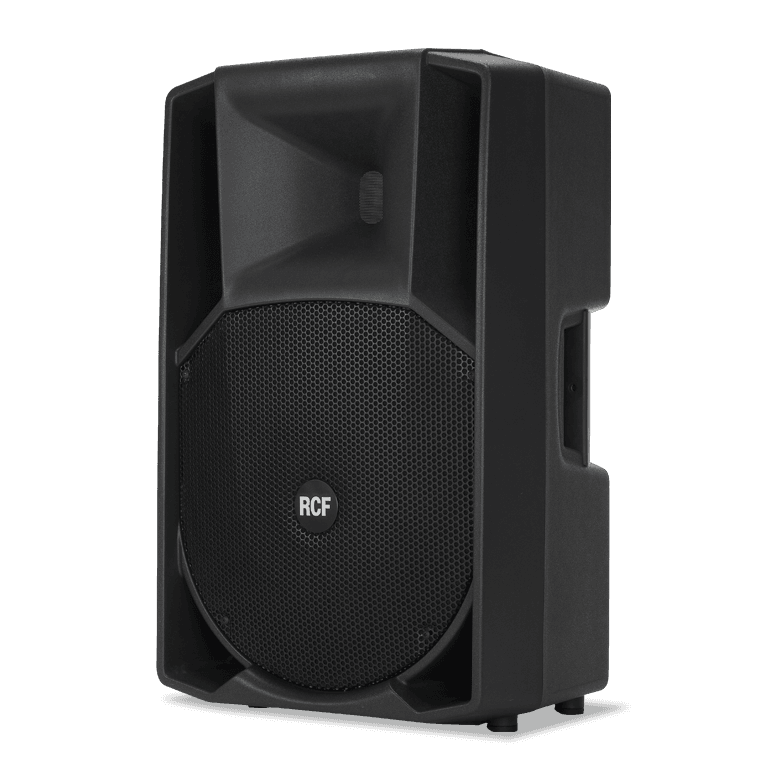

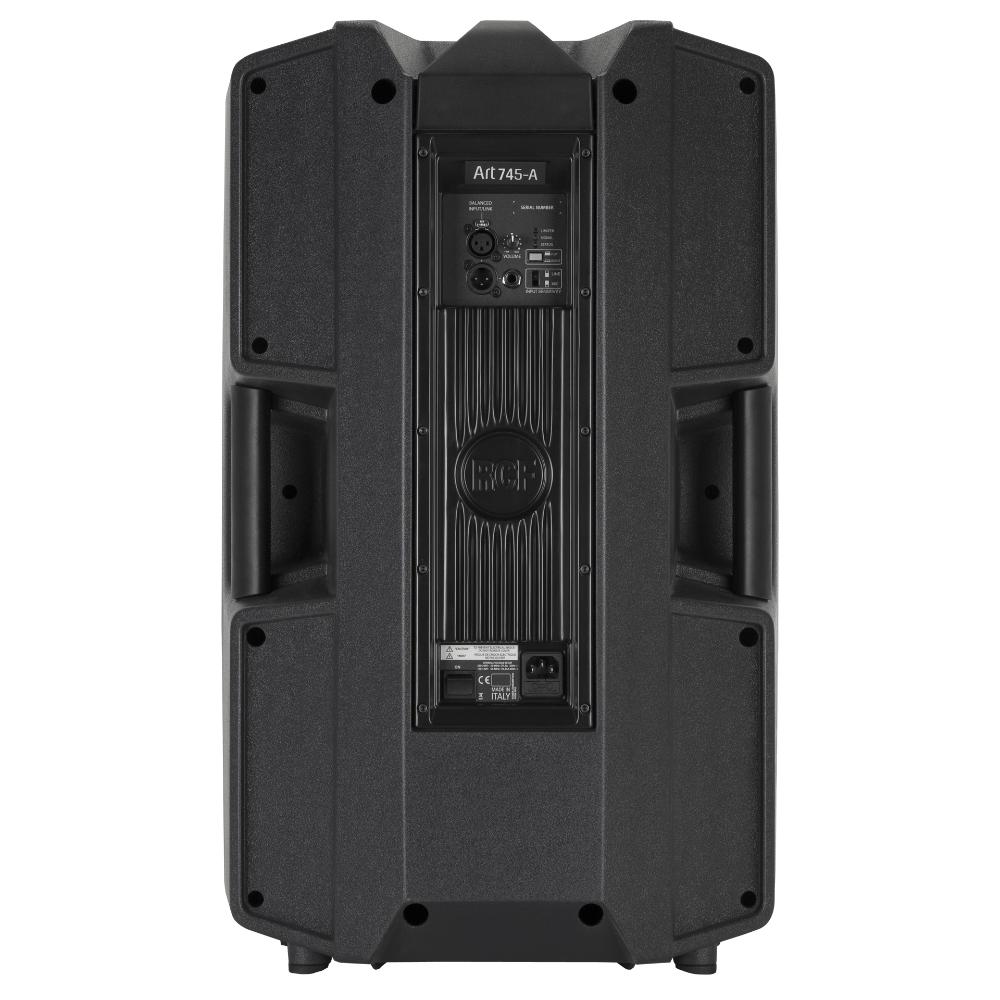

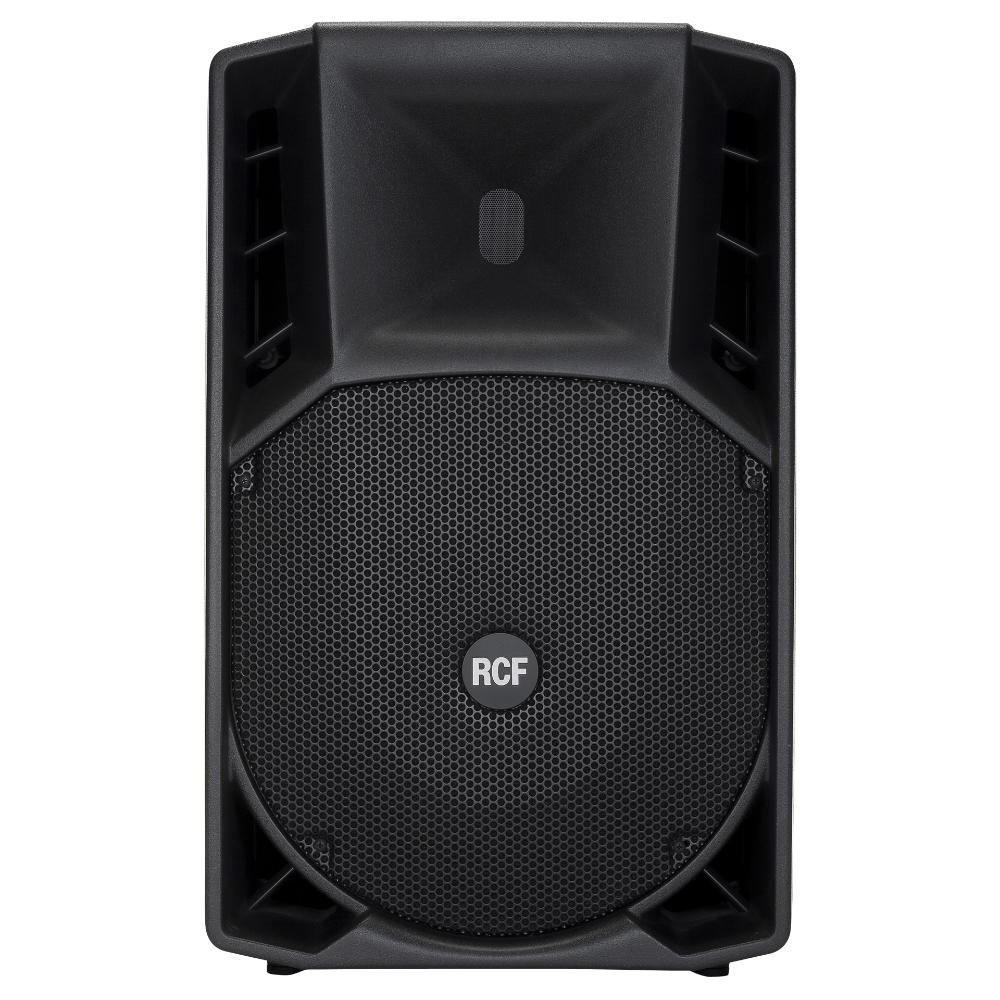

ART 745-A

ACTIVE TWO-WAY SPEAKER
  • 1400 Watt Peak, 700 Watt RMS digital amplifier
  • 15" NEO woofer, high power 3.5" voice coil
  • HF NEO driver, titanium dome, 4" voice coil
  • 133 dB max spl
Support
Features Specifications Accessories Downloads
Support
Features
  • 1400 Watt Peak, 700 Watt RMS digital amplifier
  • 133 dB max spl
  • 90 x 60, Wide dispersion constant directivity horn
  • 15" NEO woofer, high power 3.5" voice coil
  • HF NEO driver, titanium dome, 4" voice coil
  • PFC power factor correction
  • DSP Processing
  • 19.6 Kg / 43.2 lbs

The ART 745-A it’s a unique product in his category. The titanium dome, 4.0” voice coil neo compression driver offers a unique vocal clarity and sound projection. The 15” neo woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are built in our factory in Italy using the most advanced assembly technologies. The amplifier delivers 1400 Watt and is controlled by a DSP that takes care of crossover, equalisation, phase alignment, soft limiting and speaker protections.

ARCHIVED

Part number:

13000420
ART 745-A
220-240V, EAN 8024530011871

13000421
ART 745-A
115V, EAN 8024530011888

Specifications
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
125 dB
Horizontal coverage angle
120°
Vertical coverage angle
30°
Transducers
Fullrange
5 x 2.0'', 1.0'' v.c
Woofer
1 x 10'', 2.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XRL, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
220 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, EQ, Phase, Xover
Power section
Total Power
800 W Peak, 400 W RMS
High frequencies
200 W Peak, 100 W RMS
Low frequencies
600 W Peak, 300 W RMS
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
2 x M6
Handles
1 Top
Pole mount/Cap
Yes
Color
Black
Size / Weight
Height
490 mm / 19.29 inches
Width
288 mm / 11.34 inches
Depth
427 mm / 16.81 inches
Shipping information
Package Height
725 mm / 28.54 inches
Package Width
550 mm / 21.65 inches
Package Depth
505 mm / 19.88 inches
Package Weight
23 kg / 50.71 lbs
