ART 732-A MK4
ACTIVE TWO-WAY SPEAKER
- 1400 WATT 2-way peak power
- 131 dB Max SPL
- 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
- FiRPHASE Technology
FiRPHASE
Features
- 131 dB Max SPL
- Innovative DSP Processing
- 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
- 12" Woofer
- 700 Hz crossover point for perfect vocal reproduction
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
- 1400 WATT 2-way peak power
The ART 732-A is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 12" woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
Part number:
13000526
ART 732-A MK4
220-240V, EAN 8024530014834
13000527
ART 732-A MK4
115V, EAN 8024530014964
New perspective on linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

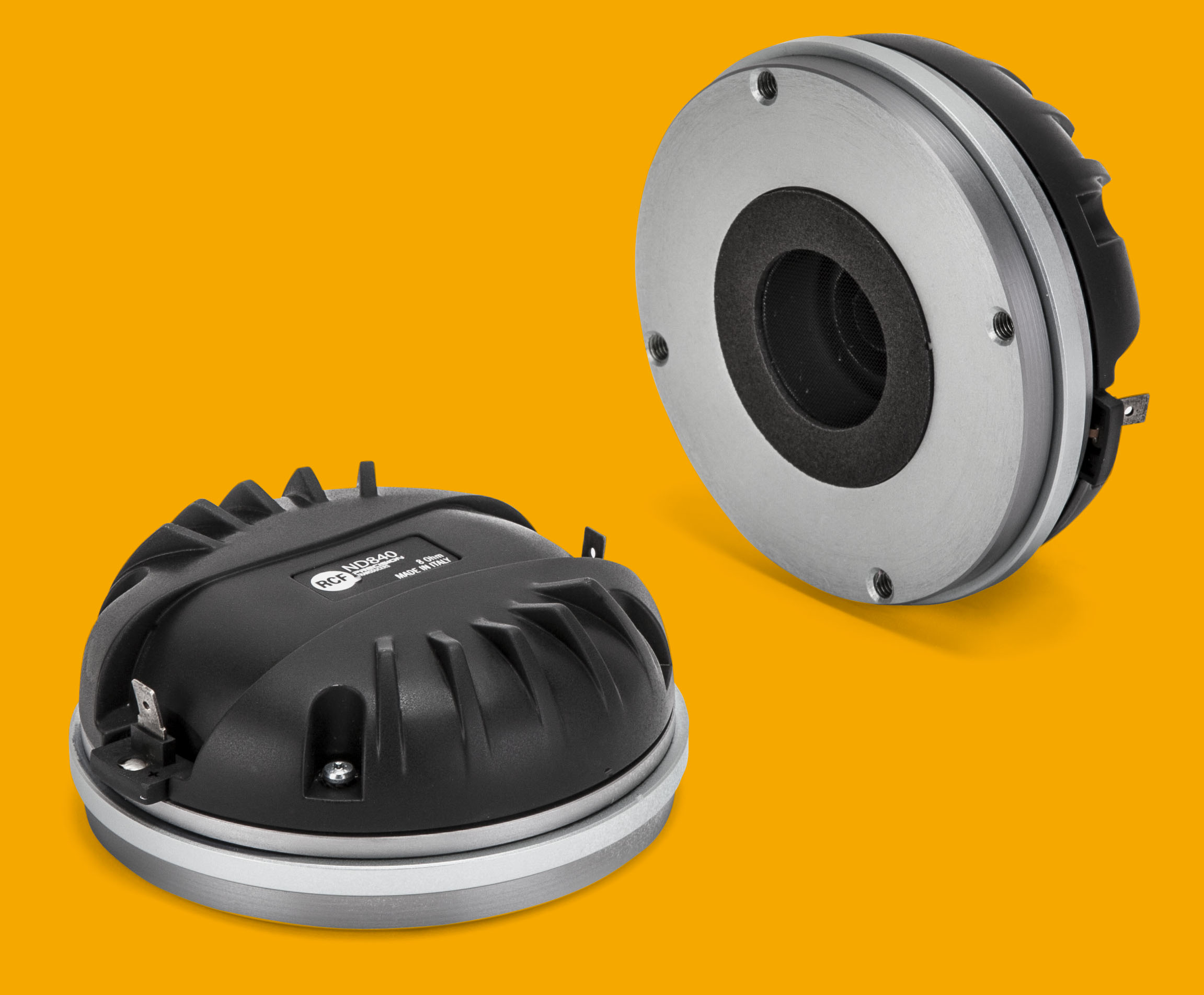

Superior compression drivers
The RCF Compression Drivers in pure Titanium are perfect for a crossover point lower than 650 Hz. This allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, our neodymium drivers are a reference in performance and reliability.
The voice coil features a high-temperature kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’ s suspension has been designed following extensive studies aimed at minimising distortion and extending low frequency range.
The voice coil features a high-temperature kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’ s suspension has been designed following extensive studies aimed at minimising distortion and extending low frequency range.
Powerful class D amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Bring ART with you
The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality.
Specifications
Acoustical specifications
Frequency Response
50 Hz ÷ 20000 Hz
Max SPL @ 1m
131 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Transducers
Compression Driver
1 x 1.4'' neo, 3.0'' v.c
Woofer
1 x 12'', 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Mic. Input Sensitivity
-32 dBu
Processor section
Crossover Frequencies
700 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Boost, Mic/Line
Power section
Total Power
1400 W Peak, 700 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
1000 W Peak, 500 W RMS
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
2 x M10
Handles
1 Top, 2 Side
Grille
Steel
Color
Black
Size / Weight
Height
637 mm / 25.08 inches
Width
384 mm / 15.12 inches
Depth
363 mm / 14.29 inches
Weight
17.8 kg / 39.24 lbs
Shipping information
Package Height
680 mm / 26.77 inches
Package Width
440 mm / 17.32 inches
Package Depth
420 mm / 16.54 inches
Package Weight
20.6 kg / 45.42 lbs
