ART 725
TWO WAY PASSIVE SPEAKER
- 700 W power handling
- 15" woofer, high power, 3.5" voice coil
- 1.5" compression driver with 3" voice coil
- 133 dB max spl
Features
- 700 W power handling
- 133 dB max spl
- 90 x 60 wide dispersion constant directivity horn
- 1.5" compression driver with 3" voice coil
- 15" woofer, high power, 3.5" voice coil
- LICC (Low Impedance Compensated Crossover) with aluminium housed resistors and integrated heat sink
- Spakon in/out connectors

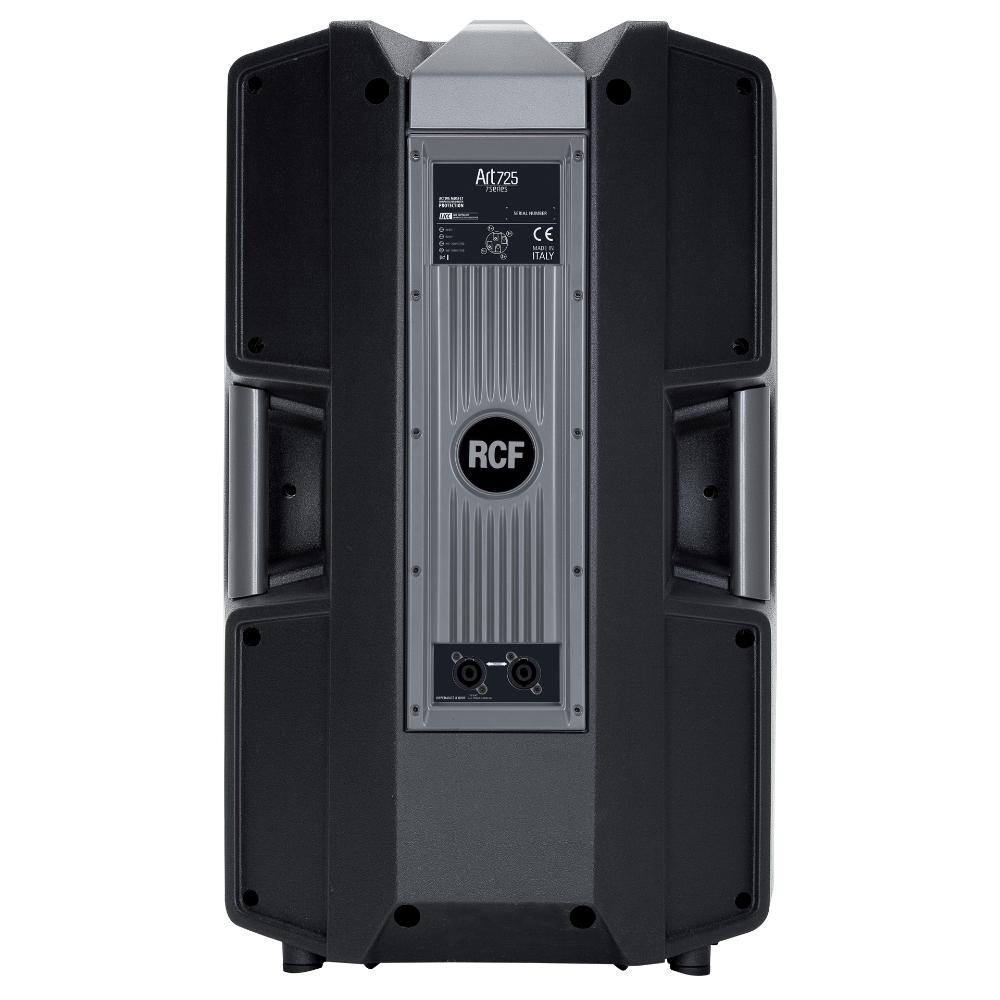

ART 725 is a passive two-way system with an accurate acoustic design for club installations and live music. Thanks to the high quality compression driver with a 3” voice coil and the 15” woofer, the ART 725 delivers clear high frequencies, punchy bass and full and precise mid frequencies. The new aluminium rear panel is equipped with Speakon in/out connectors.
ARCHIVED
Part number:
13000219
ART 725
EAN 8024530008727
Specifications
Acoustical specifications
Frequency Response (-3dB)
55 Hz ÷ 20000 Hz
Max SPL @ 1m
133 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Power section
Crossover Frequencies
1400 Hz
Transducers
Compression Driver
1 x 1.4'' neo, 3.0'' v.c
Woofer
1 x 15'' neo, 3.5'' v.c
Input/Output section
Input connectors
Speakon® NL4
Output connectors
Speakon® NL4
Standard compliance
Safety agency
CE compliant
Physical specifications
Hardware
2 x M10, pole mount
Handles
2 on side
Grille
Steel
Color
Black
Size / Weight
Height
708 mm / 27.87 inches
Width
437 mm / 17.2 inches
Depth
389 mm / 15.31 inches
Weight
20.5 kg / 45.19 lbs
Shipping information
Package Height
719 mm / 28.31 inches
Package Width
554 mm / 21.81 inches
Package Depth
504 mm / 19.84 inches
Package Weight
23.7 kg / 52.25 lbs
