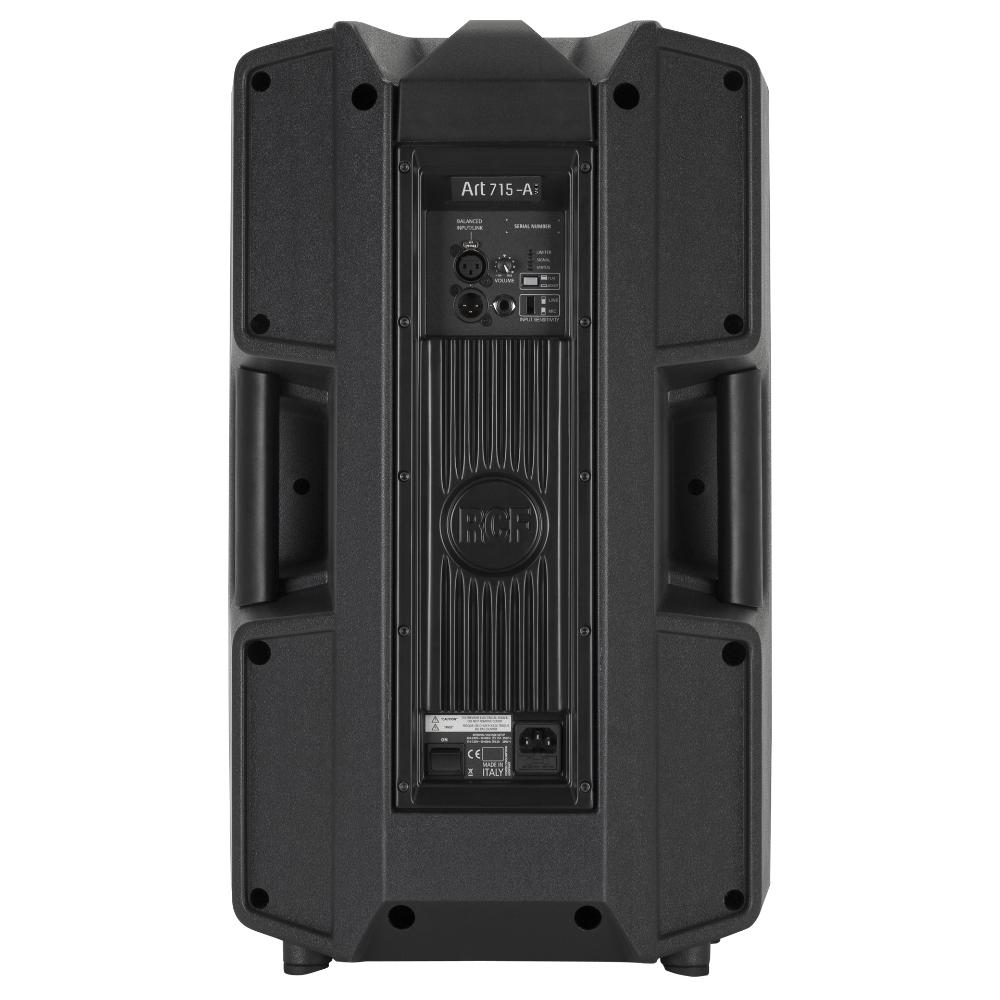

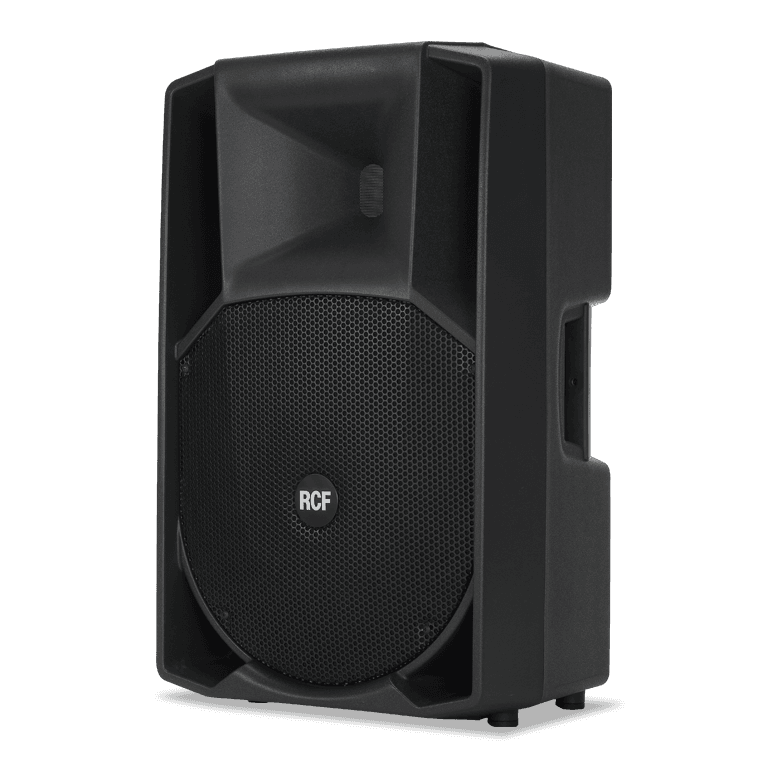

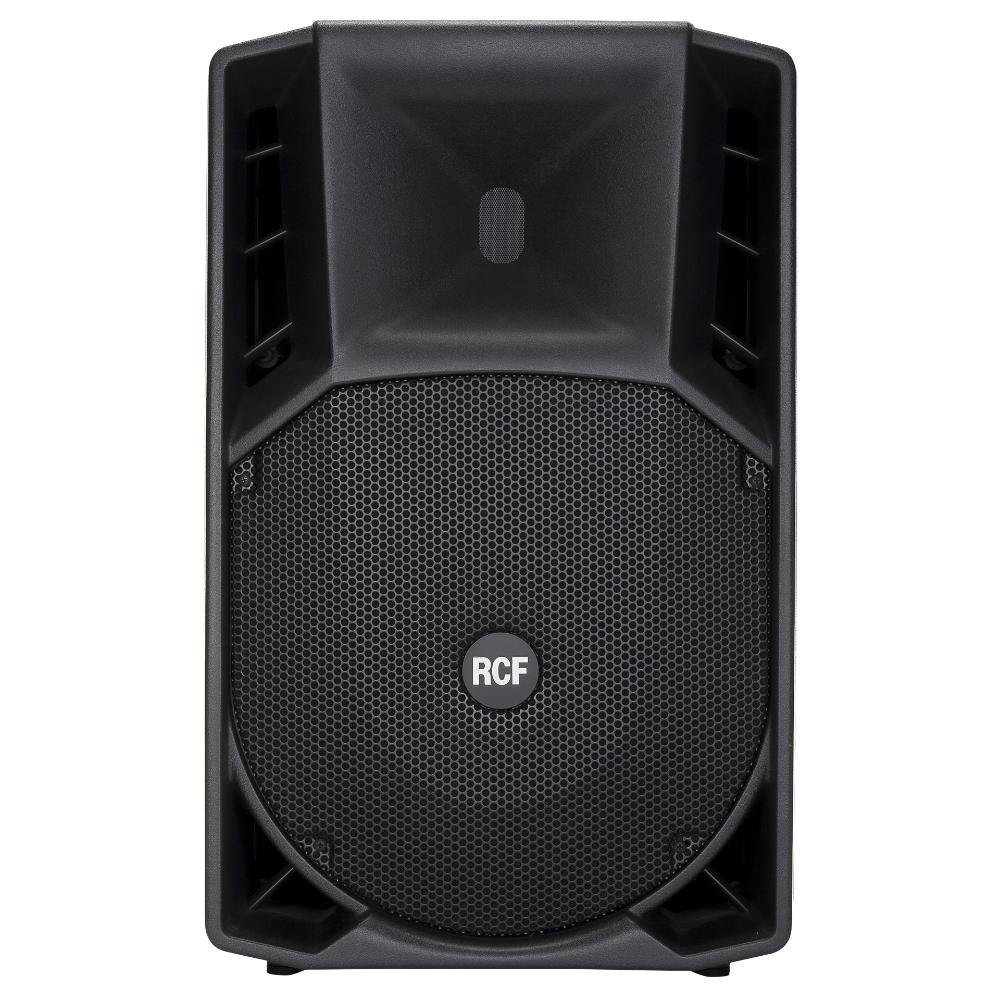

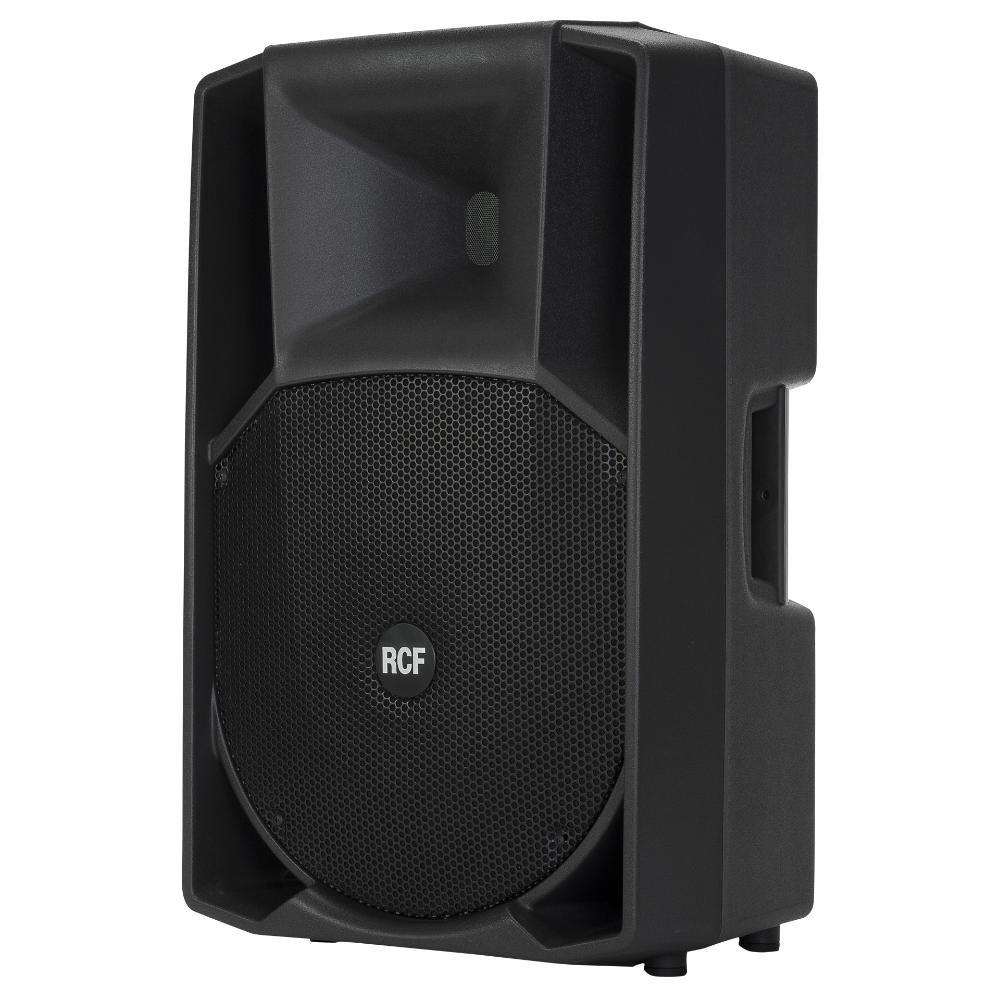

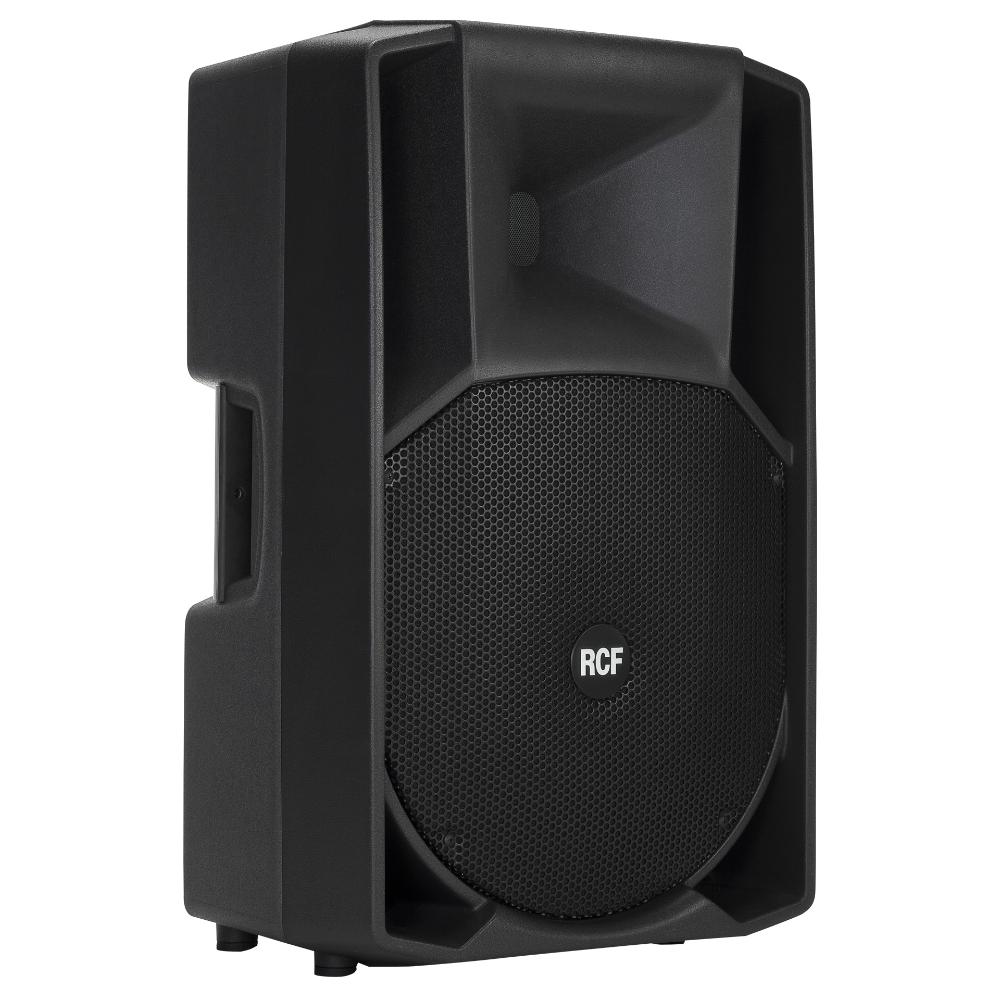

ART 715-A MKII

ACTIVE TWO-WAY SPEAKER
  • 1400 Watt Peak, 700 Watt RMS digital amplifier
  • 15" woofer, high power 3.0" voice coil
  • 1" HF driver, Mylar dome, 1.75" voice coil
  • 130 dB max spl
Support
Features Specifications Accessories Downloads
Support
Features
  • 1400 Watt Peak, 700 Watt RMS digital amplifier
  • 130 dB max spl
  • 90 x 60, Wide dispersion constant directivity horn
  • 15" woofer, high power 3.0" voice coil
  • 1" HF driver, Mylar dome, 1.75" voice coil
  • DSP Processing

Tired of worrying about the fact that the voice isn't cutting through the mix on the stage? Well, why not try the ART 715-A as a stage monitor. This is the perfect speaker for live sound situations where you need extra punch in bass reproduction and extremely accurate high frequency response to hear the voice when the band is playing at full throttle.

ARCHIVED

Part number:

13000339
ART 715-A MKII
220-240V, EAN 8024530009540

13000340
ART 715-A MKII
115V, EAN 8024530009557

Specifications
Acoustical specifications
Frequency Response
50 Hz ÷ 20000 Hz
Max SPL @ 1m
130 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Transducers
Compression Driver
1.0'', 1.75'' v.c
Woofer
15'', 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XRL, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
1700 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, EQ Shape
Power section
Total Power
1400 W Peak, 700 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
1000 W Peak, 500 W RMS
Cooling
Convection/Forced
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Hardware
2 x M10 Flying p.
Handles
2 side, 1 top
Color
Black
Size
Height
708 mm / 27.87 inches
Width
437 mm / 17.2 inches
Depth
389 mm / 15.31 inches
Weight
19.4 kg / 42.77 lbs
Shipping information
Package Height
725 mm / 28.54 inches
Package Width
550 mm / 21.65 inches
Package Depth
505 mm / 19.88 inches
Package Weight
23 kg / 50.71 lbs
