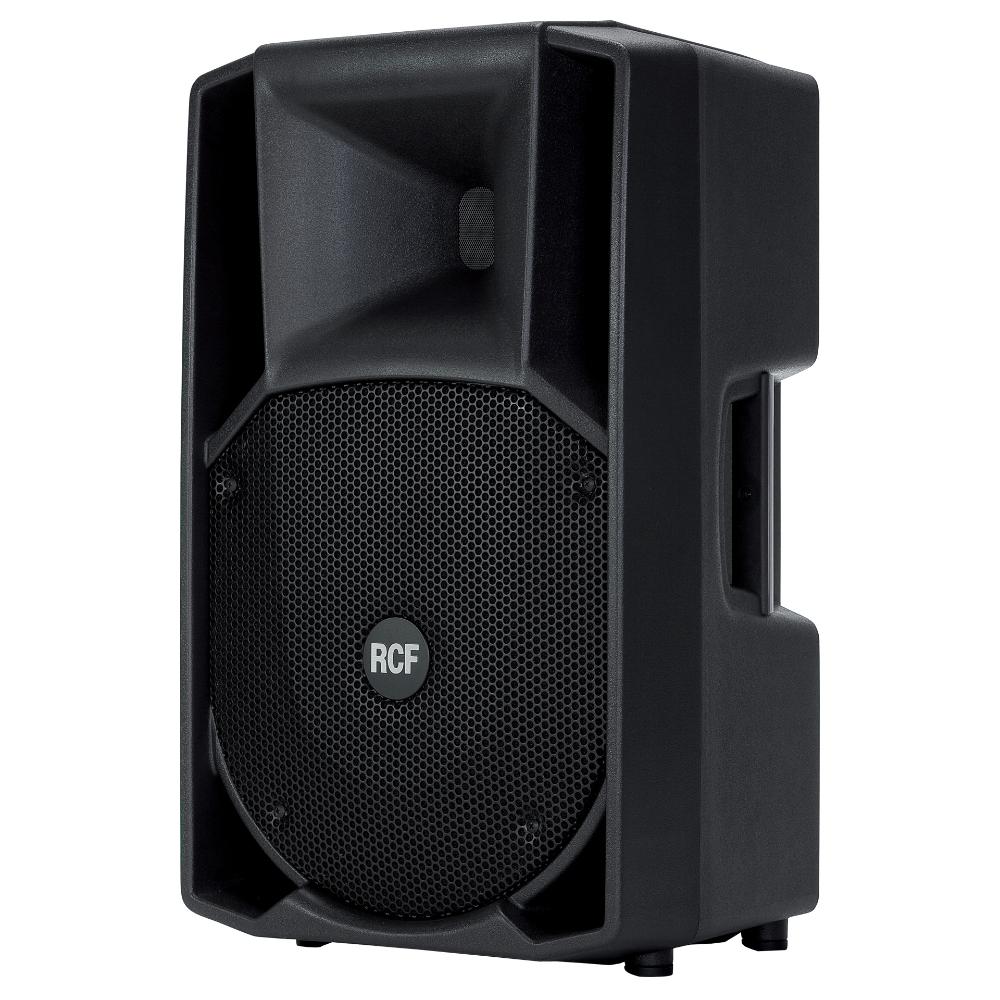

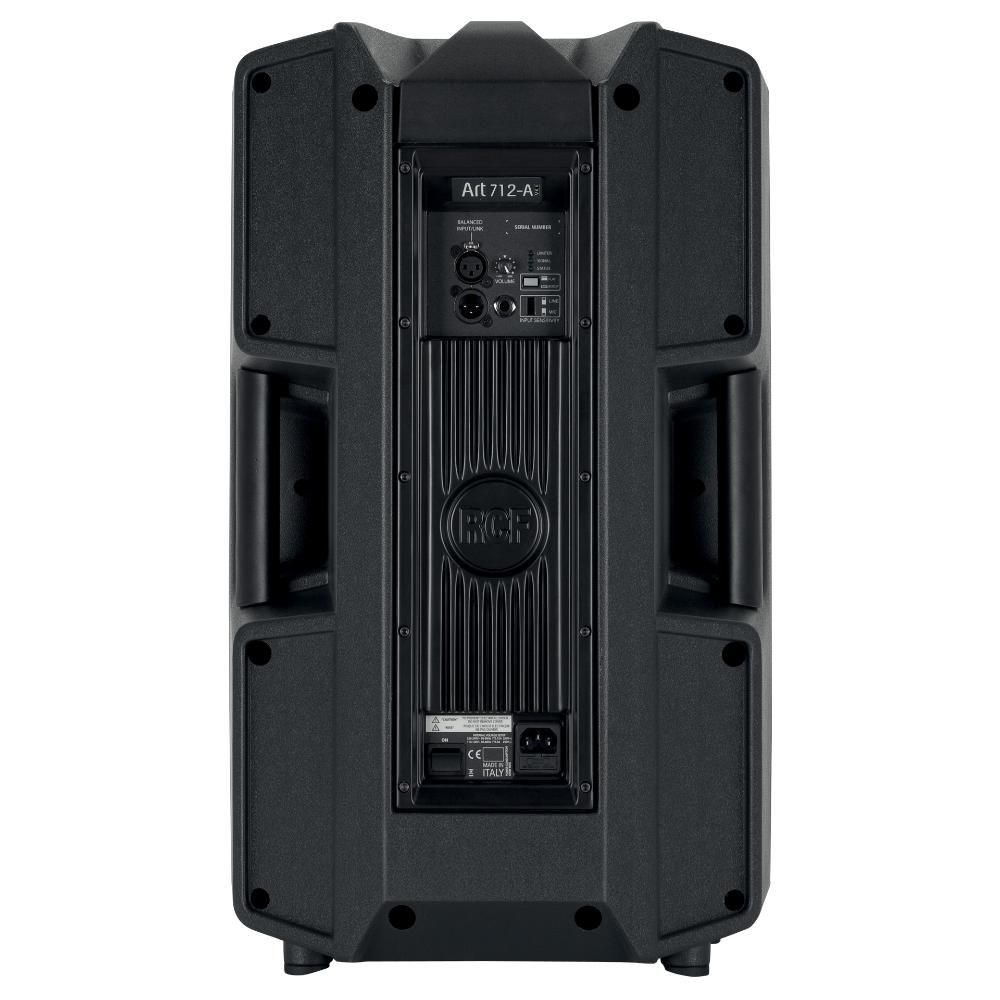

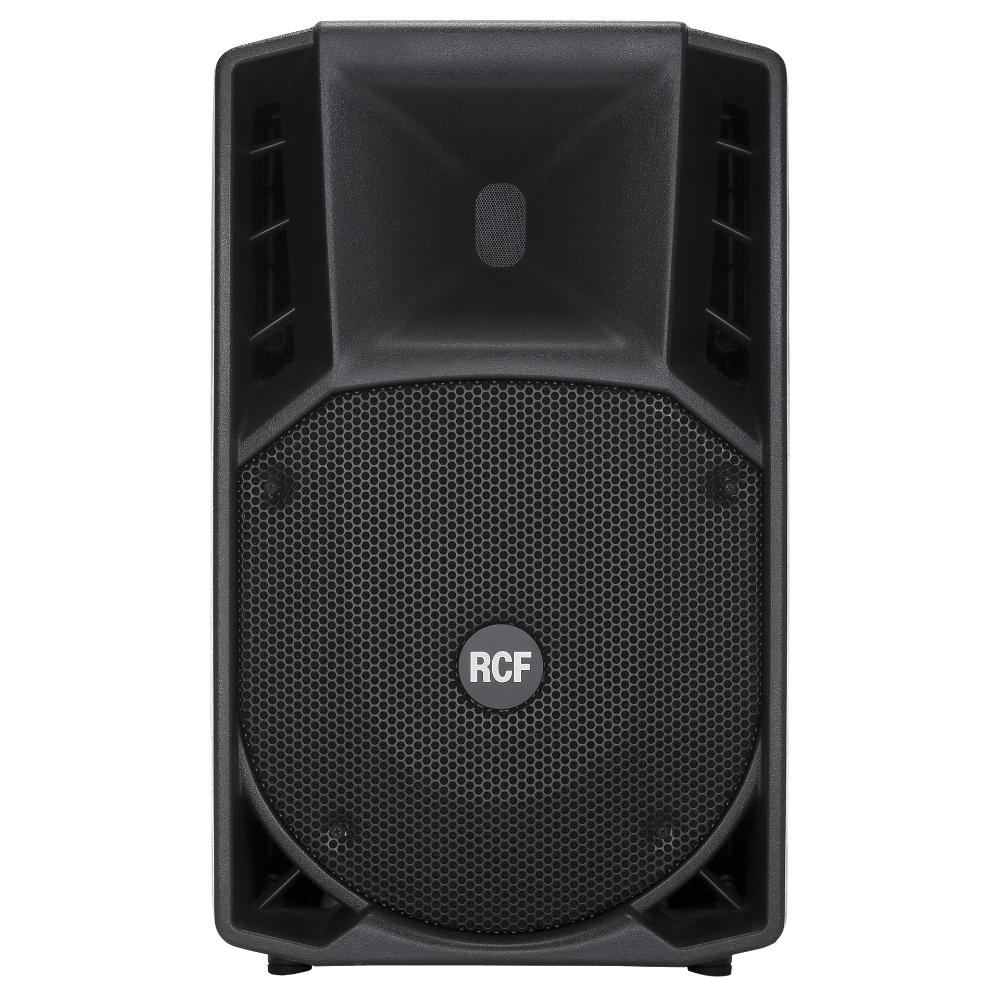

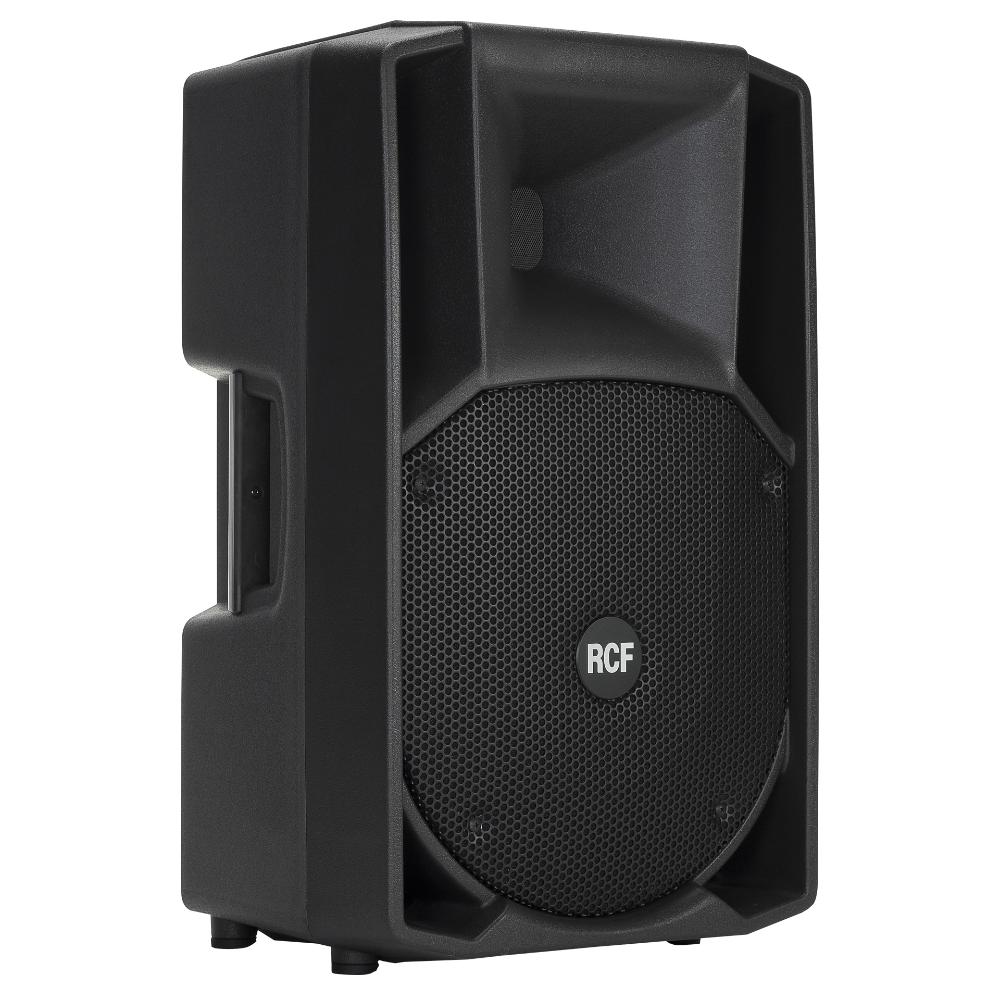

ART 712-A MKII

ACTIVE TWO-WAY SPEAKER
  • 1400 W Peak, 700 W RMS digital amplifier
  • 12" woofer, high power 3" voice coil
  • 1" HF driver, Mylar dome, 1.75" voice coil
  • 129 dB max spl
Support
Features Specifications Accessories Downloads
Support
Features
  • 1400 W Peak, 700 W RMS digital amplifier
  • 129 dB max spl
  • 90 x 60, Wide dispersion constant directivity horn
  • 12" woofer, high power 3" voice coil
  • 1" HF driver, Mylar dome, 1.75" voice coil
  • DSP Processing

You need to amplify some speech, recorded music and finish the show with a live set? ART 712-A is the answer: a multi purpose speaker that represents the best choice for situations in which a full frequency range with punchy bass and high defi nition is needed. The ART 712-A is a very versatile speaker that can be easily used also for monitoring applications.

ARCHIVED

Part number:

13000337
ART 712-A MKII
220-240V, EAN 8024530009526

13000338
ART 712-A MKII
115V, EAN 8024530009533

Specifications
Acoustical specifications
Frequency Response
50 Hz ÷ 20000 Hz
Max SPL @ 1m
129 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Transducers
Compression Driver
1.0'', 1.75'' v.c
Woofer
12'', 3.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XRL, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
1700 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, EQ Shape
Power section
Total Power
1400 W Peak, 700 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
1000 W Peak, 500 W RMS
Cooling
Convection/Forced
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
2 x M10 Flying p.
Handles
2 side, 1 top
Pole mount/Cap
Yes
Color
Black
Size / Weight
Height
637 mm / 25.08 inches
Width
384 mm / 15.12 inches
Depth
363 mm / 14.29 inches
Weight
17.9 kg / 39.46 lbs
Shipping information
Package Height
660 mm / 25.98 inches
Package Width
485 mm / 19.09 inches
Package Depth
475 mm / 18.7 inches
Package Weight
21.2 kg / 46.74 lbs
