Features
  • 300 Watt power handling
  • 128 dB max spl
  • 90 x 60, Wide dispersion constant directivity horn
  • 15" woofer, high power 2.5" voice coil
  • 1" HF neo driver, 1.5" v.c.

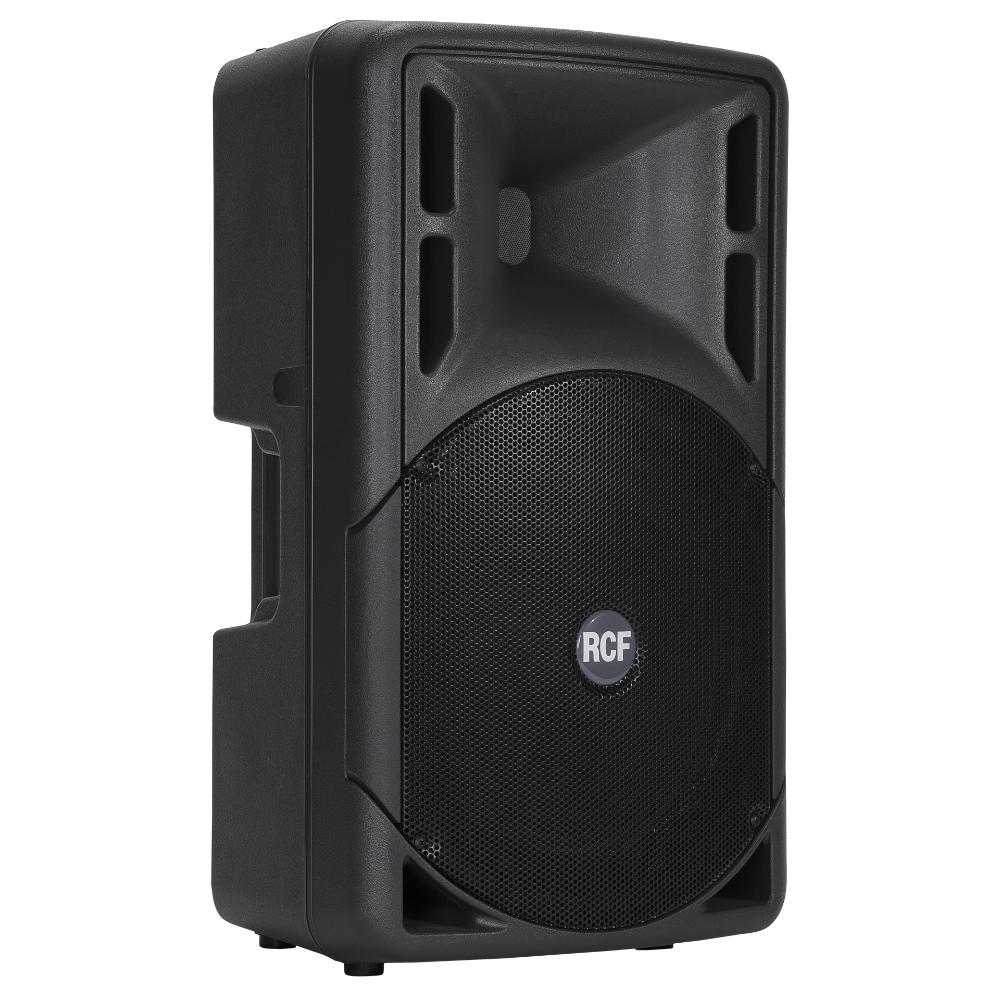

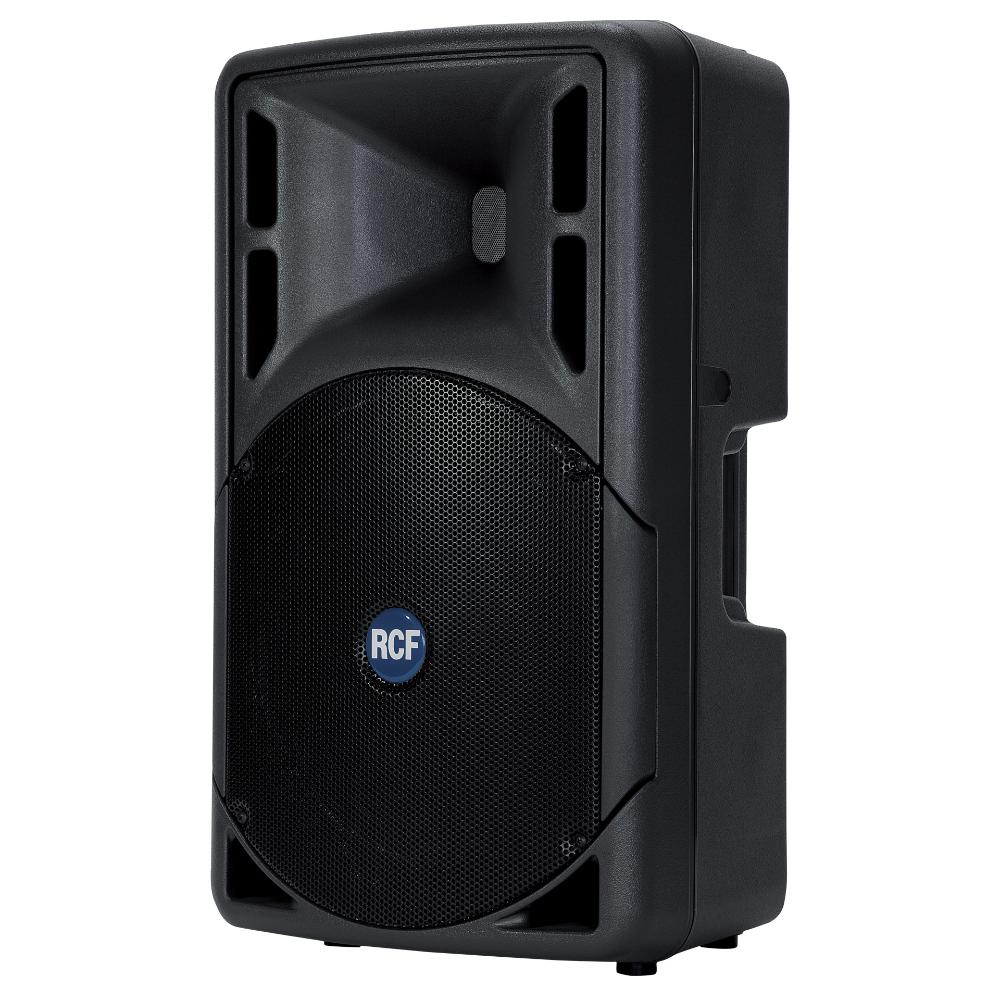

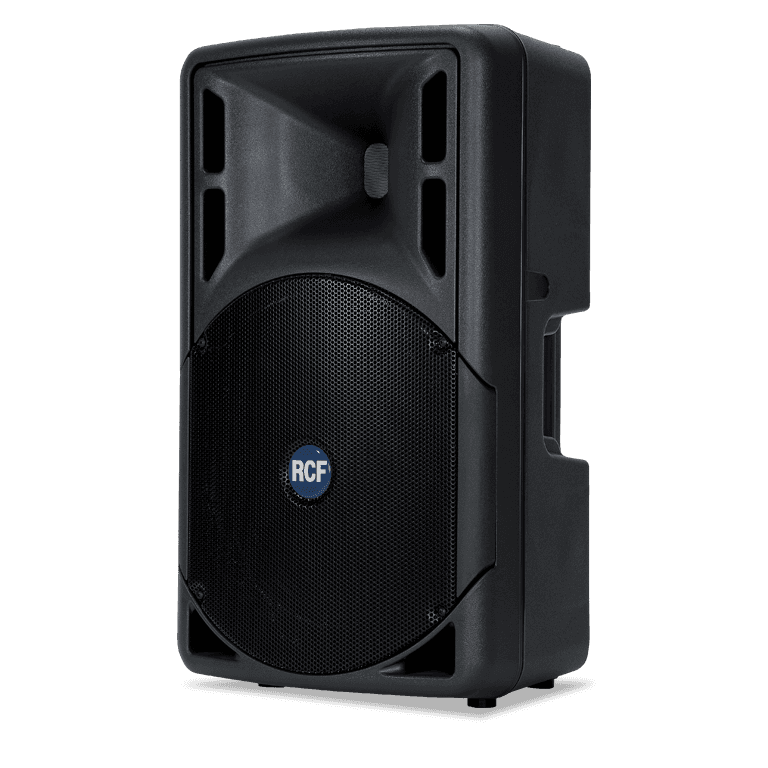

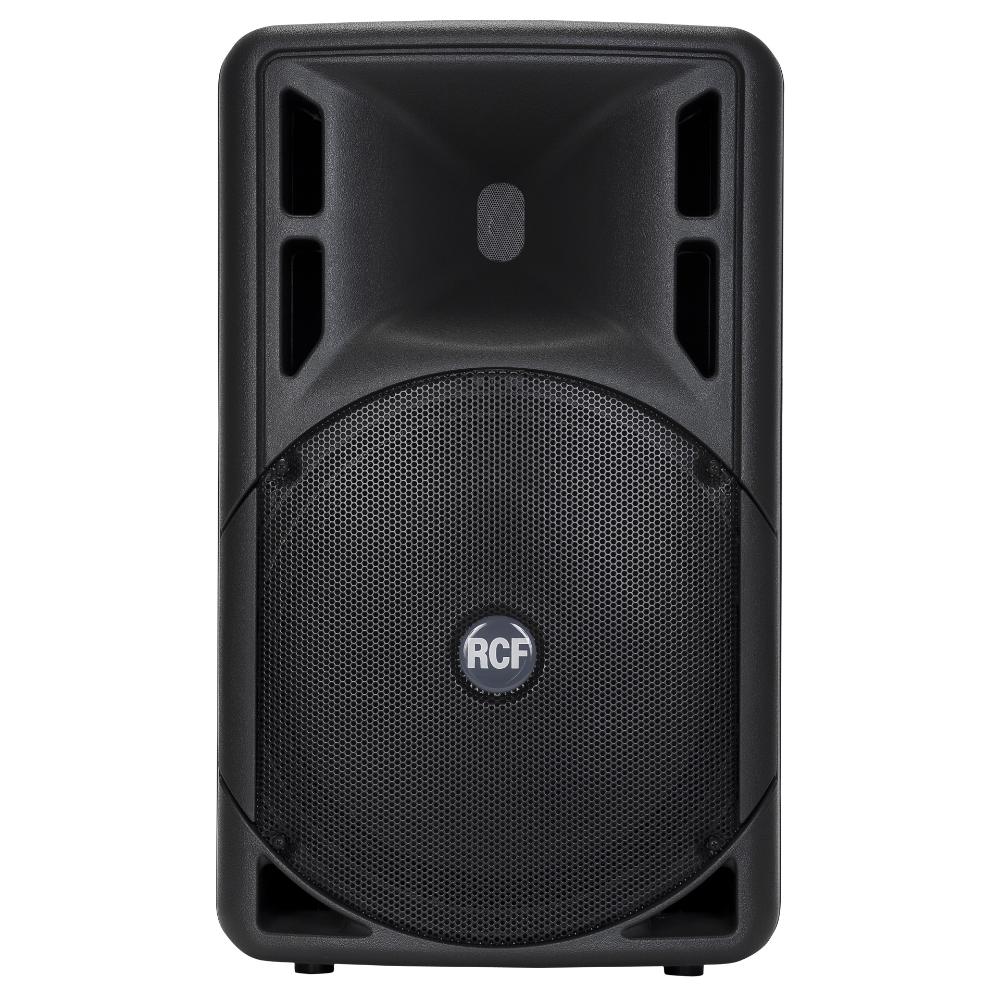

The ART 315 is a two-way passive sound reinforcement speaker with careful acoustic design and innovative transducers technology. A superb bass punch is guaranteed by the high power 15” low distortion woofer. ART 315 is the perfect solution for playback and installation situations where an external amplifier is required. It is equipped with four M10 flying points.


ARCHIVED

Part number:

13000376
ART 315 MKIII
EAN 8024530009892

Specifications
Acoustical specifications
Frequency Response (-10dB)
50 Hz ÷ 20000 Hz
Max SPL @ 1m
128 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Power section
Crossover Frequencies
1800 Hz
Transducers
Compression Driver
1 x 1.0'' neo, 1.5'' v.c
Woofer
1 x 15'', 2.5'' v.c
Input/Output section
Input connectors
Speakon
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
4 x M10 Flying p.
Handles
2 side, 1 Top
Pole mount/Cap
35 mm insert
Color
Black
Size / Weight
Height
680 mm / 26.77 inches
Width
405 mm / 15.94 inches
Depth
345 mm / 13.58 inches
Weight
17 kg / 37.48 lbs
Shipping information
Package Height
798 mm / 31.42 inches
Package Width
466 mm / 18.35 inches
Package Depth
406 mm / 15.98 inches
Package Weight
19.4 kg / 42.77 lbs
