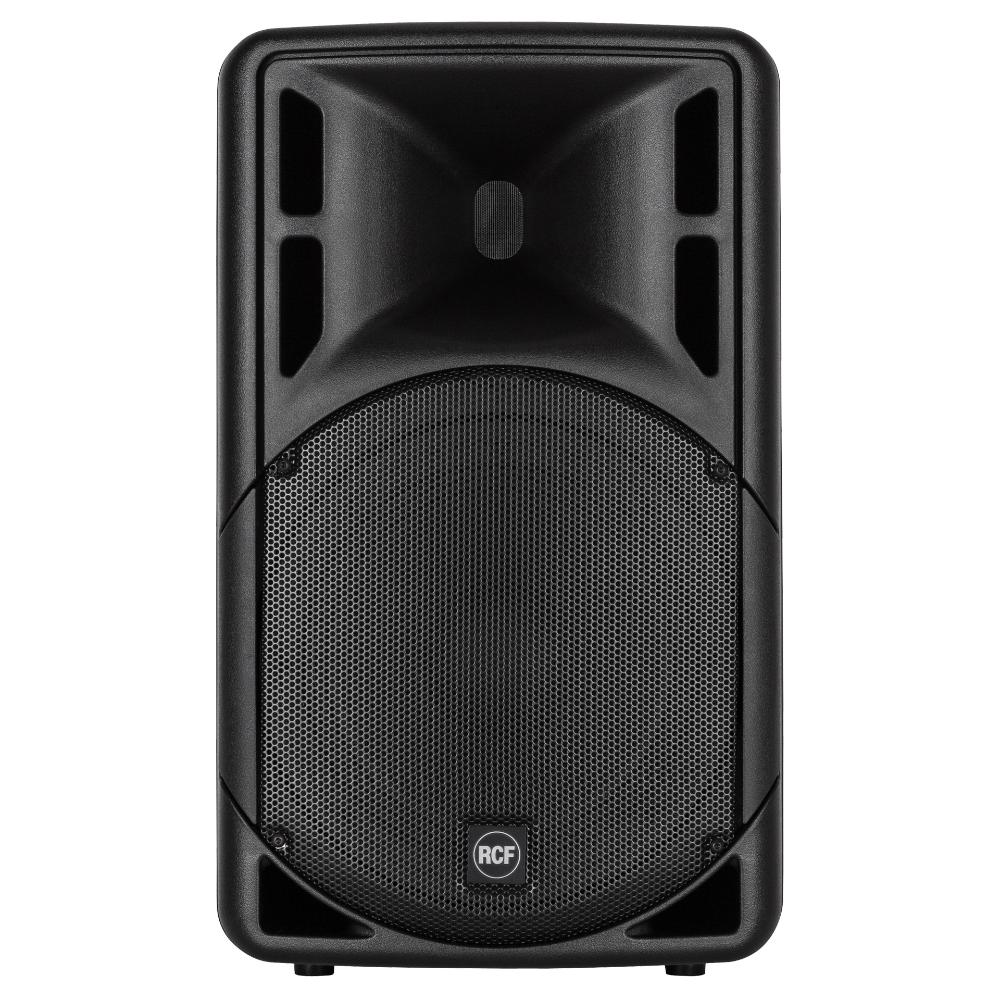

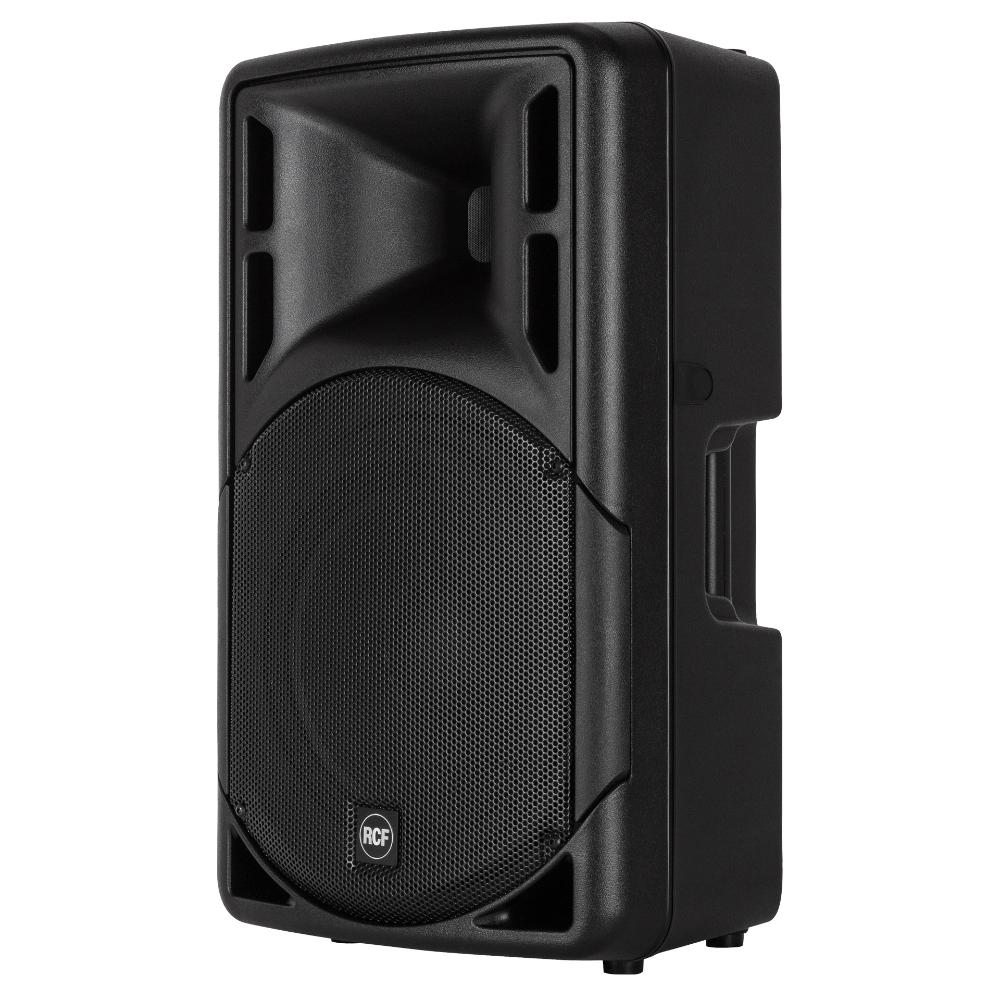

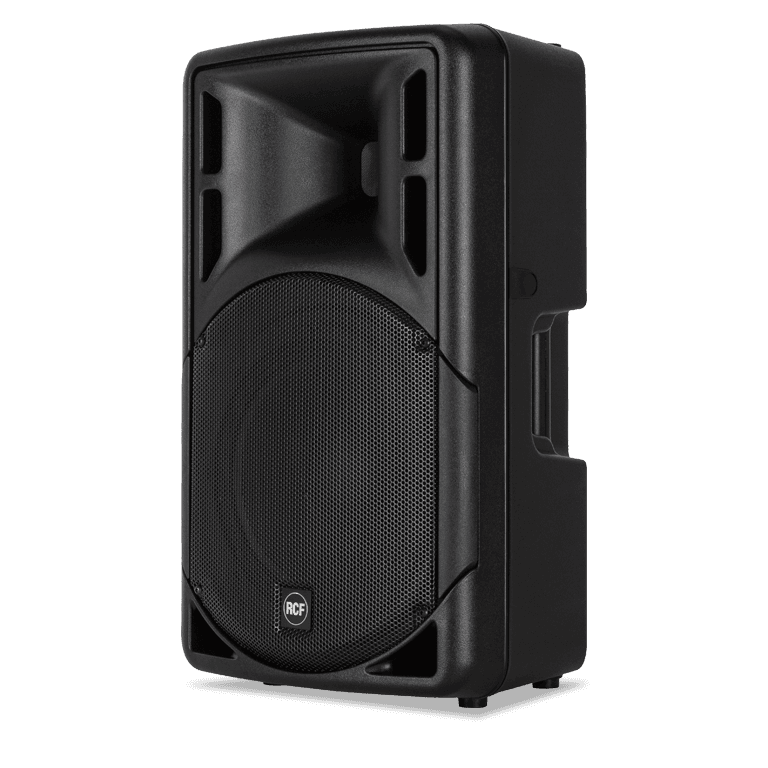

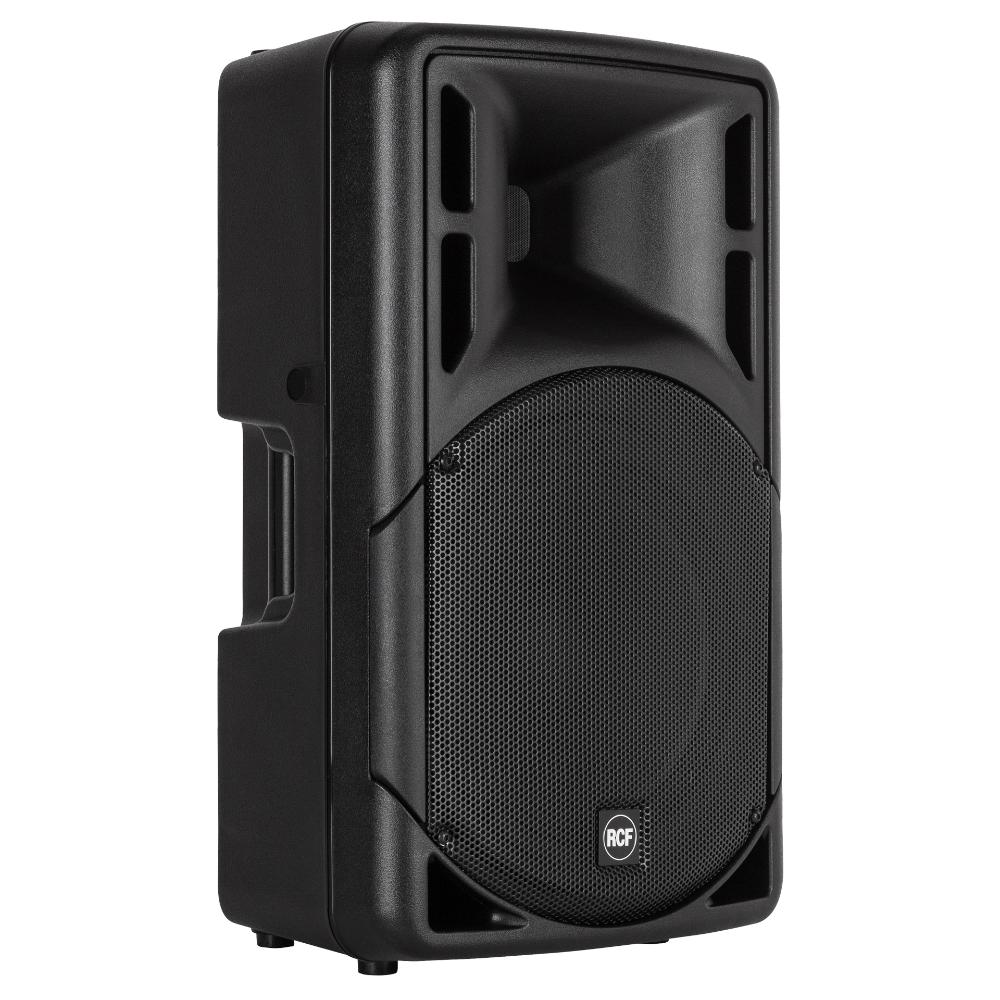

ART 315 MK4

PASSIVE TWO-WAY SPEAKER
  • 129 dB Max SPL
  • 300 W AES power handling

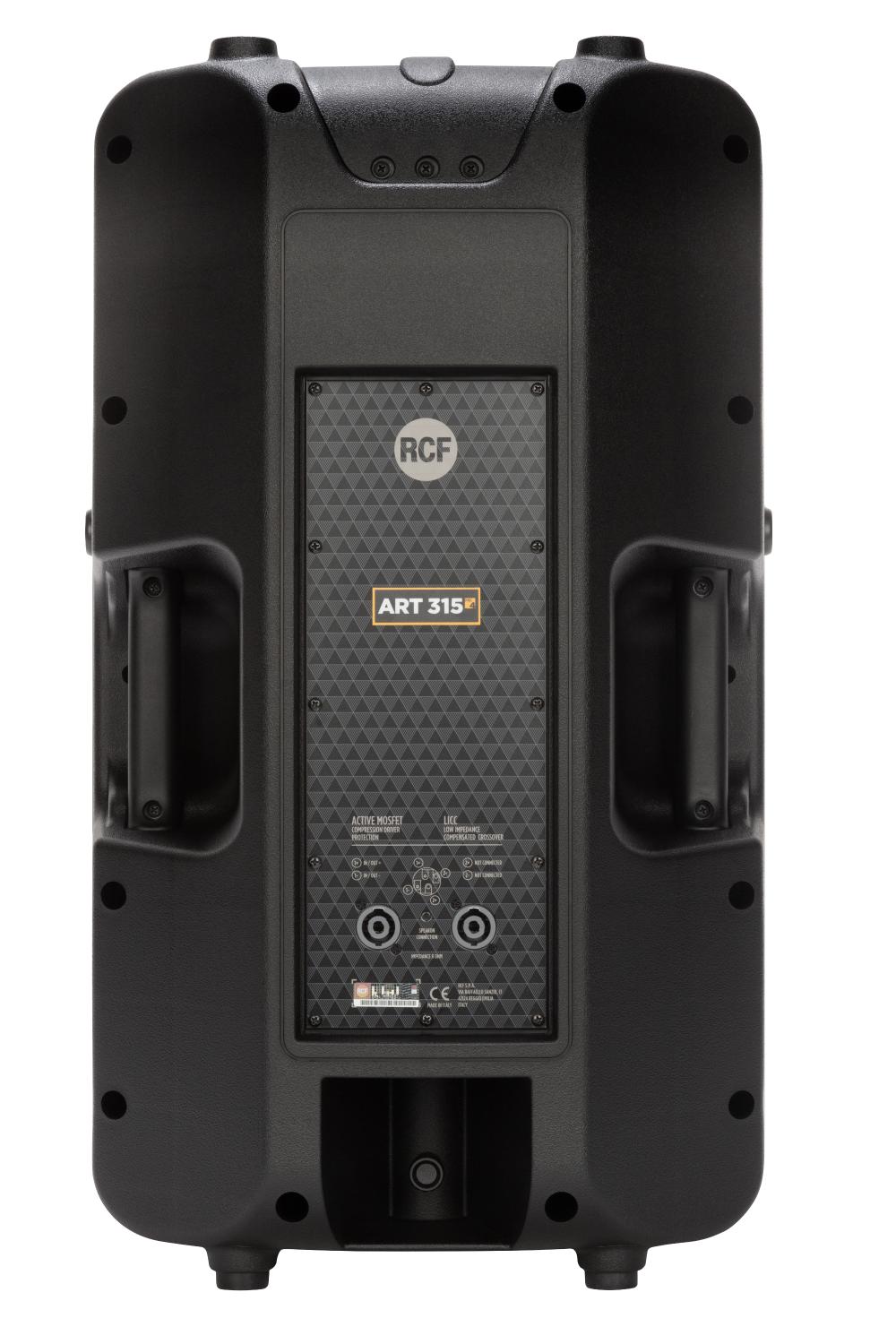

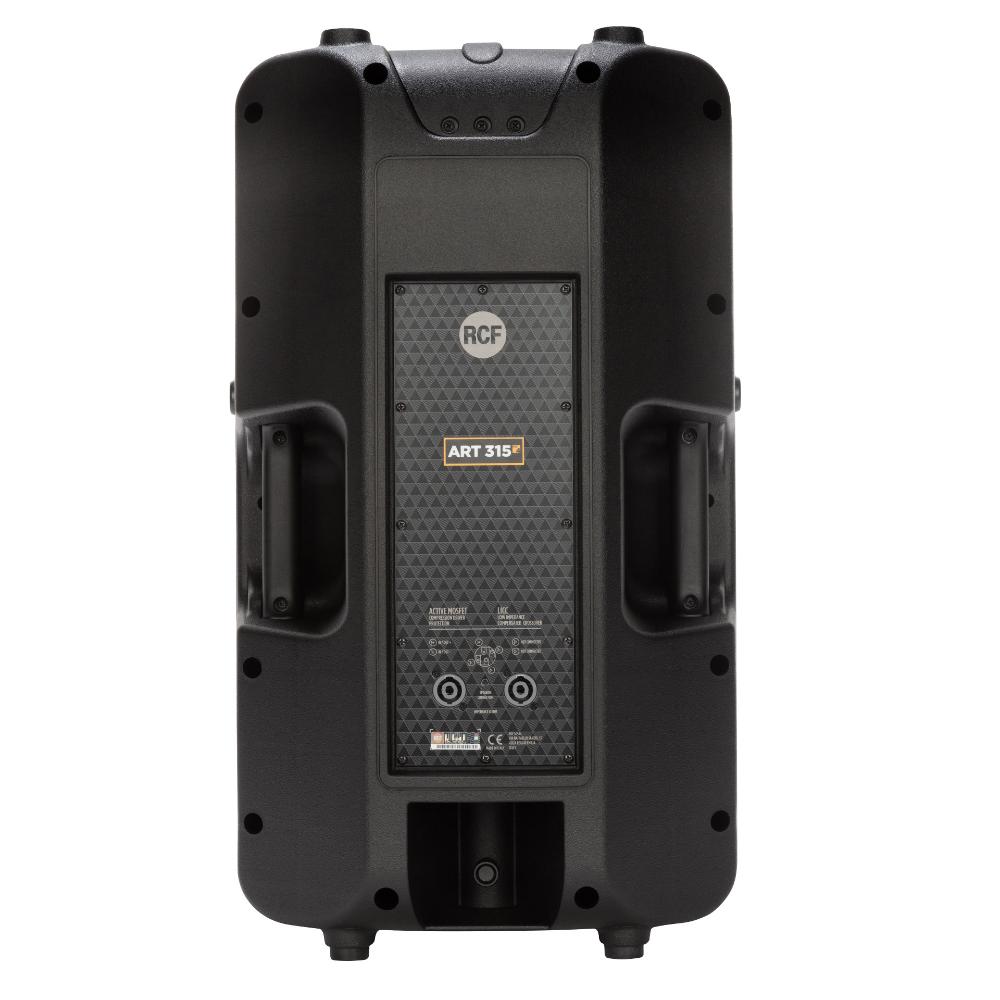

  • Dual Speakon IN/OUT
  • 15" woofer, high power 2.5" voice coil
Support
Features Specifications Accessories Downloads
Support
Features
  • 129 dB Max SPL
  • 300 W AES power handling
  • Dual Speakon IN/OUT
  • 15" woofer, high power 2.5" voice coil
  • 1" HF driver, mylar dome, 1.5" voice coil
  • 680x405x345 mm26.77x15.94x13.58 in (HxWxD)
  • Finely tuned crossover
  • high power handling low impedance crossover design

Passive speakers for live sound reinforcement and stage monitoring as well as distributed sound systems for clubs, music venues and corporate events. ART 315 MK4 is the ideal speaker when an exceptional full range, outstanding bass reproduction, and accurate high frequency delivery are required.

ARCHIVED

Part number:

13000587
ART 315 MK4
EAN 8024530016999

Specifications
Acoustical specifications
Frequency Response (-10dB)
50 Hz ÷ 20000 Hz
Max SPL @ 1m
129 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Power section
Nominal Impedance
8 ohm
Power Handling
300 W
Peak Power Handling
1200 W PEAK
Crossover Frequencies
1800 Hz
Transducers
Compression Driver
1 x 1.0'', 1.5'' v.c
Woofer
1 x 15'', 2.5'' v.c
Input/Output section
Input connectors
Speakon
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
4 x M10 Flying p.

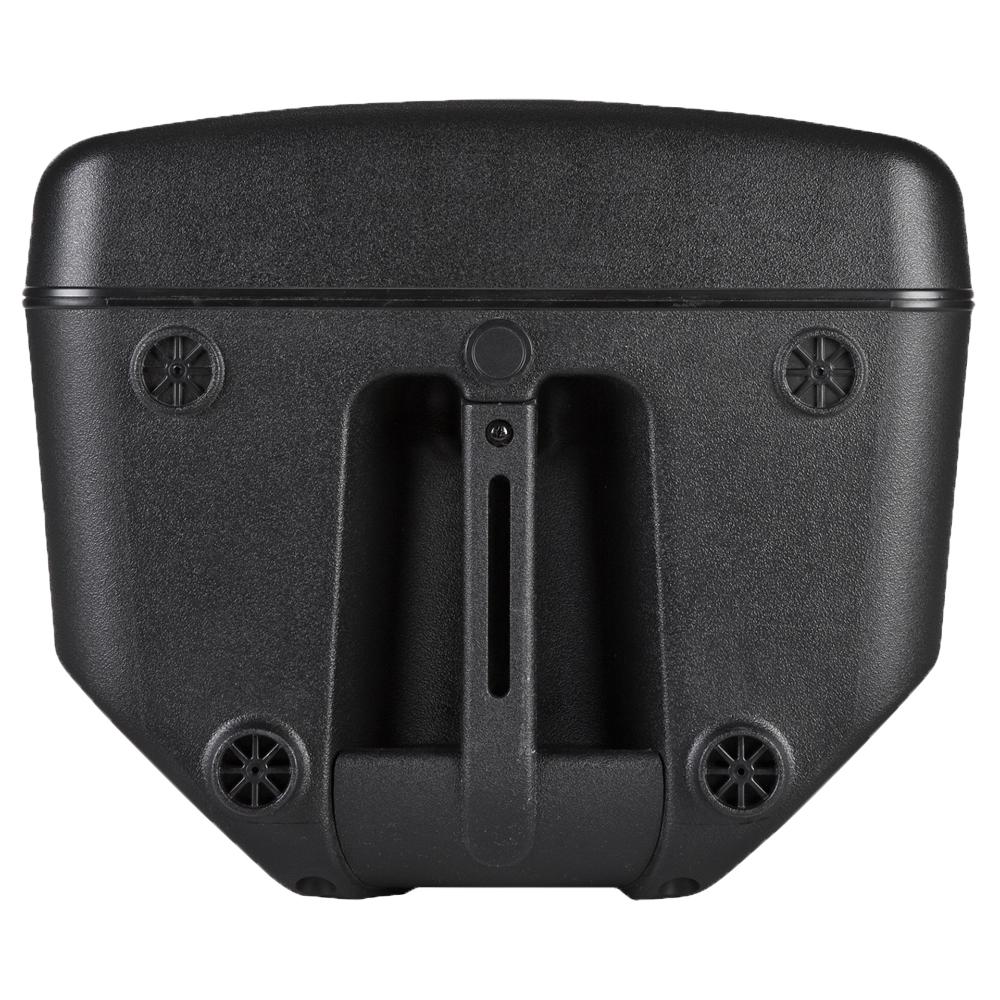

Handles
2 side, 1 Top

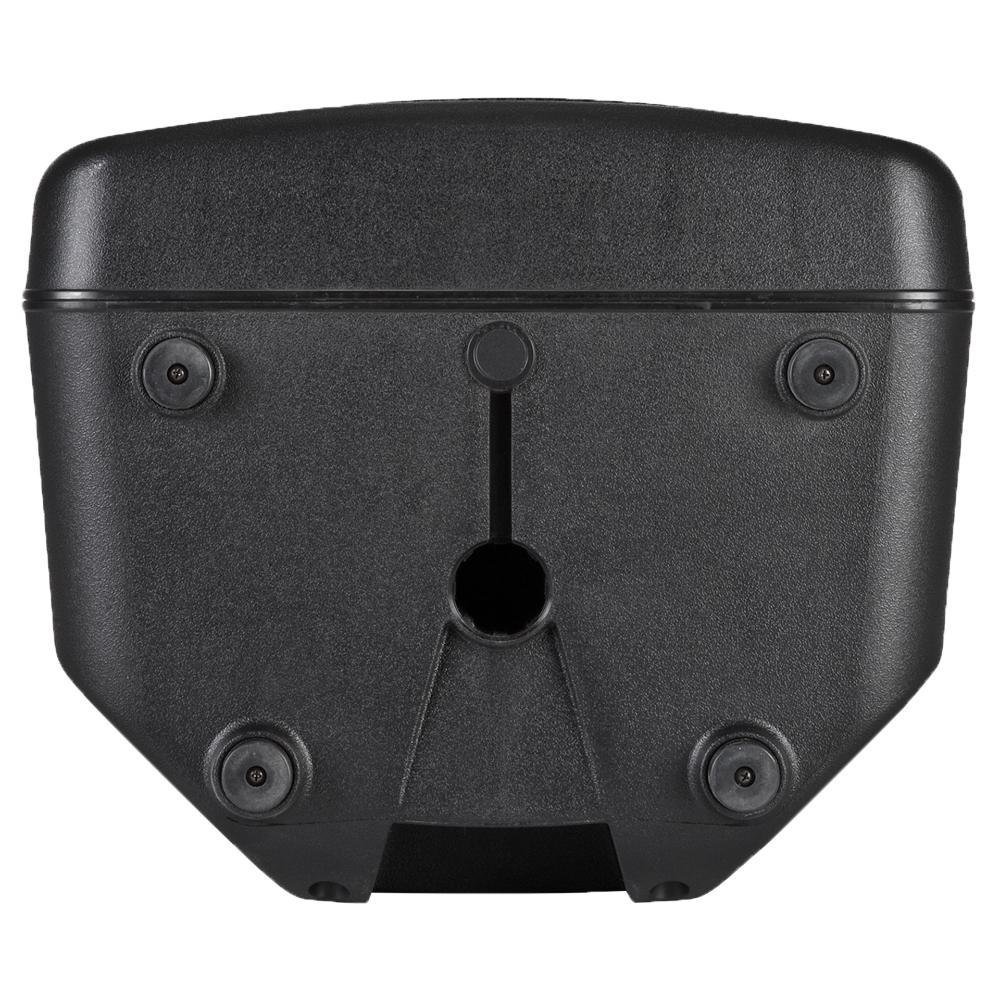

Pole mount/Cap
Yes
Color
Black
Size / Weight
Height
680 mm / 26.77 inches
Width
405 mm / 15.94 inches
Depth
345 mm / 13.58 inches
Weight
17 kg / 37.48 lbs
Shipping information
Package Height
740 mm / 29.13 inches
Package Width
461 mm / 18.15 inches
Package Depth
401 mm / 15.79 inches
Package Weight
19.4 kg / 42.77 lbs
