Features
  • 800 Watt Peak, 400 Watt RMS, bi-amplification
  • 127 dB max spl
  • 90 x 70, Wide dispersion constant directivity horn
  • 10" high power woofer 2.5" voice coil
  • 1" HF driver, titanium dome, 1.5" voice coil

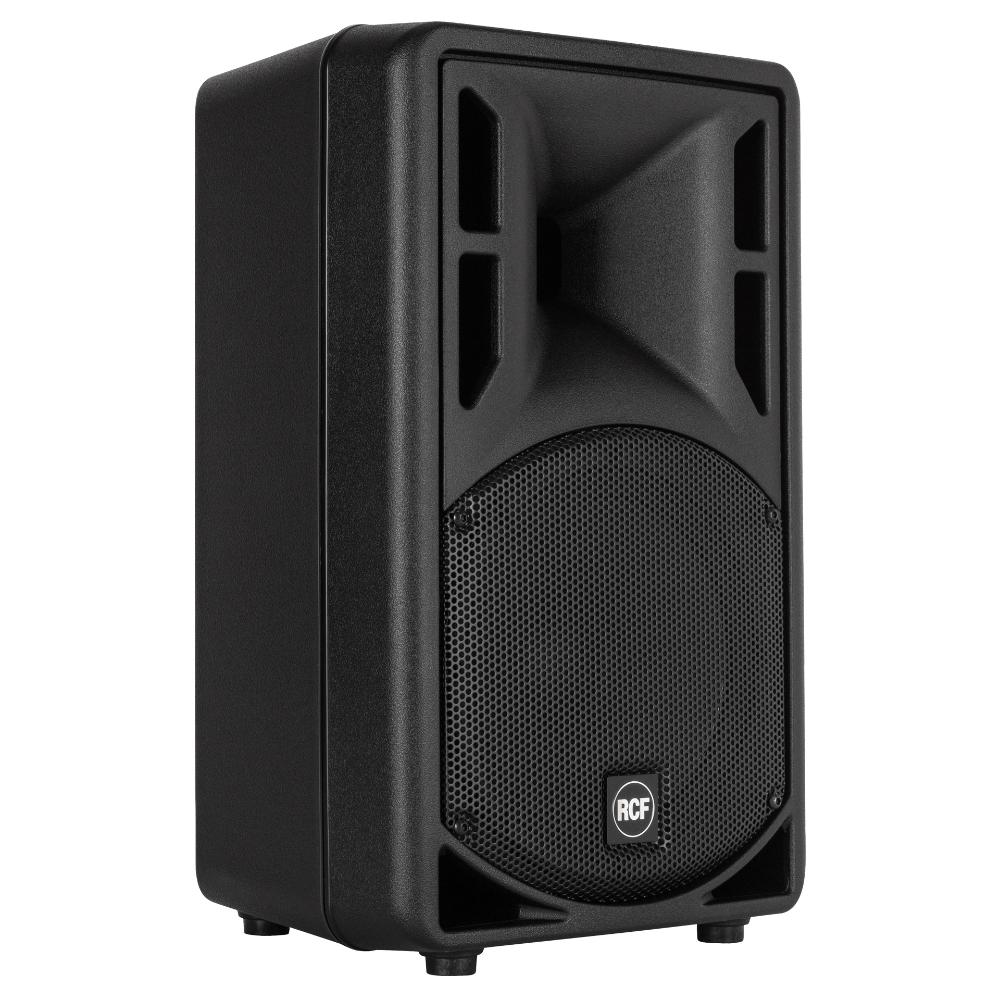

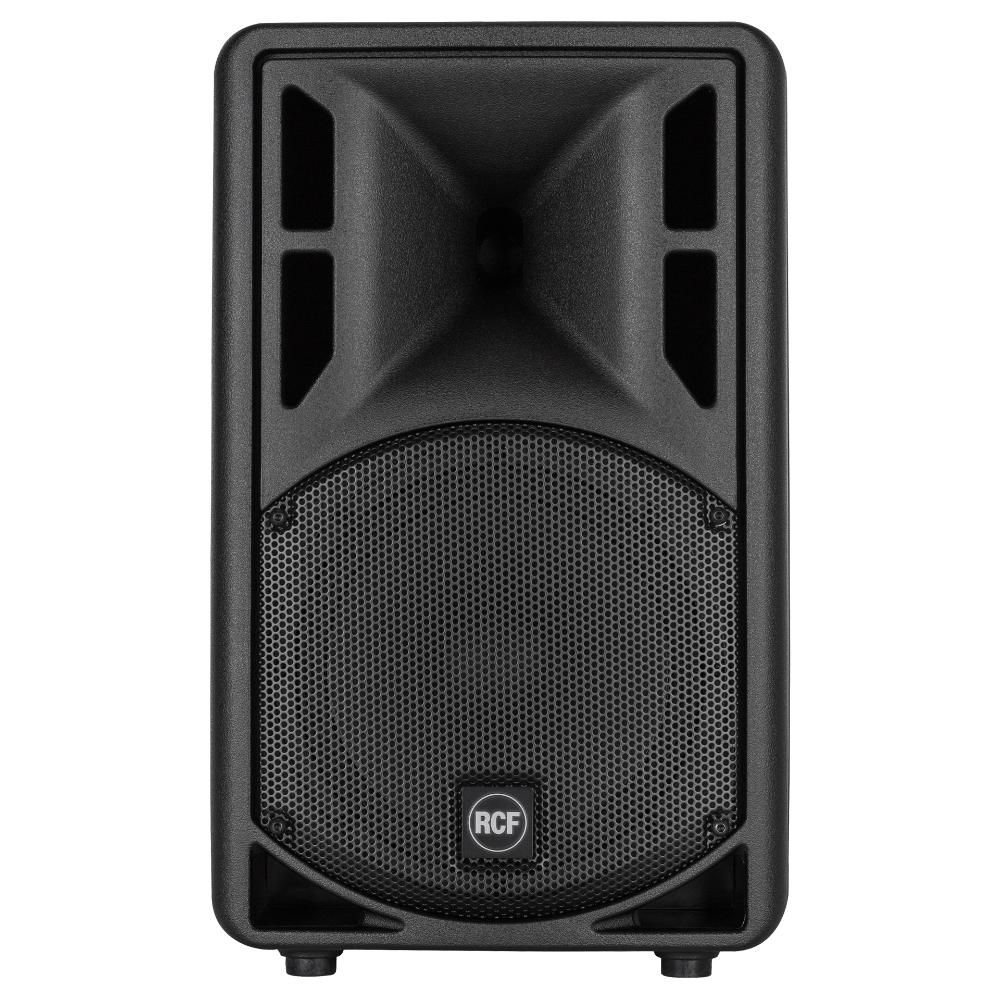

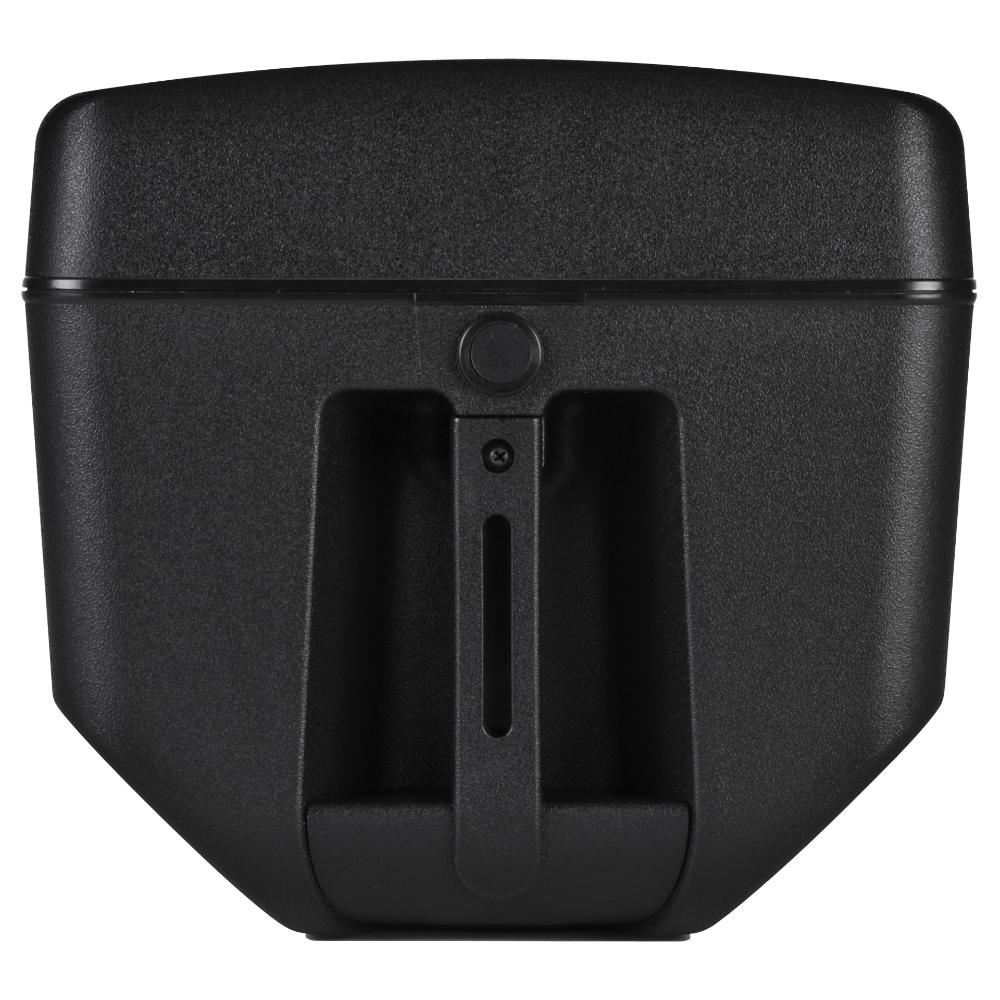

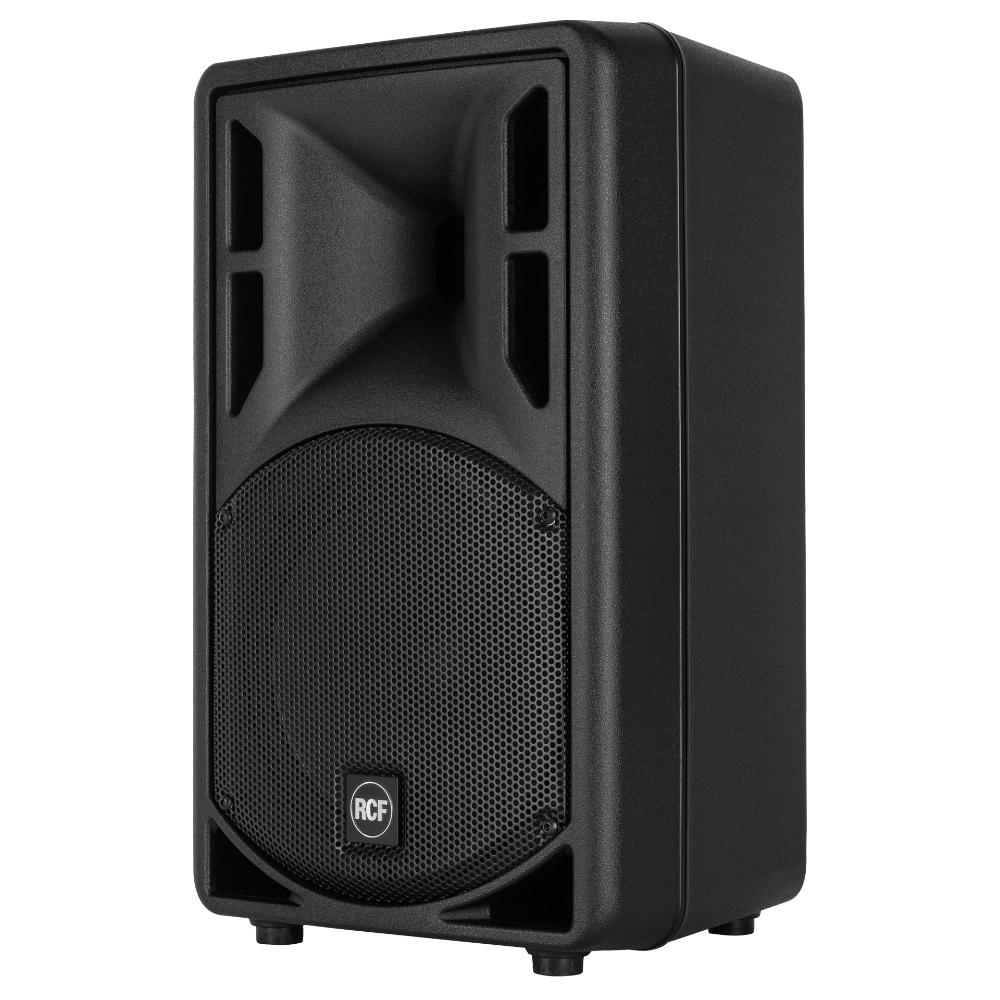

ART 310-A is a 10” reference speaker. Thanks to its incredible amplifier’s power, the high quality transducers and very compact size cabinet, it is the ideal speaker in all the situations where the output of a PA system and the size of a monitor are important. The 10” woofer features a 2.0” voice coil and delivers very high efficiency and controlled bass reproduction. It can be used for live sound, playback, monitoring, corporate events and presentations. The ART 310-A is very easy to transport everywhere.


ARCHIVED

Part number:

13000315
ART 310-A MKIII
220-240V, EAN 8024530009328

13000316
ART 310-A MKIII
115V, EAN 8024530009335

Specifications
Acoustical specifications
Frequency Response
50 Hz ÷ 20000 Hz
Max SPL @ 1m
127 dB
Horizontal coverage angle
90°
Vertical coverage angle
70°
Transducers
Compression Driver
1.0'', 1.5'' v.c
Woofer
10'', 2.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XRL, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
1800 Hz
Protections
Thermal, RMS
Limiter
Fast Limiter
Controls
Volume/EQ Settings
Power section
Total Power
800 W Peak, 400 W RMS
High frequencies
200 W Peak, 100 W RMS
Low frequencies
600 W Peak, 300 W RMS
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
2 x M10 Flying p.
Handles
1 Top
Pole mount/Cap
Yes
Color
Black
Size / Weight
Height
537 mm / 21.14 inches
Width
337 mm / 13.27 inches
Depth
315 mm / 12.4 inches
Weight
12.4 kg / 27.34 lbs
Shipping information
Package Height
600 mm / 23.62 inches
Package Width
396 mm / 15.59 inches
Package Depth
372 mm / 14.65 inches
Package Weight
15.6 kg / 34.39 lbs
Accessories
Downloads
MANUALS
PDF
591 KB
14-01-2020
SPECIFICATIONS
PDF
962 KB
18-10-2024
PDF
957 KB
18-10-2024
PDF
962 KB
18-10-2024
PDF
958 KB
18-10-2024
PDF
959 KB
18-10-2024
STANDARD COMPLIANCES
PDF
168 KB
05-07-2022
PDF
188 KB
11-07-2022
SOFTWARE
GLL
ZIP
668 KB
08-03-2018
