ARCHIVED
LIVE SOUND

4PRO 3031-A

ACTIVE TWO-WAY SPEAKER
  • 1200 WATT PEAK, 600 WATT RMS
  • 15" woofer, 2.5" voice coil
  • 1" HF driver,1.7" voice coil
  • 130 dB max spl
Support
Features Specifications Accessories Downloads
Support
Features
  • 1200 WATT PEAK, 600 WATT RMS
  • 130 dB max spl
  • 90 x 60, Wide dispersion constant directivity horn
  • 15" woofer, 2.5" voice coil
  • 1" HF driver,1.7" voice coil

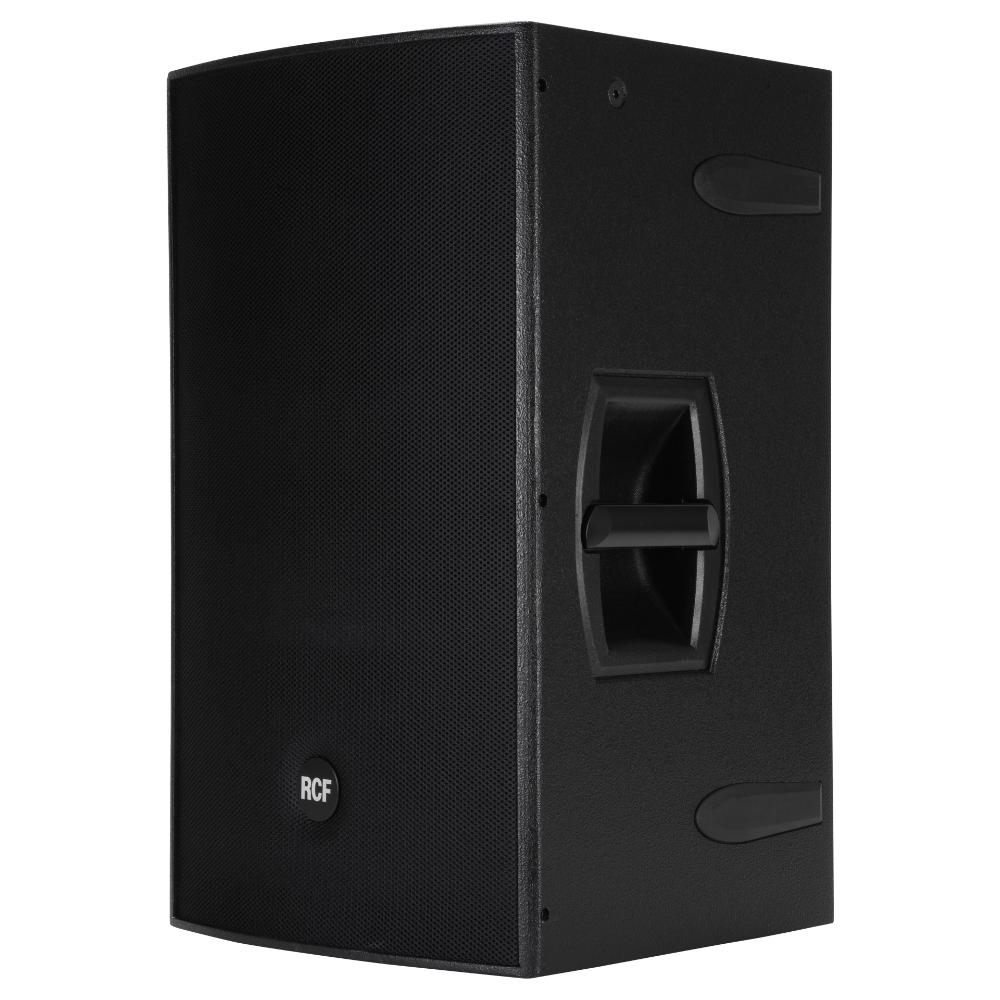

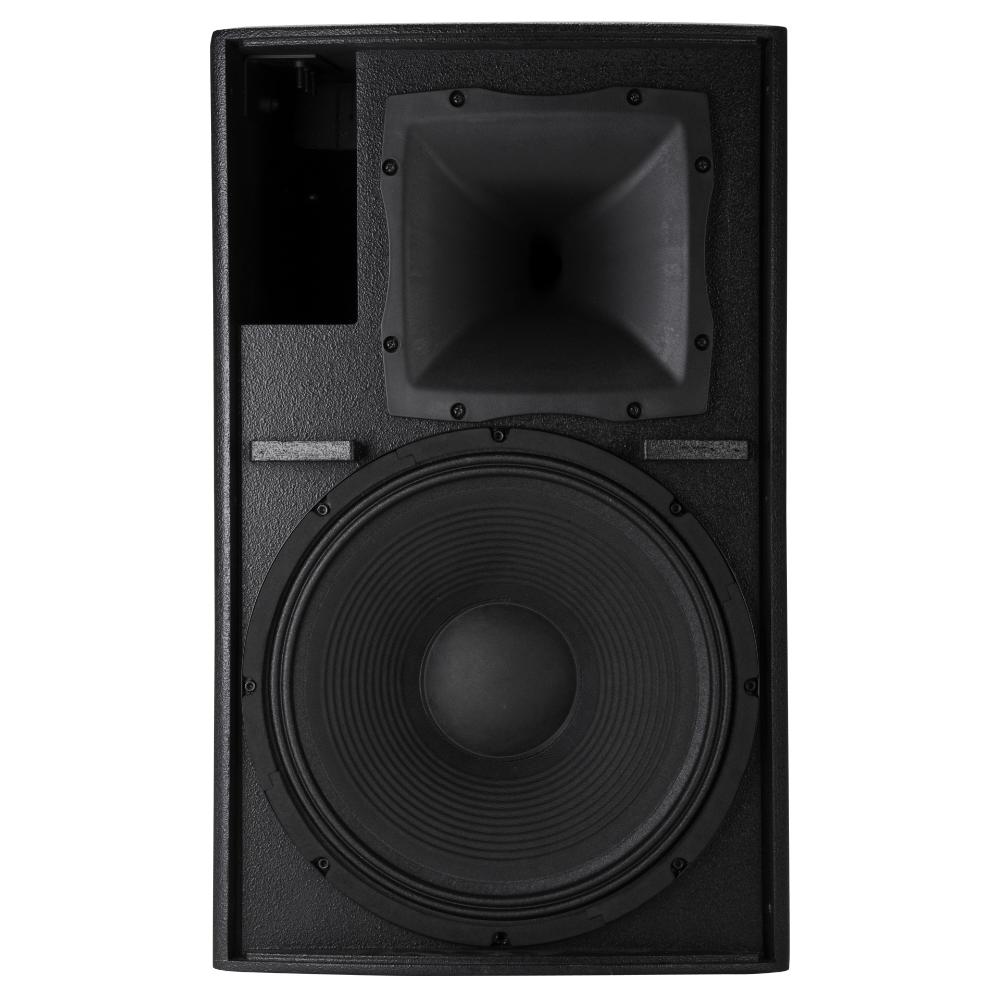

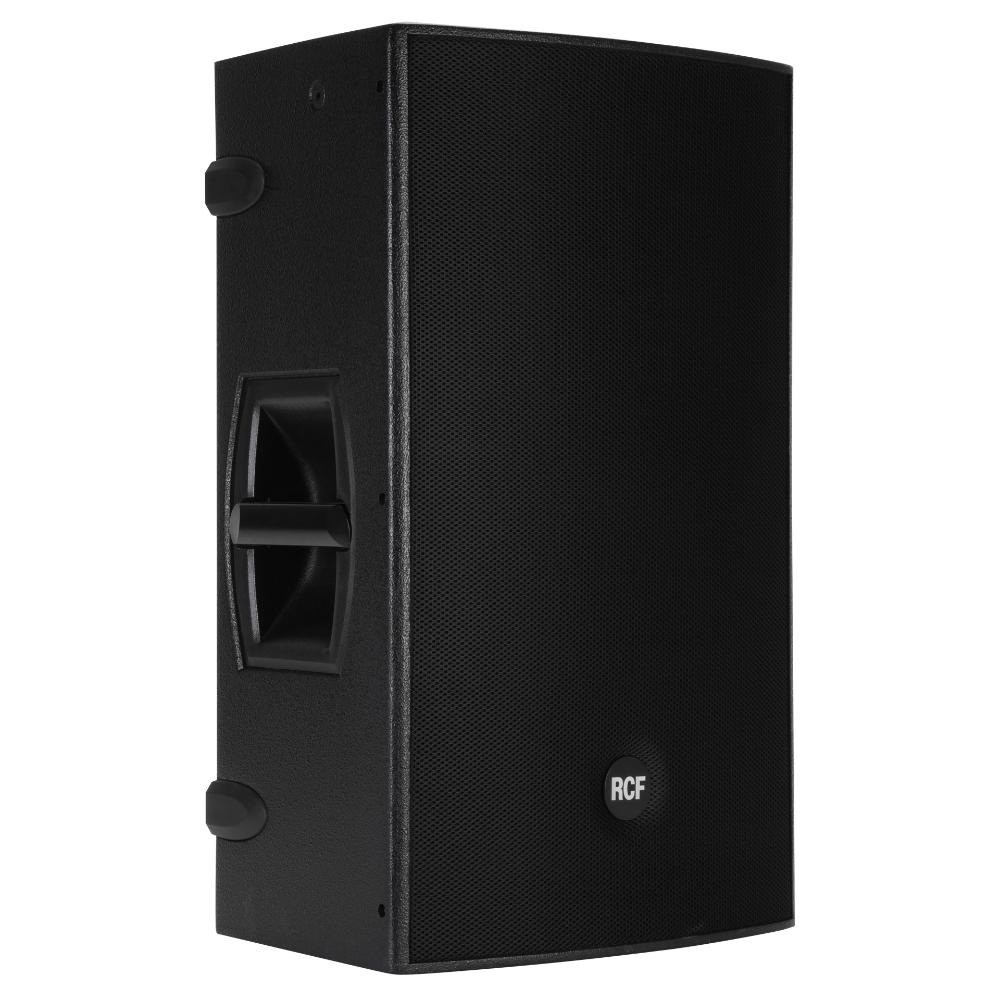

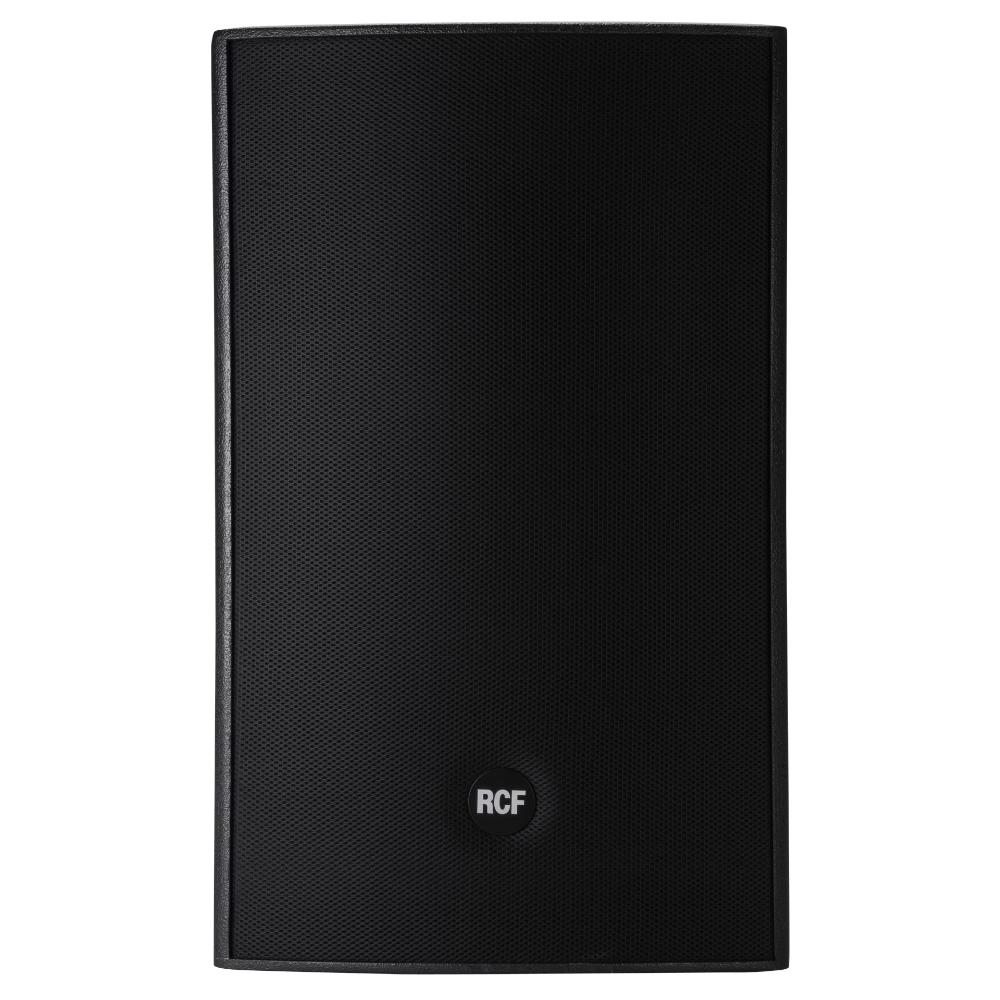

The 4PRO 3031-A is a perfect two-way active bass reflex loudspeaker for live sound situations where extra vocal punch and extremely accurate high frequency response is needed. A superb bass punch is guaranteed by the high power 15” low distortion woofer. The 4PRO 3031-A comprises a 15” woofer and a 1.7” voice coil compression driver that is mounted to a 90° x 60° constant directivity horn.

ARCHIVED

Part number:

13000366
4PRO 3031-A
220-240V, EAN 8024530009793

13000367
4PRO 3031-A
115V, EAN 8024530009809

Specifications
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
130 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Transducers
Compression Driver
1 x 1.0'', 1.75'' v.c
Woofer
15'', 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
Combo XLR/Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
1650 Hz
Protections
Thermal, RMS
Limiter
Fast Limiter
Controls
Volume, EQ Shape, Mic/Line
Power section
Total Power
1200 W Peak, 600 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
800 W Peak, 400 W RMS
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
3 x Flytracks
Handles
2 side
Pole mount/Cap
Yes
Color
Black
Size / Weight
Height
708 mm / 27.87 inches
Width
430 mm / 16.93 inches
Depth
430 mm / 16.93 inches
Weight
27 kg / 59.52 lbs
Shipping information
Package Height
744 mm / 29.29 inches
Package Width
484 mm / 19.06 inches
Package Depth
484 mm / 19.06 inches
Package Weight
31.4 kg / 69.23 lbs
Accessories
Downloads
MANUALS
USER MANUAL - ENG ITA FRA DEU
PDF
266 KB
12-06-2024
SPECIFICATIONS
SPECSHEET - DEU
PDF
950 KB
18-10-2024
SPECSHEET - ENG
PDF
944 KB
18-10-2024
SPECSHEET - FRA
PDF
947 KB
18-10-2024
SPECSHEET - ITA
PDF
945 KB
18-10-2024
SPECSHEET - SPA
PDF
946 KB
18-10-2024
STANDARD COMPLIANCES
CE DECLARATION OF CONFORMITY - ENG
PDF
34 KB
24-01-2024
UKCA DECLARATION OF CONFORMITY - ENG
PDF
35 KB
24-01-2024
DRAWINGS
LINE ART 2D
DXF
6.1 MB
23-05-2017
LINE ART 2D
PDF
126 KB
23-05-2017
LINE ART 3D
DXF
24.1 MB
22-01-2024
SOFTWARE
GLL
ZIP
680 KB
29-06-2017
