INSTALLED SOUND

X-MAX 12

HIGH POWER TWO-WAY SPEAKER

800 W program power handling
129 dB max SPL
60 ÷ 20000 Hz frequency range
90° x 70° constant directivity coverage angle

Wo zu kaufen

Merkmale

800 W program power handling
129 dB max SPL
60 ÷ 20000 Hz frequency range
90° x 70° constant directivity coverage angle
1 x 12" high power woofer
1 x 1.4" voice coil compression driver
High quality plywood cabinet
Installation points available on rear, top and bottom panels

The full-range passive two-way speaker X-MAX 12 has been specifically designed as club systems for entertainment, to achieve the best nearfield quality, vocal coherence and a stable tonal balance even at high volume. The heavy-duty speaker cabinet is made of plywood coated with black textured acrylic paint. Featuring a 12” woofer with a 2.5” voice and a 1.0” compression driver with 1.4” voice coil. The LICC crossover design includes an electronic protection on high-frequency device. The rotatable 90°x70° horn allows installation either vertically or horizontally in any environment and architectural constraint.

Part number:

13000658
X-MAX 12
EAN 8024530018368

Designed to perform

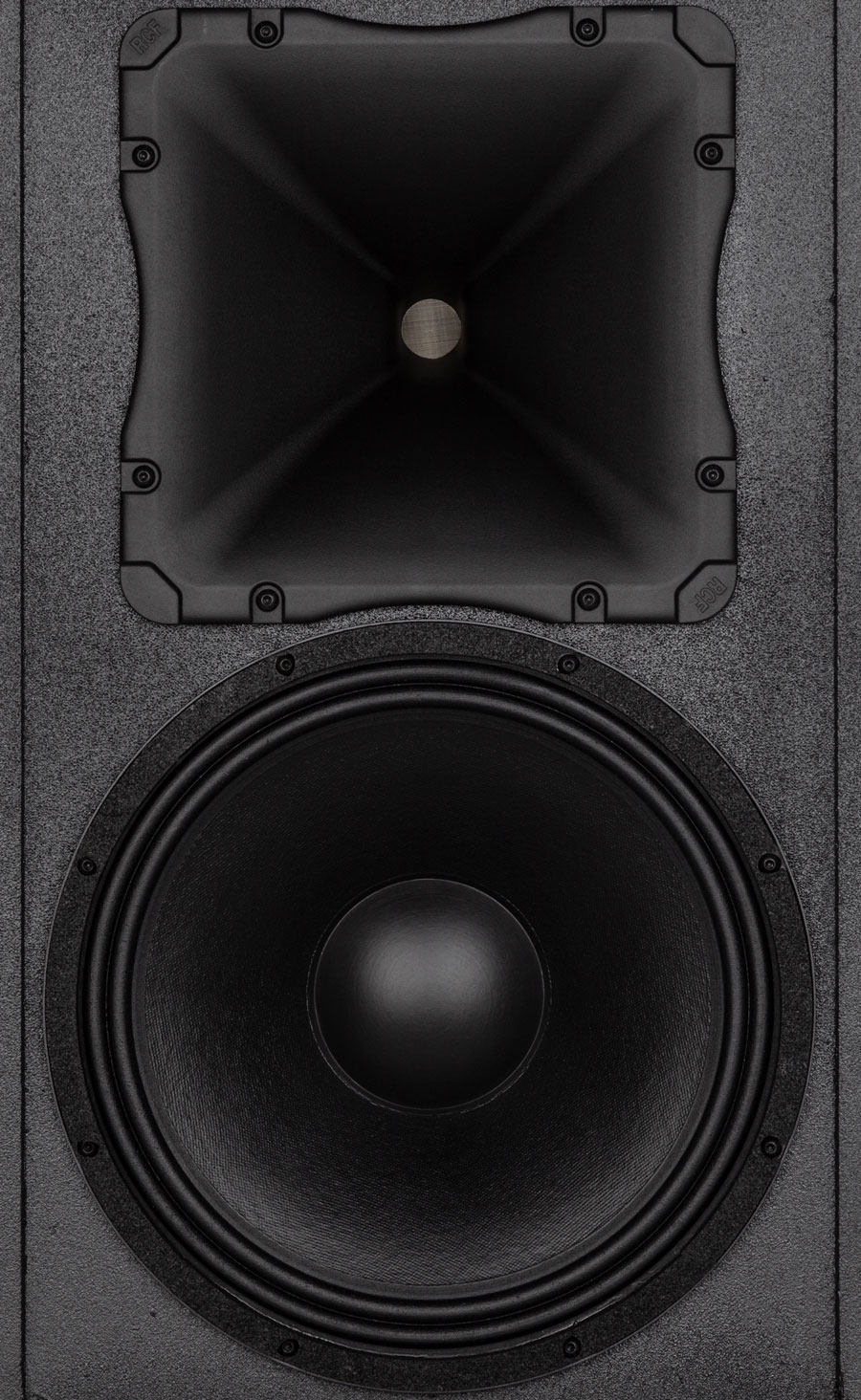

The RCF X MAX series and its components are designed inside RCF’s laboratories and feature superior transducers. Equipped with a rotatable horn with 90° x 70° dispersion pattern, X MAX 12 boasts a 12” woofer and 1” compression driver, and delivers a maximum SPL of 129 dB SPL over a frequency range of 60 Hz – 20 kHz, with a total power handling of 800 W.

Perfectly tuned crossover

The X MAX Series features a custom-designed mid-freq shaping for close distance listening on a perfectly tuned crossover to ensure the best frequency and phase response. The LICC crossover design includes electronic protection on high-frequency device.

Robust workhorse

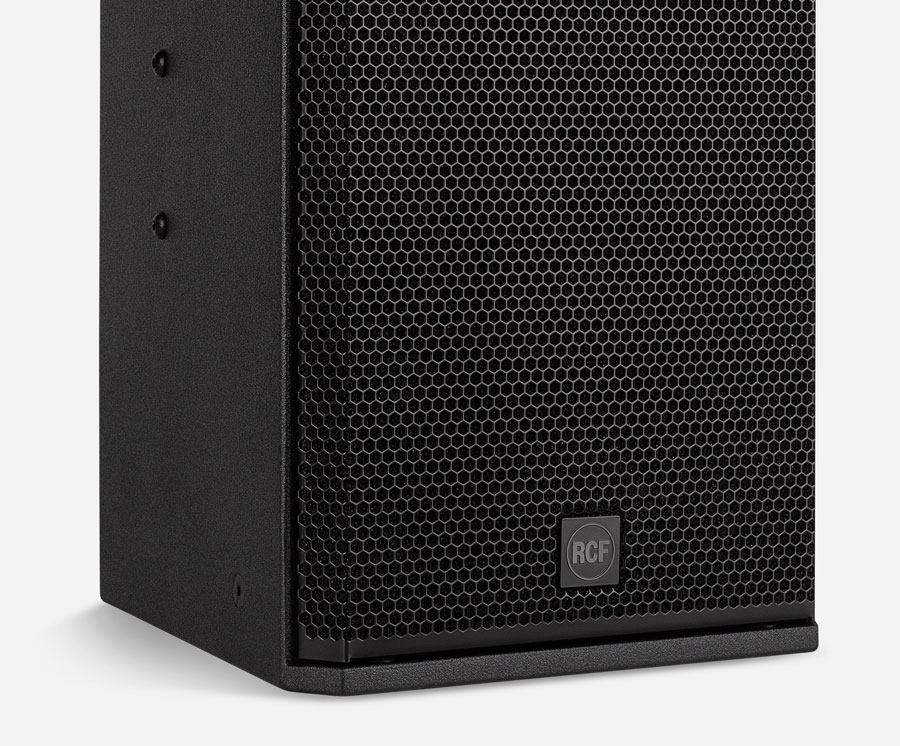

All X MAX Series cabinets are built-in plywood coated with black textured acrylic paint. A sturdy powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

Easy rigging

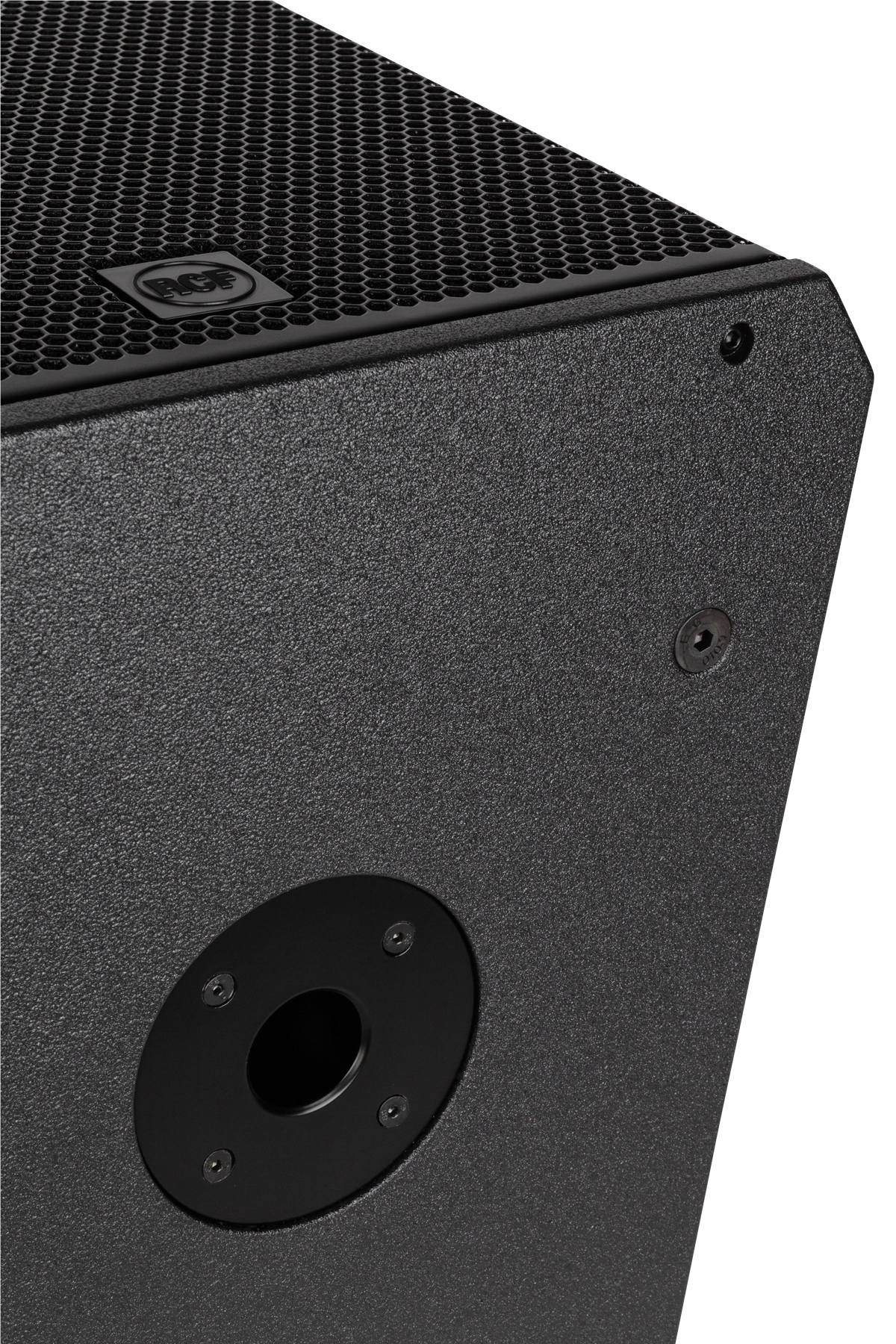

The base of each speaker includes a robust steel pole socket for mounting on a stand or a subwoofer pole. Threaded inserts are provided on all sides for optional mounting hardware. Included are multiple rigging points to fly the speakers for maximum architectural freedom in any installation.

Spezifikationen

Spezifikation

Frequenzgang (-10dB)

60 Hz ÷ 20000 Hz

Max SPL @ 1m:

129 dB

Horizontaler Abstrahlwinkel:

90°

Vertikaler Abstrahlwinkel:

70°

Richtcharakteristik Index Q

System-Empfindlichkeit

97 dB

Power sektion

Amplification

Full Range

Nominalimpedanz

8 ohm

Leistungsaufnahme

400 W

Paek Power

1600 W PEAK

Schutzschaltungen

Dynamic active mosfet

Übergangsfrequenz

1800 Hz

Schallwandler

Kompressionstreiber:

1 x 1.0'', 1.4'' v.c

Woofer

1 x 12'', 2.5'' v.c

Input/Output sektion

Eingangsbuchsen

Speakon

Standardkonformität

Safety agency

CE compliant

Physikalische daten

Gehäuse Material

Plywood

Hardware

2 x M8, 16 x M10

Pole Mount/Cap

35 mm insert

Gitter

Steel with clothing

Farbe

Black

Größe / Gewicht

Höhe

620 mm / 24.41 inches

Breite

362 mm / 14.25 inches

Tiefe

404 mm / 15.91 inches

Gewicht

22 kg / 48.5 lbs

Versandinformationen

Verpackung Höhe

655 mm / 25.79 inches

Verpackung Breite

442 mm / 17.4 inches

Verpackung Tiefe

400 mm / 15.75 inches

Verpackungsgewicht

25.5 kg / 56.22 lbs
