HVL 15-L

LONG THROW THREE-WAY SYSTEM
  • 1000 W (LF) + 900 W (MHF) power handling
  • 147 dB max SPL
  • 43 ÷ 18000 Hz frequency range
  • 90° x 30° coverage angles
Wo zu kaufen
Merkmale Spezifikationen Verwandte Produkte Downloads
Wo zu kaufen
Merkmale
  • 1000 W (LF) + 900 W (MHF) power handling
  • 147 dB max SPL
  • 43 ÷ 18000 Hz frequency range
  • 90° x 30° coverage angles
  • Fully equipped with neodymium transducers
  • Bi-amped system with passive filter between MF and HF
  • Horn Loaded symmetric design
  • Baltic birch plywood cabinet and steel grille
  • Weatherproof treatment

HVL 15-L is a three-way, bi-amp loudspeaker system for long-throw applications, outfitted with 2 x 15” woofers, 2 x 10” midranges, and 2 x 4.0” voice coil, titanium dome compression drivers. Equipped with the latest generation of RCF precision transducers with powerful neodymium magnets, HVL 15-L provides very high output and accurate sound and voice reproduction. The system, driven in bi-amped mode, can produce a max SPL of 144 dB, handling 1000 W RMS (LF) + 900 W RMS (MHF). An internal passive filter provides crossover and equalization between the midranges and the compression drivers. The horizontal coverage is 90°, and the vertical coverage is 30°. A heavy-duty, weatherproof barrier strip provides connections. The cabinet is made of Baltic birch plywood. The finishing is a waterproof, textured, polyurea coating. The grille is in epoxy coated heavy-duty steel with open-cell fibers and water repellent woven-fabric backing.

AVAILABLE ON ORDER
WEITERLESEN

Part number:

13000640
HVL 15-L W
EAN 8024530017606

Long throw applications

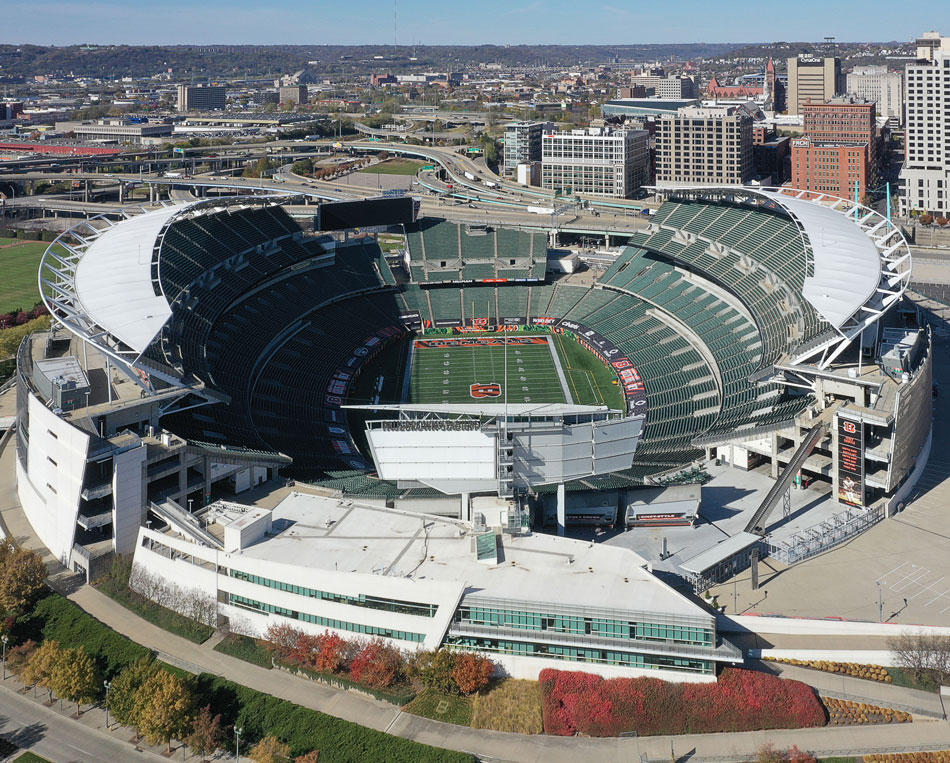

Focusing on stadiums and big arenas, HVL Series speakers are capable of true, concert-level high performance in arena-sized venues. Featuring point source, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.
Responsive Image

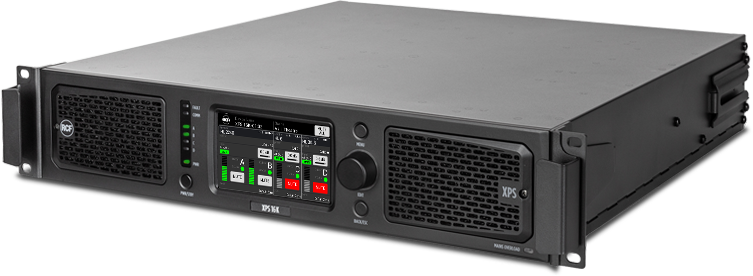

Enpfohlener Verstärker

XPS SERIE

4 x 4000 W

Class-D-Dauerleistung an 2,7 Ohm

40-bit Floating-point Signalverarbeitung mit 96 kHz
Sofort einsatzbereit
Konfigurationen und Presets für RCF Lautsprecher
Rackformat, 2 HE

für mobile Anwendungen und Festinstallationen

Flexibles 32-Bit-Routing
mit analogen, digitalen und Dante-Ein-/Ausgängen
Schutzschaltungen
für jeden Endstufenkanal und das Netzteil
Responsive Image

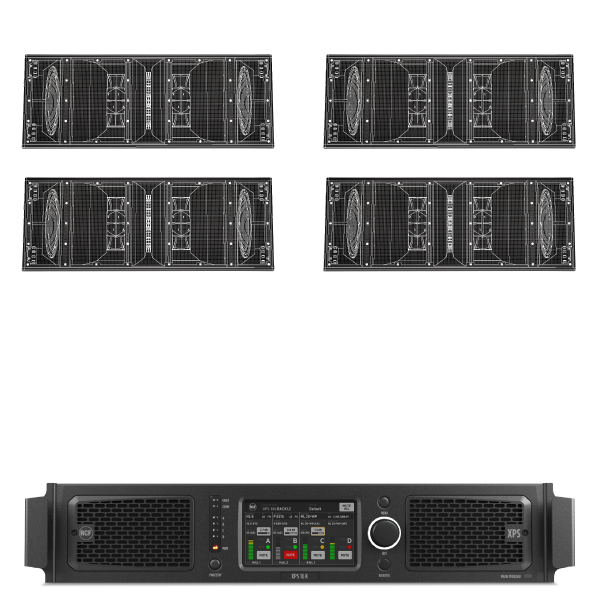

3-Wege-System mit erweiterter Beschallungstiefe
4 x 15-Zoll-Hochleistungs-Doppelhornsystem (HVL 15-L)
Große Veranstaltungsorte und Arenen
Responsive Image
Responsive Image

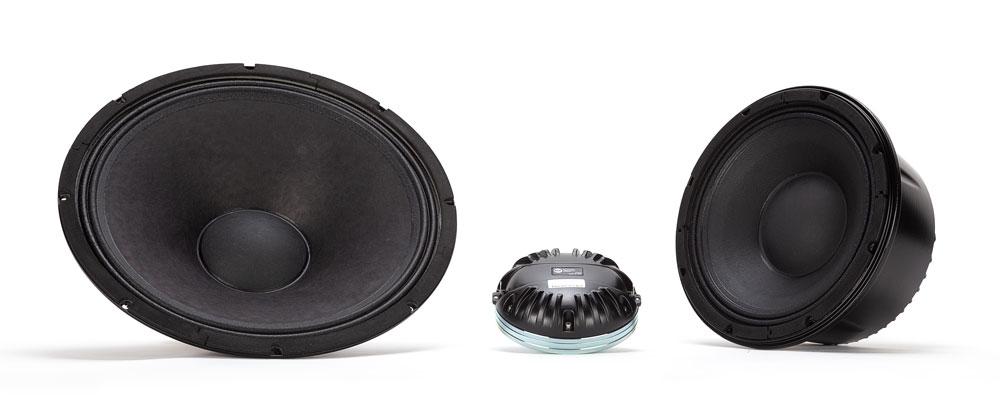

Precision transducers

With in-house transducers’ design and manufacturing for no-compromise performances, the HVL Series excels in any comparison. All transducers feature state of the art neodymium magnetic circuits, radically new voice coil ventilation systems, and ground-breaking voice coil assemblies.

Low frequencies 2 x 15” high-power woofer, 3,5" inside/outside voice coil, dual spider, hypervented, neodymium magnet.

Mid frequencies 2 x 10” neodymium midrange, 3" voice coil, high performance sealed basket design.

High frequencies 2 x 4” neodymium compression driver, titanium dome, 4 slot phase plug, copper inductance ring for extended response.

4path waveguide

The custom 4 PATH-designed waveguide allows precise coverage while also delivering an excellent, linear high-frequency response. The unique shape of the four ducts forming the guide creates an ideal isophasic load from the vocal range up to the highest audible frequencies.
Responsive Image
Responsive Image

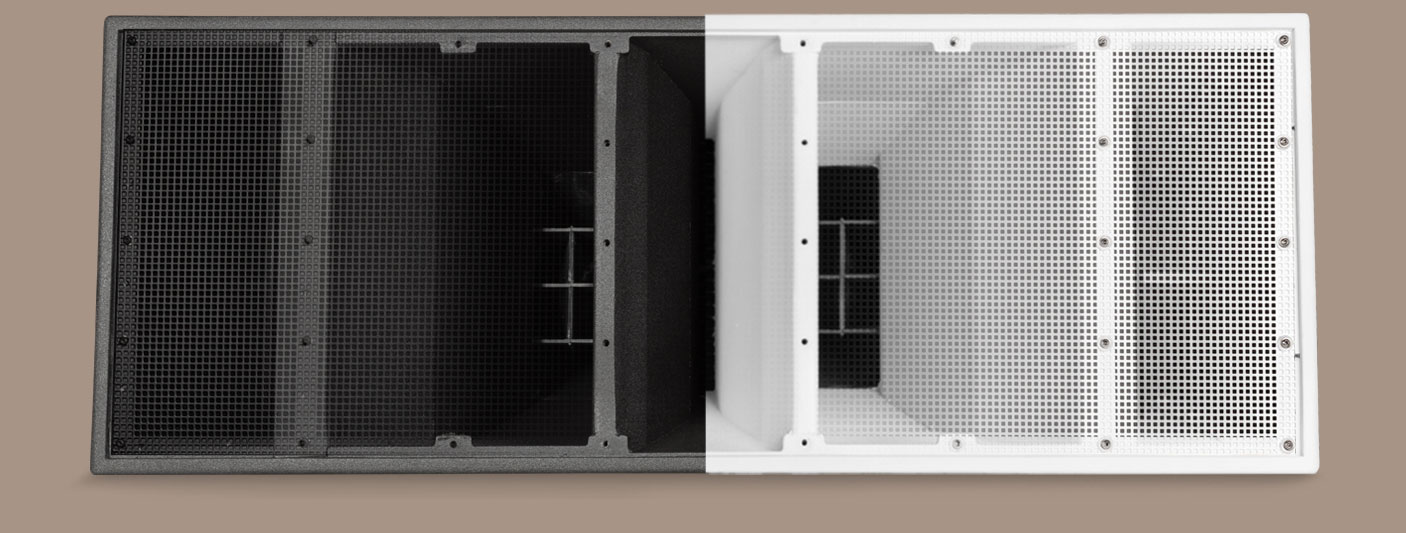

Consistent robustness

Reduce the commissioning time on your new projects with HVL’s modular array-ability, multiple directivity indexes (Q, and small footprint in comparison to its power. HVL can lower overall system costs by delivering full coverage with fewer modules precisely matching the audience area. Rated for direct-exposure outdoor installations, each cabinet is made of Baltic birch plywood with polyurea coating and includes a weatherproof barrier strip for connections. The grille is powder-coated heavy-duty steel with open-cell fibers and water repellent woven-fabric backing.
Responsive Image

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Responsive Image
Spezifikationen
Spezifikation
Frequenzgang (-10dB)
43 Hz ÷ 18000 Hz
Frequenzgang (-3dB)
59 Hz ÷ 13000 Hz
Max SPL @ 1m:
147 dB
Horizontaler Abstrahlwinkel:
90°
Vertikaler Abstrahlwinkel:
30°
Richtcharakteristik Index Q
12
Power sektion
Amplification
Bi-Amp
Nominalimpedanz LF
8 ohm
Leistungsaufnahme LF
1000 W
Paek Power LF
4000 W
Empfindlichkeit LF
97 dB
Nominalimpedanz MF+HF
8 ohm
Leistungsaufnahme MF+HF
900 W
Paek Power MF+HF
3600 W
Empfindlichkeit MF + HF
111 dB
Schutzschaltungen MF+HF
Dynamic Active Mosfet
Übergangsfrequenz
1000 Hz
Enpfohlener Verstärker
XPS 16K, XPS 16KD, QPS 10K
Schallwandler
Kompressionstreiber:
2 x 1.4'' neo, 4.0'' v.c
Mittenbereich
2 x 10'' neo, 3.0'' v.c
Woofer
2 x 15'' neo, 3.5'' v.c
Input/Output sektion
Eingangsbuchsen
Screw Terminals
Ausgangsanschlüsse
Screw Terminals
Standardkonformität
Safety agency
CE compliant
Physikalische daten
Gehäuse Material
Baltic birch plywood
Hardware
n° 8 x M20 on each side panel
n° 8 x M20 on top and bottom panels
Gitter
Steel
Farbe
White - RAL 9010, Black - RAL 9005
Größe / Gewicht
Höhe
525 mm / 20.67 inches
Breite
1382 mm / 54.41 inches
Tiefe
815 mm / 32.09 inches
Gewicht
110 kg / 242.51 lbs
Versandinformationen
Verpackung Höhe
920 mm / 36.22 inches
Verpackung Breite
1405 mm / 55.31 inches
Verpackung Tiefe
545 mm / 21.46 inches
Verpackungsgewicht
120 kg / 264.55 lbs
